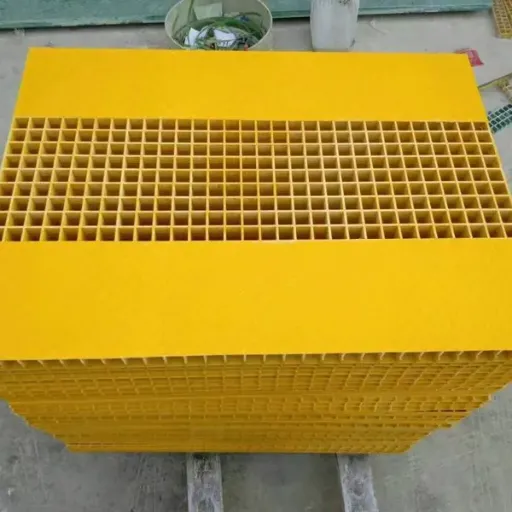

Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019 with a 1,000-3,000 sqm factory and ISO9001:2015 certification, presents our premium Molded FRP Gratings for Trench Covers. These reinforced plastic mesh panels are designed to provide superior strength, corrosion resistance, and lightweight handling for drainage and industrial applications. Our FRP gratings are engineered to replace traditional steel gratings, offering long-lasting performance without rust or maintenance issues.
Key Features & Benefits
Exceptional Corrosion Resistance – Made from fiberglass and premium resins, these gratings withstand harsh chemicals, UV exposure, and moisture, ideal for trenches in wastewater treatment, chemical plants, and coastal areas.
High Strength-to-Weight Ratio – With a molded structure, our panels offer load capacities up to C4 (50 kN/m²) while weighing only 1/4 of steel gratings, reducing installation costs and labor.

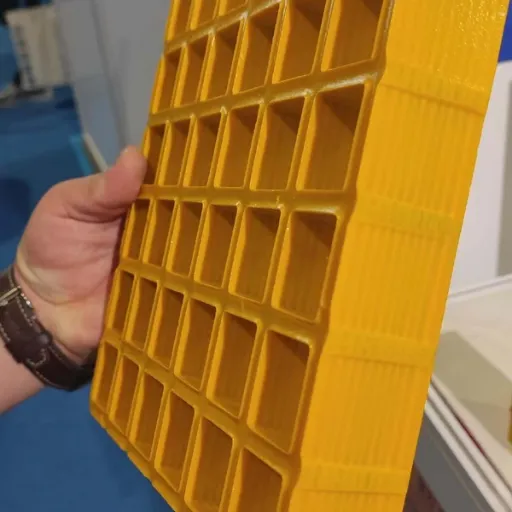

Anti-Slip Surface – The integrated grit top or textured pattern provides excellent slip resistance, even in wet or oily conditions, enhancing worker safety.

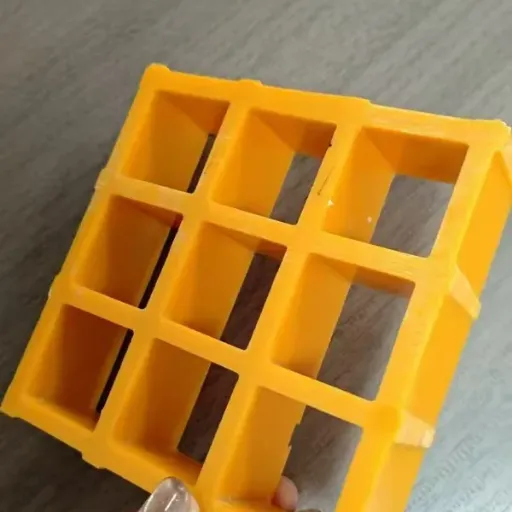

Customizable Dimensions – Available in various panel sizes, thicknesses (25–50 mm), and grid openings (e.g., 38×38 mm, 50×50 mm) to fit specific trench widths and load requirements.
Non-Conductive & Non-Magnetic – Ideal for electrical substations and sensitive environments where sparking or magnetic interference must be avoided.
Easy Installation & Maintenance – Lightweight panels can be cut on-site with standard tools, and they require no painting or coating over their lifetime.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | Fiberglass Reinforced Plastic (FRP) – isophthalic polyester resin |

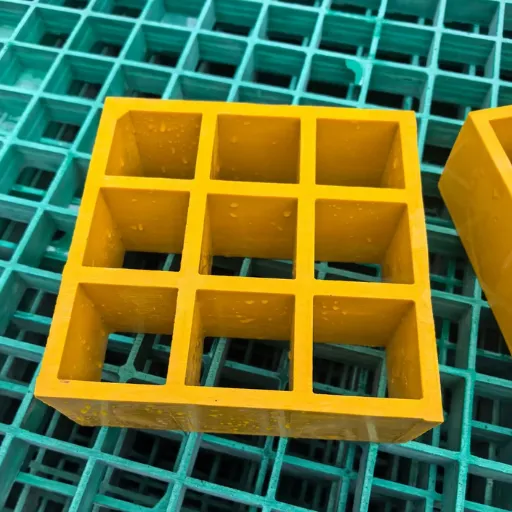

| Grid Opening | 38 mm × 38 mm (standard), 50 mm × 50 mm (optional) |
| Panel Thickness | 25 mm, 30 mm, 38 mm, 50 mm |
| Load Class (EN 1433) | C1 (15 kN) / C2 (25 kN) / C3 (40 kN) / C4 (50 kN) |
| Color | Yellow, gray, green, blue, or custom RAL colors |
| Surface Finish | Anti-slip grit top, smooth bottom |
| Operating Temperature | -40°C to +80°C (standard); up to +120°C with vinyl ester resin |
Application Areas
Municipal drainage trench covers and walkways
Chemical processing plants and refineries

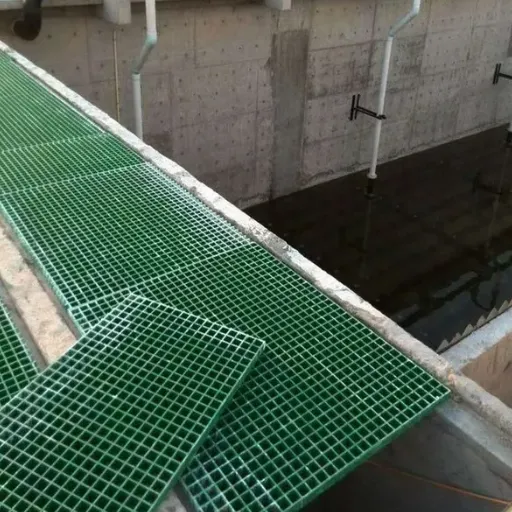

Wastewater treatment and water treatment facilities
Swimming pools, marinas, and coastal infrastructure
Pharmaceutical and food processing industries (hygienic)
Electrical substations and cable trenches
Why choose Hengshui Ruibin? As a dedicated manufacturer with an annual export value of US$2.5–5 million, we serve clients across North America, South America, Europe, Southeast Asia, Africa, and the Middle East. Our ISO9001-certified facility ensures consistent quality, and our 101–200 skilled employees guarantee timely delivery from Tianjin/Qingdao ports. We have successfully supplied over 500,000 square meters of FRP gratings to global projects, earning trust through reliability and customization.
We invite you to experience the durability and cost-efficiency of our Molded FRP Gratings. Contact us today for a quote or sample order. Our team will assist you in selecting the right load class, size, and finish for your trench cover needs.
Frequently Asked Questions
Q: What is the difference between molded and pultruded FRP grating? A: Molded gratings are manufactured in a one-piece process, resulting in a smooth, integrated mesh with higher impact resistance and lower cost for trench covers. Pultruded gratings are made from separate bearing bars and cross rods, offering higher strength for heavy-duty applications.
Q: Are these gratings suitable for traffic loads? A: Yes, depending on the load class. For pedestrian and light vehicle traffic (e.g., golf carts), C1/C2 is sufficient. For heavy truck traffic, we recommend C3 or C4 class. Please consult our technical team for specific load requirements.
Q: Can the panels be cut to size on site? A: Absolutely. FRP gratings can be easily cut with a diamond saw or abrasive wheel. No special tools are needed. We also offer pre-cut panels to your exact dimensions.
Q: How long do these gratings last? A: With proper installation, our FRP trench covers have a service life of 20–30 years, depending on environmental conditions. They are resistant to UV degradation, corrosion, and chemical attack.
Q: Do you provide custom colors or logos? A: Yes, we can match RAL colors for branding or safety requirements. Custom logos can be embedded during the molding process for a small additional cost.
Q: What is the minimum order quantity (MOQ)? A: For standard sizes, MOQ is 50 square meters. For custom dimensions or colors, MOQ may be higher. We are flexible for sample orders.
Q: Are these gratings fire-resistant? A: Standard polyester resin is self-extinguishing (Class 1 per BS 476). For higher fire ratings, we can use fire-retardant additives or vinyl ester resin. Please specify your requirements.
Q: How are the panels packaged for export? A: Panels are packed in wooden crates or pallets with protective corner guards. Each package is labeled with product details and shipping marks. We ensure safe handling for sea freight.
