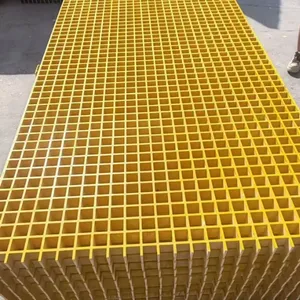

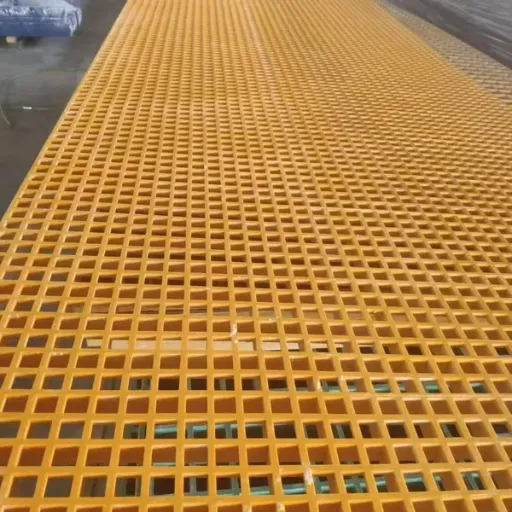

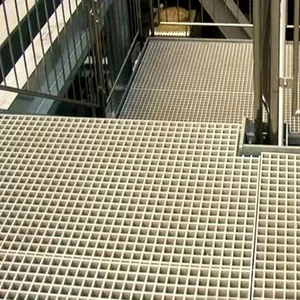

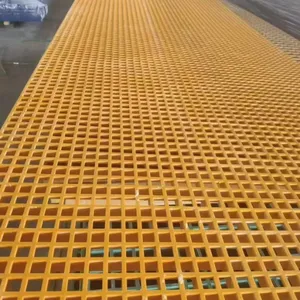

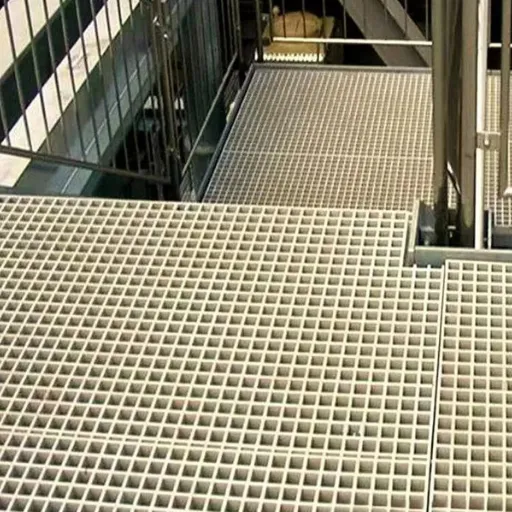

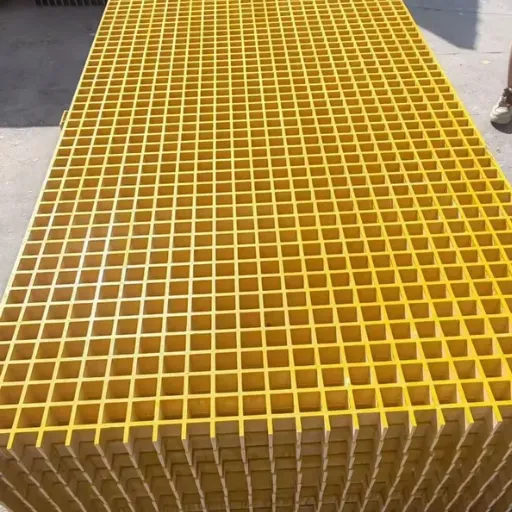

Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019 with a factory spanning 1,000–3,000 square meters, proudly presents our premium FRP GRP Molded Grating with Gritted Surface. This anti-slip fiberglass reinforced plastic grating is engineered to provide superior safety, durability, and corrosion resistance for demanding industrial environments. Our product combines advanced molding technology with a specialized gritted surface to ensure reliable traction even in wet or oily conditions, making it an ideal choice for walkways, platforms, and drainage covers worldwide.
Key Features & Benefits
Anti-Slip Gritted Surface: The embedded silica or aluminum oxide grit provides exceptional slip resistance, reducing accident risks in high-traffic or hazardous areas.
Corrosion & Chemical Resistance: Made from high-quality fiberglass reinforced plastic, the grating withstands exposure to acids, alkalis, salts, and UV radiation, ensuring long service life.
Lightweight yet Strong: With a weight 75% less than steel, it is easy to install and handle, while offering high strength-to-weight ratio for heavy load applications.
Low Maintenance: Non-conductive, non-magnetic, and rot-proof, the grating requires minimal upkeep and does not rust or decay.

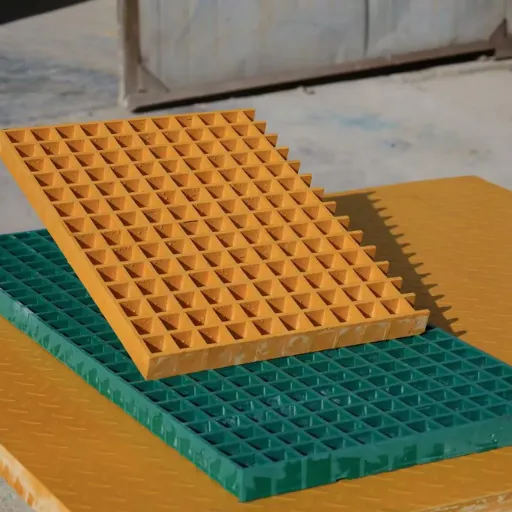

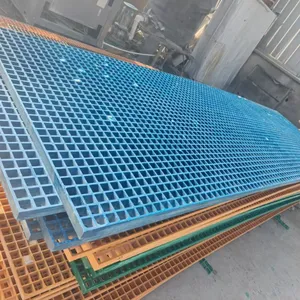

Customizable Options: Available in various thicknesses (25mm, 30mm, 38mm, 50mm), colors, and panel sizes to meet specific project requirements.
Technical Specifications
| Property | Value |
| Material | FRP (Fiberglass Reinforced Polyester) / GRP |
| Panel Thickness | 25mm, 30mm, 38mm, 50mm |
| Standard Panel Size | 1220mm x 3660mm (custom sizes available) |
| Span (Maximum) | Up to 600mm (depending on load) |
| Load Bearing | Light, medium, heavy duty (per ASTM D3840) |
| Surface | Gritted with aluminum oxide / silica sand |
| Color | Customizable (yellow, gray, green, red, etc.) |
| Fire Resistance | Class I (self-extinguishing) or Class II (optional) |
| Operating Temperature | -40°C to +80°C (up to 120°C with special resin) |
Detailed Product Description
Our FRP GRP molded grating is manufactured using a compression molding process that ensures uniform fiber distribution and consistent quality. The gritted surface is achieved by embedding abrasive particles into the top layer during the molding process, creating a permanent anti-slip texture that will not wear off easily. This feature is particularly valuable in environments where oil, grease, water, or chemicals create slippery conditions, such as offshore platforms, chemical plants, food processing facilities, and wastewater treatment plants.

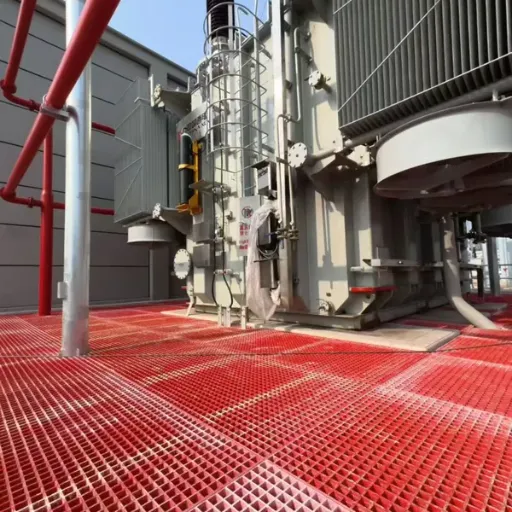

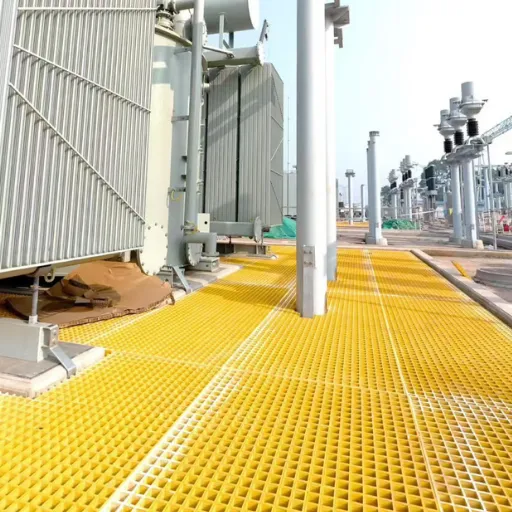

The grating's open grid design allows for efficient drainage of liquids and debris, reducing the risk of ponding and bacterial growth. Its lightweight nature (approximately 1.8 kg per 10 cm thickness per square meter) makes it easier to transport and install compared to steel or aluminum alternatives, saving on labor and shipping costs. Additionally, the material is non-conductive and non-magnetic, making it safe for use in electrical substations and sensitive electronic areas.
We offer a range of load ratings to suit different applications: light-duty for pedestrian walkways, medium-duty for light vehicles, and heavy-duty for industrial forklift traffic. The grating can be cut to size on-site with standard tools, and optional accessories such as clips, fasteners, and anti-slip strips are available upon request.
Why Choose Hengshui Ruibin New Materials LLC?
As a dedicated manufacturer with over 5 years of experience, we have exported our FRP products to global markets including North America, South America, Europe, Southeast Asia, Africa, and the Middle East. Our annual export value of US$2.5 million to US$5 million reflects the trust and satisfaction of our international clients. We have a team of 101-200 skilled employees working in our 1,000-3,000 sqm facility, ensuring strict quality control from raw material procurement to final inspection.
Our factory is certified under ISO9001 and ISO9000 quality management systems, guaranteeing consistent product quality and on-time delivery. We ship from the Port of Tianjin and Port of Qingdao, offering flexible logistics solutions. Whether you need standard panels or customized dimensions, we are committed to providing competitive pricing and excellent after-sales service.
Contact us today for a quote or technical consultation. Let our anti-slip FRP grating enhance safety and efficiency in your facility. We look forward to a long-term partnership with you.
Frequently Asked Questions (FAQ)
Q: What is the difference between FRP and GRP?
A: FRP (Fiberglass Reinforced Plastic) and GRP (Glass Reinforced Plastic) are the same material. Both terms refer to a composite of plastic resin reinforced with glass fibers. In different regions, one term may be more common, but the product is identical.Q: How long does the anti-slip grit last?
A: The grit is embedded during the molding process and forms a permanent bond with the resin. Under normal usage, the slip resistance remains effective for the entire life of the grating, typically 15-20 years.Q: Can I cut the grating to fit my specific dimensions?
A: Yes, the grating can be easily cut on-site using standard tools such as a carbide-tipped saw or abrasive wheel. We can also provide pre-cut panels to your specifications for an additional fee.Q: Is this grating suitable for outdoor use in extreme weather?
A: Absolutely. The FRP material is UV-resistant and can withstand temperatures from -40°C to +80°C without degradation. It is also resistant to rain, snow, and salt spray, making it ideal for outdoor platforms, bridges, and docks.Q: What load capacities are available?
A: We offer light, medium, and heavy-duty options. For example, a 38mm thick panel with a span of 600mm can support a concentrated load of up to 500 kg. Please provide your specific load requirements for a customized recommendation.Q: Do you provide samples?
A: Yes, we can send small samples (e.g., 200mm x 200mm) for evaluation. Shipping costs are to be covered by the client. Contact us for details.Q: What is the minimum order quantity (MOQ)?
A: Our MOQ depends on the panel size and thickness. Typically, for standard sizes, MOQ is 50 square meters. For custom orders, please inquire.Q: How do you ensure the product quality?
A: Our factory is ISO9001:2015 certified. Each batch undergoes testing for dimensional accuracy, load bearing, and slip resistance. We also provide a quality certificate with every shipment.
