At Deqing Leixin Coating Equipment Co., Ltd., we specialize in delivering robust industrial coating solutions tailored to the most demanding applications. Our High‑Capacity Powder Coating System is engineered specifically to handle oversized telecommunication equipment metal frames, providing a uniform, durable finish that meets stringent industry standards. With over a decade of manufacturing experience since 2011, a factory spanning 1,000–3,000 square meters, and an annual export value of US$1–1.5 million, we are a trusted partner for clients across North America, Europe, Southeast Asia, Africa, and beyond. This system is the result of continuous innovation, designed to maximize productivity while minimizing operational costs.

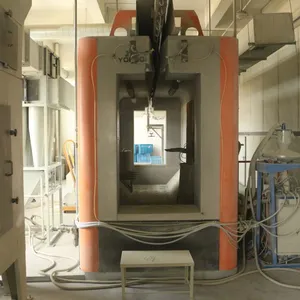

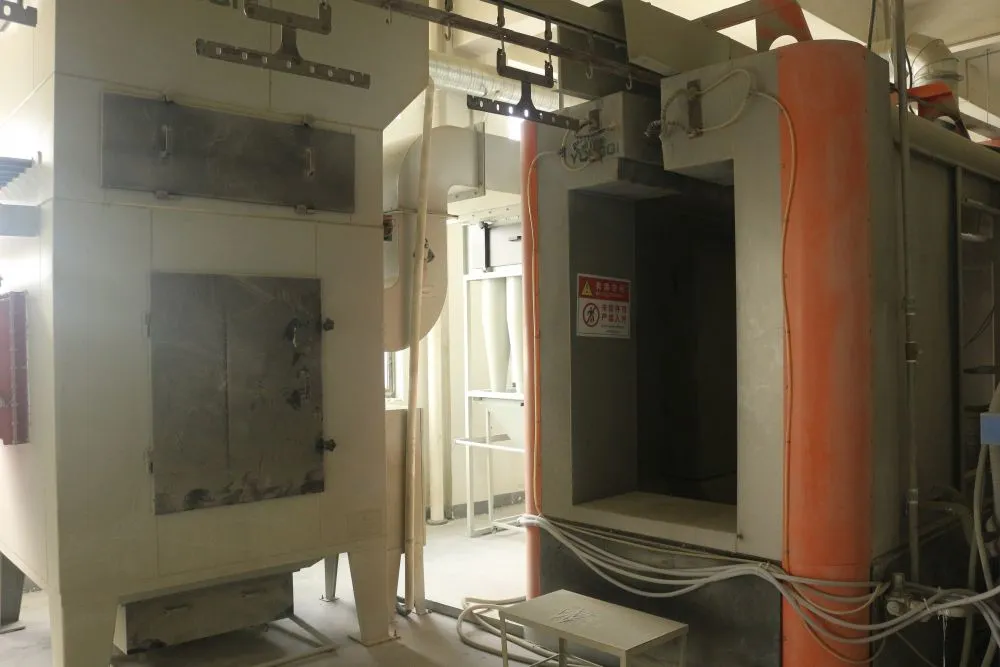

The system integrates a high‑efficiency powder recovery unit, a precision‑controlled spray booth, and a conveyorized curing oven that can accommodate frames up to 6 meters in length. Whether you are coating base station cabinets, antenna mounts, or switchgear enclosures, this solution ensures consistent film thickness, excellent adhesion, and resistance to corrosion and UV degradation. Below, we break down the key features and benefits that make this system a standout choice for large‑scale telecommunication manufacturing.
Key Features & Technical Specifications
| Parameter | Specification |
|---|---|
| Max Workpiece Size | Up to 6000 mm (L) × 1500 mm (W) × 2000 mm (H) – customizable |
| Coating Speed | 0.5 – 5 m/min (adjustable conveyor speed) |

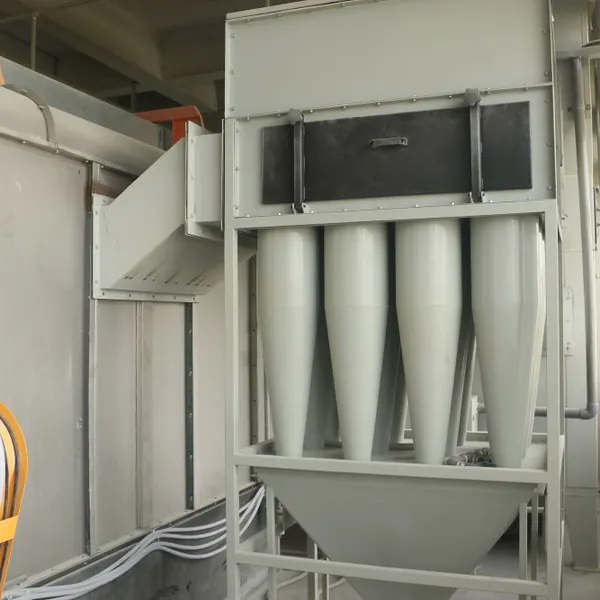

| Powder Recovery Efficiency | ≥98% with cyclone + cartridge filter system |
| Oven Temperature Range | 120°C – 250°C (PID controlled ±2°C) |
| Control System | PLC with HMI touchscreen; recipe storage for 50+ job profiles |
| Power Consumption | Approx. 80 kW (depending on oven size and efficiency package) |
| Compressed Air Requirement | 6–8 bar, 1.5 m³/min (dry and oil‑free) |
| Compliance | ISO9001:2015 certified; optional CE mark available |
Detailed Advantages & Benefits
- High Capacity Throughput: The system is designed for continuous operation, capable of coating up to 200 frames per shift, significantly reducing cycle time compared to traditional batch systems.

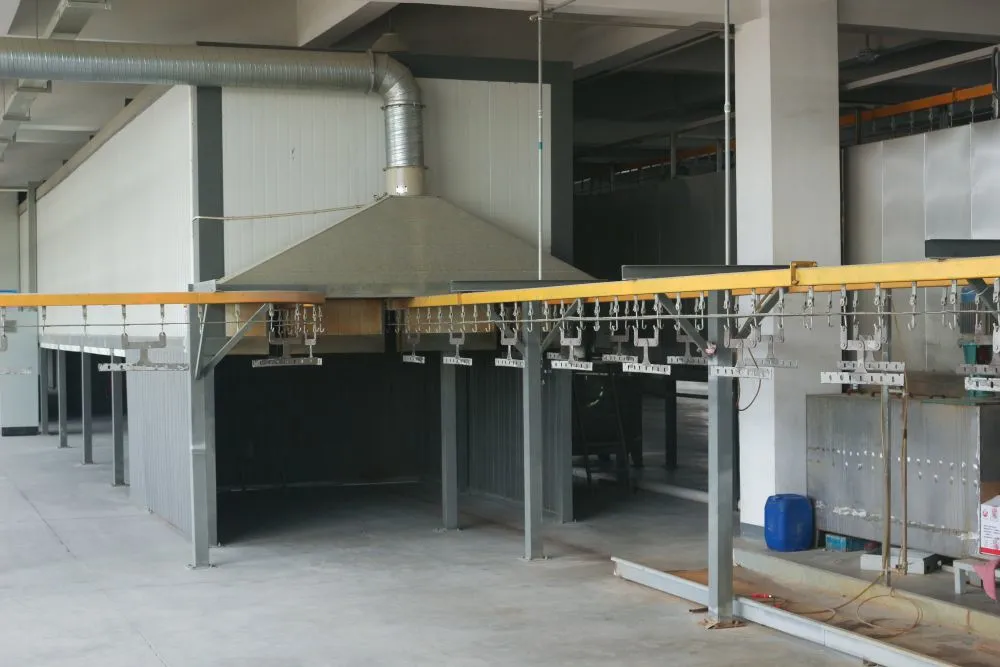

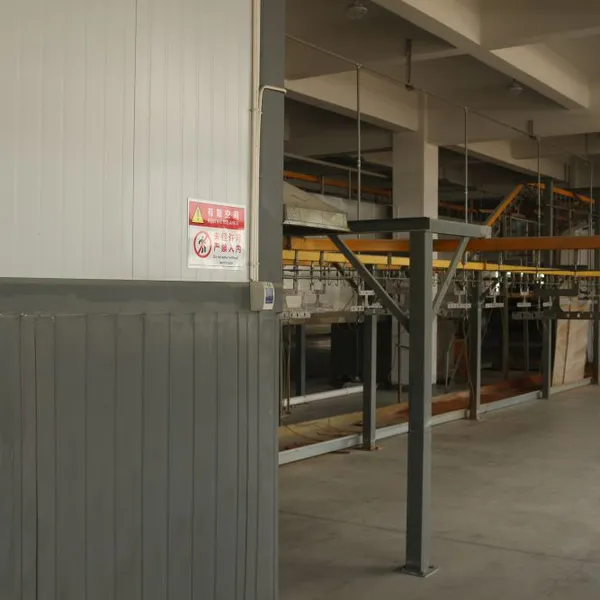

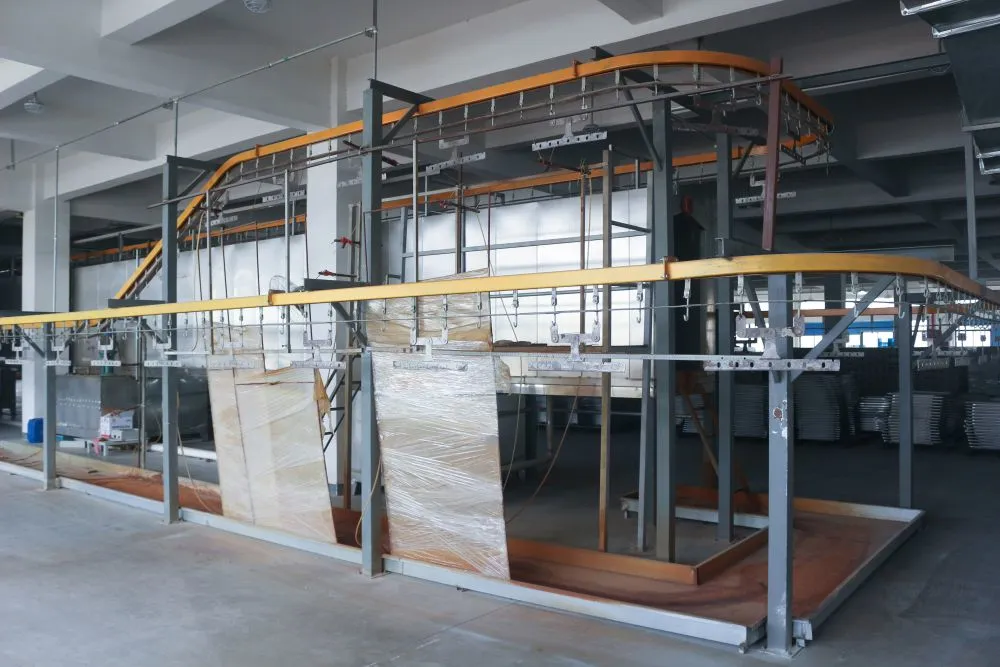

- Oversized Frame Handling: Specialized conveyor rails and adjustable hangers accommodate bulky, heavy frames without deformation or sagging during transport through the booth and oven.
- Uniform Film Thickness: Advanced electrostatic spray guns with automatic current control ensure consistent coverage even on complex geometries like deep recesses and sharp corners, minimizing rejects.
- Energy Efficiency: The gas‑fired or electric oven features a heat recovery system, reducing fuel consumption by up to 25% compared to conventional designs. Combined with a high‑efficiency powder recovery unit, overall operating costs are lowered.

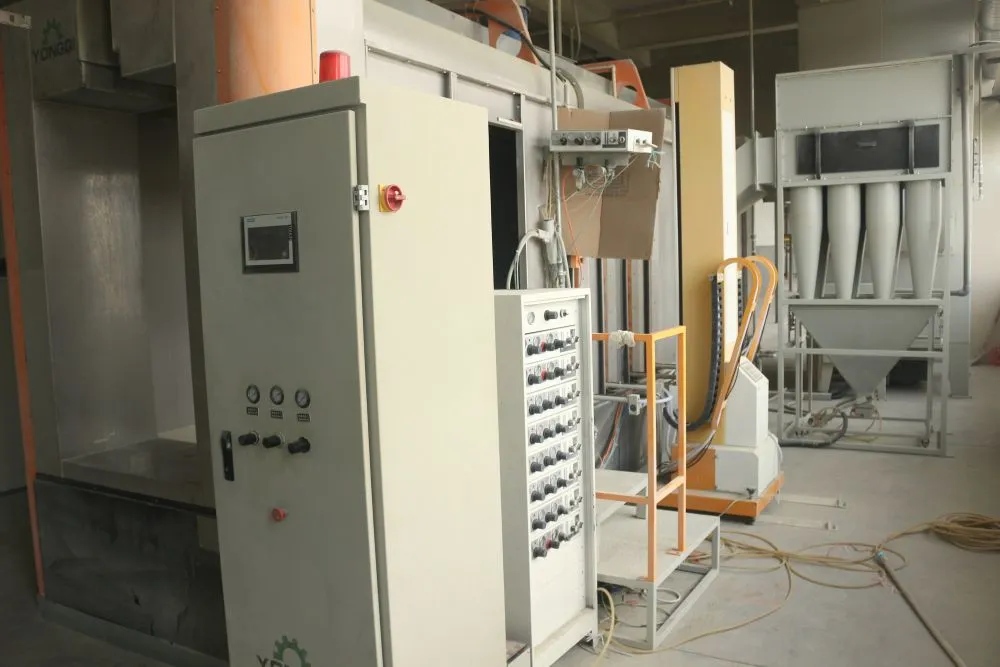

- User‑Friendly Operation: The PLC‑based control system stores job recipes, allowing operators to quickly switch between different frame types with minimal downtime. Real‑time monitoring of temperature, conveyor speed, and powder feed ensures consistent quality.
- Durable Finish: The curing process delivers a tough, scratch‑resistant coating that withstands harsh outdoor environments, meeting telecom industry requirements for corrosion resistance (salt spray test up to 1000 hours).
- Modular Design: The system can be expanded or reconfigured as production needs grow. Optional pre‑treatment stages (wash, phosphating) and post‑cure cooling tunnels are available.
- Global Support: With shipping from Ningbo or Shanghai ports, our team provides installation guidance, training, and remote troubleshooting to ensure smooth integration into your facility.
Our system is built with heavy‑duty materials to withstand 24/7 operation in demanding industrial environments. The powder booth is constructed from anti‑static stainless steel, and the oven is insulated with high‑density rock wool to minimize heat loss. All electrical components comply with international safety standards, and the system is pre‑wired and tested before shipment for quick on‑site commissioning.
Frequently Asked Questions
-
Q: What is the maximum size of frames your system can handle?
A: The standard system can handle workpieces up to 6000 mm long, 1500 mm wide, and 2000 mm high. Custom dimensions are also available upon request to accommodate extra‑large telecom enclosures. -
Q: Can this system be used for other types of metal parts besides telecom frames?
A: Yes, the system is versatile and can be adapted for coating any metal substrate that requires a durable powder finish, such as automotive chassis, agricultural machinery, or architectural extrusions. Simply adjust the recipe parameters. -
Q: What kind of powder coatings are compatible with this system?
A: The system works with all thermosetting powder coatings, including epoxy, polyester, hybrid, polyurethane, and acrylic powders. It also supports metallic and textured finishes with proper gun settings. -
Q: How long does it take to install and commission the system?
A: Typically, installation takes 2–3 weeks depending on site preparation. Our team provides on‑site supervision and training during commissioning, which usually takes 5–7 days. -
Q: Is the system environmentally friendly?
A: Yes, powder coating is a solvent‑free process that produces no VOCs. Additionally, our high‑efficiency recovery system recycles overspray powder, achieving over 98% material utilization, which reduces waste. -
Q: Do you offer a warranty or after‑sales service?
A: We provide a standard 12‑month warranty covering defects in materials and workmanship. Extended warranties and lifetime technical support are available. Our engineers can assist via video call or on‑site visits. -
Q: What is the typical payback period for this investment?
A: Based on the production volume and energy savings, most customers see a full return on investment within 12–18 months, especially when replacing manual spray or liquid painting lines. -
Q: Do you provide samples or test coating?
A: Yes, we can test your frames at our factory in Huzhou, China, or you can send us sample parts. We will provide a detailed coating report including film thickness, adhesion, and hardness results.
Why Choose Deqing Leixin?
Since 2011, our factory has been dedicated to manufacturing high‑performance coating equipment. With 51–100 skilled employees and an annual export value of US$1–1.5 million, we have delivered systems to over 20 countries across North America, Europe, Asia, and Africa. Our ISO9001:2015 certification ensures consistent quality from design to delivery. We also offer customization services to match your specific production layout and voltage requirements. When you invest in our High‑Capacity Powder Coating System, you are not just buying machinery—you are partnering with a team that provides comprehensive technical support and spare parts availability. Contact us today to discuss your project and request a tailored quotation. We are ready to help you elevate your coating line to the next level of efficiency and reliability.
