Help CenterIron Cabinet Powder Coating Line With 304 Stainless Steel Spray Booth and Filter System
Product Spotlights
Related Products
-
Modular Electrostatic Powder Spraying Solution Suited For Iron Cabinet Fabrication WorkshopNegotiableMOQ: 1 Set -
Energy‑Saving Powder Spraying Booth And Oven Combination For Iron Cabinet Metal FinishingNegotiableMOQ: 1 Set
-
Turnkey Powder Coating Production Plant Dedicated To Iron Enclosure Surface Treatment WorkNegotiableMOQ: 1 Set
-
Overhead Conveyor Electrostatic Powder Spraying Setup For Steel Electrical Cabinet Anti‑Rust FinishingNegotiableMOQ: 1 Set
-
Automated Powder Spraying Workstation Optimized For Mass Manufacturing Of Metal Cabinet ShellsNegotiableMOQ: 1 Set
Deqing Leixin Coating Equipment Co., Ltd. is proud to present our Iron Cabinet Powder Coating Line with 304 Stainless Steel Spray Booth and Filter System. As a dedicated manufacturer since 2011 with ISO9001 certification, we have designed this line specifically for efficient, durable, and high-quality powder coating of iron cabinets. The use of premium 304 stainless steel in the spray booth ensures corrosion resistance and longevity, while the advanced filter system guarantees a clean working environment and consistent coating results. This turnkey solution is built to meet the demanding needs of modern industrial coating operations.

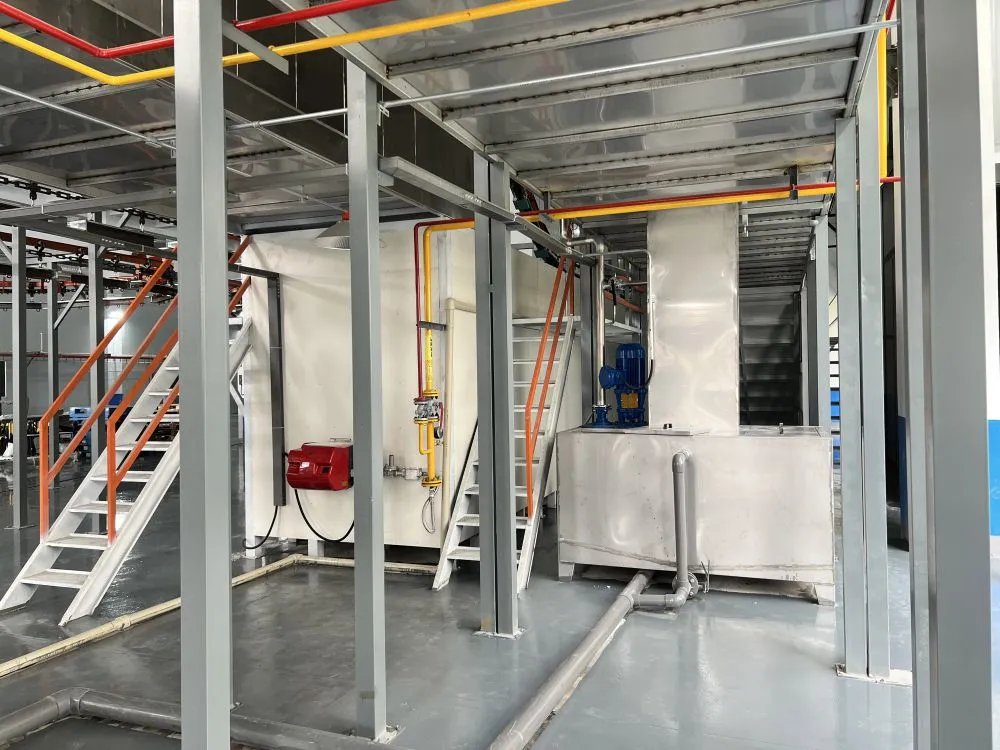

Our complete powder coating line integrates all essential stages: pretreatment, drying, powder application, curing, and cooling. The centerpiece is the 304 stainless steel spray booth, which offers excellent resistance to chemical corrosion and easy cleaning. The booth is equipped with a high-efficiency cartridge filter system that captures overspray powder, allowing recycling and reducing waste. This not only lowers material costs but also minimizes environmental impact.
Key Features
- 304 Stainless Steel Spray Booth – Resistant to rust and chemicals, ideal for humid or aggressive environments.
- Multi-stage Filtration System – Includes primary and HEPA-grade filters to ensure air purity and powder recovery.

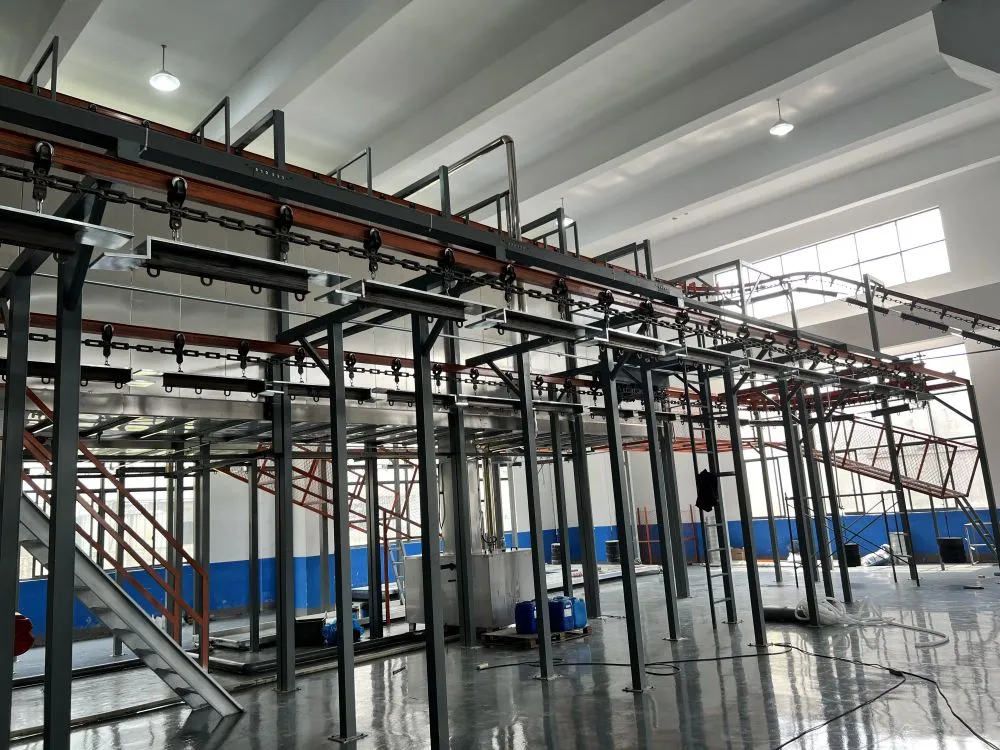

- Adjustable Conveyor System – Variable speed control from 0.5 to 5 m/min to suit different production volumes.
- Automatic Powder Gun Control – Optional PLC-based control for consistent coating thickness and reduced overspray.
- Energy-efficient Curing Oven – Insulated panels with gas or electric heating options for uniform temperature distribution.
- Modular Design – Easy to expand or modify according to future production needs.
Technical Specifications
| Parameter | Value |
|---|---|
| Conveyor Speed | 0.5 - 5 m/min (adjustable) |
| Spray Booth Material | 304 Stainless Steel |
| Filter Efficiency | ≥99.5% for 1-5 μm particles |
| Powder Recovery Rate | Up to 95% |
| Curing Temperature Range | 160°C - 220°C (adjustable) |
| Power Supply | Customizable (e.g., 380V/50Hz three-phase) |
Advantages for Your Business
- Increased Productivity – Continuous conveyor system reduces manual handling and speeds up cycle time.
- Consistent Quality – Automatic powder application and curing ensure even coating and adhesion.
- Lower Operating Costs – High powder recovery rate and energy-efficient oven reduce material and energy consumption.
- Durability – 304 stainless steel booth withstands harsh cleaning agents and daily wear.
- Compliance – Our system meets ISO9001 quality standards, ensuring reliable performance.
Trust Deqing Leixin Coating Equipment Co., Ltd. – With over 12 years of manufacturing experience, ISO9001 certification, and annual export value of US$1–1.5 million, we have supplied our equipment to clients across North America, South America, Europe, Asia, Africa, and Oceania. Our factory (1,000–3,000 sqm) in Huzhou, Zhejiang, China, is equipped with modern machinery and a skilled team of 51–100 employees. We ship from Ningbo or Shanghai ports, ensuring timely delivery. Every powder coating line is tested before shipment, and we offer comprehensive after-sales support. Contact us today to discuss your specific iron cabinet coating requirements and receive a customized proposal.
Frequently Asked Questions
- Q: What makes the spray booth suitable for iron cabinet coating?
- A: The 304 stainless steel booth is non-corrosive and easy to clean, which is essential for the heavy-duty coating of iron cabinets. It also provides excellent powder containment and operator safety.
- Q: How often does the filter system need maintenance?
- A: Maintenance intervals depend on usage. We recommend inspecting the cartridge filters weekly and replacing them when pressure drop exceeds specifications. The system is designed for easy access and quick change-out.
- Q: Can the line be customized for different cabinet sizes?
- A: Yes, the conveyor width, booth dimensions, and oven length are all customizable. We can design the line to accommodate your specific product dimensions and throughput requirements.
- Q: What type of powder can be used with this system?
- A: The system is compatible with most thermosetting powder coatings, including epoxy, polyester, hybrid, and polyurethane powders. It supports both manual and automatic gun configurations.
- Q: Do you provide installation and training?
- A: Yes, we offer on-site installation supervision and operator training for your team. Remote support is also available via video calls.
- Q: What is the typical lead time for this powder coating line?
- A: Lead time depends on customization and order volume. Typically, it ranges from 30 to 45 working days after confirmation of specifications.
- Q: Does the line comply with environmental regulations?
- A: Our filter system ensures high powder recovery and minimal emissions, helping you meet local environmental standards. We can also integrate additional abatement equipment if required.
