Deqing Leixin Coating Equipment Co., Ltd., a professional manufacturer established in 2011, proudly presents our Continuous Surface Finishing Production Layout for Various Sizes of Steel Cabinet Workpieces. This comprehensive solution is designed to deliver consistent, high-quality surface finishes for steel cabinets of different dimensions, from small electrical enclosures to large industrial cabinets. With over a decade of experience and a dedicated team of 51-100 employees, we have engineered a flexible production line that maximizes efficiency and reduces manual intervention. Our layout integrates advanced coating technologies, precise drying systems, and intelligent controls to ensure your steel cabinet components achieve a durable, uniform finish with minimal waste.
The system is built around a modular conveyor platform that can be easily adjusted to accommodate varying workpiece sizes and production volumes. Whether you need to handle high-mix low-volume orders or mass production, our layout offers the versatility to scale. Key advantages include reduced cycle time, lower energy consumption, and improved surface quality compared to traditional batch processing. By automating the finishing process, you also reduce labor costs and minimize human error.
Technical Specifications
| Parameter | Value/Range |
| Workpiece Size (Max) | 2000mm x 1200mm x 600mm (customizable) |
| Production Speed | 1.5 – 6 m/min (adjustable) |
| Coating Efficiency | ≥ 85% (with electrostatic) |
| Drying Temperature | 60°C – 180°C (IR / hot air) |
| Curing Time | 10 – 30 minutes (depending on coating) |
| Total Power | Approx. 80 – 120 kW (configurable) |
Key Features & Benefits

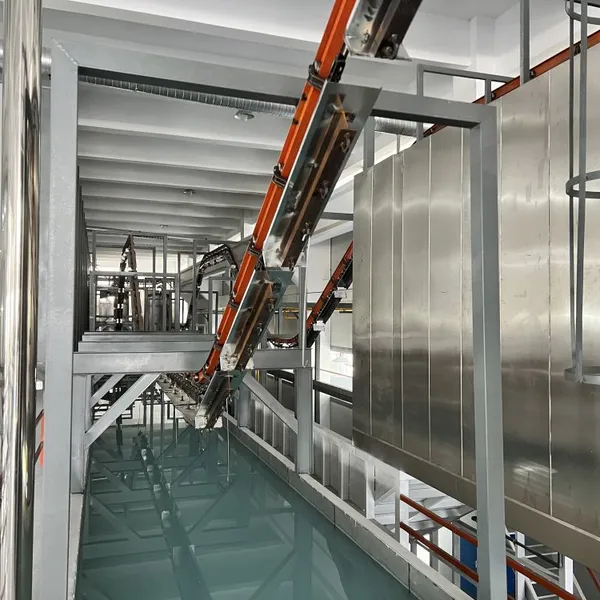

- Modular Layout: The production line is designed with interchangeable modules (pre-treatment, spray booth, flash-off, drying oven, cooling zone) that can be rearranged to suit your specific shop floor space and workflow requirements.

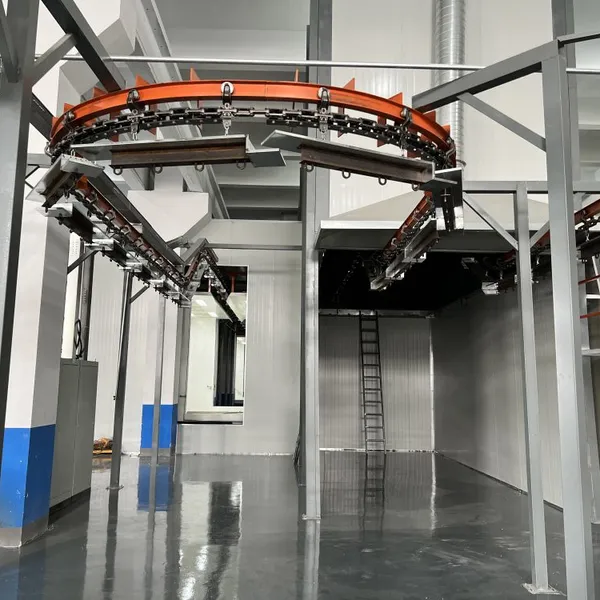

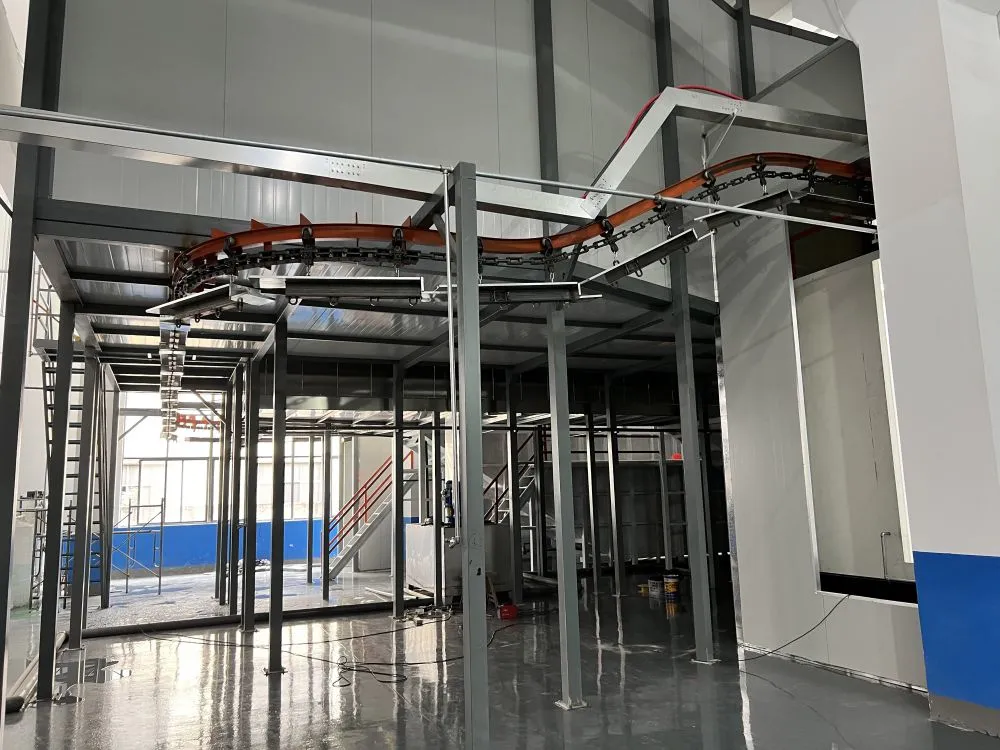

- Adjustable Conveyor System: Uses a heavy-duty chain or roller conveyor with variable speed drive, allowing you to match the line speed to the coating material and workpiece geometry. Quick-change tooling enables seamless transition between different cabinet sizes.
- Advanced Spray Technology: Choose from air spray, airless spray, or electrostatic powder/ liquid application. Our booths feature efficient exhaust and filtration systems to comply with environmental regulations and reduce overspray.
- Precision Drying & Curing: Infrared (IR) and hot air circulation ovens provide uniform heat distribution, ensuring consistent curing even for thick or complex cabinet shapes. Optional UV curing for fast-curing coatings.
- Smart PLC Control: The entire line is managed by a Siemens or Mitsubishi PLC with a user-friendly touch screen interface. Operators can monitor temperature, speed, pressure, and fault alarms in real time, and store multiple recipes for different products.
- Energy Efficiency: Insulated oven panels, heat recovery systems, and variable frequency drives on motors reduce overall energy consumption by up to 20% compared to conventional lines.
- Safety & Compliance: All electrical components meet CE standards (optional). Emergency stops, fire suppression systems, and light curtains are integrated for operator safety.
This continuous finishing line is ideal for manufacturers of steel cabinets, electrical enclosures, server racks, locker storage, and similar sheet metal products. The ability to handle various sizes without manual reconfiguration significantly reduces downtime and increases throughput. Our clients report productivity gains of 30%–50% and a reduction in rework rates due to the consistent coating quality.
Frequently Asked Questions (FAQ)
-
Q: What types of coatings can be used with this layout?
A: The system is compatible with solvent-based, water-based, and powder coatings. For powder, we recommend electrostatic application with a dedicated booth and recovery system. Liquid coatings can be applied via air spray or airless methods. -
Q: Can the line handle very large steel cabinets, e.g., 2.5 meters tall?
A: Yes, the standard design can accommodate workpieces up to 2000mm x 1200mm x 600mm. Larger sizes can be customized by extending the conveyor width and increasing oven dimensions. Please provide your specific dimensions for a tailored solution. -
Q: How long does it take to change over from one cabinet size to another?
A: Changeover time is typically less than 15 minutes, as the conveyor width and spray gun positions can be adjusted via the PLC. Quick-release clamps and tool-less adjustments further speed up the process. -
Q: What is the minimum order quantity for this production line?
A: Since we are a manufacturer, we can produce a single custom line or multiple units. There is no strict MOQ; we work with each client to design a layout that meets their production volume and budget. -
Q: Do you provide installation and training?
A: Yes, we offer on-site installation supervision and commissioning. Additionally, we provide training for your operators and maintenance staff, either at our facility in Huzhou or at your site. Remote support is also available. -
Q: What is the typical lead time for delivery?
A: Lead time depends on the complexity of the layout and current production schedule. Generally, it ranges from 45 to 90 days after order confirmation. We will provide a detailed timeline during the quotation phase. -
Q: How do you ensure the quality of the finishing line?
A: Our factory is ISO9001 certified, and we implement strict quality control at every stage: from raw material inspection to assembly, testing, and final acceptance. Each line undergoes a full run test with sample workpieces before shipment. -
Q: Can the line be integrated with a robotic painting system?
A: Absolutely. Our layout is designed to accommodate robotic arms for automated painting. We can integrate six-axis robots from brands like ABB, Fanuc, or KUKA, and program them to handle complex cabinet geometries.
Why Choose Deqing Leixin?
With over 12 years of experience in coating equipment manufacturing, Deqing Leixin Coating Equipment Co., Ltd. has delivered more than 300 finishing lines to clients across North America, Europe, Asia, and Africa. Our factory spans 1,000–3,000 square meters and houses a skilled team of 51–100 employees. We are proud to have maintained an annual export value of US$1–1.5 million, reflecting the trust of international customers. Our equipment is shipped from Ningbo or Shanghai ports, ensuring efficient logistics. We are committed to providing tailored solutions that help you achieve superior surface quality and operational efficiency. Contact us today to discuss your specific requirements and receive a free layout proposal!
