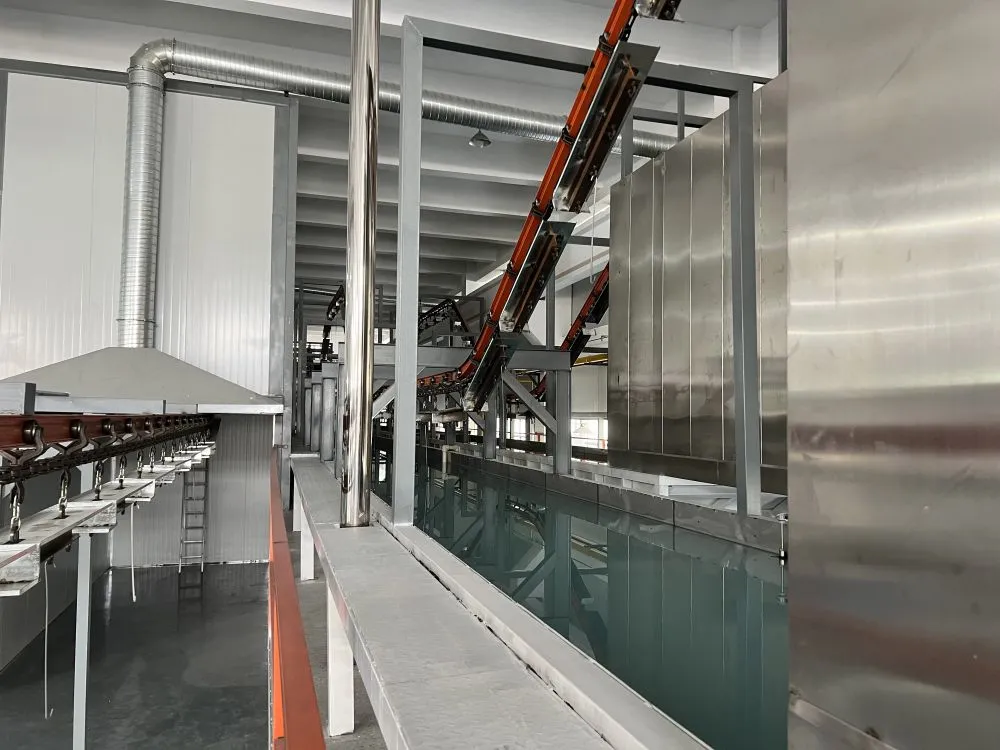

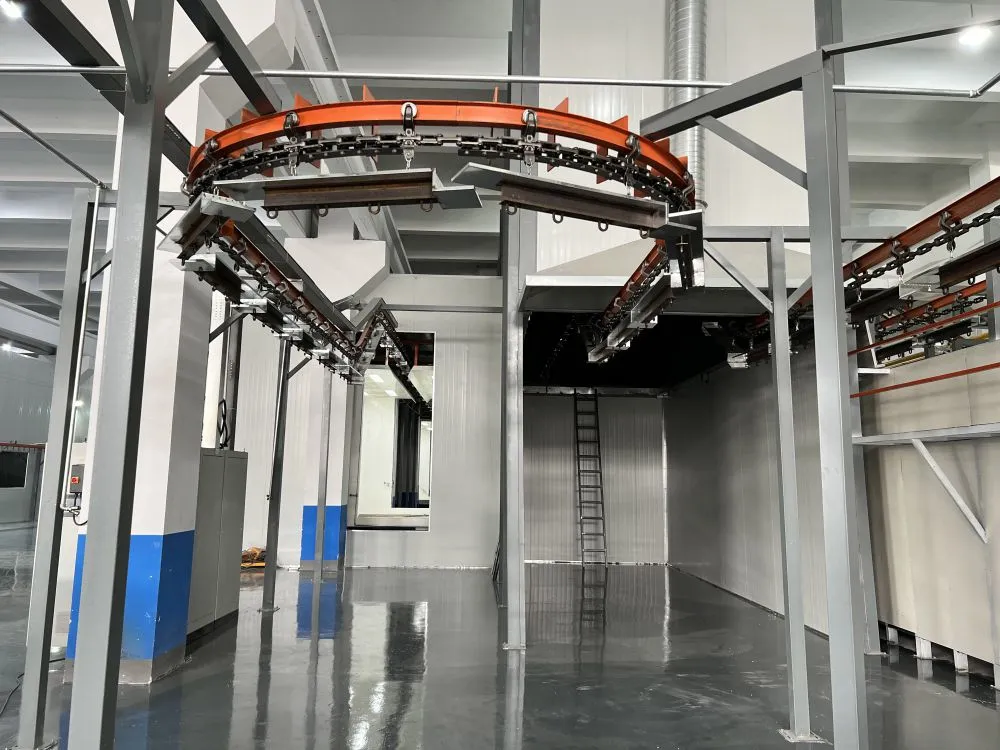

Deqing Leixin Coating Equipment Co., Ltd., a professional manufacturer since 2011, proudly presents our Compact Iron Cabinet Powder Coating Line 16kW — a space-saving, energy-efficient solution tailored for small factories. This integrated system combines pretreatment, powder coating, and curing in a streamlined layout, allowing you to achieve high-quality finishes on iron cabinets with minimal footprint. With a power consumption of only 16kW, it significantly reduces operational costs while maintaining consistent production capacity.
Our powder coating line is engineered to meet the demands of small-scale manufacturers who need reliability, flexibility, and ease of operation. The compact design eliminates the need for complex infrastructure, making it ideal for workshop floors with limited space. Each component is built with durable materials and precision control, ensuring long service life and stable performance.
Key Features & Technical Specifications
- Compact Layout: Integrated pretreatment, powder booth, and curing oven in a single line — saves up to 40% floor space compared to traditional systems.
- Low Power Consumption: Only 16kW total power, suitable for single-phase or three-phase supply, reducing electricity bills.
- High Efficiency Powder Coating: Equipped with electrostatic powder spray guns (optional manual or automatic) for uniform coverage.
- Fast Curing System: Infrared or hot air circulation oven with adjustable temperature up to 200°C, ensuring quick curing of powder coatings.
- Easy Operation: PLC control system with touch screen interface (optional) for parameter setting and monitoring.
- Versatile Applicability: Designed for iron cabinets, but also suitable for other metal parts such as brackets, frames, and small appliances.
- Environmental Compliance: Closed-loop powder recovery system reduces waste, meeting environmental standards.
- Durable Construction: Steel frame with powder-coated finish for corrosion resistance.
| Parameter | Specification |
|---|---|
| Total Power Consumption | 16 kW |
| Voltage | 380V/415V, 50/60Hz (3-phase, customizable) |
| Max. Workpiece Size (W×H×D) | 1200×800×600 mm (customizable) |
| Conveyor Speed | 0.5 – 3 m/min (adjustable) |
| Curing Temperature Range | 140°C – 200°C |
| Powder Coating Efficiency | ≥95% (with recovery system) |
| Overall Dimensions (L×W×H) | 8m × 2m × 3m (approx., customizable) |
| Net Weight | Approx. 2,500 kg |
Advantages for Small Factory Owners
- Lower Initial Investment: Compact design reduces equipment cost and installation complexity — perfect for startups.
- Energy Savings: 16kW total power consumption means lower electricity costs compared to traditional 30kW+ lines.
- Quick Changeover: Simple color change and cleaning processes allow flexible production of small batches.
- Easy Maintenance: Modular components and accessible design simplify routine maintenance and troubleshooting.
- Consistent Quality: Automated control ensures uniform coating thickness and reliable curing, reducing rejects.
- Expandable: Optional add-ons like pretreatment spray tunnel, automatic spray gun, and cooling tunnel can be integrated later.
Customers benefit from Deqing Leixin’s years of expertise in coating equipment. Our team provides comprehensive after-sales support, including installation guidance, operator training, and spare parts supply. The ISO9001-certified manufacturing process guarantees consistent quality and reliability.
Why Choose Deqing Leixin?
Founded in 2011, Deqing Leixin Coating Equipment Co., Ltd. is a specialized manufacturer with a factory area of 1,000–3,000 square meters and a dedicated team of 51–100 employees. Our annual export value reaches US$1 million to US$1.5 million, serving markets across North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and Asia. We have shipped hundreds of powder coating lines to satisfied customers worldwide. Our ISO9001 quality management system ensures that every product meets international standards. With ports of shipment in Ningbo and Shanghai, we offer convenient logistics and competitive delivery times.
Invest in the Compact Iron Cabinet Powder Coating Line 16kW to boost your productivity without breaking the bank. Contact us today for a customized quotation and technical consultation. Let Deqing Leixin be your reliable partner in powder coating solutions.
Frequently Asked Questions
-
Q: What is the maximum workpiece size this line can handle?
A: The standard line accommodates workpieces up to 1200×800×600 mm. Custom sizes are available upon request. Please provide your specific dimensions for a tailored solution. -
Q: Can I use this line for coating other metals besides iron?
A: Yes, the line is suitable for a variety of metal substrates such as steel, aluminum, and galvanized steel, provided proper pretreatment is applied. You can adjust the process parameters accordingly. -
Q: What is the power supply requirement? Is it compatible with single-phase?
A: The standard configuration is 380V/415V three-phase, but we can customize the voltage for single-phase or other regional standards. Please consult our sales team. -
Q: How long does it take to change colors?
A: Color change time depends on the system configuration. With a manual powder booth and easy-clean design, typical changeover takes 15–30 minutes. An optional automatic color change system can reduce this to 5–10 minutes. -
Q: Do you provide installation and training support?
A: Yes, we offer on-site installation guidance and operator training. Remote support via video call is also available. Detailed manuals are included. -
Q: What is the warranty period?
A: We provide a standard 12-month warranty for the entire line. Extended warranty options are available. Spare parts are readily supplied. -
Q: Can this line be integrated with a powder recovery system?
A: Absolutely. The line includes a cyclone or cartridge powder recovery system to recycle overspray, achieving over 95% utilization efficiency. -
Q: What certifications does the equipment have?
A: Our manufacturing facility is ISO9001 certified. The electrical components comply with CE standards (optional). Please confirm your required certifications with our sales team.
Contact Deqing Leixin Coating Equipment Co., Ltd. for more details and a free consultation. We look forward to supporting your coating needs.
