Help CenterZLN 304 Stainless Steel Microfiltration Membrane Filtration Equipment With PLC Control for Industrial Water Treatment
Product Spotlights
Related Products
-
Reverse Osmosis Membrane Filtration Equipment 4" RO Membrane, 3000GPD, 304SS Frame, Automatic ControlUS$ 100000 - 500000MOQ: 1 Set -
Reverse Osmosis System With 5-Stage Filtration, 1.5T/H, 220V/50Hz, 1-Year Warranty & Free Technical TrainingUS$ 100000 - 500000MOQ: 1 Set
-
Microfiltration Membrane Filter, 0.2μm Pore Size, 304SS Housing, 1 Year Warranty, Mill Test ReportUS$ 100000 - 500000MOQ: 1 Set
-
Ultrafiltration Membrane Filtration Plant for Pharmaceutical Industry, 10kDa MWCO, 220V, Standard CompliantUS$ 100000 - 500000MOQ: 1 Set
-
Automatic Microfiltration Membrane Filtration Unit, 0.1μm, 304SS, PLC Control, 1 Year Warranty, Low Energy ConsumptionUS$ 100000 - 500000MOQ: 1 Set
As a leading manufacturer based in Tianjin, China, ZLN Technology Co., Ltd. specializes in designing and producing high-performance 304 Stainless Steel Microfiltration Membrane Filtration Equipment with advanced PLC control for industrial water treatment. Our equipment combines robust construction with intelligent automation, delivering reliable and efficient filtration solutions for a wide range of industries including food & beverage, pharmaceutical, chemical, and municipal water treatment. With a strong presence in markets across North America, South America, Europe, Asia, Africa, and Oceania, we are committed to providing cost-effective and durable filtration systems that meet the highest standards of performance and longevity.
The core of our system is a high-quality microfiltration membrane housed in a 304 stainless steel vessel, ensuring corrosion resistance and long service life even in harsh environments. The integrated PLC controller allows for precise monitoring and automation of filtration cycles, backwashing, and system diagnostics, reducing manual intervention and operational costs. Whether you need to remove suspended solids, bacteria, or fine particles, our equipment offers a proven solution for achieving consistent water quality.
Key Features & Technical Specifications
- Material: 304 stainless steel housing – excellent corrosion resistance, easy to clean, and suitable for food-grade applications.
- Membrane: High-flux microfiltration membrane (pore size 0.1–1.0 micron) – effectively removes particles, turbidity, and microorganisms.

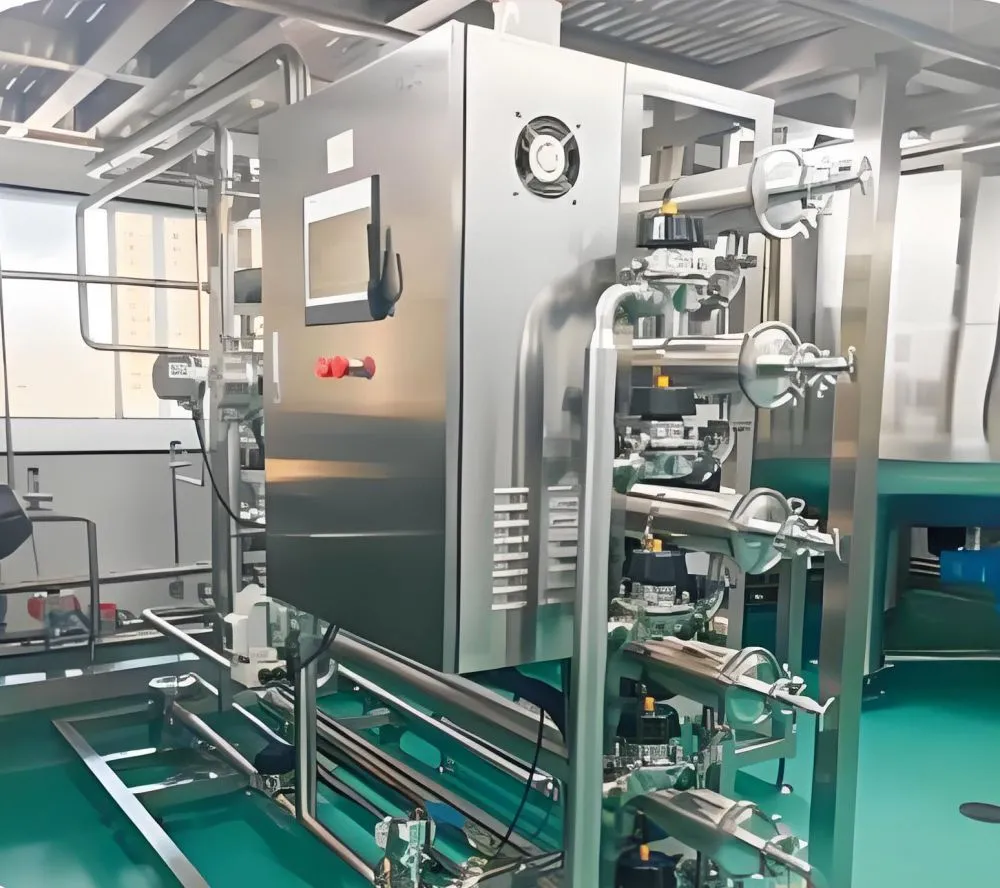

- PLC Control: Fully automated control with touchscreen interface – enables automatic backwash, chemical cleaning, and fault alarm.
- Compact Design: Space-saving footprint, skid-mounted or custom configuration available.
- Energy Efficiency: Low operating pressure (0.1–0.5 MPa) and optimized backwash cycle reduce energy consumption.
- Customizable: Flow rate, membrane area, and automation level can be tailored to specific project requirements.
- Easy Maintenance: Quick membrane replacement and modular design minimize downtime.
| Parameter | Specification |
| Membrane Type | Microfiltration (MF) |
| Pore Size | 0.1 – 1.0 micron |
| Housing Material | 304 Stainless Steel |
| Control System | PLC (Programmable Logic Controller) |
| Operating Pressure | 0.1 – 0.5 MPa |
| Operating Temperature | 5 – 45 °C |
| Flow Rate | Customizable (e.g., 1 – 100 m³/h) |
| Backwash Method | Automatic, time or pressure differential triggered |
Advantages & Benefits for Customers
- Reliable Water Quality: Consistent removal of suspended solids, colloids, and bacteria ensures product water meets stringent industrial standards.
- Reduced Labor Costs: PLC automation minimizes manual monitoring and cleaning, allowing your staff to focus on core operations.
- Long Equipment Life: 304 stainless steel construction withstands corrosion and chemical exposure, while the membrane can be chemically cleaned and reused.
- Scalable Solution: Modular design enables easy expansion of treatment capacity as your production grows.
- Low Total Cost of Ownership: Energy-efficient operation and extended membrane life reduce operating expenses over time.
ZLN Technology is a dedicated manufacturer with years of experience in membrane filtration. Our equipment is shipped from the port of Tianjin to customers worldwide, including North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and many other regions. We provide comprehensive after-sales support, including technical documentation, remote troubleshooting, and spare parts supply. By choosing our 304 Stainless Steel Microfiltration Membrane Filtration Equipment with PLC Control, you are investing in a robust, automated, and cost-effective solution for your industrial water treatment needs. Contact us today to discuss your specific requirements and receive a customized proposal.
Frequently Asked Questions (FAQ)
-
What is the lifespan of the microfiltration membrane?
The membrane lifespan depends on feed water quality, operating conditions, and maintenance frequency. Typically, it can last 2–5 years with proper chemical cleaning and backwashing. We provide replacement membranes as needed. -
Can the PLC control system be integrated with existing SCADA?
Yes, our PLC controller supports standard communication protocols (e.g., Modbus, Profibus) for integration with your plant's SCADA or DCS system. This is optional and can be customized upon request. -
What types of water can this equipment treat?
It is suitable for treating surface water, groundwater, industrial process water, wastewater effluent, and seawater (pre-treatment). The system effectively removes suspended solids, turbidity, bacteria, and some viruses. -
How often does the system need to backwash?
Backwash frequency is automatically determined by the PLC based on pressure differential or a preset time interval (e.g., every 30–60 minutes). The actual interval depends on feed water quality and flow rate. -
Is the equipment supplied with a warranty?
We offer a standard warranty period (typically 12 months from shipment) covering manufacturing defects. Extended warranty options are available upon request. -
Can the system handle high-temperature feed water?
The standard operating temperature range is 5–45 °C. For higher temperature applications, we can customize the membrane and housing materials. Please consult our technical team. -
What is the lead time for delivery?
Lead time depends on the configuration and quantity. For standard units, it is typically 30–45 days. Custom orders may require 60–90 days. Contact us for an accurate estimate. -
Do you provide installation and commissioning support?
Yes, we offer remote technical guidance and on-site commissioning services as an optional service. Detailed installation manuals and drawings are included with the equipment.
