Compact Stainless Steel Oil Cooler, Plate Type, 100mm x 200mm x 50mm, 15 Bar Max Pressure
Product Spotlights
Compact stainless steel plate oil cooler with 100x200x50mm dimensions and 15 bar max pressure. High heat transfer efficiency, corrosion-resistant SS304/316 core, customizable plate count and connections. Ideal for hydraulic systems, lubrication, and industrial machinery in space-constrained environments. Factory-direct from a 1998-established manufacturer with $5M+ annual exports.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Stainless Steel (SS304/SS316)
Application:
Other, Hydraulic systems
type:
Plate Type
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ATEX Certified Stainless Steel Oil Cooler Unit Explosion-Proof Design for Oil CoolingNegotiableMOQ: 1 Piece -
304 Stainless Steel Oil Cooler Unit With 10 Bar Working Pressure for Hydraulic SystemsNegotiableMOQ: 1 Piece
-
Stainless Steel Oil Cooler Unit Mill Test Report Provided 7-Day Replacement GuaranteeNegotiableMOQ: 1 Piece
-
Stainless Steel Oil Cooler Unit 1/2" NPT Ports 10 Bar Pressure Drop 0.5°C OutletNegotiableMOQ: 1 Piece
-
Stainless Steel Oil Cooler Unit for Welding Robots Reducing Oil Temperature in Continuous OperationNegotiableMOQ: 1 Piece
Material
Other, Stainless Steel (SS304/SS316)
Application
Other, Hydraulic systems
type
Plate Type
size
100mm x 200mm x 50mm
max_pressure
15 Bar
connection
Customizable (e.g., threaded, flange)
weight
Lightweight (approx. 0.8 kg – 1.2 kg, customizable)
working_temperature
Available upon request
surface_area
Customizable plate count
Boli Hardware Wiremesh Products Factory (Est. 1998) brings you a Compact Stainless Steel Plate Type Oil Cooler designed for efficient thermal management in tight spaces. With dimensions of 100mm x 200mm x 50mm, this rugged unit withstands up to 15 Bar maximum pressure, making it ideal for hydraulic systems, lubrication circuits, and industrial machinery. Our factory has exported over US$5 million annually to global markets, ensuring consistent quality and on-time delivery.

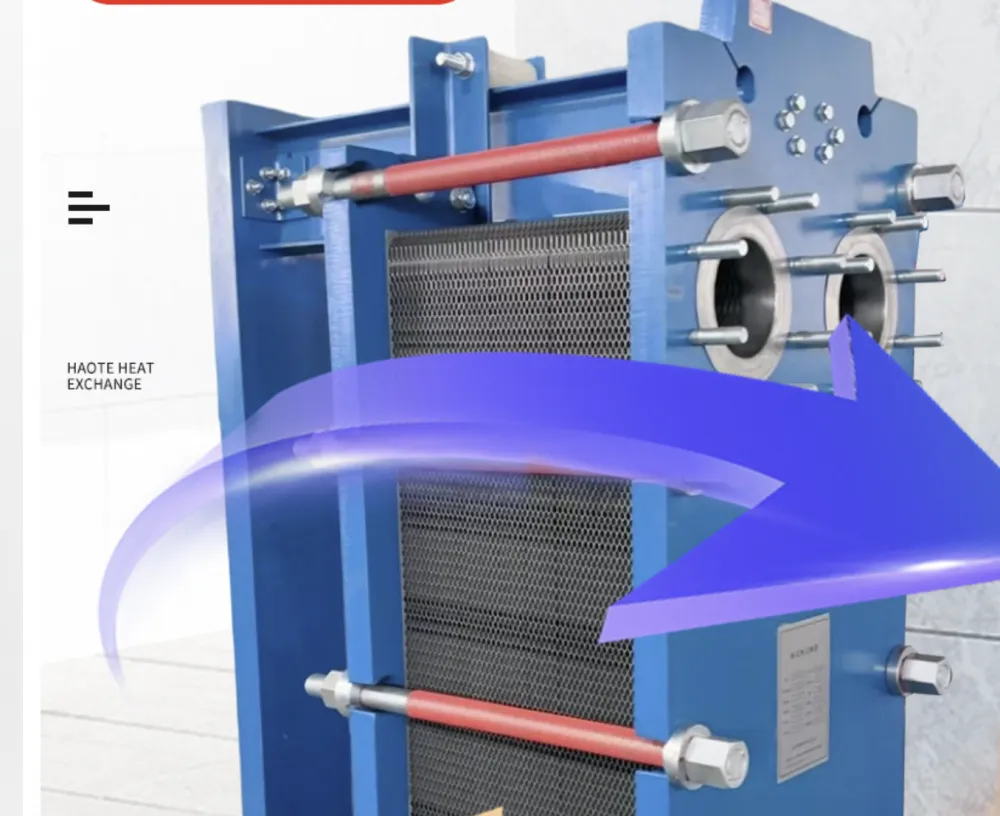

This oil cooler employs a plate-type heat exchange core to maximize contact area between the hot oil and cooling medium (water or air). The stainless steel construction resists corrosion and oxidation, even in harsh environments with aggressive fluids. Its compact footprint allows installation in machinery skids, power units, or mobile equipment where space is limited.
Key Product Features
- Stainless Steel Core: Superior corrosion resistance and long service life – suitable for marine, chemical, and food-grade applications.
- Plate-Type Design: High heat transfer efficiency with low pressure drop; customizable plate count to match specific heat load requirements.
- Compact Dimensions: 100mm × 200mm × 50mm – fits into narrow compartments without sacrificing performance.
- High-Pressure Capability: Rated for 15 Bar maximum working pressure, with burst pressure significantly higher (tested per industry standards).
- Versatile Connections: Available in threaded, NPT, BSP, or flange connections – adaptable to your existing piping.
- Lightweight: Typically under 1.2 kg, reducing overall system weight.

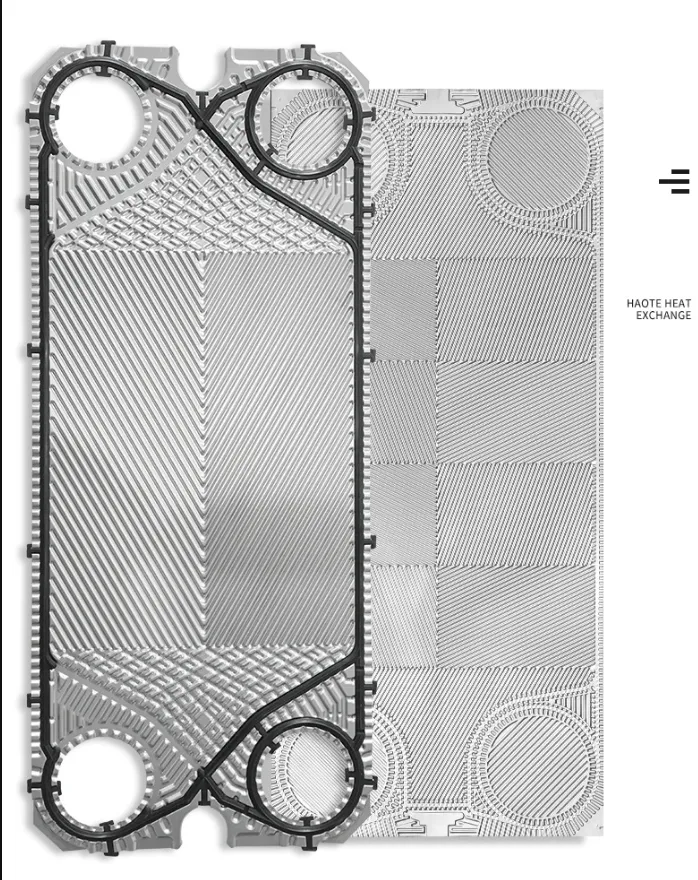

- Easy Maintenance: Plate stack can be disassembled for cleaning or replacement of individual plates.
Technical Specifications
| Material | Stainless Steel (SS304 / SS316 optional) |
| Dimensions (L×W×H) | 100mm × 200mm × 50mm |
| Max Working Pressure | 15 Bar (217 psi) |
| Operating Temperature Range | -20°C to +120°C (customizable up to 200°C) |
| Fluid Compatibility | Hydraulic oil, lube oil, water-glycol, and other non-aggressive fluids |
| Connection Ports | 1/4", 3/8" NPT/BSP (custom sizes available upon request) |
| Plate Count | Standard 10 plates (adjustable per heat load) |
| Weight | ~1.0 kg (varies with plate count) |
Customer Benefits
- Space Savings: The ultra-compact design frees up valuable real estate in your machine or skid.
- Energy Efficiency: Plate-type heat exchangers require less pumping power compared to shell-and-tube units, reducing operational costs.
- Reliability: All-welded or gasketed stainless steel construction eliminates leak paths and withstands thermal cycling.
- Quick Delivery: As a factory-direct manufacturer, we can ship standard units within 7–15 days.
- Customization: Need different port sizes, higher pressure rating, or special materials? We offer flexible modifications.
Our factory in Hengshui, Hebei has been producing precision wire mesh and heat exchange products since 1998. With an annual export value exceeding US$5 million, we supply OEMs and distributors across North America, Europe, Southeast Asia, and Oceania. Every unit undergoes rigorous pressure testing before shipment. We are confident that our compact stainless steel oil cooler will meet your demanding performance requirements.
Whether you need a single unit for prototype testing or bulk orders for production, contact us today for a competitive quote. Our engineering team is ready to assist with technical specifications, custom designs, and sample requests.
Frequently Asked Questions (FAQ)
-
Q: What fluids can be cooled with this oil cooler?
A: It is suitable for mineral oils, synthetic hydraulic oils, lubricating oils, water-glycol mixtures, and many other non-corrosive fluids. For aggressive chemicals, please consult our engineering team for material compatibility. -
Q: Can I mount this cooler vertically or horizontally?
A: Yes, the plate type design allows flexible orientation. However, ensure that the inlet and outlet ports are positioned correctly to avoid air trapping. We recommend vertical mounting for optimal flow distribution. -
Q: Do you offer custom dimensions or pressure ratings?
A: Absolutely. We can adjust plate count, overall dimensions, and pressure rating (up to 25 Bar) based on your requirements. Minimum order quantities may apply for custom configurations. -
Q: What is the typical lead time for this product?
A: For standard sizes (100×200×50mm), stock is often available, and we can ship within 7–10 working days. Custom orders typically require 15–25 days depending on complexity. -
Q: How do I clean the plate stack?
A: The cooler can be disassembled by removing the end plates. Individual plates can be cleaned with a soft brush and mild detergent. For heavily fouled applications, chemical cleaning agents compatible with stainless steel can be used. -
Q: Is this product suitable for food-grade or pharmaceutical applications?
A: Yes, when made with SS316 and food-grade gaskets, it meets hygiene standards for indirect contact. Please specify your requirements so we can recommend the appropriate materials and surface finish. -
Q: Do you provide samples before mass production?
A: Yes, we can provide pre-production samples for evaluation. Sample cost is negotiable and can be deducted from the final order quantity. -
Q: What ports are available for connection?
A: Standard ports are 1/4" NPT or BSP. Other sizes (3/8", 1/2") and thread types (G, Rc) are available on request. Flanged connections can also be manufactured.
