Help CenterCompact Pipeline Plate Heat Exchanger 50kW Capacity, 8m² Area, Standard Compliant
Product Spotlights
Related Products
-
Stainless Steel Pipeline Plate Heat Exchanger 100 Plates, 3/4" NPT Connections, 2.5m²NegotiableMOQ: 1 Piece -
304 Stainless Steel Pipeline Plate Heat Exchanger PN16 Flanged for HVAC SystemsNegotiableMOQ: 1 Piece
-
Compact Plate Heat Exchanger for Pipelines, ASME BPE Standard, 316L SS, 0.5-2.0 MPaNegotiableMOQ: 1 Piece
-
High Pressure Plate Heat Exchanger for Pipelines, 3.0 MPa, 304 SS, Welded Frame TypeNegotiableMOQ: 1 Piece
-
Plate Heat Exchanger for Pipelines, 1-Year Warranty, Mill Test Report ProvidedNegotiableMOQ: 1 Piece

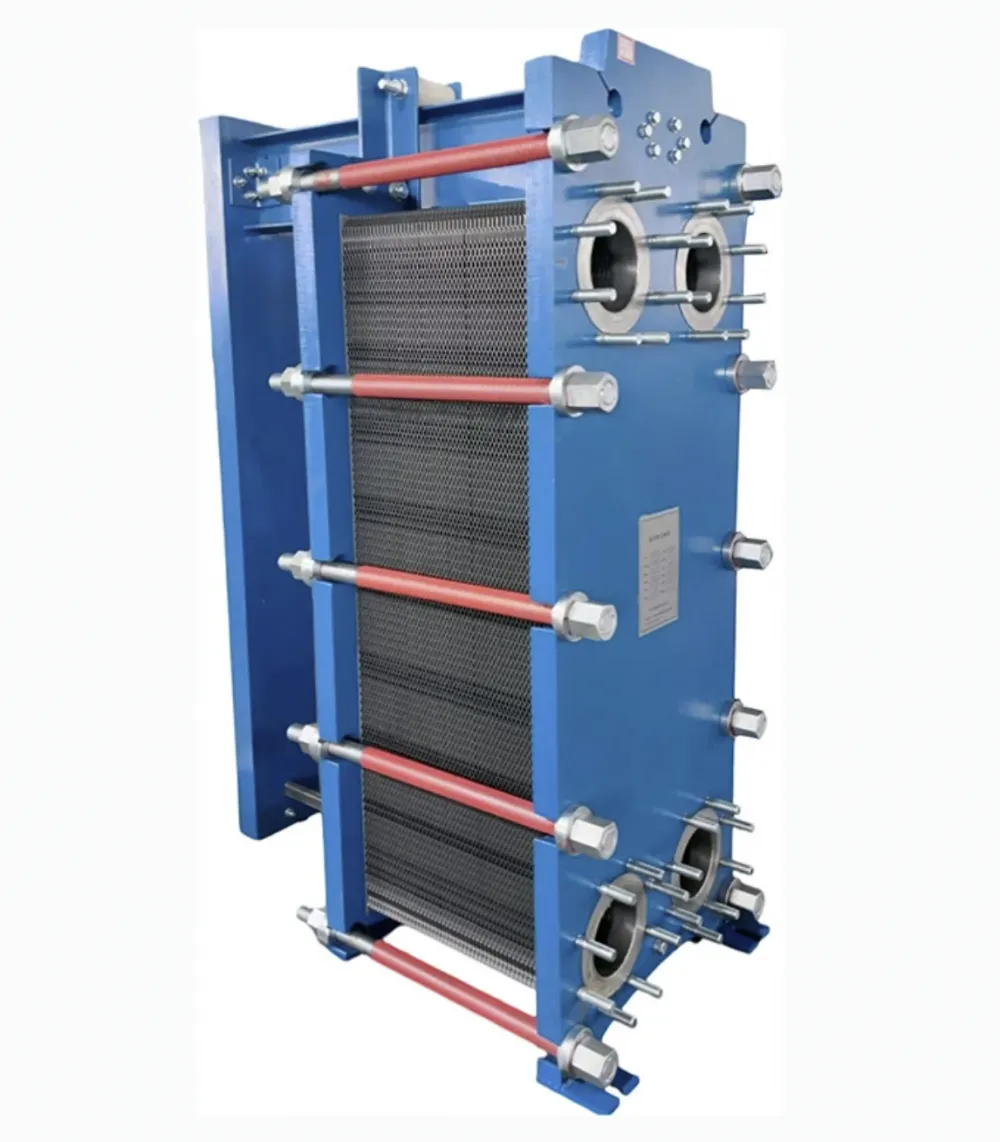

As a leading manufacturer with over 25 years of expertise, Anping County Boli Hardware Wiremesh Products Factory proudly presents our Compact Pipeline Plate Heat Exchanger with a rated capacity of 50 kW and an effective heat transfer area of 8 m². Engineered for efficiency and reliability, this heat exchanger is designed to meet the rigorous demands of modern industrial and commercial applications. Our factory, established in 1998 and exporting annually over US$5 million to global markets, ensures that every unit delivers consistent performance under strict quality control. The compact design saves valuable floor space while providing superior heat transfer capabilities, making it an ideal choice for HVAC systems, process heating, and cooling loops.
This pipeline plate heat exchanger features a robust construction using high-grade stainless steel plates, which offer excellent corrosion resistance and thermal conductivity. The plate pack is assembled with precision gaskets that prevent leakage and allow easy maintenance. The compact footprint integrates seamlessly into existing piping systems, reducing installation complexity and overall system cost. With a 50 kW capacity, it efficiently handles medium-to-high thermal loads, and the 8 m² surface area optimizes heat exchange between two fluid streams, achieving temperature crossovers with minimal pressure drop.
Key Features & Technical Specifications
- Compact Design: Space-saving structure ideal for tight installations, reducing footprint by up to 40% compared to traditional shell-and-tube exchangers.
- High Efficiency: Plate geometry creates turbulent flow, enhancing heat transfer coefficient and achieving up to 90% thermal efficiency.
- Durable Materials: Plates are made of AISI 304 or 316L stainless steel, with EPDM/NBR gaskets suitable for various fluids and temperatures.
- Easy Maintenance: Modular design allows quick disassembly for cleaning, inspection, or plate replacement, minimizing downtime.
- Standard Compliance: Manufactured in accordance with industry standards (e.g., GB/T, ASME, PED upon request), ensuring safety and reliability.
- Flexible Connection: Available with threaded or flanged connections to fit different piping systems; custom sizes and configurations on request.
| Parameter | Value |
|---|---|
| Heat Transfer Capacity | 50 kW |
| Heat Exchange Area | 8 m² |
| Max Working Pressure | 1.0 MPa (optional up to 1.6 MPa) |
| Max Working Temperature | 120°C (optional up to 150°C) |
| Plate Material | Stainless Steel 304 / 316L |
| Gasket Material | EPDM / NBR / Viton (optional) |
| Connection Type | Threaded (BSP/NPT) or Flanged |
| Dimensions (L×W×H) | Approx. 600×200×400 mm (customizable) |
| Weight | ~25 kg (depending on options) |
Customer Benefits
- Energy Savings: High thermal efficiency reduces energy consumption in heating/cooling processes, lowering operational costs.
- Space Optimization: Compact design fits into limited spaces, ideal for retrofitting or new installations where floor area is a premium.
- Reliable Performance: Strict quality control ensures consistent output and long service life, even under continuous operation.
- Low Maintenance: Easy access to plate pack simplifies cleaning and reduces downtime, enhancing overall system availability.
- Versatile Applications: Suitable for water-to-water, oil-to-water, steam-to-water, and other fluid combinations in various industries.
With an annual export value of US$5–10 million and shipping from major ports like Tianjin, Qingdao, Shanghai, and Foshan, we serve customers across North America, South America, Europe, Asia, Africa, and Oceania. Our factory, located in Hengshui, Hebei, has been a trusted partner since 1998, delivering high-quality wire mesh products and now expanding into precision heat exchange equipment. Each unit undergoes rigorous testing for pressure, leakage, and thermal performance before shipment. We offer customized solutions, including different plate materials, gasket options, and connection types, to meet your specific process requirements.
Why choose Boli’s Compact Pipeline Plate Heat Exchanger? Over 25 years of manufacturing experience, a dedicated engineering team, and a commitment to customer satisfaction. Whether you need a standard 50 kW model or a custom design, we provide competitive pricing, prompt delivery, and after-sales support. Contact us today to discuss your heat transfer needs and discover how our product can enhance your system efficiency.
Frequently Asked Questions
Q1: What fluids can be used with this heat exchanger?
A: It is compatible with clean fluids such as water, glycol mixtures, oils, and steam. For aggressive or corrosive media, we recommend 316L plates and compatible gaskets. Please consult our technical team for specific fluid compatibility.
Q2: What is the maximum operating pressure and temperature?
A: Standard design is for 1.0 MPa and 120°C. Higher pressure (up to 1.6 MPa) and temperature (up to 150°C) options are available upon request. Always verify with our specifications for your application.
Q3: Is the heat exchanger compliant with international standards?
A: Yes, our heat exchangers are manufactured to meet common industry standards such as GB/T (China), ASME (USA), and PED (EU) as requested. We can provide certification documentation for specific standards upon order.
Q4: How do I clean and maintain the unit?
A: The plate pack can be easily disassembled by loosening the tightening bolts. Plates can be cleaned with a soft brush and mild detergent, then rinsed. Gaskets should be inspected periodically and replaced if worn. Detailed maintenance instructions are provided with the product.
Q5: Can the connection type be customized?
A: Yes, we offer threaded (BSP or NPT) and flanged connections (ANSI, DIN, JIS, etc.). Custom connection sizes and orientations are available based on your piping layout.
Q6: What is the typical lead time?
A: For standard models, lead time is 15–25 working days after confirmation. Custom orders may require 30–40 days. We can expedite for urgent projects; please contact our sales team for details.
Q7: Do you provide warranties?
A: Yes, we offer a 12-month warranty from the date of shipment against manufacturing defects. Extended warranty options are available on request.
Q8: How do I select the right heat exchanger for my system?
A: We recommend providing your operating parameters (flow rates, inlet/outlet temperatures, fluid types, allowed pressure drop) to our engineering team. We can perform a thermal calculation and suggest the optimal model, including this 50 kW / 8 m² unit if suitable.
Contact us for a quote or technical consultation. With our global logistics network, we can deliver to any port worldwide. Choose Boli for reliable heat exchange solutions.
