Help CenterFactory Direct Pipeline Plate Heat Exchanger With Free Technical Support and Installation Guide
Product Spotlights
Related Products
-
Plate Heat Exchanger for Pipeline 10m² Heat Transfer Area, 1.6MPa Working PressureNegotiableMOQ: 1 Piece -
Pipeline Plate Heat Exchanger With Gasket Design, 304 SS, 0.5mm Plate Thickness, NPTNegotiableMOQ: 1 Piece
-
2-Year Warranty Pipeline Plate Heat Exchanger With Mill Test Report and MTCNegotiableMOQ: 1 Piece
-
Compact Pipeline Plate Heat Exchanger 50kW Capacity, 8m² Area, Standard CompliantNegotiableMOQ: 1 Piece
-
Stainless Steel Pipeline Plate Heat Exchanger 100 Plates, 3/4" NPT Connections, 2.5m²NegotiableMOQ: 1 Piece

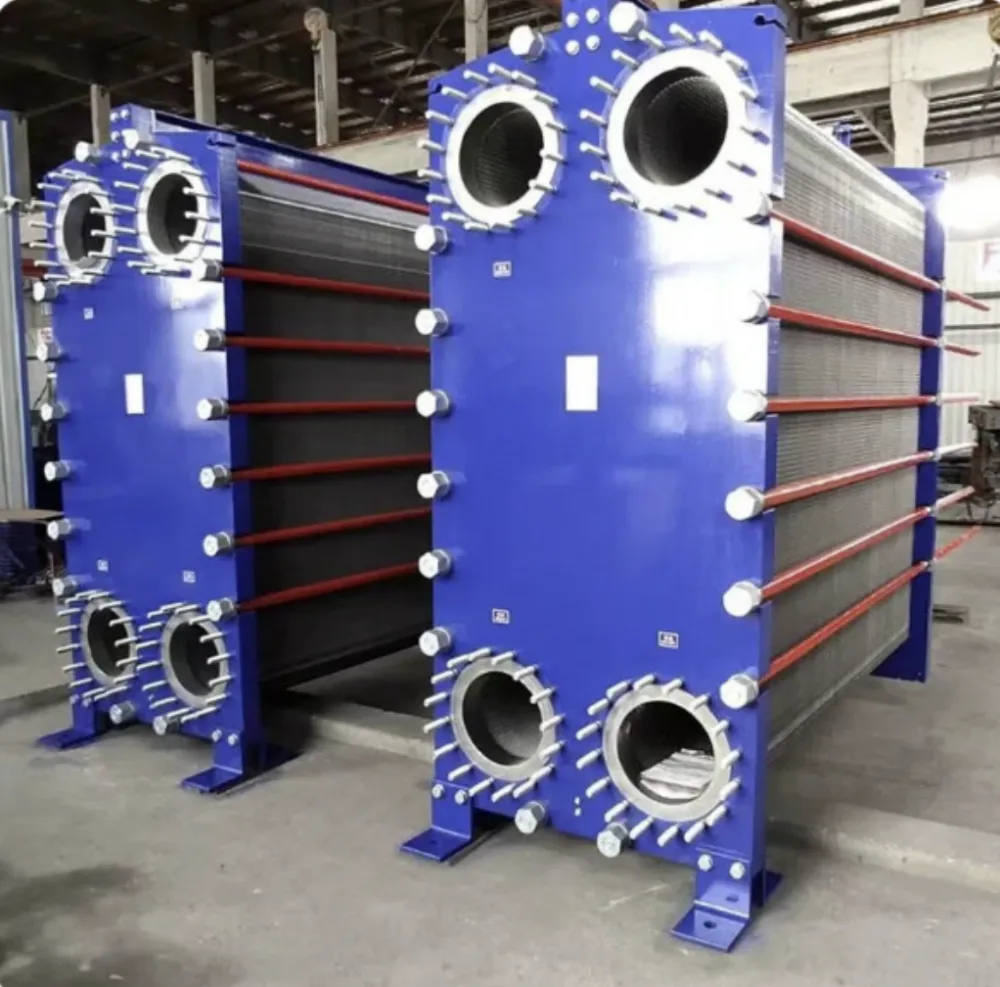

As a manufacturer with over 25 years of experience since 1998, we proudly introduce our Factory Direct Pipeline Plate Heat Exchanger – a high-performance solution designed for efficient heat transfer in various industrial applications. Our factory-direct model eliminates middlemen, offering you competitive pricing without compromising quality. Plus, we provide free technical support and a detailed installation guide to ensure smooth setup and operation.
This heat exchanger is crafted from premium materials such as stainless steel 304/316L, ensuring durability and corrosion resistance. The compact plate design maximizes heat transfer efficiency while minimizing footprint, making it ideal for space-constrained environments. Whether you need it for heating, cooling, or recovery processes, our pipeline plate heat exchanger delivers consistent performance.
Key features include:
- High Thermal Efficiency – The corrugated plate design creates turbulent flow, enhancing heat transfer rates by up to 5 times compared to shell-and-tube exchangers.
- Easy Maintenance – Modular construction allows quick disassembly for cleaning or plate replacement, reducing downtime.
- Flexible Configuration – Available in single-pass, multi-pass, and mixed flow arrangements to suit your specific process requirements.
- Leak-Proof Sealing – High-quality gaskets (NBR, EPDM, or Viton) ensure zero leakage even under high pressure.
- Compact Design – Up to 80% space saving compared to traditional heat exchangers.
Technical specifications (sample model):
| Parameter | Value |
| Heat Transfer Area | 1 – 500 m² |
| Design Pressure | Up to 25 bar |
| Design Temperature | -20°C to 200°C |
| Plate Thickness | 0.5 – 0.8 mm |
| Connection Size | DN25 – DN200 (customizable) |
Our pipeline plate heat exchanger offers distinct advantages for your business:
- Reduced Energy Costs – Efficient heat recovery cuts energy consumption by up to 30%.
- Longer Service Life – Corrosion-resistant materials and precise manufacturing ensure 15+ years of reliable operation.
- Low Maintenance – Simple design with fewer parts means less frequent repairs and lower spare parts costs.
- Customizable Options – We can tailor plate materials, gasket types, and port sizes to match your exact process conditions.
With an annual export value of US$5 million to US$10 million, we supply to markets across North America, South America, Europe, Asia, Africa, and Oceania. Our factory in Hengshui, Hebei, China, follows strict quality control procedures, and each heat exchanger undergoes pressure testing before shipment. We also offer free technical support and a comprehensive installation guide to help you get started quickly.
Choose our Factory Direct Pipeline Plate Heat Exchanger for reliable performance, cost savings, and expert support. Contact us today to discuss your project requirements or request a quote!
Frequently Asked Questions
Q1: What is the typical lead time for this heat exchanger?
A: Standard models ship within 15-20 working days after order confirmation. Customized units may require 25-30 days depending on specifications.
Q2: Can I use this heat exchanger for food-grade applications?
A: Yes, we offer plates in 316L stainless steel with FDA-compliant gaskets (EPDM) upon request. Please specify your requirements when ordering.
Q3: How do I clean the plate heat exchanger?
A: Our installation guide provides step-by-step cleaning procedures. Generally, you can backwash with clean water or use chemical cleaning agents compatible with the gasket material.
Q4: What is the maximum temperature difference between hot and cold fluids?
A: The unit can handle a temperature difference of up to 120°C (216°F) without thermal stress issues. For extreme differences, please consult our technical team.
Q5: Do you offer warranty?
A: Yes, we provide a 12-month warranty against manufacturing defects. Extended warranty options are available upon request.
Q6: Can I get a sample for testing before bulk order?
A: Absolutely. We can supply a small unit (e.g., 1 m² heat transfer area) for evaluation. Sample cost is negotiable and refundable with bulk orders.
Q7: What packing methods do you use for export?
A: We use sturdy plywood cases with foam padding to protect the heat exchanger during ocean freight. Each unit is also individually wrapped in moisture-proof material.
Q8: Is installation difficult? Do you provide on-site support?
A: Our free installation guide covers all steps. For complex projects, we can arrange remote technical support or on-site commissioning at additional cost. Please inquire.
