Help CenterSkid‑Mounted Seawater Electrolysis Chlorine System for LNG Terminals
Related Products
-
Modular Seawater Electrochlorination Equipment for Coastal Petrochemical SitesUS$ 100000 - 2000000MOQ: 1 Set -
Offshore‑Grade Seawater Electrolytic Chlorinator for Floating Production FacilitiesUS$ 100000 - 2000000MOQ: 1 Set
-
By‑Pass Seawater Electrolysis Chlorination System for Coastal Industrial ZonesUS$ 100000 - 2000000MOQ: 1 Set
-
PLC Automatic and Skid Mounted Design Seawater Electrolysis Chlorination System With Low Power ConsumptionUS$ 38000 - 500000MOQ: 1 Set
-
More Cost Effective Seawater Electrolysis Chlorination System With Skid Mounted DesignUS$ 38000 - 500000MOQ: 1 Set
1. Product Overview
Port dock seawater electrolysis chlorine generation system is large-flow marine water disinfection equipment for coastal port water intake engineering. Port water intake pipelines are in long-term contact with natural seawater, a large number of shellfish larvae and algae will attach and multiply inside the pipes, resulting in pipeline narrowing, water supply reduction and frequent shutdown dredging. Unlike salt-matched sodium hypochlorite generators, this equipment directly uses natural seawater for electrolysis, omitting salt dissolving equipment and salt warehouse construction, greatly saving port infrastructure investment. The whole machine adopts outdoor rainproof and anti-corrosion skid-mounted design, can be installed beside open-air water intake channels, adapts to large flow water intake demand of container terminals, bulk cargo docks and fishing ports, and simultaneously realizes pipeline anti-fouling and ballast water preliminary disinfection.
2. Technical Principle
Natural seawater from port intake channel is transported to the equipment through water pump, and large particle impurities such as seaweed, gravel and floating objects are intercepted by multi-stage coarse and fine filters. Clean seawater flows into parallel titanium electrolytic cell groups for direct electrolysis. Chloride ions inherent in seawater produce active chlorine through electrochemical reaction. Chlorine-containing seawater is delivered to the front end of water intake pipeline by dosing pump, and active chlorine evenly spreads in the pipeline to kill marine larvae and inhibit biological adhesion. The intelligent control system adjusts electrolysis power in real time according to daily water intake flow and seasonal marine organism reproduction cycle. Electrolytic hydrogen is collected by closed pipeline and safely diluted and discharged to avoid flammable gas accumulation in port equipment area. The system supports timing automatic operation to cope with peak and valley water intake flow changes of ports.
3. Main Features
Direct Raw Seawater Utilization, No Salt Input: No salt dissolving tank, salt storage warehouse, reduce port civil construction investment
Large-Flow Matching Design: Combined multi-group electrolytic cells, support 5000–80000m³/h port water intake flow demand
Outdoor Rainproof & Salt Fog Resistant Cabinet: Can be placed open-air beside water intake channel without special indoor workshop
Timing Automatic Operation Mode: Set different chlorine production output according to seasonal marine biological activity
Low Operation Noise: Optimized water pump and electrolysis structure, avoid noise pollution to port waterfront area
4. Core Advantages
Save Port Infrastructure Investment: Cancel salt storage and preparation system, reduce early construction area and engineering cost
Reduce Pipeline Dredging Frequency: Long-term continuous chlorination suppress marine organism adhesion, cut manual dredging labor and shutdown loss
Multi-Scenario Dual Use: Simultaneously apply to water intake pipeline anti-fouling and ship ballast water preliminary disinfection
Low Long-Term Operating Expense: Only consume electric power, no regular purchase of chemical disinfectants
-
Environmentally Friendly Treatment Mode: Active chlorine naturally decomposes in seawater, no persistent chemical residue polluting coastal waters
5. Core Components

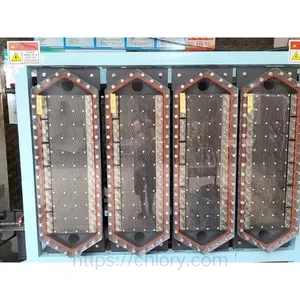

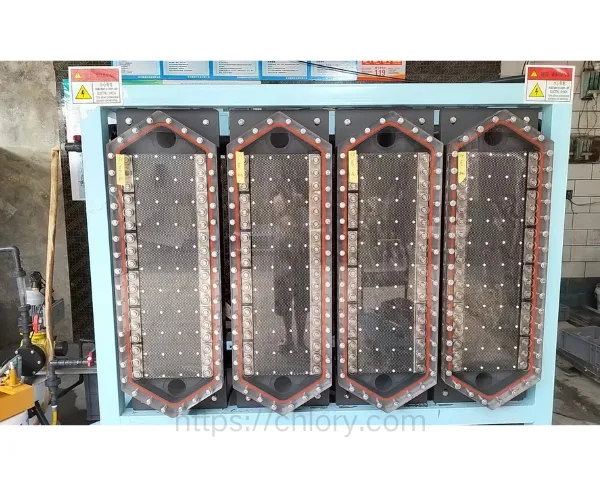

Large-Flow Parallel MMO Titanium Electrolytic Cell Group: Meet port ultra-large seawater flow electrolysis demand, anti-scaling and anti-corrosion
Rainproof Intelligent Constant Current Rectifier: Outdoor anti-corrosion shell, stable power supply for long-term continuous electrolysis
Multi-Stage Coarse & Fine Automatic Backwashing Filter: Efficiently intercept seaweed and sediment to protect electrolytic cells
Port Docking PLC Intelligent Control Cabinet: Support timing operation, flow linkage and automatic fault alarm
Large-Flow Anti-Corrosion Dosing Pump & Distribution Pipeline Assembly: Uniformly deliver chlorine water to each water intake branch pipeline
6. Application Fields
Container port water intake pipeline anti-biofouling, bulk cargo dock seawater circulation system disinfection, fishing port water supply pipeline organism control, ship ballast water pre-chlorination treatment, coastal dock cooling tower seawater disinfection
Boasting 25 years of professional industry experience in production and supply, BLUEWAV factory delivers premium,cost-effective chemical products with reliable quality. Equipped with fully automatic production systems and scientific modular production line design, we achieve stable output, high efficiency and low energy consumption while strictly complying with industrial standards. Different from ordinary manufacturers, BLUEWAV provides flexible customized services tailored to diverse customer needs on product specifications, packaging and solutions. With direct factory pricing and optimized production processes, we help clients cut procurement costs and obtain high-quality, stable chemical supplies with comprehensive professional support.
