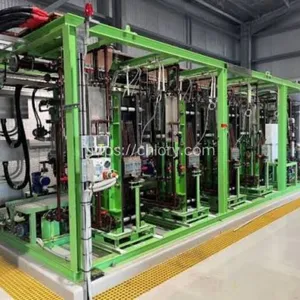

Help Center25 Years Experience in Seawater Electrolysis Chlorination System With PLC Automatic Control
Product Spotlights
Related Products
-
PPE/CTE/MES Hall Available Seawater Electrolysis Chlorination System for Marine UseUS$ 38000 - 500000MOQ: 1 Set -
Low Power Consumption Seawater Electrolysis Chlorination System With PLC Automatic and Skid Mounted DesignUS$ 38000 - 500000MOQ: 1 Set
-
Seawater Electrolysis Chlorination System for Desalination Plants With PLC Automatic ControlUS$ 38000 - 500000MOQ: 1 Set
-
Offshore Skid Design Experience Applied to Seawater Electrolysis Chlorination System for Oil & Gas PlatformsUS$ 38000 - 500000MOQ: 1 Set
-
25 Years Experience and 1 Year Warranty on Seawater Electrolysis Chlorination SystemUS$ 38000 - 500000MOQ: 1 Set
Tianjin ZhuoLiNeng (ZLN) Technology Co., Ltd. is a professional manufacturer with 25 years of proven experience in designing, manufacturing, and servicing seawater electrolysis chlorination systems. Our PLC automatic control system delivers reliable, continuous, and efficient chlorine generation to prevent biofouling in seawater cooling circuits, offshore platforms, and marine vessels. With a strong presence in North America, South America, Europe, Southeast Asia, Africa, and the Middle East, we offer a robust solution that combines mature technology, low maintenance, and cost-effective operation.
Key Features & Benefits
25 Years of Expertise: Proven track record in seawater electrochlorination, ensuring stable and reliable performance.
PLC Automatic Control: Fully automated operation with real-time monitoring, reducing manual intervention and human error.
High Efficiency Electrolysis: Uses advanced MMO-coated titanium electrodes to minimize power consumption and maximize chlorine yield.
Modular Design: Customizable capacity from 0.5 kg/h to 100 kg/h, suitable for various flow rates and water qualities.
Low Maintenance: Self-cleaning electrode design and automatic backwash options reduce downtime.
Global Compatibility: Shipped from Tianjin Port, with voltage and frequency options for worldwide markets.
Eco-friendly: Generates chlorine on-site from seawater, eliminating the need for hazardous chemical transport and storage.
Technical Specifications
| Parameter | Value |
|---|---|
| Chlorine Production Capacity | 0.5 – 100 kg/h (customizable) |
| Electrode Material | Titanium + MMO coating |
| Power Supply | AC 380V/50Hz, 3-phase (other options available) |
| Control System | PLC + HMI touch screen |
| Operating Seawater Temperature | 0 – 45°C |
| Salinity Range | 10 – 40 g/L |
| Dosing Method | Direct injection or side stream |
How It Works

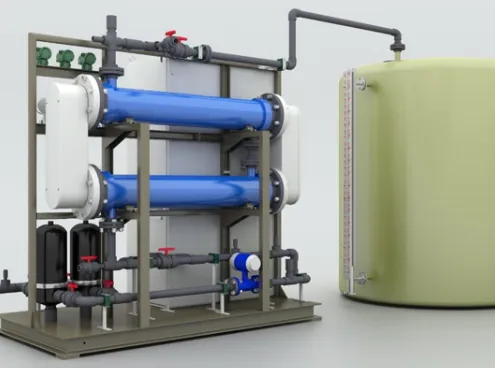

The system uses an electrolytic cell to generate sodium hypochlorite (NaClO) directly from seawater. PLC automatically adjusts current and flow rate based on real-time chlorine demand, ensuring consistent residual chlorine levels. The system includes a rectifier, control panel, electrolytic cell, and dosing unit. Optional features like automatic cleaning cycle and remote monitoring are available.
Applications
Seawater cooling systems in power plants and refineries
Ballast water treatment on ships
Offshore oil and gas platforms
Desalination plants
Marine aquaculture
Why Choose ZLN?
As a manufacturer based in Tianjin, China, we have exported our systems to over 20 countries across all major continents, including North America, South America, Europe, Africa, and Asia. Our team of experienced engineers provides full technical support, from system design to commissioning. With 25 years of continuous improvement, our seawater electrolysis chlorination systems are known for their durability, energy efficiency, and ease of operation. We also offer customized solutions to meet specific project requirements.
FAQ
Q: How long does the system last?
A: With proper maintenance, the electrolytic cell can operate for 5–8 years, and the overall system life can exceed 15 years. Our 25 years of experience ensure robust design and material selection.
Q: Does the system require any chemicals?
A: No. It uses only seawater and electricity to generate chlorine on-site, eliminating the need for purchasing, transporting, or storing hazardous chemicals.
Q: Can the capacity be adjusted?
A: Yes. The PLC system continuously monitors and adjusts chlorine production to match the actual demand. The system is also designed to be modular, allowing capacity expansion if needed.
Q: What is the power consumption?
A: Typical power consumption is about 3–5 kWh per kg of chlorine produced, depending on seawater salinity and temperature. Our advanced electrode coating helps keep energy costs low.
Q: Is the system easy to install and operate?
A: Yes. The system comes pre-assembled and tested. The PLC-based HMI provides clear instructions and alarms. We also provide on-site commissioning support and training.
Q: Do you offer spare parts?
A: Yes. We maintain a stock of commonly used spare parts such as electrodes, seals, and sensors. We also provide long-term service agreements.
Q: What is the delivery time?
A: Standard delivery time is 30–45 days after order confirmation. For urgent orders, we can arrange expedited production upon request.
Q: Can I get a customized system for my project?
A: Absolutely. Our engineering team will work with you to design a system that meets your specific flow rate, chlorine demand, and site conditions. Just provide us with your seawater parameters and requirements.
Contact us today for a detailed quotation and technical proposal. Let our 25 years of experience work for you!
