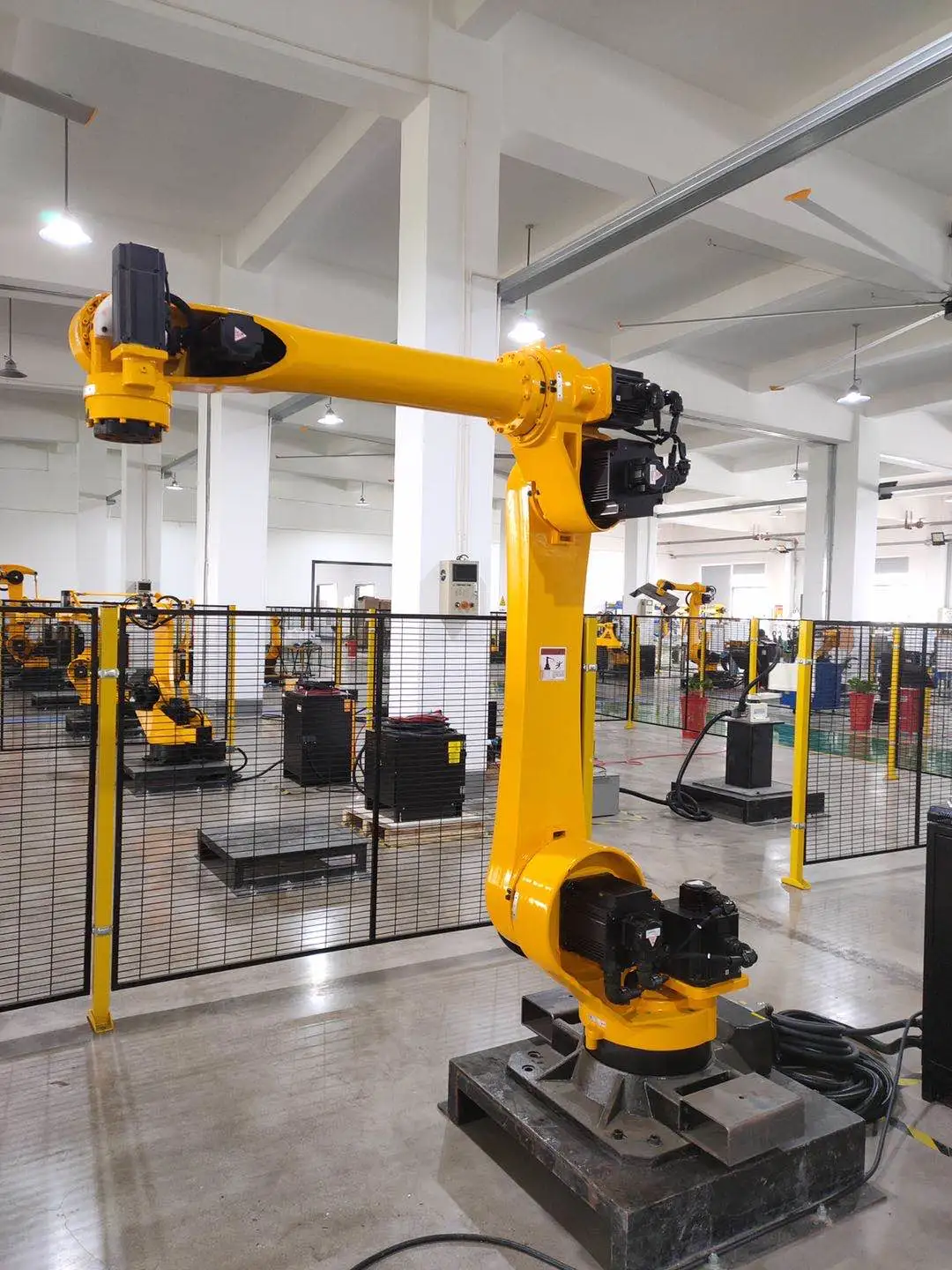

Help Center6-Axis Steel Beam H Beam Welding Robot Arm 1598mm Reach 6kg Payload With Control Cabinet
Product Spotlights
Related Products
-
100KG 6-Axis Industrial Robot Arm JZJ100A-270 Palletizing Handling RobotNegotiableMOQ: 1 Piece -
Multifunctional Automatic Welding Robot With Six-Axis for Handling and UnloadingNegotiableMOQ: 1 Piece
-
Long Reach JZJ06C-200 6 Axis Industrial Welding Robot IP67 Grade Body for Laser Cutting & Arc WeldingNegotiableMOQ: 1 Piece
-
JZJ06C-160 Six-Axis Industrial Welding Robot 1567mm Working Radius 6kg LoadNegotiableMOQ: 1 Piece
-
6kg Payload Six-Axis Welding Cutting Robotic Arm JZJ06C-144 IP67 Equivalent ProtectionNegotiableMOQ: 1 Piece
As a reliable supplier of industrial automation solutions, XiAn Wisdom Computer Info&tech Co., Ltd is proud to introduce our 6-Axis Steel Beam H Beam Welding Robot Arm with a 1598 mm reach and 6 kg payload, complete with a robust control cabinet. This robotic arm is engineered to streamline welding processes for H-beam and steel beam structures, offering consistent precision and high efficiency. With over 9 years of trading experience (since 2015) and a dedicated team of 51-100 professionals, we ensure that every unit meets rigorous quality standards before shipping to global markets.
Our welding robot is designed to handle demanding tasks in steel fabrication, shipbuilding, and heavy machinery manufacturing. The 6-axis flexibility allows it to reach complex weld joints, while the 1598 mm reach covers large workpieces without repositioning. The 6 kg payload is sufficient for standard welding torches and accessories, making it a versatile choice for medium-duty welding applications. The integrated control cabinet provides seamless operation, intuitive programming, and real-time monitoring, reducing setup time and operator training.
Why Choose Our 6-Axis Welding Robot? This robot arm is specifically built for H-beam and steel beam welding, where long, straight seams and complex joint geometries are common. The 6-axis design provides superior dexterity to access confined spaces, while the 1598 mm reach eliminates the need for multiple robot repositioning. The 6 kg payload allows you to mount a heavy-duty welding torch along with wire feeder and sensor, enabling high deposition rates and consistent weld quality.
The control cabinet is pre-configured with common welding parameters and can be customized via the intuitive touch interface. It supports multiple welding modes (MIG/MAG, TIG, and flux-cored) and is compatible with most major welding power sources. The robot also features a collision detection function to protect the arm and workpiece, reducing downtime and maintenance costs.
Key Benefits for Customers
Increased Productivity: Continuous welding without fatigue, with cycle times reduced by up to 30% compared to manual welding.
Consistent Quality: Repeatability of ±0.05 mm ensures uniform weld beads and fewer defects.
Lower Labor Costs: One robot can replace multiple welders, especially for repetitive long seams on H-beams.
Easy Integration: The control cabinet comes with standard I/O ports and fieldbus interfaces (Profibus, EtherCAT, optional) for seamless connection to your factory network.
Compact Footprint: The robot arm has a slim profile and can be mounted on a pedestal or mobile trolley, suitable for small and medium-sized workshops.
Safety Features: Emergency stop, software limit switches, and light curtain interface (optional) ensure operator safety.
Advanced Features include a built-in welding seam tracking system (optional) that adjusts the torch path in real-time based on joint variations. The robot arm itself is made of high-strength steel and lightweight alloy, reducing inertia and improving speed. The servo motors are energy-efficient, with regenerative braking that lowers power consumption during deceleration.
We also offer customization options such as different mounting brackets, longer cables, and special software for complex welding sequences. Our technical team provides remote installation guidance and programming support, making it easy for even first-time users to get started.
Trusted by Global Customers – XiAn Wisdom Computer Info&tech Co., Ltd has been serving industries since 2015, with an overseas office and a network of partners across North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and Asia. Our factory, though compact (under 1,000 sqm), is equipped with advanced testing equipment, and we hold ISO9001, ISO9004, and ISO14000 certifications, ensuring that our products are manufactured under strict quality and environmental management systems. We ship from Shanghai port with reliable logistics partners, and we can provide after-sales service through our local representatives in many regions.
Whether you are looking to automate a single welding station or a complete production line, this 6-axis welding robot arm is a cost-effective solution that delivers high return on investment. Contact us today for a quote or technical consultation – we are committed to helping you achieve welding excellence.
Frequently Asked Questions (FAQ)
Q1: What is the maximum weight of the welding torch that can be mounted on this robot?
A: The robot has a payload of 6 kg, so the total weight of the welding torch, cable, and any sensor must not exceed 6 kg. Typical MIG/MAG torches weigh around 1-2 kg, leaving ample capacity for accessories.
Q2: Can this robot be used for welding H-beams of different sizes?
A: Yes, the 1598 mm reach covers most standard H-beam widths (up to 1.2 m flange width). For larger beams, you can mount the robot on a rail or gantry system (available as an option).
Q3: Does the control cabinet support offline programming?
A: Yes, the control cabinet includes a USB port and Ethernet connection. You can upload programs generated from CAD/CAM software or use the teach pendant to manually create paths. Simulation software is available upon request.
Q4: What is the power requirement for the control cabinet?
A: The control cabinet operates on 380V AC, 3-phase, 50/60 Hz (customizable to 220V or 480V upon request). Power consumption is typically 2.5 kVA during operation.
Q5: How long is the standard warranty period?
A: We offer a standard 12-month warranty from the date of shipment. Extended warranty options are available for purchase. Spare parts are readily available from our warehouse.
Q6: Can this robot be integrated with existing welding power sources?
A: Yes, the control cabinet has analog and digital interfaces (0-10V, 4-20mA, and fieldbus) that can communicate with most major welding power source brands. We can provide a list of compatible models upon request.
Q7: What is the minimum floor space required for installation?
A: The robot arm itself requires a base area of about 600 mm x 600 mm. The control cabinet measures approximately 800 mm (W) x 600 mm (D) x 1800 mm (H). A clearance of 1 meter around the robot is recommended for safe operation.
Q8: Do you provide training for operators?
A: Yes, we offer on-site training (for orders above a certain quantity) and remote training sessions via video call. Detailed user manuals and programming guides are included with the system.
