XiAn Wisdom Computer Info&tech Co., Ltd is proud to present the JZJ06C-160 Six-Axis Industrial Welding Robot, a versatile and high-performance automation solution designed to elevate your welding operations. With a generous working radius of 1567mm and a payload capacity of 6kg, this robot delivers exceptional reach and precision for a wide range of welding tasks. Built on our 9 years of experience in industrial automation trading, we ensure that every unit meets rigorous quality standards, supported by our ISO9001, ISO9004, and ISO14000 certifications. Whether you are in automotive, shipbuilding, or general fabrication, this robot offers the reliability and flexibility you need to boost productivity and reduce labor costs.
Key Features & Technical Specifications
Six-Axis Articulation – Full 6 degrees of freedom for complex weld paths and hard-to-reach joints.
1567mm Working Radius – Covers large workpieces without repositioning, ideal for medium-sized parts.
6kg Payload Capacity – Sufficient for most welding torches, cables, and sensors.
High Repeatability (±0.05mm) – Ensures consistent weld quality and reduces rework.
Compact & Robust Design – Space-saving footprint with IP54 protection for harsh environments.
Energy-Efficient AC Servo Drives – Low power consumption and smooth motion control.
User-Friendly Programming – Supports teach pendant, offline programming, and integration with major PLCs.
-
Flexible Mounting Options – Floor, ceiling, or wall installation to fit your workshop layout.

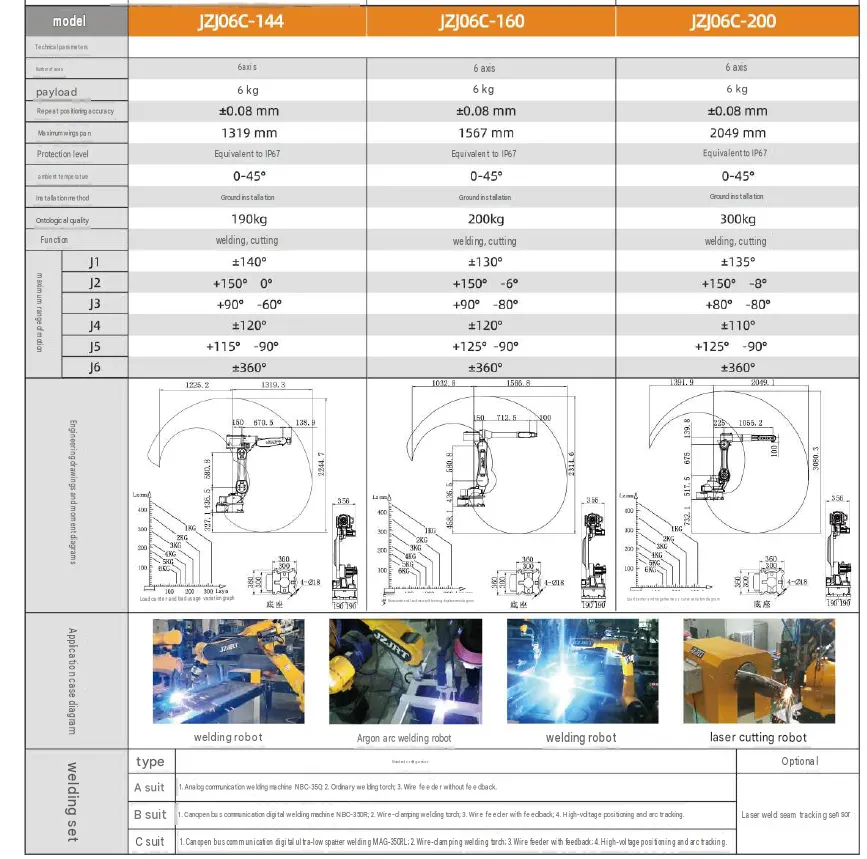

Technical Parameters
Advantages & Customer Benefits
Increased Productivity – Continuous 24/7 operation with minimal downtime, replacing manual welding labor.
Superior Weld Quality – High repeatability and stable path control reduce defects and post-weld processing.
Cost Savings – Lower energy consumption and reduced material waste through precise motion.
Easy Integration – Compatible with popular welding power sources (e.g., Fronius, Lincoln, Miller) and common interfaces.
Safe Operation – Built-in collision detection and emergency stop ensure operator safety.
Long Service Life – High-quality components and robust construction minimize maintenance needs.
The JZJ06C-160 is particularly well-suited for gas metal arc welding (GMAW/MIG), tungsten inert gas welding (TIG), and flux-cored arc welding (FCAW). Its 1567mm reach allows it to handle components such as automotive chassis, metal frames, pipelines, and furniture. With optional offline programming software, you can simulate weld paths before deployment, reducing setup time significantly.
Frequently Asked Questions (FAQ)
Q: What welding processes can this robot support?
A: It supports MIG/MAG, TIG, plasma welding, and spot welding with appropriate end-effectors. The robot can be integrated with most third-party welding power sources.Q: What is the installation requirement?
A: The robot can be floor-mounted, ceiling-mounted, or wall-mounted. A stable foundation or mounting bracket is required. We provide detailed installation manuals and optional mounting kits.Q: Is the robot easy to program for beginners?
A: Yes, it comes with a user-friendly teach pendant that supports point-to-point and continuous path programming. We also offer training sessions and offline simulation software (optional).Q: What is the warranty period?
A: The standard warranty is 12 months from the date of shipment. Extended warranty options are available upon request. Our after-sales team provides remote technical support.Q: Can the robot be customized for specific applications?
A: Yes, we offer customization such as longer cables, special end-effector flanges, and protective covers for harsh environments. Contact us with your requirements.Q: What is the delivery time?
A: Typical delivery is 15-30 working days after order confirmation, depending on quantity and customization. We ship from Shanghai port.Q: Does the robot have collision detection?
A: Yes, it is equipped with software-based collision detection and optional hardware safety sensors. The system can automatically stop and retract to prevent damage.Q: What is the noise level during operation?
A: The robot operates at a low noise level (typically below 70 dB) due to the servo drives and precision gearbox, making it suitable for indoor workshops.
Why Choose XiAn Wisdom Computer Info&tech Co., Ltd?
Since 2015, we have been serving global clients from our headquarters in Xi'an, China. Our team of 51-100 professionals is dedicated to providing high-quality industrial automation equipment. We hold ISO9001, ISO9004, and ISO14000 certifications, ensuring that our products meet international standards. With an overseas office and a broad network covering markets in North America, South America, Europe, Asia, Africa, and Oceania, we offer reliable logistics and local support. Our annual export value may be under US$1 million, but we prioritize personalized service and long-term partnerships. From initial inquiry to after-sales support, we are committed to your success.
Ready to transform your welding production? Contact us today for a quote, technical datasheet, or free consultation. The JZJ06C-160 is your reliable partner for achieving higher efficiency and consistent weld quality.
