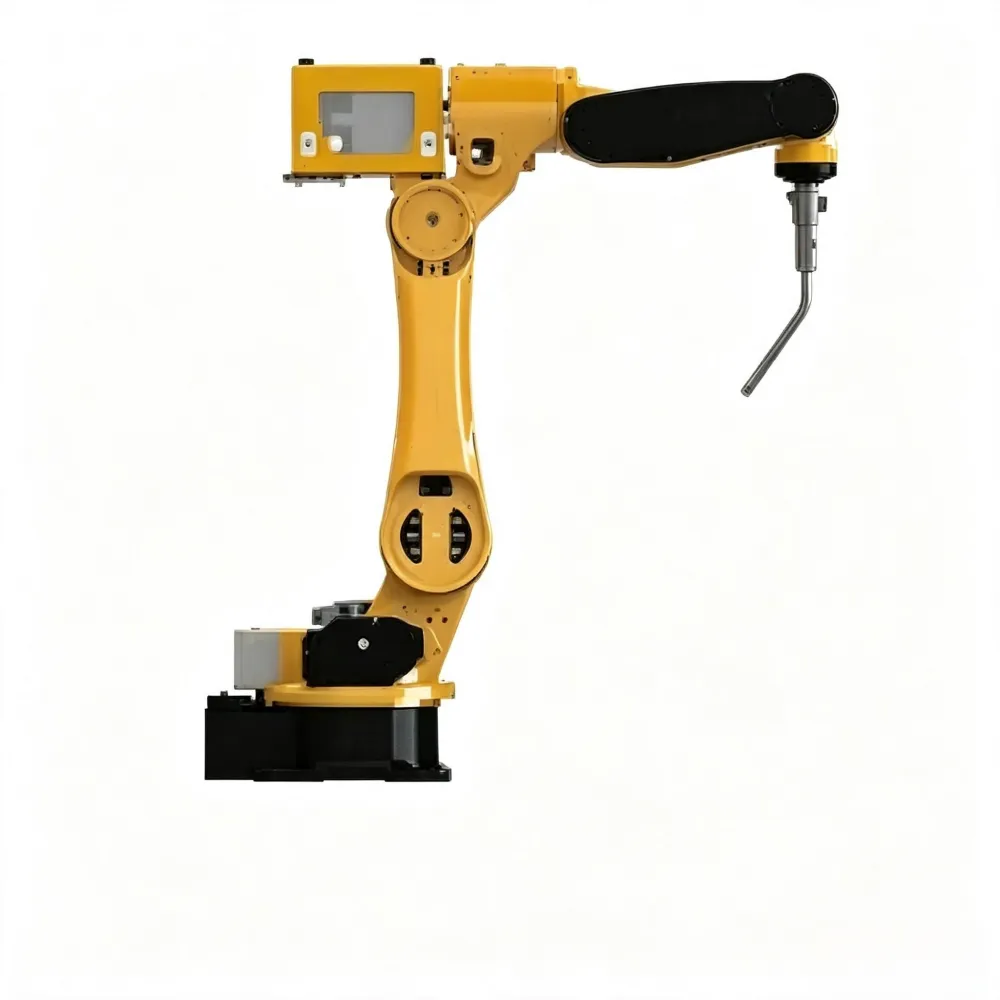

XiAn Wisdom Computer Info&tech Co., Ltd is proud to present the JZJ06C-144 six-axis robotic arm, a robust solution designed for high-precision welding and cutting tasks. With a 6 kg payload capacity and IP67 equivalent protection, this robot is built to withstand dust, moisture, and harsh industrial environments. Our team of 51-100 skilled professionals, backed by ISO9001, ISO9004, and ISO14000 certifications, ensures every unit delivers reliable performance. Whether you need automated welding for automotive parts or precision cutting for metal fabrication, the JZJ06C-144 offers the flexibility and durability your production line demands.
This robotic arm features six axes of motion, providing exceptional reach and dexterity for complex workpieces. The 1440 mm working radius allows it to cover large areas without repositioning, while the ±0.05 mm repeatability guarantees consistent weld quality and cut accuracy. The IP67 protection level means it operates reliably in dusty or wet conditions, reducing downtime and maintenance costs. With a compact yet sturdy design, the JZJ06C-144 is easy to integrate into existing production cells.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Payload | 6 kg |
| Number of Axes | 6 |
| Working Radius | 1440 mm |
| Repeatability | ±0.05 mm |
| Protection Class | IP67 Equivalent |
| Weight | ~150 kg |
| Power Supply | 380V AC, 50/60 Hz |
Product Features & Customer Benefits
High Rigidity & Stability: The cast-iron base and aluminum alloy arm provide excellent vibration damping, resulting in smoother weld beads and cleaner cuts. This reduces post-processing time and improves part quality.
IP67 Equivalent Protection: Sealed joints and internal components prevent ingress of dust and water jets, making the robot ideal for foundries, automotive paint shops, and outdoor applications. Maintenance intervals are extended, lowering total cost of ownership.
Flexible Mounting Options: Can be mounted on floor, wall, or ceiling, allowing optimization of factory floor layout. The compact footprint saves valuable space.
Easy Programming & Integration: Compatible with popular welding and cutting software (e.g., Offline Programming tools). The robot supports standard industrial communication protocols (EtherCAT, Profinet, etc.) for seamless integration with PLCs and vision systems.
Energy-Efficient Servo Motors: Low-power consumption yet high torque output reduces electricity costs. The regenerative braking system feeds energy back to the grid during deceleration.
Comprehensive Safety Features: Built-in collision detection, soft limits, and emergency stop circuits ensure operator safety. Optional safety-rated torque monitoring is available.
By choosing the JZJ06C-144, manufacturers can achieve up to 30% faster cycle times compared to manual welding, while maintaining consistent quality across production runs. The six-axis design allows access to hard-to-reach areas, reducing the need for complex fixtures.
Why Trust XiAn Wisdom Computer Info&tech Co., Ltd?
Since 2015, we have served customers in North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and Asia. Our overseas office and dedicated logistics team ensure smooth shipping from Shanghai port. We hold ISO9001, ISO9004, and ISO14000 certifications, reflecting our commitment to quality management and environmental responsibility. With an annual export value below US$1 million, we focus on personalized service and flexible order quantities. Our engineers provide remote and on-site technical support to guarantee your success.
Contact us today to discuss your welding and cutting automation needs. The JZJ06C-144 robotic arm is available for immediate demonstration and trial. Partner with a reliable supplier that prioritizes your productivity.
Frequently Asked Questions
Q: Is the IP67 protection rating suitable for welding spatter?
A: Yes, the IP67 equivalent protection means the robot's joints are sealed against dust and water jets. However, for excessive welding spatter, we recommend additional protective covers, which are available as an option.Q: Can the robot handle both MIG welding and plasma cutting?
A: Absolutely. The JZJ06C-144 can be equipped with various welding torches and cutting heads. The control system supports switching between processes, though tool change may require end-of-arm tooling customization.Q: What is the typical lead time for delivery?
A: For standard orders, lead time is approximately 30-45 days after confirmation. We offer expedited shipping for urgent requests, subject to availability.Q: Do you provide programming training?
A: Yes, we offer on-site training for your operators and maintenance staff. Remote training via video conference is also available. Detailed manuals and programming guides are included.Q: What is the warranty period?
A: The standard warranty is 12 months from the date of shipment. Extended warranty options are available for up to 3 years.Q: Can the robot be integrated with existing production lines?
A: Yes, the robot supports common fieldbus protocols and can be easily integrated with PLCs, positioners, and conveyor systems. Our engineering team can assist with integration planning.Q: Is the robot CE certified?
A: The robot is designed to meet CE requirements. Specific certification documentation can be provided upon request for your region.Q: What is the maximum reach when fully extended?
A: The maximum working radius is 1440 mm from the base center. Combined with the 6-axis motion, the effective reach is sufficient for most medium-sized workpieces.
