Hengshui Ruibin New Materials LLC is proud to introduce our Reinforced Plastic Mesh Panels Molded Fiberglass FRP Gratings, expertly engineered for trench cover applications. As a dedicated manufacturer with over 5 years of experience and a 1,000–3,000 m² factory, we produce high-quality FRP gratings that combine durability, safety, and cost-effectiveness. Our panels are designed to replace traditional steel or concrete covers, offering superior corrosion resistance and a long service life in harsh environments.

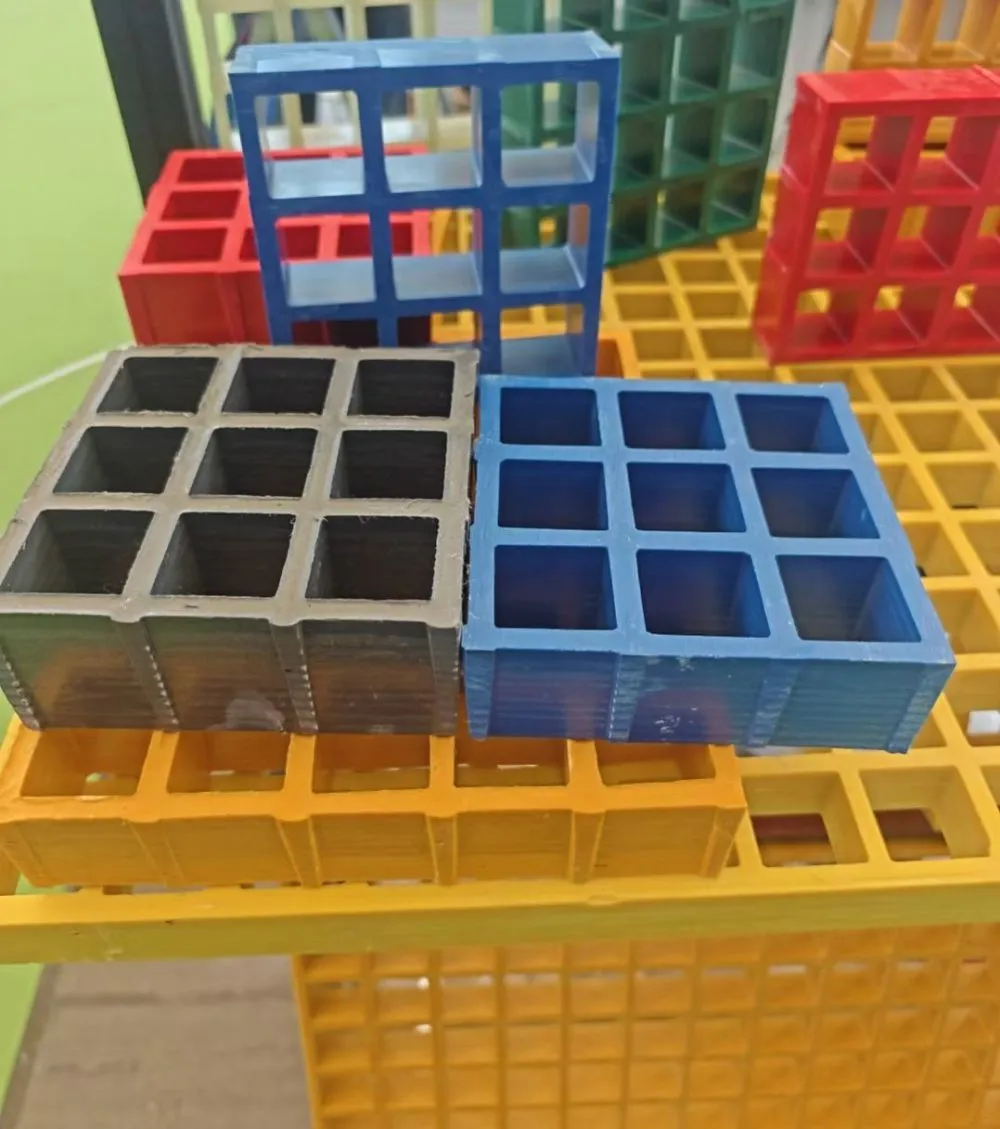

These molded fiberglass gratings are manufactured using a compression-molding process that creates a strong, uniform mesh structure. The result is a lightweight yet robust panel that can handle heavy loads while remaining easy to install and maintain. Whether for municipal drainage, industrial trenches, or commercial walkways, our FRP gratings deliver reliable performance.
With annual export value between US$2.5 million and US$5 million, we serve markets across North America, South America, Europe, Southeast Asia, Africa, and Oceania. Our products are shipped from major ports like Tianjin and Qingdao, ensuring timely delivery worldwide.
Key Features & Benefits
- Corrosion Resistance: Unlike steel, FRP does not rust or corrode, making it ideal for wet or chemical environments.
- Lightweight Design: Up to 75% lighter than steel, reducing transportation and installation costs.
- High Load Capacity: Can be customized to meet load ratings from pedestrian to heavy vehicle traffic.
- Slip-Resistant Surface: The molded mesh pattern provides excellent traction even when wet.
- Low Maintenance: No painting, coating, or periodic replacement needed – simply wash with water.

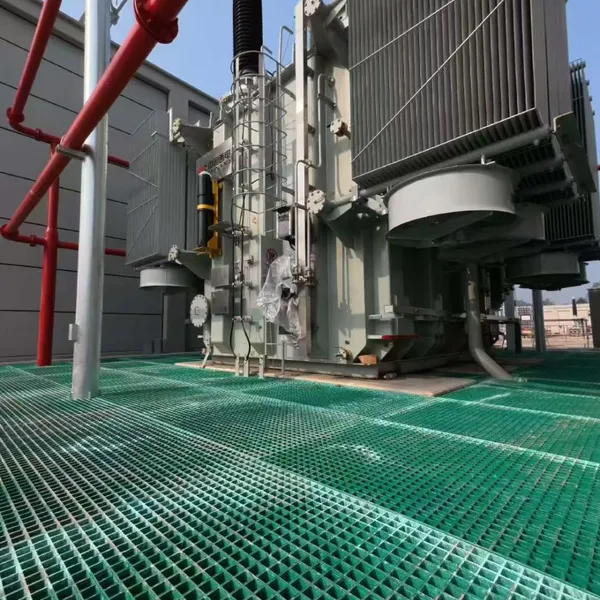

- Non-Conductive & Non-Magnetic: Safe for use in electrical substations, data centers, and sensitive areas.
- UV Stabilized: Resistant to sunlight degradation, ensuring long-term outdoor performance.
- Customizable Colors & Sizes: Available in standard sizes or cut to your specifications.
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Fiberglass Reinforced Polyester / Vinyl Ester |
| Resin Content | 30–35% (by weight) |
| Glass Content | 65–70% (by weight) |
| Panel Thickness | 25 mm, 30 mm, 38 mm, 50 mm (customizable) |
| Mesh Opening Size | 38 mm x 38 mm (standard) – other sizes available |
| Load Rating | Up to 40 kN/m² (or custom per project) |
| Temperature Range | -40°C to +80°C (continuous) |
| Fire Resistance | Class 1 (BS 476) / optional with additives |
Typical Applications
- Trench Covers: For drainage, utility, and cable trenches in roads, factories, and parking lots.
- Industrial Flooring: Platforms, walkways, and catwalks in chemical plants, refineries, and food processing.
- Municipal Works: Manhole covers, stormwater grates, and sewage treatment plant access.
- Marine & Coastal: Docks, piers, and offshore platforms where saltwater corrosion is a concern.
- Electrical & Communications: Cable trays, substation flooring, and data center raised floors.
Why Choose Hengshui Ruibin?
- ISO9001 Certified: Our quality management system meets international standards, ensuring consistent product excellence.
- Experienced Manufacturer: Over 5 years of dedicated FRP production with a skilled team of 101–200 employees.
- Global Export Reach: We ship to 12+ major markets, from North America to Oceania, with flexible logistics.
- Custom Solutions: We offer OEM/ODM services, custom colors, sizes, and load ratings to match your project requirements.
- Competitive Pricing: Direct factory pricing eliminates middlemen, giving you the best value for your investment.
With an annual export value of US$2.5–5 million and a factory spanning 1,000–3,000 m², Hengshui Ruibin New Materials LLC has the capacity and expertise to fulfill large-scale orders while maintaining strict quality control. Our products are trusted by clients across 5 continents, and we are committed to delivering on time, every time.
Ready to enhance your trench cover system? Contact us today for a quote or technical consultation. Our team will assist you in selecting the right FRP grating panels for your specific application. Experience the durability, safety, and cost savings of molded fiberglass gratings from a reliable manufacturer.
Frequently Asked Questions
Q1: What is the difference between molded FRP gratings and pultruded gratings?
A: Molded gratings are made by compressing resin and glass fibers in a heated mold, creating a uniform mesh with a smooth surface. Pultruded gratings are made by pulling continuous fibers through a resin bath and die, resulting in longer, stronger panels with directional strength. Our molded panels are ideal for trench covers where isotropic strength and easy fabrication are needed.
Q2: Can these FRP gratings be used for heavy vehicle traffic?
A: Yes, depending on the thickness and resin system. We can customize load ratings up to 40 kN/m² or more. For specific traffic requirements, please provide the expected load and we will recommend the appropriate panel thickness and reinforcement.
Q3: Are the panels resistant to chemicals and UV?
A: Yes, the standard polyester resin offers good chemical resistance. For harsh chemical environments, we can use vinyl ester resin. The panels are UV stabilized to prevent yellowing and degradation from sunlight.
Q4: How are the panels installed?
A: The panels can be cut, drilled, and shaped on-site using standard carbide tools. They are typically set into a supporting frame or directly onto trench edges. Fasteners can be metal or FRP, and we provide installation guidelines.
Q5: Do you offer custom sizes and colors?
A: Absolutely. We can manufacture panels in any size up to 1.22m x 3.66m (or larger upon request). Colors such as yellow, gray, green, and blue are standard; custom colors are available with minimum order quantity.
Q6: What is the typical lead time?
A: For standard sizes, lead time is 15–20 working days after order confirmation. Custom orders may require 25–30 working days. We ship via sea or air from Tianjin or Qingdao ports.
Q7: Are these gratings fire-resistant?
A: Our standard gratings comply with Class 1 flame spread rating (BS 476). For applications requiring higher fire resistance, we can add fire-retardant additives to the resin.
Q8: What certifications do your products have?
A: Our manufacturing facility is ISO9001 and ISO9000 certified. We also provide test reports for load capacity, chemical resistance, and slip resistance upon request.
