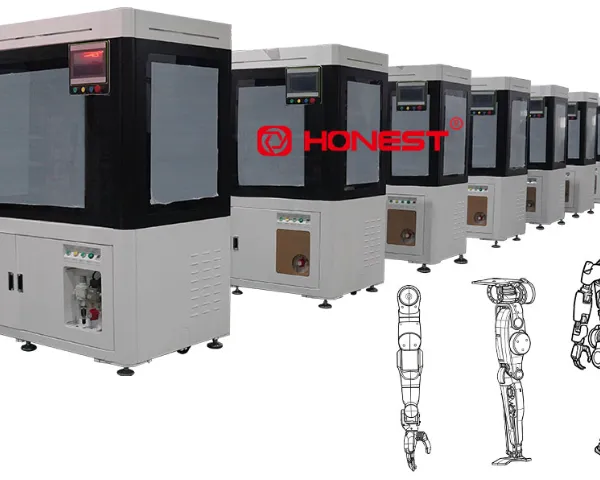

Turnkey Humanoid Robot Final Assembly Line
The humanoid robot final assembly line is specifically designed for the assembly of arm sections, leg sections, torso sections, and complete system integration.
It provides a full-process assembly solution from individual components to finished robots.
It adopts a dual-layer recirculating conveyor system and a modular layout, with reserved expansion interfaces to support rapid model changeovers and flexible
customization for non-standard requirements.
Advantages
-
01
Flexible Scalability: Reserved space and electrical interfaces enable capacity expansion or model changeovers with zero retrofit, reducing ramp-up time and changeover costs.
-
02
Main Line Offloading & Cycle Time Optimization: An independent pre-assembly zone is designed to offload key processes—such as bearing press-fitting and PCB/driver assembly—streamlining the main line and improving takt time.
-
03
End-to-End Error-Proofing Control: Workstations are equipped with ESD wrist straps as standard and support MES integration, ensuring a zero-error assembly process.
-
04
Modular Assembly Units: Clearly defined functional zones allow for fault isolation, ensuring maintenance activities do not disrupt the entire production line.
-
05
Rapid Changeover Capability: Program switching combined with quick tooling replacement significantly shortens model changeover time and improves line utilization.
-
06
Non-Standard Customization: Tailored to support multi-joint, high-precision assembly processes.
Equipment Parameters
Production efficiency
CT ≤ 30 min
Yield Rate
≥98%
Utilization rate
Overall line ≥ 90%
Power Supply
Main input: AC 380V, 50Hz
Air pressure
0.45 MPa – 0.6 MPa
Power
137 kW
Control method
PLC+HMI
Dimensions
L ≈ 62 m, W ≈ 28 m
Application field
Humanoid Robot
Welcome to inquire for a free quote, solutions, and case studies.
