Help CenterMotor Stator Flat Wire Coil Winding Machine
Product Spotlights
Precision Flat Wire Coil Winding
Integrated Wire Processing Functions
Accurate Feeding & Enamel Stripping
Flexible Multi-Model Production
Stable High-Quality Coil Manufacturing
Related Products
Mid-Drive Motor Stator Flat Wire Coil Winding Machine

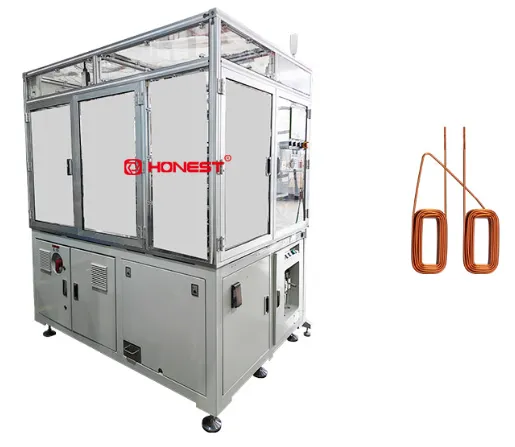

The Stator Flat Wire Coil Winding Machine is mainly applied for mid-drive motor stator manufacturing, integrating key processes including flat wire winding, wire arrangement, enamel stripping, and wire cutting. It is compatible with flat wire sizes of 0.74 × 1.22 mm.
Equipped with a precision wire feeding and enamel stripping system, the machine enables accurate wire length detection, multi-directional enamel stripping, and automatic coil winding. The winding spindle, tooling rotation, driven mechanism, and pole changing mechanism work together to ensure stable and high-quality flat wire coil production.
With a unique mechanical design and flexible changeover capability, the equipment supports different product models while ensuring consistent winding performance, product appearance, and reliability.
Advantages
-
01
Full-process wire tension control ensures stable tension throughout winding, eliminating common mass production issues such as uneven tension and coil deformation.
-
02
Integrated online enamel stripping, dust removal, and constant-temperature hot air forming.
-
03
Multiple protection designs effectively control and reduce product defect rates.
-
04
Fully automated process integration for a simplified and efficient production workflow.
-
05
Complete process data traceability enables controlled and traceable winding processes.
-
06
Precise wire arrangement and coil forming ensure high product consistency.
Equipment Parameters
Winding Cycle Time
CT ≤ 72s (Customized according to specific requirements)
Power Rating
9 kW
Yield Rate
>98%
Control System
PLC + HMI
Application
Flat Wire Stator Coils
Welcome to inquire for a free quote, solutions, and case studies.
