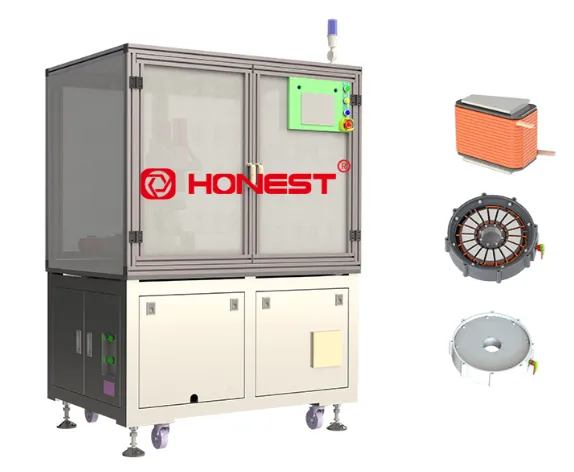

Axial Flux Electric Motor Winding Machine
Axial flux electric motor winding machine adopts a wire-folding module and servo differential compensation winding technology to ensure precise and stable stator winding. The equipment enables fully automatic winding, wire trimming, and supports an optional paint-removing function.
An automatic wire pair interface is reserved on the stand-alone machine, which can also be seamlessly integrated into a complete axial flux motor assembly line.
Axial flux motors are widely used in electric vehicles, humanoid robots, drones, eVTOL aircraft, and industrial automation applications. If you have any needs for axial flux motor assembly, please feel free to inquire online or visit our factory.
Advantages
-
01
Configure high-precision sensors.
-
02
The equipment prompts various misoperations and bad states in real time.
-
03
Every part of the manual assembly is equipped with a leak inspection and error proofing machine.
-
04
The equipment is ergonomically designed and easy to operate.
-
05
Use technological means to reduce or avoid the phenomenon of wrong installation, missing installation, reverse installation, etc.
-
06
Compared with the conventional winding method, the angle of the arc fits better, and the copper wire at the angle and the arc of the skeleton can fit perfectly without bulging.
Equipment Parameters
Production efficiency
Change time
30min
Yield rate
≥99.5%
Utilization rate
≥95%
Power
≈4kW
Voltage
AC380V/AC220V 50HZ
Air pressure
0.4~0.7Mpa
Control mode：
Man-machine interface, programmable logic controller PLC, communication module
Appearance size
1300(L)*W2000(W)*1800(H)mm
Fields of application
Axial Flux Motor
Welcome to inquire for a free quote, solutions, and case studies.
