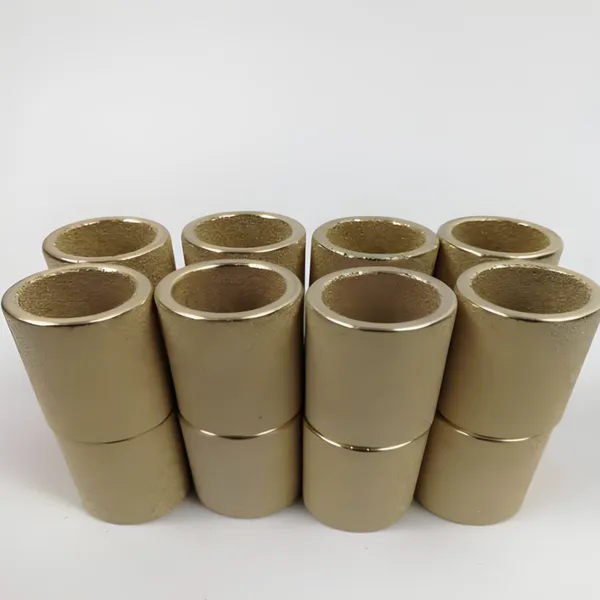

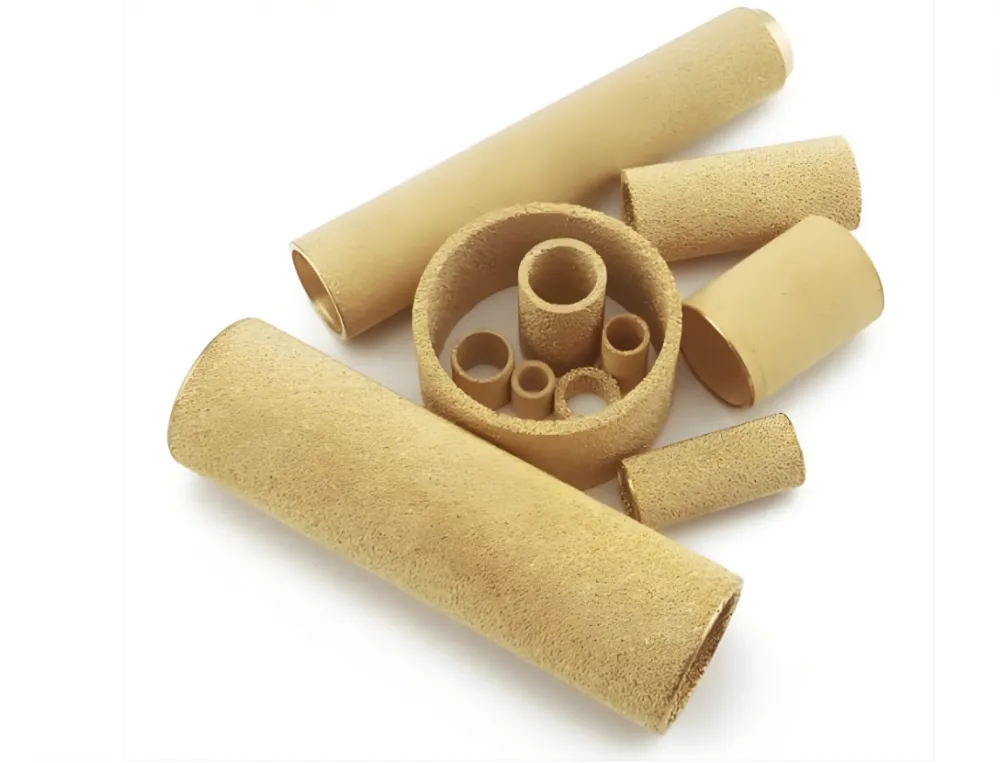

Sintered Copper Powder Filter Cartridge With Factory Warranty, Mill Test Report Included, Standard Compliant

Sintered Copper Powder Filter Cartridge With Factory Warranty, Mill Test Report Included, Standard Compliant thumbnail-3

Sintered Copper Powder Filter Cartridge With Factory Warranty, Mill Test Report Included, Standard Compliant thumbnail-4

Sintered Copper Powder Filter Cartridge With Factory Warranty, Mill Test Report Included, Standard Compliant thumbnail-5

Sintered Copper Powder Filter Cartridge With Factory Warranty, Mill Test Report Included, Standard Compliant photo-1

Sintered Copper Powder Filter Cartridge With Factory Warranty, Mill Test Report Included, Standard Compliant photo-2

Sintered Copper Powder Filter Cartridge With Factory Warranty, Mill Test Report Included, Standard Compliant photo-3

Sintered Copper Powder Filter Cartridge With Factory Warranty, Mill Test Report Included, Standard Compliant photo-4

Sintered Copper Powder Filter Cartridge With Factory Warranty, Mill Test Report Included, Standard Compliant photo-5

Product Spotlights

High-purity sintered copper powder filter cartridge with factory warranty and mill test report. Customizable filtration grade (1–100 μm), temperature up to 600°C, pressure up to 30 MPa. Reusable, washable, and compliant with industry standards. Trusted manufacturer since 1998 with global export experience.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Copper Powder

Filtration Grade:

1 – 100 microns (customizable)

Dimensions:

OD: 10–200 mm, Length: 100–1500 mm (customizable)

Contact Supplier Request Quote Chat Now

Anping County Boli Hardware Wiremesh Products Factory

2Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin shanghai qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Copper Powder

Filtration Grade 1 – 100 microns (customizable)

Dimensions OD: 10–200 mm, Length: 100–1500 mm (customizable)

Operating Temperature Up to 600°C

Operating Pressure Up to 30 MPa (customizable)

Filtration Direction Inside-out or outside-in (optional)

Application Liquid/gas filtration, chemical, pharmaceutical, water treatment

Feature Washable, reusable, high mechanical strength

Standard Compliance Industry standard compliant (details upon request)

Warranty Factory warranty included

Welcome to Anping County Boli Hardware Wiremesh Products Factory, a trusted manufacturer established in 1998 with an annual export value of US$5 million to US$10 million. Our Sintered Copper Powder Filter Cartridge is engineered for demanding filtration applications, combining the durability of copper with precise sintering technology. With factory warranty and mill test report included, this cartridge delivers consistent performance and compliance with industry standards. Whether you need fine filtration for chemicals or robust separation for gases, our product is designed to meet your requirements.

Product Features and Technical Specifications

Material: High-purity copper powder, sintered to form a porous structure with excellent mechanical strength and corrosion resistance.
Filtration Precision: Available from 1 micron to 100 microns, customizable to your specific needs.
Dimensions: Outer diameter from 10 mm to 200 mm, length from 100 mm to 1500 mm. Custom sizes available upon request.
Operating Conditions: Handles temperatures up to 600°C and pressures up to 30 MPa, making it suitable for harsh environments.
Filtration Direction: Supports both inside-out and outside-in flow, offering flexibility in system design.
Reusability: The cartridge can be cleaned and reused multiple times, reducing replacement costs.
Mill Test Report: Each cartridge comes with a detailed mill test report verifying material composition and performance.
Factory Warranty: Backed by our factory warranty, ensuring reliability and peace of mind.

Technical Parameters (Typical Values)

Parameter	Specification
Filtration Grade (μm)	1 – 100
Max Operating Temperature (°C)	600
Max Operating Pressure (MPa)	30
Porosity (%)	30 – 50
Wall Thickness (mm)	2 – 10

Advantages and Customer Benefits

Exceptional thermal and chemical resistance ensures long service life even in aggressive media.
High mechanical strength allows for backwashing and cleaning without deformation.
Customizable dimensions and filtration grades fit seamlessly into existing systems.
Included mill test report provides full traceability and quality assurance.
Factory warranty demonstrates our commitment to product reliability.

Trusted by Global Markets

Since 1998, Anping County Boli Hardware Wiremesh Products Factory has been a reliable partner for clients across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, and the domestic market. Our annual export value of US$5 million to US$10 million reflects the trust global customers place in our products. Each Sintered Copper Powder Filter Cartridge is manufactured with strict quality control, and we provide full after-sales support. Contact us today to discuss your filtration requirements and experience the difference of a factory-direct partner.

Frequently Asked Questions

Q: What is the typical lifespan of this filter cartridge?
A: Lifespan depends on operating conditions and cleaning frequency. Under normal use, the cartridge can be reused many times after proper cleaning. The sintered copper structure is durable and resistant to wear.
Q: Can I customize the filtration grade?
A: Yes, we offer filtration grades from 1 to 100 microns. Custom grades are available upon request. Please contact our sales team with your requirements.
Q: Is the cartridge suitable for food-grade applications?
A: Copper is not typically used in direct food contact due to regulatory restrictions. However, it is widely used in industrial filtration such as chemical processing, oil and gas, and water treatment. For specific applications, please consult with us.
Q: What is included in the mill test report?
A: The mill test report includes material composition analysis, mechanical properties, filtration efficiency test results, and dimensional measurements. It verifies that the cartridge meets the specified standards.
Q: How do I clean the cartridge?
A: The cartridge can be cleaned by backwashing with clean water or compressed air, or by ultrasonic cleaning. Avoid using strong acids or alkalis that may damage the copper structure. Detailed cleaning instructions are provided with the product.
Q: Do you provide samples for testing?
A: Yes, we offer sample cartridges for evaluation. Please contact us to discuss sample availability and shipping terms.
Q: What is the warranty period?
A: Our factory warranty covers manufacturing defects for a period specified in the order. Standard warranty is 12 months from the date of shipment. Extended warranty options are available upon request.
Q: Can the cartridge be used in high-temperature gas filtration?
A: Yes, the sintered copper powder filter cartridge can operate at temperatures up to 600°C, making it suitable for hot gas filtration in industrial processes. Ensure proper sealing and support to prevent leakage.
