As a leading manufacturer with over 20 years of experience, Anping County Boli Hardware Wiremesh Products Factory proudly presents our Sintered Copper Powder Filter Cartridge. Each cartridge is 100% pressure tested to ensure reliability in demanding filtration applications, and backed by a 1-year replacement guarantee for your peace of mind. By purchasing directly from our factory, you eliminate intermediary costs and receive premium quality at competitive prices.

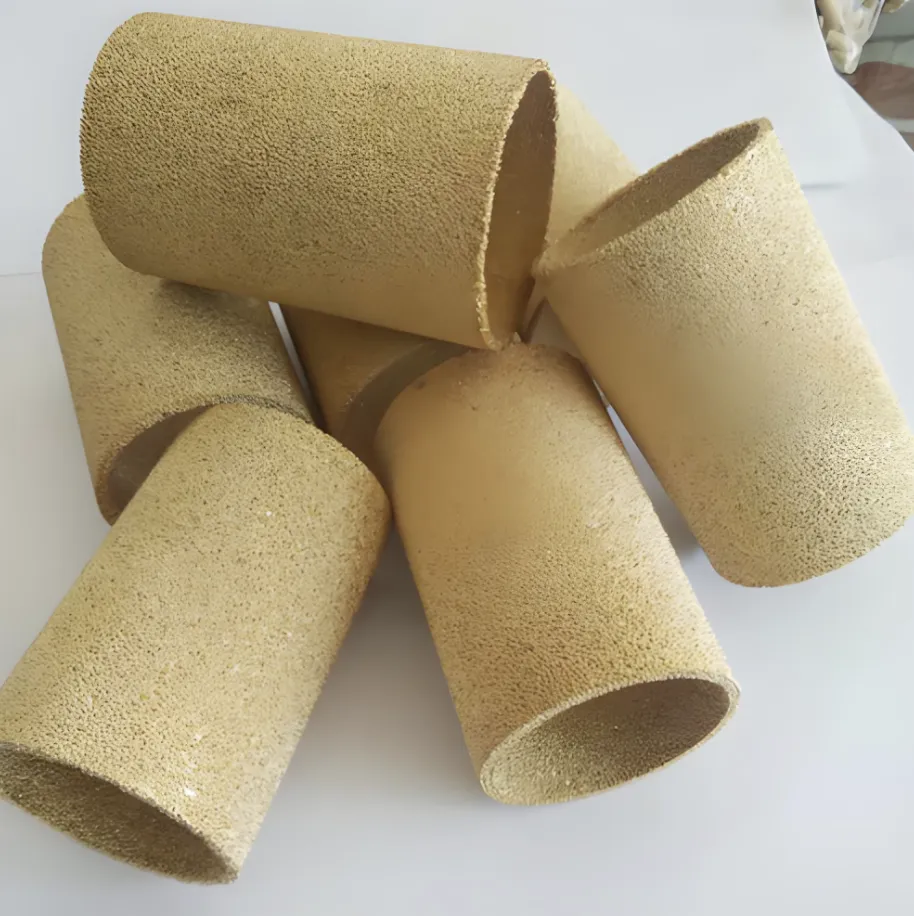

Our sintered copper powder filter cartridges are engineered from high-purity copper powder through a precision sintering process, creating a robust porous structure with excellent mechanical strength and thermal conductivity. This design delivers consistent filtration performance, high dirt-holding capacity, and easy cleanability. Whether you need to filter particulates from liquids, gases, or corrosive media, our cartridges offer a reliable solution.
Key Features & Technical Specifications
- Material: 99.9% pure copper powder, sintered under controlled atmosphere to form a uniform pore structure.
- Filtration Rating: Available from 5 to 100 microns, with custom options upon request.
- Pressure Resistance: Each cartridge undergoes 100% pressure testing up to 30 MPa, ensuring no leakage or deformation under extreme conditions.
- Thermal Stability: Operates reliably at temperatures up to 300°C in inert environments, making it suitable for hot gas filtration.
- High Dirt-Holding Capacity: The porous structure provides deep filtration, extending service life and reducing replacement frequency.
- Cleanable & Reusable: Can be backwashed or ultrasonically cleaned, offering long-term cost savings.
- Custom Dimensions: Outer diameter, inner diameter, and length can be tailored to your existing housing or application.
- Corrosion Resistance: Copper offers good resistance to many chemicals, including seawater, alkalis, and non-oxidizing acids.
| Parameter | Value |
|---|---|
| Filtration Rating | 5 – 100 µm (adjustable) |
| Maximum Pressure | 30 MPa (tested) |
| Maximum Temperature | 300°C (inert gas) |
| Porosity | 30% – 50% (controlled) |
| Wall Thickness | 2 – 10 mm (customizable) |
| Length | 100 – 1500 mm (custom) |
| Connection Type | Threaded, flanged, or plain end |
Benefits for Your Business
- Direct Factory Pricing: No middlemen – you get the best value for bulk orders or ongoing supply.
- Reliable Performance: 100% pressure tested ensures no premature failure, protecting your downstream equipment.
- Reduced Downtime: High dirt-holding capacity and cleanability mean fewer filter changes and lower maintenance costs.
- Long-Term Warranty: 1-year replacement guarantee covers manufacturing defects, giving you confidence in your investment.
- Eco-Friendly: Copper is fully recyclable, and the cartridge’s reusability reduces waste.
- Versatile Applications: Suitable for water treatment, chemical processing, oil & gas, pharmaceuticals, food & beverage, and more.
Our sintered copper powder filter cartridges are manufactured using advanced powder metallurgy technology. The sintering process creates a strong metallurgical bond between copper particles, resulting in a filter element that can withstand high differential pressures and thermal shock. Each cartridge is individually inspected and tested before shipment, ensuring consistent quality across every order.
We understand that filtration requirements vary widely. That’s why we offer full customization – from filtration rating and dimensions to end fittings and packaging. Our engineering team works closely with clients to develop the optimal filter solution for their specific process conditions. Whether you need a standard cartridge or a bespoke design, we are ready to deliver.
Trusted Manufacturer – Why Choose Us?
Anping County Boli Hardware Wiremesh Products Factory has been a trusted name in the filtration industry since 1998. With an annual export value of US$5–10 million, we serve clients across North America, South America, Europe, Asia, Africa, and Oceania. Our products are shipped from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring efficient logistics worldwide.
Our factory is equipped with modern sintering furnaces, testing equipment, and a skilled workforce dedicated to quality control. We adhere to strict internal standards, and every cartridge is pressure tested before packaging. The 1-year replacement guarantee reflects our commitment to customer satisfaction. We invite you to contact us for a quote, sample, or technical consultation. Experience the difference of buying directly from the manufacturer.
Frequently Asked Questions
-
Q: What is the typical lifespan of a sintered copper powder filter cartridge?
A: Lifespan depends on operating conditions, but thanks to its high dirt-holding capacity and cleanability, the cartridge can be reused many times. With proper backwashing or ultrasonic cleaning, it can last several years. -
Q: Can I use this cartridge for corrosive fluids like acids?
A: Copper offers good resistance to non-oxidizing acids, alkalis, and seawater. However, for highly oxidizing acids (e.g., nitric acid), we recommend consulting our technical team. Custom materials are available upon request. -
Q: How do I clean the filter cartridge?
A: Cleaning methods include backwashing with clean water or solvent, ultrasonic cleaning, or chemical cleaning. We can provide detailed cleaning guidelines based on your application. -
Q: Do you offer samples for testing?
A: Yes, we provide sample cartridges at a nominal cost. Contact our sales team with your requirements, and we can arrange a sample for evaluation. -
Q: What is the minimum order quantity?
A: MOQ depends on the size and customization. For standard sizes, MOQ is typically 10 pieces. For custom designs, please inquire. -
Q: How long does shipping take?
A: For standard orders, production takes 7–15 working days. Shipping time depends on your location and selected carrier. We ship from major Chinese ports. -
Q: Is the 1-year replacement guarantee valid globally?
A: Yes, the guarantee covers manufacturing defects for any customer worldwide. We will replace defective cartridges free of charge within the warranty period. -
Q: Can you provide technical drawings or certifications?
A: We can provide dimensional drawings and material test reports upon request. Certifications such as material composition analysis are available. Please note that specific third-party certifications can be arranged at additional cost.
Ready to place an order or request a quote? Contact us today and let our team assist you with the perfect filtration solution.
