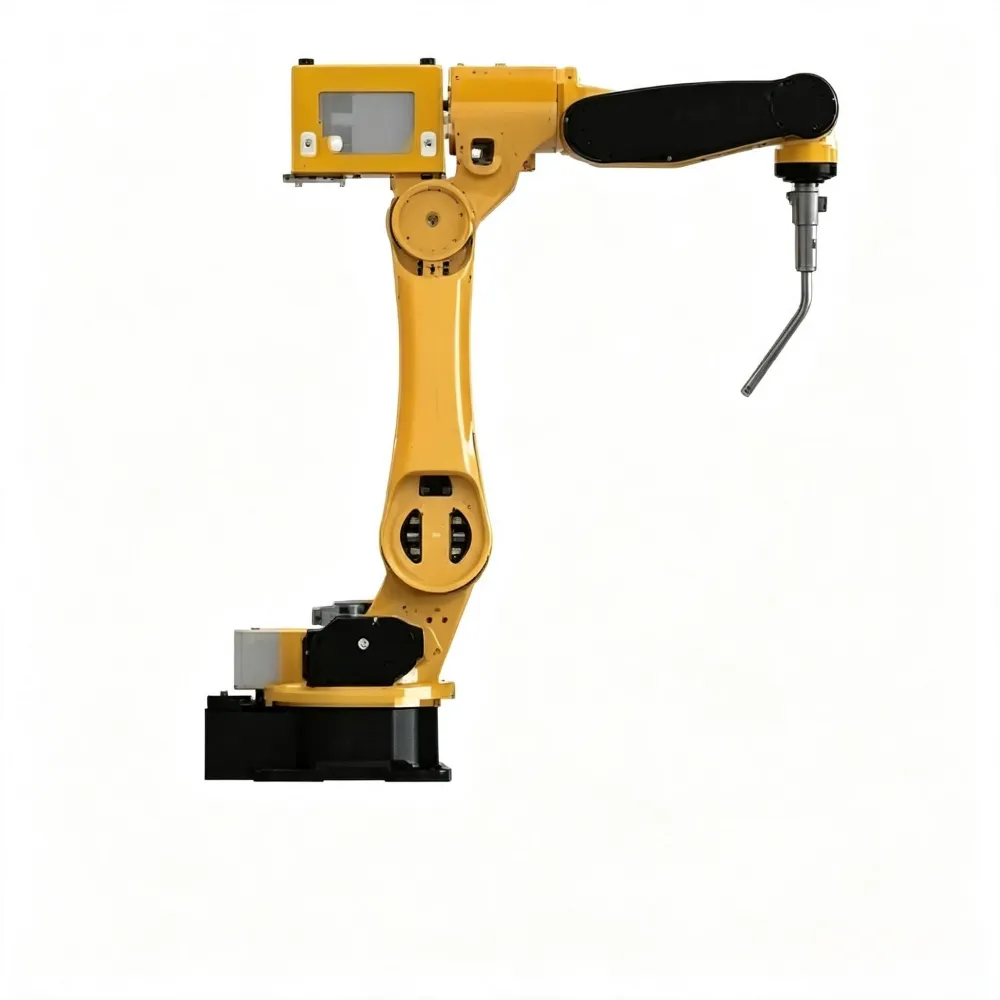

Welcome to XiAn Wisdom Computer Info&tech Co., Ltd – your trusted partner for advanced welding automation. Since 2015, we have been dedicated to providing high-quality collaborative robotic solutions to global markets. Our Collaborative 6-Axis Welding Robot Arm with Automatic MIG Welder Cobot is designed to bring efficiency, safety, and precision to your production line. With ISO9001, ISO9004, and ISO14000 certifications, we ensure every unit meets rigorous international standards. This cobot integrates seamlessly with existing workflows, offering a cost-effective entry into intelligent welding automation.
The 6-axis collaborative robot arm features a built-in automatic MIG welder, enabling continuous, high-quality welds without operator fatigue. Its advanced force sensing and collision detection make it ideal for small-to-medium batch production, where flexibility and safety are paramount. Whether you are in automotive, metal fabrication, or general manufacturing, this robot arm adapts to your needs.
Key Features & Technical Specifications
True Collaborative Operation – Built-in torque sensors and safety-rated stop functions allow safe human-robot interaction without fencing.
High Precision MIG Welding – Integrated automatic wire feeder and welding power source deliver consistent arc stability, reducing spatter and rework.
6-Axis Flexibility – Six degrees of freedom provide a wide working envelope and the ability to reach complex weld joints.
User-Friendly Programming – Intuitive teach pendant with drag-and-drop interface; no extensive coding experience required.
Compact Footprint – Slim design occupies minimal floor space, ideal for small workshops or crowded production cells.
Quick Setup – Pre-configured welding parameters for common materials (carbon steel, stainless steel, aluminum).
Durable Construction – IP54 protection rating, resistant to dust and splashes, suitable for industrial environments.
| Parameter | Value |
| Number of Axes | 6 |
| Maximum Payload | 10 kg (including welding torch) |
| Reach | 1400 mm |
| Repeatability | ±0.05 mm |
| Welding Current Range | 50–300 A |
| Wire Diameter | 0.8–1.6 mm |
| Power Supply | 220V/380V, 50/60Hz (optional) |
Benefits for Your Business
Increased Productivity – Continuous operation 24/7 with minimal downtime, up to 3x faster than manual welding.
Consistent Quality – Automated path control eliminates human error, ensuring uniform weld beads and stronger joints.
Reduced Labor Costs – One operator can supervise multiple cobots, freeing skilled welders for complex tasks.
Improved Safety – Collaborative design reduces risk of accidents; integrated safety features stop the robot upon contact.
Flexible Deployment – Easily relocate between workstations; quick-change tooling available for different welding tasks.
Lower Training Requirements – Intuitive interface allows operators to learn programming within hours, not days.
At XiAn Wisdom, we understand that reliable after-sales support is critical. With our overseas office and a dedicated team of 51–100 employees, we offer prompt technical assistance, spare parts, and remote troubleshooting. Our annual export value of over US$1 million demonstrates our commitment to serving clients across North America, South America, Europe, Asia, Africa, and Oceania. All products are shipped from Shanghai Port with careful packaging and documentation.
We are proud to be ISO9001, ISO9004, and ISO14000 certified, reflecting our rigorous quality management and environmental responsibility. This collaborative welding robot arm has been tested in multiple industries, including automotive chassis, metal furniture, and agricultural equipment. When you choose XiAn Wisdom, you invest in a partnership that prioritizes your success.
Frequently Asked Questions (FAQ)
Q: What is the difference between this collaborative robot and a traditional industrial robot?
A: This cobot is designed to work safely alongside humans without heavy guarding. It features integrated force sensing and collision detection, making it ideal for small-scale flexible production where space is limited.Q: Can it weld aluminum and stainless steel?
A: Yes, the integrated MIG welder supports aluminum, stainless steel, and carbon steel. Pre-configured welding parameters are available, and you can fine-tune settings via the teach pendant.Q: What is the maximum welding thickness?
A: With a 300A power source, it can weld up to 6 mm single-pass on steel. Multi-pass can achieve thicker materials. Contact us for specific material recommendations.Q: Is programming difficult? Do I need a robot specialist?
A: No, the cobot uses a graphical programming interface with drag-and-drop functionality. Basic welding knowledge is sufficient; most operators become proficient in one day.Q: What safety certifications does this robot have?
A: The robot complies with international collaborative robot standards (ISO 10218, ISO/TS 15066). Additionally, our factory holds ISO9001, ISO9004, and ISO14000 certifications.Q: What is the lead time and shipping method?
A: Standard lead time is 15–20 working days. We ship from Shanghai Port via sea or air, depending on your urgency. We can also arrange door-to-door delivery.Q: Do you provide installation and training?
A: Yes, we offer on-site installation support (travel expenses extra) and remote training via video conference. Detailed manuals and video tutorials are included.Q: Can I customize the robot arm (e.g., longer reach, special color)?
A: Absolutely. We offer customization options such as extended reach, different mounting brackets, and custom colors. Contact our sales team for a quote.
Contact XiAn Wisdom today for a free consultation or quotation. Let our collaborative welding robot arm transform your production and boost your competitiveness!
