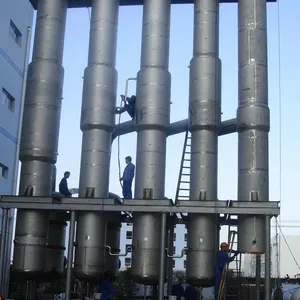

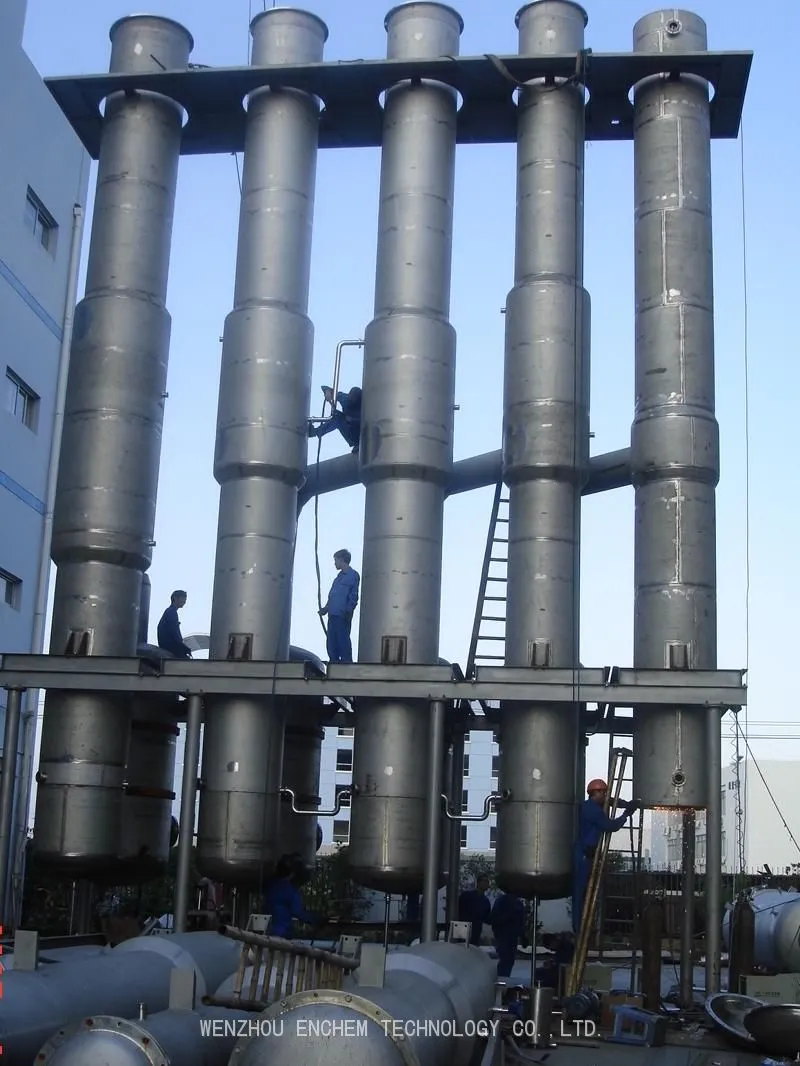

What Is a Four-Effect Evaporator?
A multiple-effect evaporator is an energy-efficient evaporation system that reuses the secondary vapor generated in one effect as the heating medium for the next effect. By maximizing heat recovery, it significantly reduces live steam consumption and operating costs compared with a single-effect evaporator.
A four-effect evaporator is one of the most widely used multiple-effect evaporation systems. It is particularly suitable for medium to large evaporation capacities where high energy efficiency and economical operation are required.
The system can also be integrated with various types of separators and crystallizers to perform both concentration and crystallization, making it suitable for processing a wide range of products in the food, chemical, pharmaceutical, and environmental industries.
Working Principle
A four-effect evaporator consists of four evaporator effects connected in series. Its operating principle is based on the sequential reuse of secondary vapor generated in each effect.
The process begins in the first effect, where the feed solution is heated by live steam. As the liquid boils, the generated secondary vapor is directed to the second effect as its heating source. Since the second effect operates under a lower pressure and boiling temperature, the vapor provides sufficient thermal energy for further evaporation.
This process continues through the third and fourth effects, with each successive effect operating at a lower pressure than the previous one. After the final effect, the remaining vapor is typically condensed in a condenser, while non-condensable gases are removed by the vacuum system.
Through this cascading utilization of vapor energy, the four-effect evaporator achieves high thermal efficiency while greatly reducing steam consumption.
System Configuration
A typical four-effect evaporator consists of:
Four evaporator effects connected in series
A condenser
A vacuum system
Feed and discharge pumps
Heat exchangers
Instrumentation and automatic control system
Other auxiliary equipment
The system operates continuously with continuous feed and discharge, ensuring stable operation, high productivity, and consistent product quality.
Depending on the process requirements, the evaporator can also be combined with separators, crystallizers, and other downstream equipment to achieve integrated concentration and crystallization processes.
Applications
Four-effect evaporators are widely used in industries requiring efficient liquid concentration, including:
Food and Beverage Industry: Concentration of fruit juices, dairy products, starch syrup, extracts, and other food ingredients.
Chemical Industry: Concentration of chemical solutions, recovery of solvents, and treatment of industrial wastewater.
Pharmaceutical Industry: Concentration of pharmaceutical intermediates and medicinal solutions.
Environmental Protection: Treatment of industrial wastewater from chemical, pharmaceutical, metallurgy, mining, petrochemical, rare earth, lithium battery, and hazardous waste industries.
With customized process design, the system can be optimized to meet the specific requirements of different materials and production processes.
Energy Consumption
A major advantage of the four-effect evaporator is its excellent steam economy.
Typically, a four-effect evaporator consumes only 0.30–0.35 tons of live steam per ton of water evaporated, compared with approximately 1.10–1.20 tons of steam per ton of water evaporated for a conventional single-effect evaporator.
This substantial reduction in steam consumption helps lower operating costs while improving overall energy efficiency.
Design Considerations
Every evaporation process has unique operating requirements. When designing a four-effect evaporator, our engineering team carefully evaluates factors such as:
Product characteristics and heat sensitivity
Required evaporation capacity and final concentration
Heat recovery and overall energy efficiency
Selection of suitable evaporation technology (falling film, rising film, forced circulation, or natural circulation)
Fouling tendency and the need for automatic CIP (Clean-in-Place) systems
Process automation, operational flexibility, and ease of maintenance
Based on these considerations, we provide customized evaporation solutions that maximize efficiency, reliability, and long-term operational performance.
If you have any requirements for evaporation, concentration, or crystallization systems, please feel free to contact us. Our engineering team will be pleased to provide a customized solution tailored to your specific process requirements.
