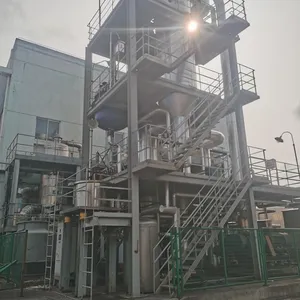

A forced circulation evaporator is a high-performance evaporation system specifically designed for challenging process liquids such as high-viscosity solutions, crystallizing salts, and scaling-prone fluids. Unlike conventional evaporators, it employs a mechanical circulation pump to drive the liquid through the heat exchanger at high velocity, ensuring uniform heating, preventing local overheating, and effectively minimizing fouling and scaling on heat transfer surfaces.
Working Principle
The system mainly consists of a heat exchange chamber and a crystallization (separator) vessel. The process operates as follows:
The feed liquid is circulated at high speed through the heat exchanger using a forced circulation pump.
The liquid is heated under pressure above its normal boiling point, achieving a superheated state.
The heated liquid then enters the separator, where a sudden pressure drop triggers flash evaporation.
Vapor is separated and can be reused in multi-effect systems or condensed.
The concentrated liquor is discharged or further processed in crystallization units depending on the application.
This continuous circulation ensures stable operation, high heat transfer efficiency, and excellent resistance to scaling.
Types of Forced-Circulation Evaporator
Single-effect forced circulation evaporator
Multi-effect systems (double-effect, triple-effect, four-effect, five-effect)
MVR (Mechanical Vapor Recompression) forced circulation evaporator systems
Application Range
Forced circulation evaporators are widely used in industrial processes requiring high reliability and efficient handling of difficult liquids:
Wastewater Treatment: Concentration of industrial effluents in chemical, pharmaceutical, and food industries
Salt Production: Crystallization of salts such as sodium chloride, potassium chloride, and other inorganic salts
Environmental Applications: Treatment of high-salinity wastewater, desulfurization effluents, and resource recovery systems
Main Configuration
A typical forced circulation evaporator system includes:
Heat Exchange Chamber: Provides efficient heat transfer for evaporation
Crystallizer / Separator Vessel: Separates vapor from concentrated liquid
Forced Circulation Pump: Ensures high-velocity flow, prevents tube blockage, reduces scaling, and extends continuous operating time
Condenser: Condenses vapor and helps maintain system vacuum conditions
Vacuum System: Establishes and stabilizes operating pressure
Transfer Pumps: Including feed, discharge, and condensate pumps
Instrumentation & Control System: PLC-based automation, monitoring instruments, automatic control valves, piping, and etc
Advantages
High Efficiency & Low Energy Consumption
Enhanced heat transfer via forced circulation enables rapid evaporation with optimized energy use.
Excellent Adaptability
Suitable for high-viscosity, crystallizing, and scaling-prone solutions.
Stable Continuous Operation
Designed for long-term operation with reduced fouling and fewer shutdowns.
Compact System Design
Small footprint, suitable for space-limited industrial facilities.
High Automation Level
Fully automated operation ensures consistent performance and reduced manual intervention.
