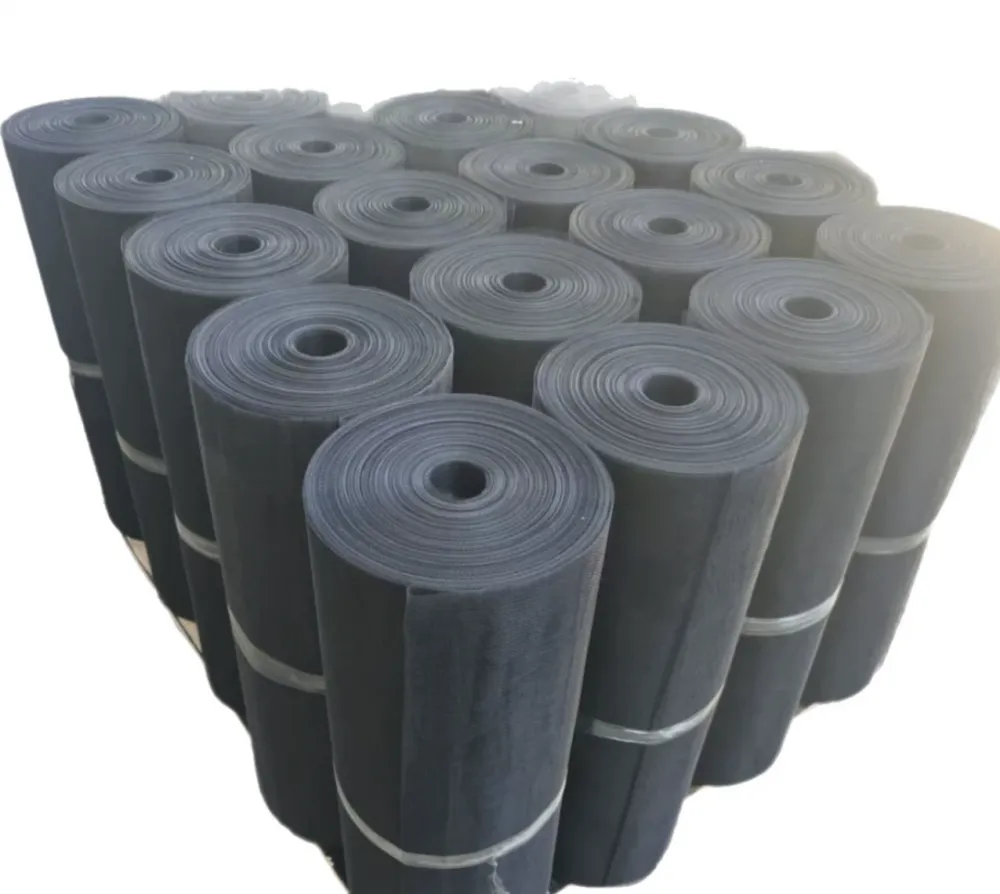

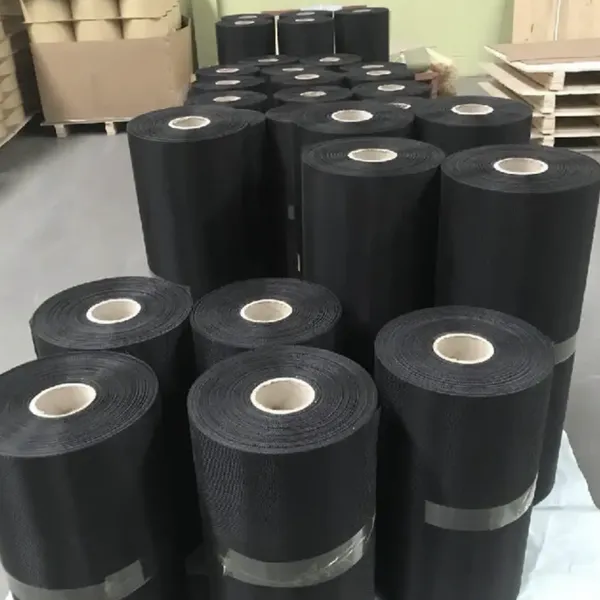

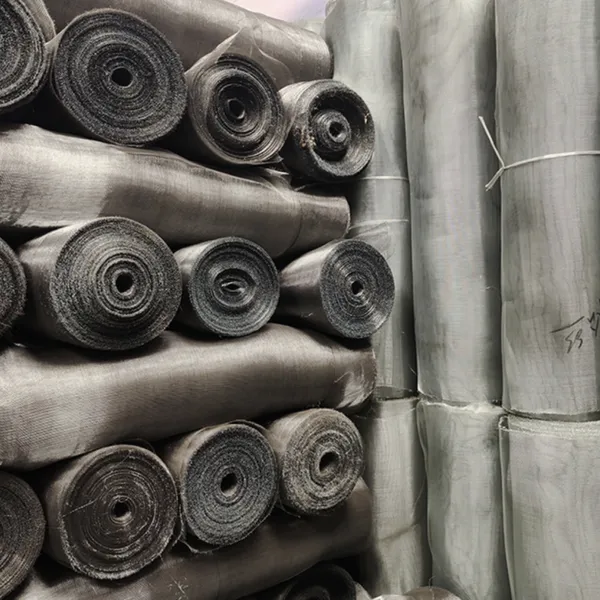

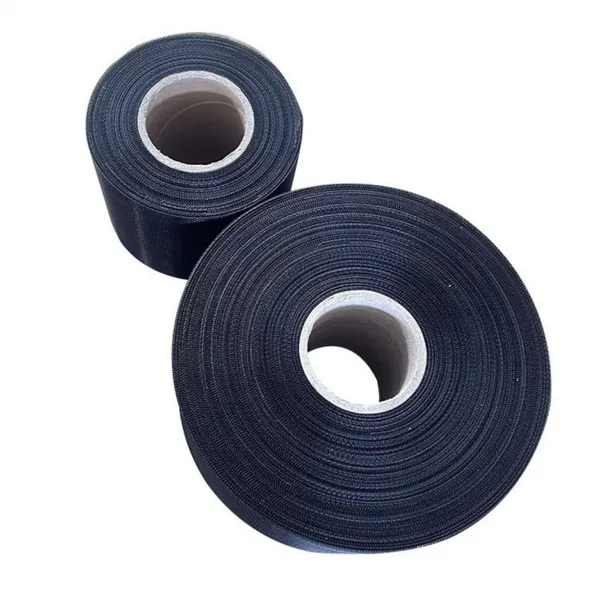

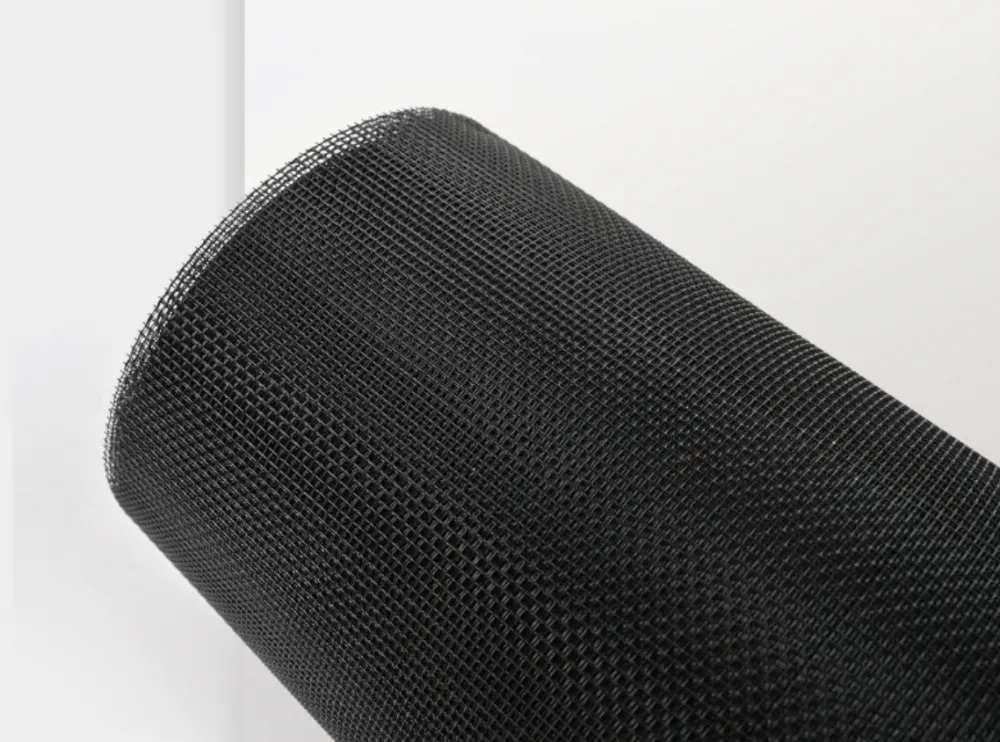

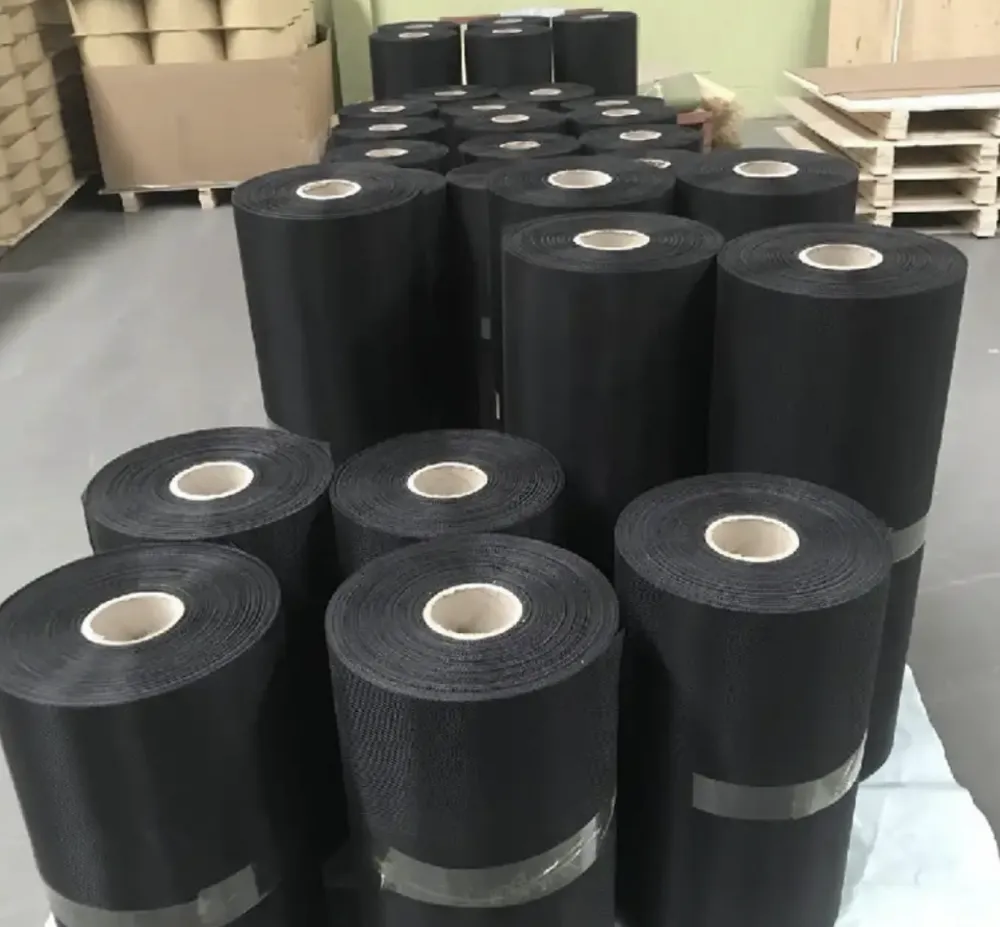

18 Mesh Black Epoxy Resin Coated Mesh, 0.5mm Wire, 1.2mm Hole, Durable Coating
Product Spotlights
This 18 mesh black epoxy resin coated mesh features a 0.5mm wire diameter and 1.2mm hole size, combining high tensile strength with excellent corrosion resistance. The durable coating ensures long service life in filtration, screening, and protective applications. Customizable roll sizes and edge treatments make it suitable for diverse industrial needs.
Negotiable
MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Low Carbon Steel Wire
Application:
Other, Filtration
Mesh Count:
18 mesh per inch
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Black Epoxy Resin Coated Mesh, 1.5mm Wire Diameter, 2.5mm Opening, Galvanized Steel BaseNegotiableMOQ: 1 Square Meter -
Black Epoxy Coated Wire Mesh, 12 Mesh, 0.7mm Wire, 2.0mm Opening, UV Resistant CoatingNegotiableMOQ: 1 Square Meter
-
Black Epoxy Resin Coated Mesh for Vibratory Screeners, 2mm Opening, 0.5mm Wire, Efficient SeparationNegotiableMOQ: 1 Square Meter
-
Epoxy Resin Coated Black Mesh, 2.0mm Wire, 5mm Square Hole, Heavy Duty for FencingNegotiableMOQ: 1 Square Meter
-
Black Epoxy Resin Coated Mesh, 1.0mm Wire, 3mm Opening, 1m x 30m Roll, Standard CompliantNegotiableMOQ: 1 Square Meter
Material
Other, Low Carbon Steel Wire
Application
Other, Filtration
Mesh Count
18 mesh per inch
Wire Diameter
0.5 mm
Hole Size
1.2 mm
Color
Black
Coating
Epoxy Resin Coating
Coating Thickness
0.2-0.3 mm (customizable)
Roll Width
1 m (customizable)
Roll Length
30 m (customizable)
Welcome to Anping County Boli Hardware Wiremesh Products Factory, a professional manufacturer established in 1998 with annual export value between US$5 million and US$10 million. Our 18 Mesh Black Epoxy Resin Coated Mesh is engineered to deliver superior corrosion resistance, dimensional stability, and long service life. Featuring a 0.5mm wire diameter and 1.2mm hole size, this durable coated mesh is widely used in filtration, separation, reinforcement, and decorative applications. Each roll is produced with strict quality control and shipped from our major ports including Tianjin, Qingdao, Shanghai, and Foshan.
Key Features & Technical Specifications
- Precise Mesh Count: 18 mesh per inch ensures consistent particle sizing and reliable screening performance.
- Optimal Wire Diameter: 0.5mm wires provide a balance of strength and flexibility, suitable for both heavy-duty and fine filtration tasks.

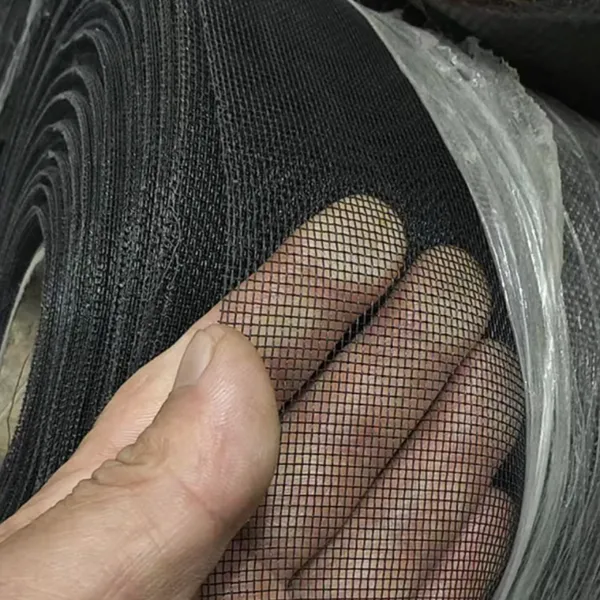

- 1.2mm Hole Size: The uniform square openings allow efficient flow while retaining particles above 1.2mm.
- Black Epoxy Resin Coating: The coating is applied under high temperature to form a tough, anti-corrosion layer that resists chemicals, moisture, and UV radiation.
- Durable Construction: The mesh is woven from low carbon steel wire with a galvanized or black annealed base, then coated for extra protection.
- Customizable Dimensions: Available in rolls of various widths and lengths; cutting and edging options available upon request.
| Parameter | Value |
|---|---|
| Mesh Count | 18 per inch |
| Wire Diameter | 0.5 mm (0.0197 inch) |
| Hole Size (Opening) | 1.2 mm (0.0472 inch) |
| Open Area | Approximately 45% |
| Coating Type | Black Epoxy Resin |
| Coating Thickness | 0.2–0.3 mm (customizable) |
| Base Material | Low Carbon Steel Wire (Q195) |
| Standard Roll Size | 1m x 30m (other sizes available) |
Advantages & Customer Benefits
- Enhanced Corrosion Resistance: The epoxy coating prevents rust and chemical attack, making the mesh suitable for outdoor, marine, and industrial environments.
- Long Service Life: Compared to plain steel mesh, the coated version lasts 3–5 times longer under similar conditions, reducing replacement costs.
- Easy to Clean & Maintain: The smooth coating surface minimizes particle adhesion and simplifies cleaning with water or mild solvents.
- Excellent Dimensional Stability: The mesh maintains its shape under tension and temperature variations, ensuring consistent performance.
- Versatile Applications: Ideal for use in liquid filtration, powder sieving, animal cages, safety barriers, speaker grilles, and architectural decoration.
- Environmentally Friendly Coating: Our epoxy resin is lead-free and complies with RoHS requirements (available upon request).
- Customization Options: We can produce different mesh counts, wire diameters, coating colors (e.g., green, gray), and special edge treatments (hemmed, welded) to match your project needs.
Every batch of our 18 mesh black epoxy resin coated mesh undergoes strict inspection for tensile strength, coating adhesion, and opening uniformity. We have supplied this product to clients in North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and other regions. Our factory in Hengshui, Hebei, China, has over 25 years of wire mesh manufacturing experience, ensuring reliable quality and competitive pricing.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum temperature the epoxy coating can withstand?
A: The epoxy resin coating can withstand continuous operating temperatures up to 120°C (248°F). For higher temperature applications, please inquire about our PVC or custom coating options. -
Q: Can the mesh be cut to custom sizes?
A: Yes, we offer cutting services to produce sheets or strips of any dimensions. Custom widths and lengths are also available for roll orders. -
Q: Is the coating food-grade safe?
A: Our standard epoxy coating is not certified for direct food contact. However, we can source a food-grade epoxy coating upon request with a minimum order quantity. -
Q: How is the mesh packaged for export?

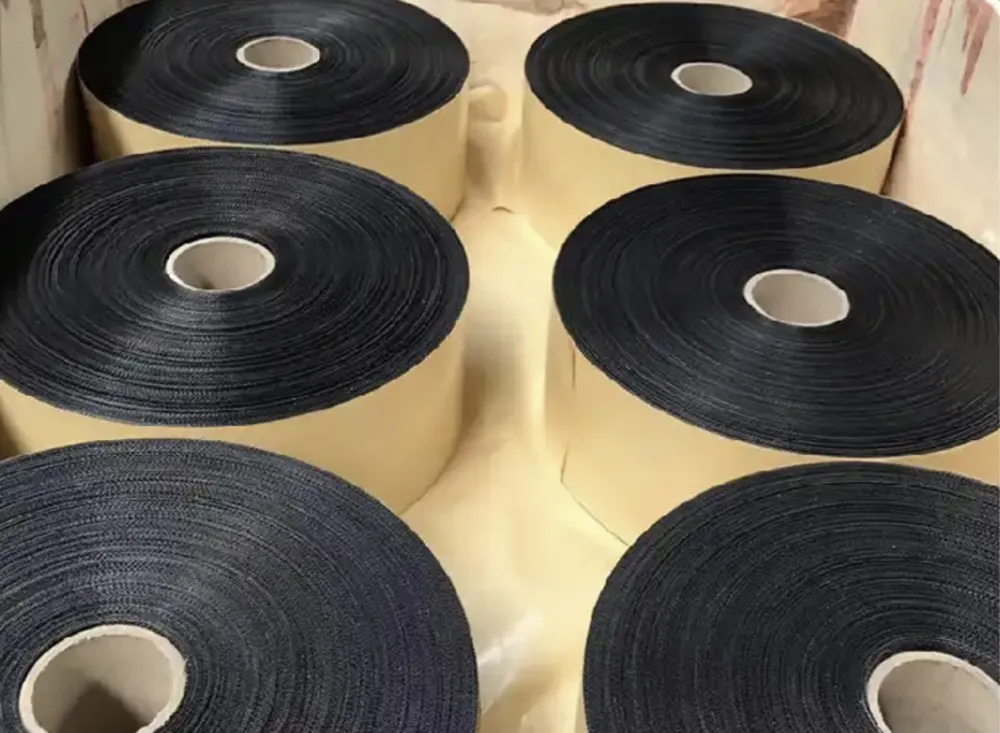

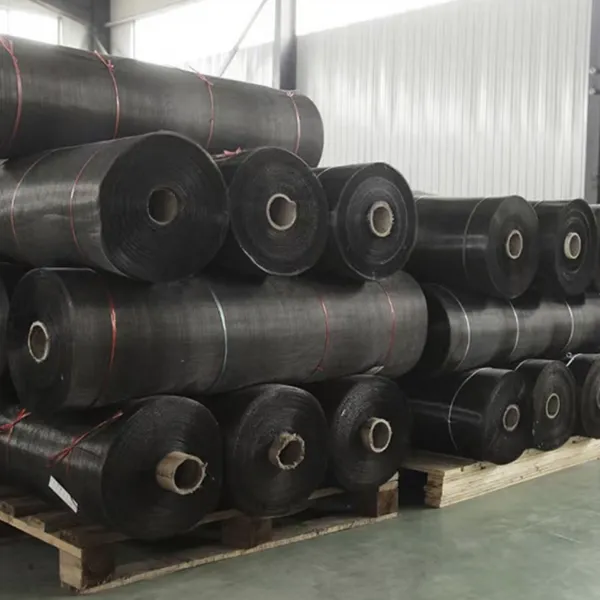

A: Each roll is wrapped in plastic film and then packed in a wooden crate or pallet to prevent damage during shipping. We also use waterproof paper for extra protection. -
Q: What is the typical lead time for orders?
A: For stock sizes, lead time is 7–10 days. For custom specifications, it is usually 15–20 days depending on the quantity. -
Q: Do you provide samples for quality evaluation?
A: Yes, we can provide small samples (e.g., 30cm x 30cm) for the cost of shipping only. Larger samples are available at a nominal fee. -
Q: Can the mesh be used for outdoor fencing?
A: Absolutely. The epoxy coating provides excellent weather resistance. For heavy-duty fencing, we recommend using a thicker wire or an additional PVC coating. -
Q: What is the difference between epoxy coating and PVC coating?
A: Epoxy coating offers higher hardness, better chemical resistance, and a smoother surface, while PVC coating is more flexible and impact-resistant. Both are available and can be customized.
With over two decades of expertise, a dedicated R&D team, and a strong export network, Anping County Boli Hardware Wiremesh Products Factory has become a trusted partner for global buyers. Our annual export value of US$5–10 million reflects our commitment to quality and customer satisfaction. We welcome inquiries, and we are ready to provide samples, technical drawings, and competitive quotations. Contact us today to discuss your requirements and experience the reliability of our durable coated mesh.
Get in touch with us for more information or to place your order – we look forward to serving you!
