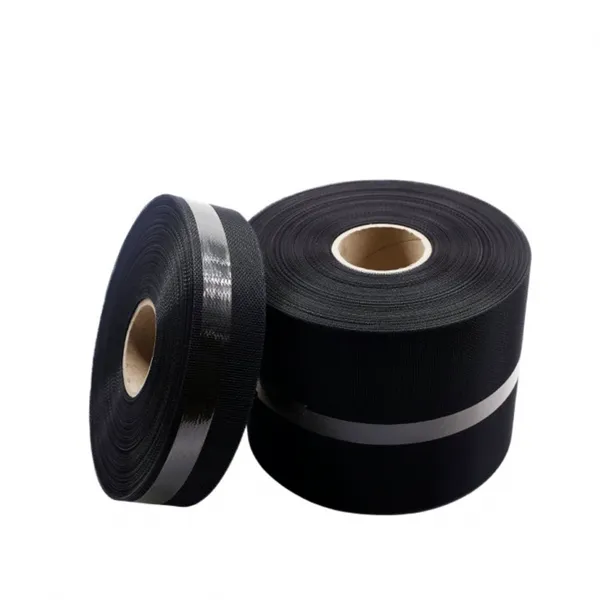

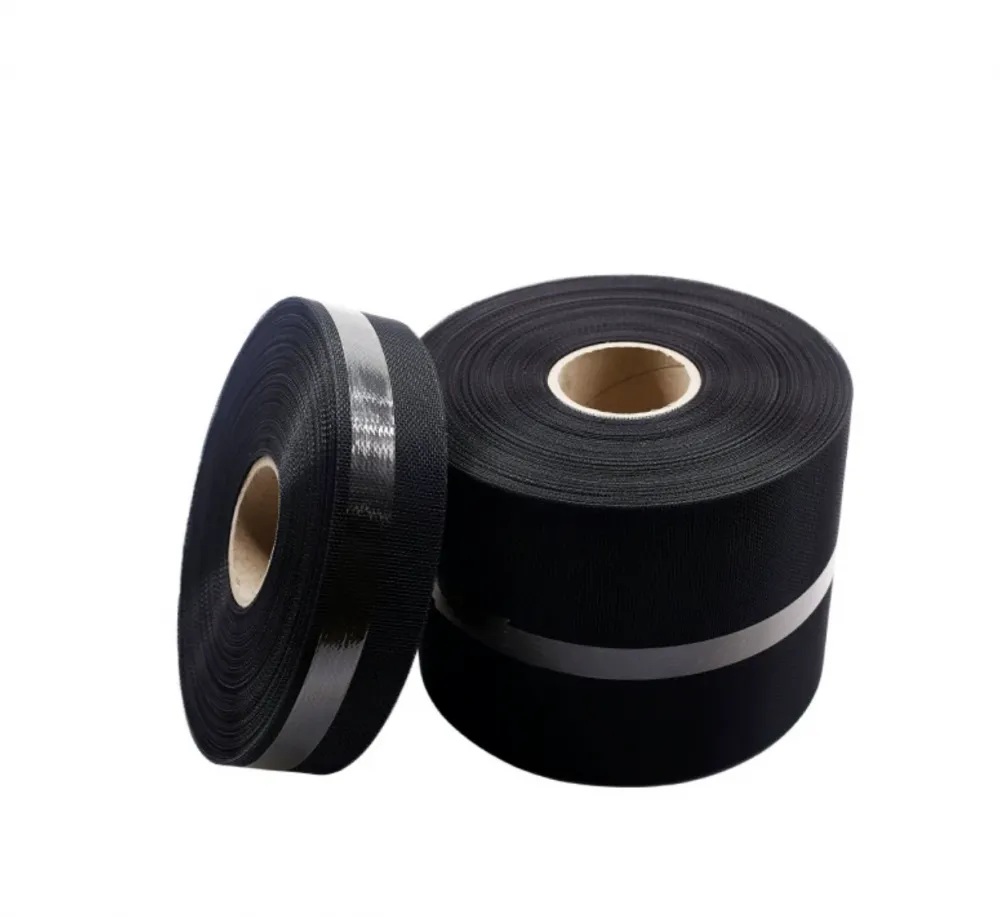

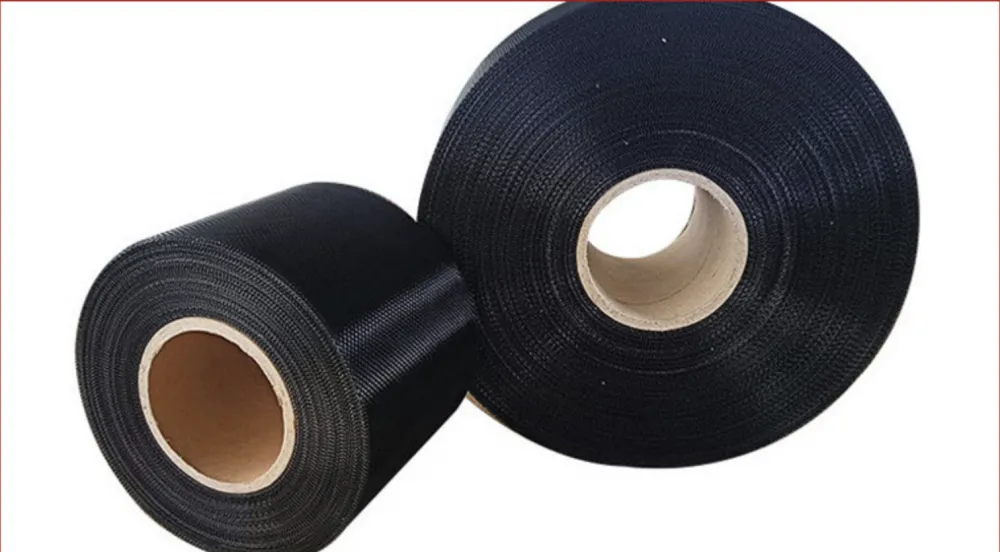

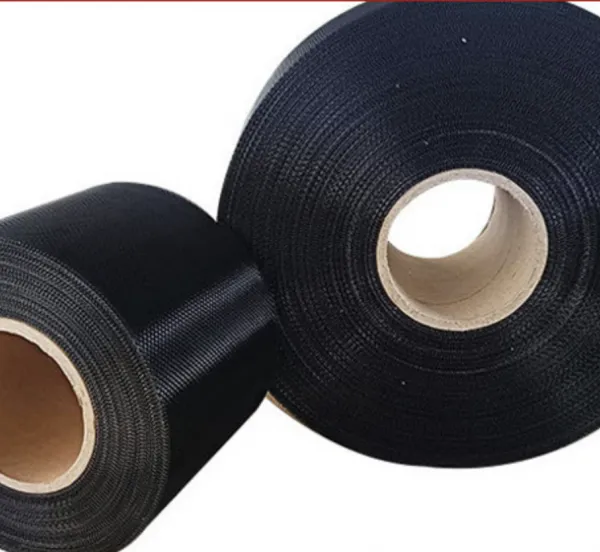

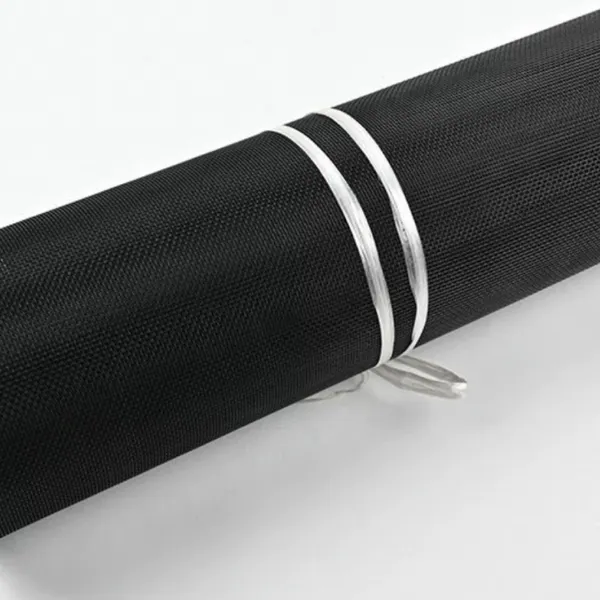

High-Performance Black Epoxy Resin Coated Mesh for Vibratory Screeners – Precision 2mm Opening, 0.5mm Wire
Since 1998, Anping County Boli Hardware Wiremesh Products Factory has been a trusted manufacturer of industrial wire mesh, exporting to over 15 global markets with annual export values ranging from US$5 million to US$10 million. Our Black Epoxy Resin Coated Mesh is specifically engineered for vibratory screeners, offering a precise 2mm opening and 0.5mm wire diameter to deliver efficient separation across a wide range of materials. This premium mesh combines the durability of steel wire with a robust black epoxy coating, ensuring long service life, corrosion resistance, and consistent performance in demanding screening applications.
Designed to optimize your screening process, this mesh provides uniform particle classification, reduced blinding, and enhanced throughput. Whether you are in mining, aggregates, food processing, or chemical industries, our epoxy coated mesh meets the highest standards of quality and precision.
Key Features & Technical Specifications
- Precision Opening: 2mm square openings ensure accurate sizing and consistent separation of particles.
- Wire Diameter: 0.5mm wire provides a balance of strength and flexibility, reducing wear and tear.
- Epoxy Resin Coating: Black epoxy coating protects against abrasion, corrosion, and chemical attack, extending mesh life.
- High Tensile Strength: Made from high-quality steel wire, the mesh withstands heavy loads and vibration stress.
- Anti-Clogging Design: Smooth coating minimizes particle adhesion, reducing blinding and downtime.
- Easy Installation: Available in rolls or pre-cut panels, compatible with most vibratory screener frames.
- Customizable Dimensions: Widths from 1m to 1.5m, lengths up to 50m per roll, or custom sizes upon request.
- Versatile Applications: Suitable for dry and wet screening of sand, gravel, minerals, powders, and granules.
Technical Parameters Table:
| Parameter | Specification |
| Opening Size | 2.0 mm ± 0.05 mm |
| Wire Diameter | 0.5 mm ± 0.02 mm |
| Mesh Count | Approx. 10 mesh per inch |
| Open Area | ~64% |
| Material | High-carbon steel wire with epoxy coating |
| Coating Thickness | 0.05 – 0.10 mm (customizable) |
| Tensile Strength | ≥ 500 N/mm² |
| Operating Temperature | -20°C to +80°C |
Benefits for Your Business
- Improved Efficiency: The high open area (64%) allows more material to pass through, increasing screening throughput.
- Reduced Maintenance: Epoxy coating resists corrosion and abrasion, significantly extending the mesh service life compared to uncoated steel.
- Consistent Quality: Laser-cut precision ensures uniform openings, delivering reliable particle size distribution batch after batch.
- Cost-Effective: Lower replacement frequency and reduced downtime translate to lower overall operating costs.
- Versatility: Works efficiently with both dry and wet materials, including sticky or abrasive substances.
- Eco-Friendly: The epoxy coating is free from harmful chemicals, making it safe for food and pharmaceutical applications.
Trusted by Global Industries
Anping County Boli Hardware Wiremesh Products Factory has been a leading manufacturer since 1998, with annual export values between US$5 million and US$10 million. Our products are shipped to major ports including Tianjin, Qingdao, Shanghai, and Foshan, serving clients in North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. With 25+ years of expertise, we have built a reputation for reliable quality, on-time delivery, and exceptional customer service. Every roll of our Black Epoxy Resin Coated Mesh undergoes rigorous inspection to ensure it meets your exact specifications.
Choose our mesh for your vibratory screeners and experience the difference that precision engineering and durable coating make. Contact us today to request a quote, discuss custom dimensions, or order samples. Let us help you achieve optimal separation efficiency!
Frequently Asked Questions (FAQ)
-
Q: What is the maximum temperature this mesh can withstand?
A: The epoxy coating remains stable up to 80°C (176°F). For higher temperature applications, please inquire about alternative coatings. -
Q: Can the mesh be used for food processing?
A: Yes, the epoxy resin coating is non-toxic and FDA-compliant upon request. Contact our sales team for specific certifications. -
Q: How long does the epoxy coating last?
A: Under normal operating conditions, the coating can last 2–3 times longer than standard galvanized mesh, depending on the abrasiveness of the material. -
Q: Do you offer custom sizes?
A: Absolutely. We can cut the mesh to your exact width and length, or provide rolls up to 50 meters. Custom dimensions are available upon request. -
Q: Is this mesh suitable for wet screening?
A: Yes, the epoxy coating provides excellent resistance to moisture and chemicals, making it ideal for wet screening processes. -
Q: What is the mesh stiffness? Will it sag under heavy load?
A: The 0.5mm wire offers a good balance of flexibility and strength. For heavy-duty applications, we can recommend a thicker wire option. -
Q: How is the mesh packaged for export?
A: The mesh is rolled onto sturdy tubes, wrapped in moisture-proof paper, and packed in wooden crates or pallets for safe transit. -
Q: Can I get a sample before placing a bulk order?
A: Yes, we provide free samples (shipping fee applies) for you to test the quality and performance.
