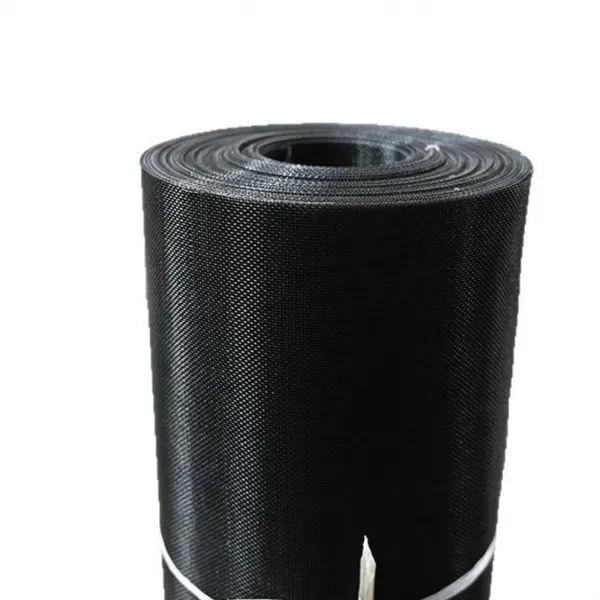

From a trusted manufacturer with over 25 years of experience (Anping County Boli Hardware Wiremesh Products Factory), we proudly present our Black Epoxy Resin Coated Mesh, featuring a wire diameter of 1.0mm and a precise 3mm opening. This 1m x 30m roll is designed to meet rigorous industry standards, offering superior corrosion resistance and long-lasting durability for demanding environments. Whether for industrial filtration, animal enclosures, or architectural reinforcement, this mesh delivers reliable performance and consistent quality.
Our epoxy resin coating is applied through a specialized electrostatic process, ensuring uniform coverage and strong adhesion to the steel wire. Unlike traditional PVC coatings, epoxy provides higher temperature resistance, better chemical stability, and a harder surface that resists scratching and abrasion. The black color offers excellent UV resistance and a professional appearance suitable for both functional and decorative uses.
Key Features & Benefits:
- Precise Dimensions: Roll size 1m width x 30m length (total 30m²) for easy handling and installation. The 3mm square opening ensures consistent particle retention while maintaining high flow rates.
- Sturdy Wire: 1.0mm wire diameter provides excellent tensile strength and rigidity, making it suitable for heavy-duty applications such as security fencing and concrete reinforcement.
- Epoxy Resin Coating: Offers superior resistance to moisture, chemicals, and extreme temperatures compared to galvanized or PVC-coated meshes. Ideal for outdoor use, chemical plants, and food processing areas.
- Standard Compliant: Manufactured in accordance with international quality standards, ensuring consistent mesh opening, wire straightness, and coating thickness.
- Versatile Applications: Can be used for insect screens, window guards, machinery guards, animal cages, grilles, and as a support layer in composite materials.
Technical Specifications Table:
| Parameter | Value |
| Wire Diameter | 1.0mm (±0.05mm) |
| Opening Size | 3mm (center-to-center) |
| Mesh Count | Approx. 8.5 meshes per inch |
| Roll Width | 1m (customizable) |
| Roll Length | 30m (customizable) |
| Coating Thickness | 60–80 microns (typical) |
| Color | Black (other colors available upon request) |
| Tensile Strength | ≥ 450 N/mm² (wire) |
Customer Benefits:
- Long Service Life: The epoxy coating prevents rust and corrosion, extending the product lifespan by 3–5 times compared to uncoated steel mesh in moderate environments.
- Easy to Clean: Smooth surface resists dirt buildup and can be easily washed with water or mild detergents, maintaining hygiene in food and pharmaceutical applications.
- Cost-Effective: Offers a balance between performance and price – ideal for projects requiring reliability without the high cost of stainless steel.
- Lightweight and Flexible: At 1.0mm wire, the mesh is light enough for easy handling yet strong enough for structural support.
Frequently Asked Questions:
- Q: Is this mesh suitable for outdoor use? A: Yes, the epoxy resin coating provides excellent UV resistance and weatherproofing, making it ideal for outdoor applications such as garden fencing, animal enclosures, and balcony guards.
- Q: Can I cut the mesh to smaller sizes? A: Absolutely. The mesh can be cut with standard wire cutters or tin snips. We recommend using a grinding wheel for clean edges when required.
- Q: What is the maximum temperature this mesh can withstand? A: Epoxy resin coatings typically tolerate continuous temperatures up to 120°C (248°F) and intermittent exposures up to 150°C (302°F). For higher temperature needs, please contact us for alternative coatings.
- Q: Does the coating chip or peel easily? A: Our electrostatic coating process ensures strong adhesion. However, like any coated product, sharp impacts or bending at extreme angles may cause localized damage. We recommend using protective gloves during installation to avoid scratching.
- Q: Is this mesh food-grade? A: The epoxy resin used is compliant with general industrial standards. For direct food contact applications, please inquire about our FDA-compliant options (available upon request).
- Q: What is the weight of one roll? A: Approximately 12–15 kg per roll, depending on exact dimensions and coating thickness. This makes it manageable for one person to handle.
- Q: Can I get a custom size or color? A: Yes, we offer customization for roll width, length, wire diameter, opening size, and color. Minimum order quantities may apply.
- Q: How long does shipping take? A: For standard sizes, we can ship within 7–15 days after order confirmation. We ship from Tianjin, Qingdao, Shanghai, and other ports, ensuring timely delivery to global destinations.
With over two decades of manufacturing excellence, Anping County Boli Hardware Wiremesh Products Factory has been a reliable partner for clients across North America, South America, Europe, Asia, Africa, and Oceania. Our annual export volume of US$5–10 million reflects our commitment to quality and customer satisfaction. Each roll of our Black Epoxy Resin Coated Mesh undergoes strict quality control – from raw material selection to final packaging – ensuring you receive a consistent and durable product.
Choose our mesh for your next project and experience the difference of professional-grade materials. Contact us today for a quote or to discuss your specific requirements. We are ready to support your business with competitive pricing, fast delivery, and reliable after-sales service.
Send Inquiry to This Supplier
You May Also Like
-
Resin-Coated Wire Mesh Used as Architectural Facade Cladding for Corrosion ResistanceNegotiableMOQ: 1 Square Meter
-
Epoxy Resin Coated Wire Mesh, 316L Stainless Steel, 1-100 Micron Mesh Size, ISO 9001NegotiableMOQ: 1 Square Meter
-
Resin-Coated Wire Mesh, 304 Stainless Steel, 2mm x 2mm Opening, 1.2m Width, ISO 9001 CompliantNegotiableMOQ: 1 Square Meter
-
Resin-Coated Wire Mesh With 1-Year Warranty, Free Technical Support and Sample ProvidedNegotiableMOQ: 1 Square Meter
-
Resin-Coated Wire Mesh, 316 Stainless Steel, 0.5mm Wire, 150 Micron, Heat Resistant to 200°CNegotiableMOQ: 1 Square Meter
-
Resin-Coated Wire Mesh, Mill Test Report Included, Customizable Mesh Size, 24/7 After-Sales ServiceNegotiableMOQ: 1 Square Meter
-
Resin-Coated Wire Mesh for Mineral Screening and Dewatering in Mining IndustryNegotiableMOQ: 1 Square Meter
-
Resin-Coated Wire Mesh Roll, Galvanized Steel, 0.8mm Wire, 50mm x 50mm Opening, Anti-CorrosionNegotiableMOQ: 1 Square Meter
-
304 Stainless Steel Resin-Coated Wire Mesh With 0.5mm Wire Diameter for FiltrationNegotiableMOQ: 1 Square Meter
-

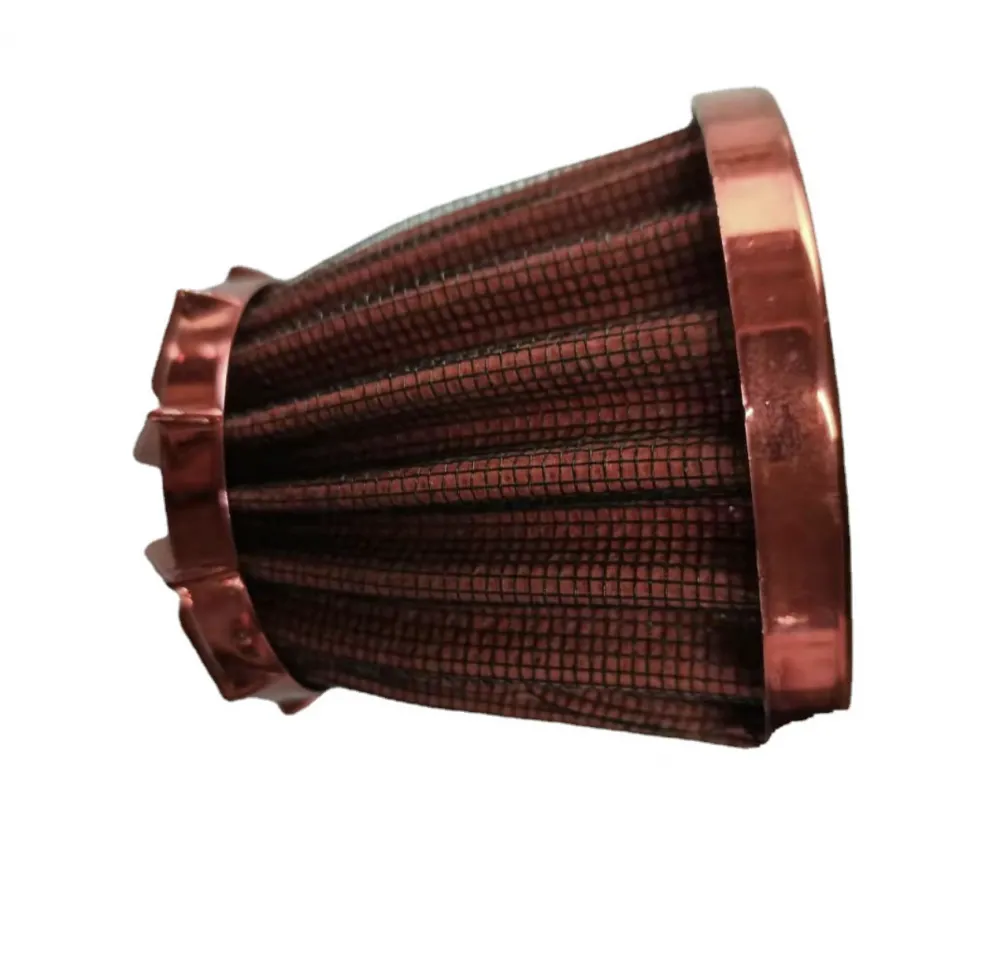

Epoxy Coated Support Mesh Inside Air Filter Element, 10 Micron Efficiency, 250°C Max Operating Temperature, Aluminum FrameNegotiableMOQ: 1 Square Meter
