Welcome to Anping County Boli Hardware Wiremesh Products Factory, a trusted manufacturer with over 25 years of experience in the wire mesh industry. Our Black Epoxy Coated Wire Mesh, featuring 12 mesh, 0.7mm wire diameter, 2.0mm opening, and a UV resistant coating, is engineered to deliver superior durability and corrosion resistance in demanding environments. This product is designed for applications where both strength and long-term weatherability are critical, from industrial filtration to outdoor fencing. With our factory-direct supply and annual export value of US$5-10 million, we ensure consistent quality and competitive pricing for global buyers.

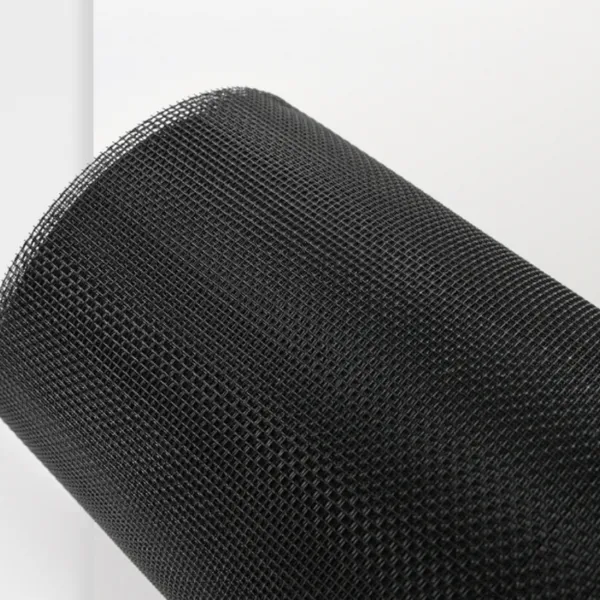

Our black epoxy coated wire mesh is manufactured using high-quality low-carbon steel wire, precision woven to 12 mesh (12 openings per linear inch), then coated with a thick, uniform layer of black epoxy that is further enhanced with UV stabilizers. The 0.7mm wire diameter provides excellent tensile strength, while the 2.0mm opening size allows for efficient material flow in sifting and filtration applications. Below are key technical specifications:
| Mesh Count | 12 x 12 per inch |
| Wire Diameter | 0.7 mm (0.0276 inch) |
| Opening Size | 2.0 mm (0.0787 inch) |
| Open Area | Approximately 55% |
| Coating Thickness | 0.15 – 0.25 mm (customizable) |
| Color | Black (RAL 9005 or similar) |
| Roll Width | 1m, 1.2m, 1.5m (customizable) |
| Roll Length | 10m, 20m, 30m (customizable) |
Key Features and Benefits:
- UV Resistant Epoxy Coating: The specially formulated black epoxy includes UV stabilizers that prevent degradation from sunlight exposure, making it ideal for outdoor use such as animal enclosures, garden fencing, and architectural mesh. Unlike standard PVC coatings, our epoxy coating maintains its integrity under prolonged UV radiation.
- Excellent Corrosion Resistance: The epoxy layer fully encapsulates each wire intersection, providing a seamless barrier against moisture, chemicals, and salt spray. This extends the service life significantly compared to galvanized or uncoated mesh in harsh environments.
- Precise Mesh Openings: With 12 mesh and 2.0mm openings, this mesh delivers consistent particle sizing for industrial sifting, powder filtration, and grain processing. The open area of ~55% ensures high throughput while maintaining structural integrity.
- High Tensile Strength: The 0.7mm wire diameter, combined with the woven structure, provides robust mechanical strength suitable for guarding, screening, and reinforcement applications. The mesh can withstand moderate impact and tension without deformation.
- Versatile Application: This product is widely used in agriculture (poultry netting, crop protection), mining (vibrating screens), chemical processing (filtering), and construction (plaster mesh, reinforcing mesh for insulation). The black color offers a professional, non-reflective finish preferred in many industrial settings.
- Customizable Options: We offer a variety of roll sizes, wire diameters (0.5mm – 1.2mm), mesh counts (8–20 mesh), and coating colors (black, green, gray) upon request. The epoxy coating thickness can also be adjusted to meet specific budget or performance requirements.
Why Choose Anping Boli?
Since 1998, we have been dedicated to manufacturing high-quality wire mesh products. Our factory in Hengshui, Hebei, China, is equipped with automated weaving looms and advanced electrostatic epoxy coating lines, ensuring uniform coating thickness and strong adhesion. With an annual export value of US$5-10 million, we serve clients across North America, South America, Europe, Asia, Africa, and Oceania, shipping from major ports including Tianjin, Qingdao, Shanghai, and Foshan. Our quality control team conducts rigorous testing for mesh accuracy, coating adhesion (cross-hatch test), and UV resistance (QUV accelerated weathering test) before shipment.
We are committed to providing reliable, cost-effective solutions. Our Black Epoxy Coated Wire Mesh is backed by decades of manufacturing expertise and a global logistics network. Whether you need a small trial roll or a container-load, we can fulfill your order with consistent quality and on-time delivery. We invite you to contact us for a quote or technical consultation. Benefit from factory-direct pricing and personalized service.
Frequently Asked Questions
-
Q: What is the difference between epoxy coating and PVC coating?
A: Epoxy coating offers superior adhesion, hardness, and UV resistance compared to PVC. It is less flexible but more durable in outdoor and abrasive environments. Our epoxy coating is specifically formulated to resist yellowing and cracking under sunlight. -
Q: Can this mesh be used for water filtration?
A: Yes, with 2.0mm openings and 0.7mm wire, it is suitable for coarse water filtration, debris screening, and aquaculture netting. For finer filtration, we recommend higher mesh counts. -
Q: Is the coating food-safe?
A: Our standard epoxy coating is not certified for direct food contact. However, we can provide a food-grade epoxy coating option upon request for applications like grain sifting or food processing. Please contact us for details. -
Q: What is the temperature resistance of the coating?
A: The epoxy coating can withstand continuous operating temperatures from -20°C to +80°C. For higher temperature applications, consider our stainless steel mesh with alternative coatings. -
Q: Do you offer custom dimensions?
A: Absolutely. We can cut the mesh to specific widths and lengths, as well as supply in rolls or flat sheets. Custom mesh counts and wire diameters are also available. Minimum order quantities may apply for custom sizes. -
Q: How is the mesh packed for export?

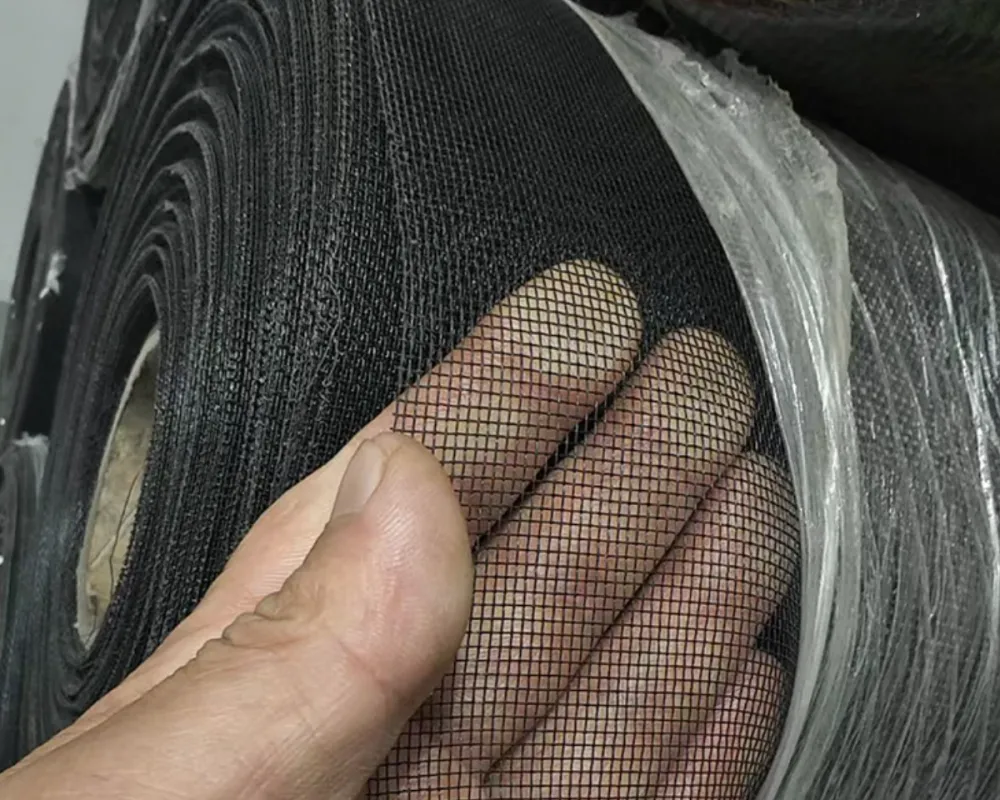

A: The mesh is rolled onto sturdy cardboard cores, wrapped in plastic film, and then packed in woven bags or wooden crates to prevent damage during transit. We can also provide pallet packing for large quantities. -
Q: What is the lead time for bulk orders?
A: For standard specifications, lead time is typically 15–25 days after confirmation of order and deposit. Custom orders may require 20–30 days. We recommend placing orders in advance to secure production slots. -
Q: Can I get a sample before placing a bulk order?
A: Yes, we provide free samples (A4 size) for evaluation. The customer pays shipping cost, which can be deducted from the first bulk order. Samples are available with regular stock specifications.
