I. Product Overview
The maxon planetary gearbox is precision - manufactured at the original German factory. It is a dedicated coaxial reduction transmission unit that matches maxon DCX brushed and ECX brushless coreless motors. It is divided into two major product lines: the classic GP standard series and the new - generation lightweight GPX high - performance series, covering the range from Φ4mm micro to large - torque industrial specifications, with a torque range of 0.002 Nm to 120 Nm. It is specially designed for narrow spaces, high precision, high speed, and extreme working conditions, and is the benchmark micro - reduction component in the global medical, aerospace, precision optics, and micro - robot fields. Maxon Grou...
It adopts a standard planetary coaxial transmission structure, where the input and output directions are the same. Multiple planetary gears are synchronously stressed, and the torque density is much higher than that of ordinary cylindrical gearboxes. It has a modular 1 - 5 - stage superposition design, with a reduction ratio covering the full range from 3.9:1 to 6285:1, which can be freely matched according to needs. It is calibrated and matched with the corresponding motor at the factory, without the need for additional adapter accessories, maximizing the coaxiality and transmission stability.
II. Differences between the Two Core Product Lines
1. GP Series (Classic Standard Model)
Positioning: An economical and general - purpose planetary gear head with sufficient stock and high cost - performance.
Dimensions: All specifications such as Φ6/8/10/16/22/32mm, including the commonly used GP 6 A (Φ6mm, 0.002 - 0.03 Nm)
Structure: Steel housing + standard steel planetary gears, with a ball output bearing as standard.
Application: Conventional automation, laboratory equipment, and general precision fine - tuning mechanisms
Temperature range: - 40℃ to +100℃, supporting stable operation at high and low temperatures

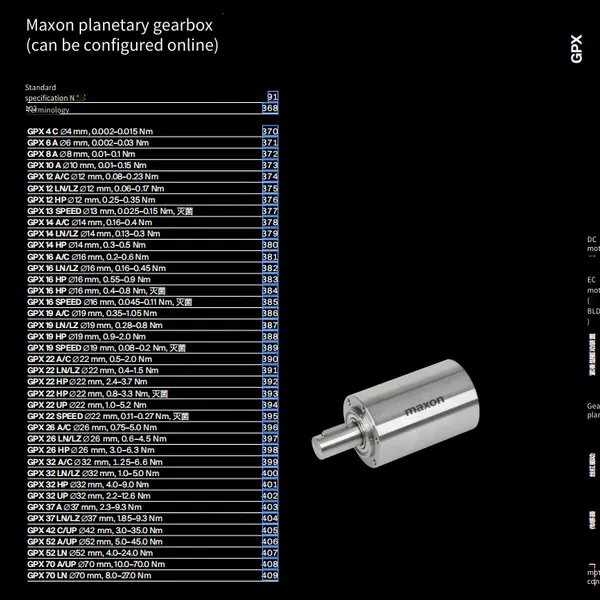

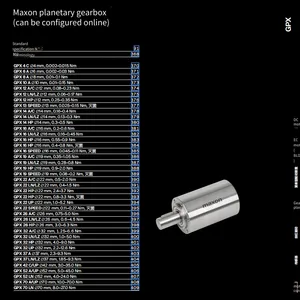

2. GPX Series (New - Generation High - Performance Model)
The GPX has a built - in bearing planetary gear structure
Positioning: A lightweight, high - speed, low - noise, and high - precision upgraded model, derived from the technology transfer of aerospace projects. maxon grou...
It has multiple sub - configured versions to cover diverse working conditions:
A Standard Version: Steel gears, for general industrial scenarios
C Ceramic Version: Ceramic planetary gears, wear - resistant, with doubled service life and higher ultimate torque
UP High-performance Model: The planetary gear is equipped with needle/ball bearings inside. Rolling friction replaces sliding friction, with a transmission efficiency of 90%. It supports force feedback and reversible transmission, and is mostly used in surgical robots and aviation mechanisms.
Low-backlash Model: Extremely small return clearance for high-precision positioning.
Silent Plastic Model: Low noise, suitable for silent equipment such as cameras and endoscopes.
Advantages: Shorter body, lighter weight, higher allowable input speed, and a 30% reduction in vibration and noise.
III. Core General Technical Advantages
Compact and high torque density. The minimum outer diameter is only 4mm. It can output large torque corresponding to the specifications in a very small volume, and is perfectly suitable for equipment with limited installation space, such as endoscopes, micro probes, and wearable devices.
Extremely low backlash and accurate positioning. The standard model has a grade 1 backlash ≤1.8°, and the high-precision customized model can reach within 0.1°. There is no return clearance error, which is suitable for scenarios such as lens focusing, micro titration, and servo positioning.
High transmission efficiency and low heat generation. The single-stage transmission efficiency is 88%–90%. The frictional loss of the UP series is greatly reduced. The temperature rise during long-term continuous operation is controllable, which extends the overall service life of the motor and the gearbox.
Ultra-high speed tolerance. The continuous input speed of the micro specification can reach 40000 rpm. It matches the ECX series of high-speed brushless micro motors, with no risk of tooth breakage or overheating.
Multiple material selections, suitable for extreme working conditions. Metal/ceramic/plastic planetary gears are optional. It supports customization for high temperature, low temperature, medical sterilization, and dust and water protection (IP54–IP67). It has a wide temperature range of -40°C~+150°C, suitable for satellites and field detection equipment.
Modular and rapid customization. The number of stages, reduction ratio, output shaft diameter, shaft length, bearing type, and backlash level can all be customized. The original factory can provide STEP 3D drawings and Datasheet selection manuals.
Low vibration and low noise. The gear tooth surface is precisely ground, with uniform and smooth meshing and no harsh abnormal noise. It is suitable for noise-sensitive equipment such as medical and optical equipment.
IV. Typical Application Industries
High-end medical equipment: Minimally invasive surgical instruments, endoscope steering drives, biopsy probes, micro infusion pumps, dental grinding motors, surgical robot force feedback joints, and in vitro diagnostic instruments.
Precision optical instruments: Microscope automatic focusing modules, laser galvanometer fine-tuning, fundus cameras, spectrometers, optical scanning probes, and industrial vision focusing mechanisms.
Aerospace satellite micro valves, Mars exploration actuators, UAV gimbal servos, airborne micro adjustment units (GPX UP for aerospace special use).
Micro intelligent robots for pipeline inspection, bionic fingertip grippers, micro joint drives, small bionic teaching aids.
Industrial automation and laboratory semiconductor micro drives, micro titration equipment, handheld detection analyzers, small precision transmission modules.
