Special-Shaped Interlocking Steel Grating for Renovation and Retrofit Projects
Product Spotlights
Special-shaped interlocking steel grating for renovation/retrofit — tool-free snap-fit assembly, custom irregular shapes, high load capacity, hot-dip galvanized or painted finish, reusable panels. Ideal for fitting around obstacles in existing structures.
Negotiable
MOQ: 50 Cubic Centimeters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
material:
Q235 / Q345 carbon steel
shape:
special-shaped (customizable)
interlocking mechanism:
integrated locking tabs
Payment & Shipping
Payment Methods:
Port of Shipment:
china
Delivery Detail:
7 days
Related Products
-
Heavy Duty Carbon Steel Grating for Industrial Walkways and PlatformsNegotiableMOQ: 50 Cubic Centimeters -
Galvanized Steel Bridge Floor Decking Grating for Heavy Traffic AreasNegotiableMOQ: 50 Cubic Centimeters
-
Hot Dip Galvanized Steel Grating for Floor and Trench Drainage SystemsNegotiableMOQ: 50 Cubic Centimeters
-
Carbon Steel Steel Grating Serrated Surface 25x5mm 40x100mm Load 2 TonNegotiableMOQ: 50 Acres
-
304 Stainless Steel Steel Grating 25x3mm Bar 50x50mm Mesh Heavy Load CapacityNegotiableMOQ: 50 Acres
material
Q235 / Q345 carbon steel
shape
special-shaped (customizable)
interlocking mechanism
integrated locking tabs
surface treatment
hot-dip galvanized / painted / plain
load capacity
up to 10 kN/m² (customizable)
mesh spacing
30×30 mm to 100×100 mm
application

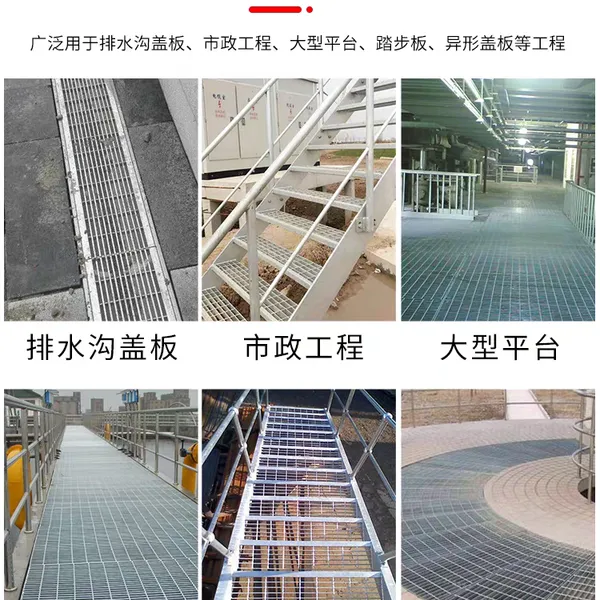

renovation, retrofit, platform, walkway
customization
size, shape, finish, color
Welcome to Anping Xinye Metal Wire Mesh Products Co., Ltd, a trusted manufacturer based in Hengshui, Hebei, China, specializing in customized steel grating solutions. Our Special-Shaped Interlocking Steel Grating for Renovation and Retrofit Projects is designed to address the unique challenges of upgrading existing structures—where standard gratings simply don’t fit. Combining precision engineering with easy installation, this product eliminates the need for welding, reduces labor costs, and provides a secure, long-lasting metal flooring solution. Whether you are restoring an industrial walkway, reconfiguring a mezzanine, or retrofitting a drainage cover, our interlocking steel grating offers the flexibility and strength you need.
Key Features & Technical Specifications
- Interlocking Design: Each grating panel features precision-formed locking tabs that snap together without extra fasteners or welding. This ensures a positive mechanical connection that can be quickly assembled and disassembled.
- Special-Shaped Customization: Unlike standard rectangular gratings, our panels can be fabricated in irregular shapes—L-shape, U-shape, trapezoidal, circular cutouts, etc.—to match existing openings, columns, or equipment bases.
- High Load Capacity: Manufactured from Q235 or Q345 carbon steel, the grating can handle heavy pedestrian, wheeled, or light industrial loads. Custom load ratings up to 10 kN/m² are available upon request.
- Durable Surface Treatment: Standard options include hot-dip galvanizing (HDG), painted, or plain finish. HDG provides excellent corrosion resistance for outdoor or wet environments, while painting allows color matching for aesthetic requirements.
- Tool-Free Installation: The interlocking mechanism requires no specialized tools—just a simple alignment and press-fit. This significantly reduces installation time compared to traditional welded or bolted gratings.
- Lightweight & Easy to Handle: Each panel is designed to be carried by one or two workers, making it ideal for retrofit projects where access is limited (e.g., above machinery, in tight corridors).
- Safety Features: The grating surface can be supplied with serrated crossbars to improve slip resistance, meeting OSHA and other safety standards (certification available upon request).
- Modular & Reusable: Panels can be disassembled and reused in future renovations, reducing waste and long-term costs.
Technical Specifications (Typical Values)
| Parameter | Standard Range | Remarks |
|---|---|---|
| Material | Q235 / Q345 Carbon Steel | Stainless steel optional |
| Bar Thickness | 3 mm – 6 mm | Customizable |
| Mesh Spacing (center-to-center) | 30×30 mm, 40×40 mm, 50×50 mm, 100×100 mm | Other patterns available |
| Load Capacity (uniform) | Up to 10 kN/m² | Higher capacity on request |
| Surface Treatment | Hot-dip galvanized, painted, or plain | Galvanized meets ASTM A123 |
| Panel Dimensions | Custom: up to 1.2 m × 3 m (standard) | Larger sizes available upon request |
| Interlocking Lock Type | Integrated tabs & slots | No loose parts |
Benefits for Renovation & Retrofit Projects
- Minimizes Disruption: Because our gratings are pre-fabricated to exact site dimensions, on-site cutting and welding are eliminated. This reduces noise, dust, and downtime—critical for occupied buildings or operational facilities.
- Adapts to Existing Structures: The special-shaped capability allows you to fit around columns, pipes, or irregular openings without costly structural modifications. This is especially valuable in historic buildings, industrial plants, and infrastructure upgrades.
- Cost-Effective: Lower installation labor, no welding equipment required, and minimal material waste all contribute to a lower total project cost.
- Easy Maintenance Access: Interlocking panels can be removed individually for cleaning, inspection, or access to underlying utilities—then re-installed in minutes.
- Enhanced Safety: The interlocking connection prevents panel shifting or uplift under heavy loads or foot traffic, reducing trip hazards compared to loose-laid grating.
- Long Service Life: With proper surface treatment, the grating can last 20+ years in industrial environments, making it a sustainable investment.
Why Choose Anping Xinye Metal Wire Mesh Products Co., Ltd?
For over 20 years, our factory in Hengshui, Hebei has been dedicated to manufacturing high-quality steel gratings for global markets. We have supplied thousands of projects—from industrial platforms to municipal retrofit jobs—with custom solutions that meet exact specifications. Our team of experienced engineers can assist you in designing the perfect interlocking grating for your renovation project, providing detailed drawings and load calculations. We use strict quality control throughout production, from raw material inspection to final assembly, ensuring every panel meets your requirements. With a strong commitment to on-time delivery and competitive pricing, we are your reliable partner for steel grating solutions. Contact us today for a quote or technical consultation—we are ready to help you succeed in your renovation or retrofit project.
Frequently Asked Questions (FAQ)
-
Q: Can you provide grating in non-rectangular shapes?
A: Absolutely. Our special-shaped interlocking steel grating is designed for irregular shapes. Please provide a drawing or template, and we will fabricate the panels to match your exact opening dimensions. -
Q: How do I install the interlocking grating?
A: Installation is simple: align the locking tabs of adjacent panels, press them together until they snap into place. No welding, bolts, or special tools are required. Detailed installation instructions are included with each order. -
Q: What is the maximum load capacity?
A: Standard load capacity is up to 10 kN/m². For heavier loads, we can design thicker bars and smaller mesh spacing. Please provide your load requirements, and we will recommend the appropriate configuration. -
Q: Is the grating anti-slip?
A: Yes, we offer serrated crossbars (with teeth) to improve slip resistance. This is recommended for walkways and platforms where moisture or oil may be present. The serrated option is available at no extra charge for most orders. -
Q: Can the grating be used outdoors?

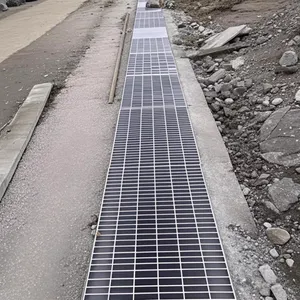

A: Yes, with hot-dip galvanized finish, the grating is highly resistant to corrosion from rain, snow, and UV exposure. It is suitable for outdoor applications such as catwalks, drainage covers, and rooftop walkways. -
Q: What is the typical lead time?
A: Lead time depends on the complexity of the shape and quantity. For standard special-shaped panels, production is typically 7–15 working days after drawing approval. We can expedite urgent orders upon request. -
Q: Do you offer samples?
A: Yes, we can provide small samples of the interlocking joint and a section of the grating for evaluation. Please contact our sales team to arrange sample shipment. -
Q: Can I reuse the grating if I modify the layout in the future?
A: Yes, the interlocking design allows panels to be disassembled and re-installed without damage. This makes it an excellent choice for temporary or evolving structures.
