As a leading manufacturer from Anping Xinye Metal Wire Mesh Products Co., Ltd in Hengshui, Hebei, China, we are proud to introduce our premium Steel Grating for Oil Rig Platform 30x5mm Hot Dip Galvanized Anti-Corrosion. This product is specifically engineered to withstand the extreme conditions of offshore oil rigs, providing unmatched durability and safety. With our advanced production technology and strict quality control, we deliver grating that meets the highest industry standards for strength, corrosion resistance, and long service life.

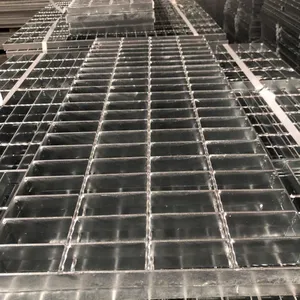

Our steel grating is fabricated from high-quality carbon steel bars, precisely machined to a 30mm height and 5mm thickness, then hot-dip galvanized to create a robust zinc coating that protects against rust, saltwater, and chemicals. The open grid design allows for excellent drainage of oil, water, and debris, while the anti-slip surface ensures secure footing for workers even in wet or oily conditions. Whether used for walkways, platforms, or stair treads, this grating delivers reliable performance in the most demanding environments.
Key Features & Technical Specifications
- Heavy-Duty Construction: 30mm bearing bar height and 5mm thickness provide exceptional load-bearing capacity, suitable for heavy machinery and personnel traffic.
- Hot Dip Galvanized Finish: Zinc coating thickness of 80-100 microns per ASTM A123, offering superior corrosion resistance in offshore environments.

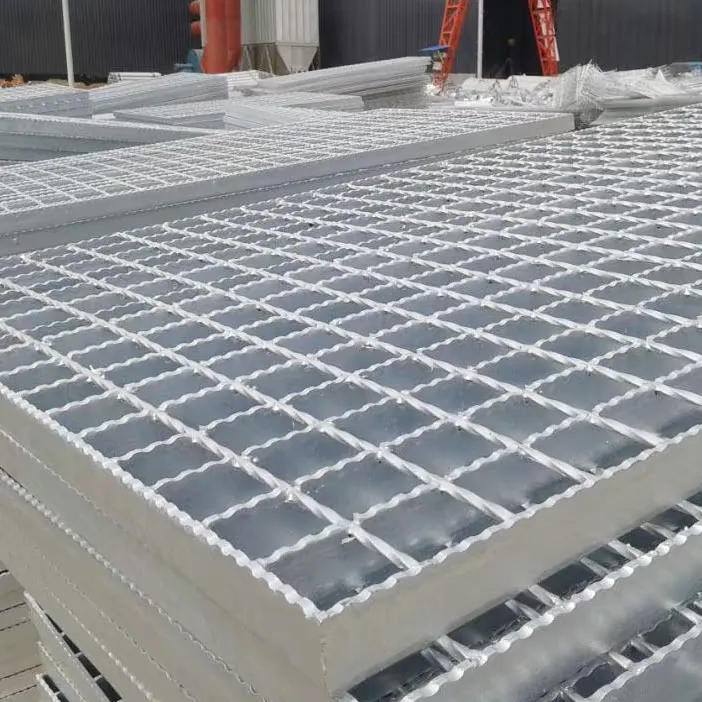

- Anti-Slip Surface: Serrated or plain bearing bars available, with cross bars welded at precise intervals to ensure maximum grip.
- Customizable Dimensions: Panel sizes, bar spacing, and edge details can be tailored to your specific platform layout.
- Easy Installation: Lightweight yet strong panels can be cut, welded, or clamped on-site, reducing labor time.
- Low Maintenance: The galvanized coating resists chipping and peeling, requiring minimal upkeep over decades of service.
| Parameter | Value |
|---|---|
| Bearing Bar Height | 30mm |
| Bearing Bar Thickness | 5mm |
| Cross Bar Spacing (Center to Center) | 50mm or 100mm (customizable) |
| Panel Width | Up to 1200mm |
| Panel Length | Up to 6000mm |
| Surface Treatment | Hot Dip Galvanized (Zinc coating) |
| Standard Compliance | ASTM A123, BS 4592, or equivalent (available upon request) |
| Weight per Square Meter (approx.) | ~38 kg (based on 50mm cross bar spacing) |
Why Choose Our Steel Grating for Oil Rig Platforms?
- Enhanced Safety: The open design reduces slip hazards and allows quick drainage of oil and water, minimizing accident risks.
- Superior Corrosion Protection: Hot-dip galvanizing creates a metallurgical bond that prevents rust even in salt spray and chemical exposure, extending service life by 20+ years compared to plain steel.
- Cost-Effective: Low maintenance requirements and long lifespan reduce total cost of ownership. The lightweight structure also lowers shipping and installation costs.

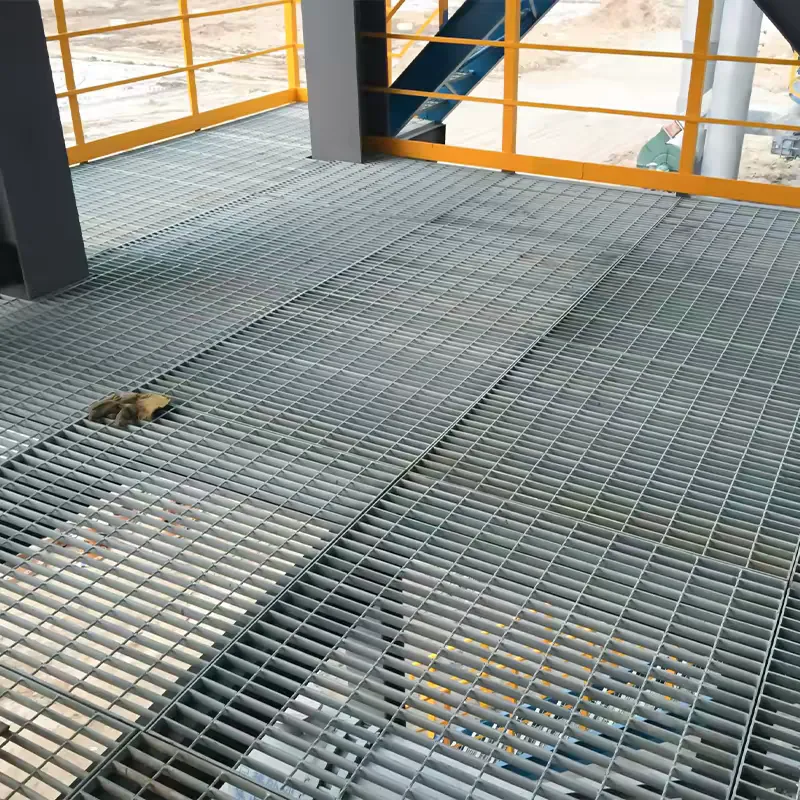

- Versatile Application: Perfect for oil rig platforms, refineries, offshore decks, helipads, and any industrial area requiring heavy-duty flooring.
- Eco-Friendly: Galvanized steel is 100% recyclable, and the manufacturing process uses energy-efficient methods.
At Anping Xinye Metal Wire Mesh Products Co., Ltd, we have been serving the global oil and gas industry for over 15 years. Located in the industrial hub of Hengshui, Hebei, we leverage advanced production lines and a skilled workforce to deliver consistent quality. Our steel grating undergoes rigorous testing for load capacity, coating thickness, and dimensional accuracy. We are committed to providing products that meet your exact specifications, with flexible customization options and reliable lead times.
Our team understands the critical nature of offshore operations. Every panel is designed to withstand heavy loads, vibration, and harsh weather. We have successfully supplied grating for major oil rig projects in the Middle East, Southeast Asia, and North America. Our reputation is built on quality, on-time delivery, and responsive customer service.
Frequently Asked Questions (FAQ)
-
What is the maximum load capacity of this grating?
The 30x5mm galvanized steel grating can support uniform loads up to 5 kN/m² (depending on span and spacing). For specific load requirements, we can provide engineering calculations. -
Can I get different bar spacing or panel sizes?
Yes, we offer customization. Cross bar spacing can range from 30mm to 150mm, and panel dimensions can be cut to your exact layout. Contact us with your drawings. -
How do I install this grating on an oil rig platform?
Installation can be done using welding, bolting, or clamping systems. We provide installation guidance and can supply matching accessories (clips, saddles, etc.). -
Is the hot-dip galvanized coating safe for use in food or marine environments?
Yes, the zinc coating is non-toxic and complies with international standards. It is suitable for marine environments, including offshore platforms. -
What is the typical lead time for a custom order?
For standard sizes, lead time is 10-15 working days. Custom orders may require 15-25 working days, depending on quantity and complexity. We can expedite urgent requests. -
Do you provide certificates of material and coating thickness?
Yes, we can provide mill test certificates and coating thickness reports upon request. Third-party inspection is also welcome. -
Can this grating be used for stair treads?
Absolutely. Our grating is commonly used for stair treads, with optional serrated bar surfaces for extra slip resistance. We can also fabricate stair treads with nosing plates. -
How do I maintain the grating over time?
Galvanized steel requires minimal maintenance. Occasional rinsing with fresh water to remove salt deposits is recommended. If coating damage occurs, touch-up with zinc-rich paint is possible.
We invite you to experience the quality and reliability of Anping Xinye Metal Wire Mesh Products Co., Ltd. Our dedicated sales team is ready to assist with product selection, technical advice, and competitive pricing. Contact us today for a quote or to discuss your project requirements. Choose our steel grating – the foundation of safety and durability on your oil rig platform.
