As a leading manufacturer from Anping Xinye Metal Wire Mesh Products Co., Ltd in Hengshui, Hebei, China, we take pride in offering Steel Grating that meets rigorous international standards. Our product is designed to provide reliable load-bearing capacity, exceptional durability, and long service life in demanding industrial environments. With free technical support and fully customizable dimensions, we empower you to specify exactly the grating you need for your project — without compromise.

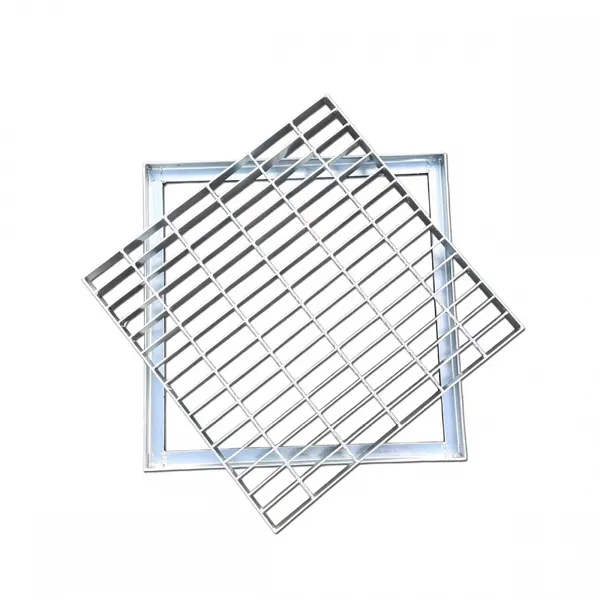

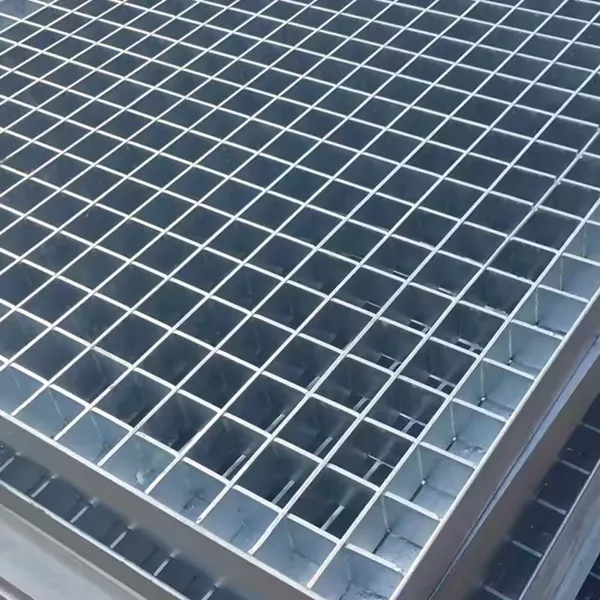

Our steel grating is manufactured using high-quality steel bars, precision-welded or press-locked to form a robust panel. It is ideal for platforms, walkways, trench covers, stair treads, and mezzanine floors in factories, refineries, power plants, and commercial buildings. The open-grid design allows light, air, and water to pass through, reducing slip hazards and debris accumulation.
Key Features & Benefits
- Standard Compliant: Our steel grating conforms to ASTM, DIN, BS, JIS, and other international standards, ensuring consistent quality and performance.
- Customizable Size: Width, length, bar thickness, and spacing can be tailored to your exact specifications. No minimum order quantity required.
- High Load Capacity: Available in light, medium, and heavy-duty series, suitable for pedestrian traffic to heavy machinery.
- Anti-Slip Surface: Options include serrated bars, flat bars with raised patterns, or added grit coating for enhanced safety.
- Corrosion Resistance: Hot-dip galvanized finish provides excellent protection against rust and harsh chemicals, extending service life up to 40 years.
- Easy Installation: Pre-cut panels, weld-free clips, or bolt-down options reduce labor time and cost.
- Free Technical Support: Our team of engineers assists with load calculations, design recommendations, and installation guidance — at no extra charge.
Technical Specifications
| Parameter | Value (Standard) | Customizable Range |
|---|---|---|
| Material | Carbon Steel Q235, Q345 | Stainless steel 304, 316L available |
| Bar Thickness | 3mm, 5mm | 2mm – 8mm |
| Bar Spacing | 30×100mm, 40×100mm | 15×15mm to 100×100mm |
| Panel Width | 1000mm | 200mm – 2000mm |
| Panel Length | 6000mm | 500mm – 12000mm |
| Surface Treatment | Hot-dip galvanized (≥85μm) | Plain, painted, epoxy coating |
| Load Capacity | Up to 10 kN/m² (heavy duty) | Customized per engineering request |
Why Choose Our Steel Grating?
Our manufacturing facility in Hengshui, Hebei, is equipped with advanced CNC welding machines and automatic galvanizing lines, ensuring precise dimensions and consistent quality batch after batch. We have been serving global clients since 2015, supplying steel grating for projects in over 30 countries. Every panel undergoes strict inspection for dimensional accuracy, weld strength, and coating thickness.
Free technical support is included with every order. Our experienced engineers can help you select the correct grating type, calculate load requirements, and provide installation drawings. Whether you need a standard 6-meter panel or a custom shape with cut-outs, we deliver on time with minimal lead times.
Frequently Asked Questions
-
Q: What standards do your steel gratings comply with?
A: Our products comply with ASTM A36, DIN 24537, BS 4592, and JIS G 3551 standards. We can also produce according to your specific national standard. -
Q: Can I order a small quantity for testing?
A: Yes, we accept small trial orders. Customization is available even for small quantities. -
Q: How do I choose the right bar thickness and spacing?
A: Our free technical support team will help you calculate based on the expected load and span. Simply provide the application details, and we will recommend the optimal configuration. -
Q: What is the typical lead time?
A: For standard specifications, lead time is 15–20 working days. Custom orders may take 20–30 days depending on complexity. -
Q: Do you provide installation accessories?
A: Yes, we supply matching clips, bolts, brackets, and welding consumables for easy installation. -
Q: Can you cut holes or notches in the panels?
A: Absolutely. We can cut openings for pipes, columns, or other obstructions according to your drawings. -
Q: What is the warranty period?
A: We offer a 12-month warranty against manufacturing defects. For galvanized products, we guarantee coating integrity for 5 years under normal service conditions. -
Q: How do you package the steel grating for export?
A: Panels are bundled with steel strapping, edge protectors, and wrapped in waterproof material or placed on pallets to ensure safe transit.
Trust Anping Xinye – With over 8 years of experience, 20,000+ tons of steel grating exported, and a dedicated team of 50+ professionals, we are your reliable partner for industrial grating solutions. Contact us today for a free quote and technical consultation. Your project deserves the best value — we deliver it with quality, customization, and support.
