Anping Xinye Metal Wire Mesh Products Co., Ltd, located in the industrial hub of Hengshui, Hebei, China, proudly presents our Pressed Steel Grating 25x3mm 100x50mm — a robust and reliable solution for heavy-duty industrial flooring and walkways. Engineered with precision and manufactured using high-quality pressed steel, this grating offers a load capacity of 3 tons, ensuring safety and durability in demanding environments. Our product is designed to meet rigorous industry standards, making it a trusted choice for construction, mining, petrochemical, and civil engineering projects worldwide.

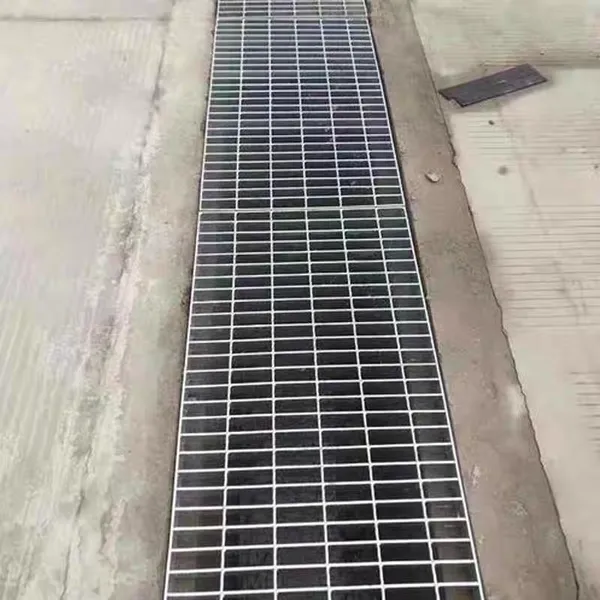

The 25x3mm flat bar profile combined with a 100x50mm grid aperture provides an optimal balance between strength, weight, and open area. Each panel is pressed from a single piece of steel, eliminating weld joints and enhancing structural integrity. The load capacity of 3 tons per square meter (or per panel, as specified) is verified through strict quality control processes. Whether you need a safe working platform, a drainage cover, or a mezzanine floor, our pressed steel grating delivers consistent performance and long service life.
Key Features & Technical Specifications
| Parameter | Value |
|---|---|
| Material | Pressed Steel (Q235 / SS400 / equivalent) |
| Flat Bar Size | 25mm (height) x 3mm (thickness) |
| Grid Pattern | 100mm center-to-center (bearing bars) x 50mm center-to-center (cross bars) |
| Load Capacity | 3 Tons (uniformly distributed load, per panel) |
| Surface Finish | Self-color (mill finished); optional hot-dip galvanized, painted, or epoxy coating |
| Panel Dimensions | Customizable – typical width up to 1200mm, length up to 6000mm |
| Standard Compliance | Compliant with international standards (e.g., BS4592, DIN24537, etc.) upon request |
Product Advantages & Benefits
- Superior Strength-to-Weight Ratio: The pressed design allows for high load-bearing capacity without excessive weight, reducing structural support costs.
- One-Piece Construction: No welding or riveting means no weak points, resulting in uniform strength and longer service life.
- Anti-Slip Surface: The flat bar surface can be further treated with serrated edges or embossed patterns for enhanced slip resistance (optional).
- Excellent Drainage & Ventilation: The open grid design (up to 60% open area) allows water, light, and air to pass through – ideal for drainage covers and ventilation floors.
- Easy Installation & Maintenance: Lightweight panels are easy to cut, weld, and fasten. Minimal maintenance required due to corrosion-resistant options.
- Economical & Cost-Effective: Pressed steel grating is more affordable than welded or forged alternatives while offering comparable performance.
- Versatile Applications: Suitable for platforms, walkways, stair treads, trench covers, mezzanines, filtration supports, and security grilles.
- Customizable: We can adjust bar size, grid spacing, panel dimensions, and surface treatment to meet your project requirements.
Why Choose Anping Xinye?
As a leading manufacturer in the wire mesh industry based in Hengshui, Hebei, Anping Xinye Metal Wire Mesh Products Co., Ltd has been dedicated to producing high-quality steel gratings for over a decade. Our factory is equipped with advanced pressing machines and stringent quality control systems. We have exported to more than 30 countries and regions, earning trust from clients in infrastructure, energy, and manufacturing sectors. Our professional team ensures that every batch of pressed steel grating meets the specified load capacity and dimensional tolerances.
With a monthly production capacity of over 5,000 square meters, we can fulfill both small and large orders with short lead times. We offer competitive pricing without compromising on quality. Our technical support team can assist you in selecting the right grating type and configuration for your application. We also provide free samples upon request to verify product quality and fit.
Contact us today to discuss your requirements or request a quotation. Let Anping Xinye be your reliable partner for durable, standard-compliant pressed steel grating solutions.
Frequently Asked Questions (FAQ)
-
Q: What does “25x3mm 100x50mm” mean in the product title?
A: “25x3mm” refers to the dimension of the bearing flat bars: 25mm height and 3mm thickness. “100x50mm” indicates the center-to-center spacing: 100mm between bearing bars and 50mm between cross bars (or the grid pattern). This combination provides a balance of strength and open area suitable for 3-ton load capacity. -
Q: Is the 3-ton load capacity per square meter or per panel?
A: The load capacity is typically specified as uniformly distributed load per panel, but it can be interpreted per square meter depending on the application. Our engineers will confirm the exact rating based on your panel dimensions. Please provide your required span and support conditions for a precise calculation. -
Q: Can this pressed steel grating be used outdoors?
A: Yes, but we recommend applying a protective coating such as hot-dip galvanizing or epoxy paint to enhance corrosion resistance in outdoor or humid environments. The standard self-color finish is suitable for indoor applications. -
Q: Do you offer custom sizes and shapes?
A: Absolutely. We can customize panel width, length, bar spacing, and even cutouts for pipes or columns. Please provide a drawing or detailed specifications, and we will produce grating tailored to your needs. -
Q: What standards does this product comply with?
A: Our pressed steel grating is manufactured to comply with common international standards such as BS4592 (UK), DIN24537 (Germany), and EN 10025 for steel. We can also certify compliance with specific standards upon request. Please contact us for documentation. -
Q: How is the grating installed?
A: Installation can be done by welding to supporting steel structures, using saddle clips, or with anchor bolts. Our panels are supplied with flat bearing bars that can be easily cut and welded onsite. We can also provide installation accessories upon request. -
Q: What is the minimum order quantity (MOQ)?
A: For standard sizes, our MOQ is 50 square meters. For custom dimensions, the MOQ may be higher depending on the complexity. We also accept small trial orders for sample testing. -
Q: Do you provide surface treatment options like anti-slip?
A: Yes, we offer serrated (toothed) flat bars for enhanced slip resistance, as well as embossed or raised patterns. These options are available at an additional cost. Please specify your requirement when ordering.
* The information provided is for general reference. Actual product specifications may vary. Please consult our technical team for detailed engineering data.
