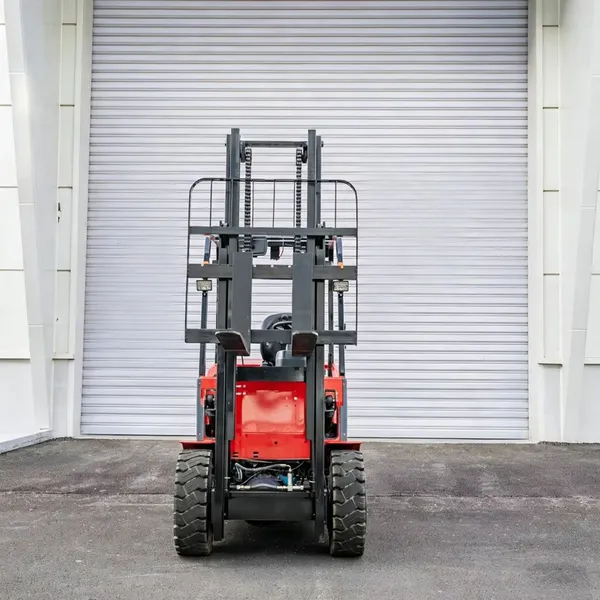

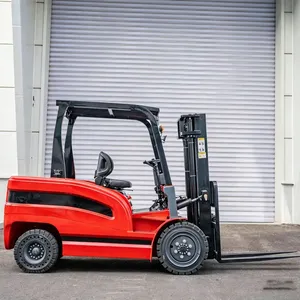

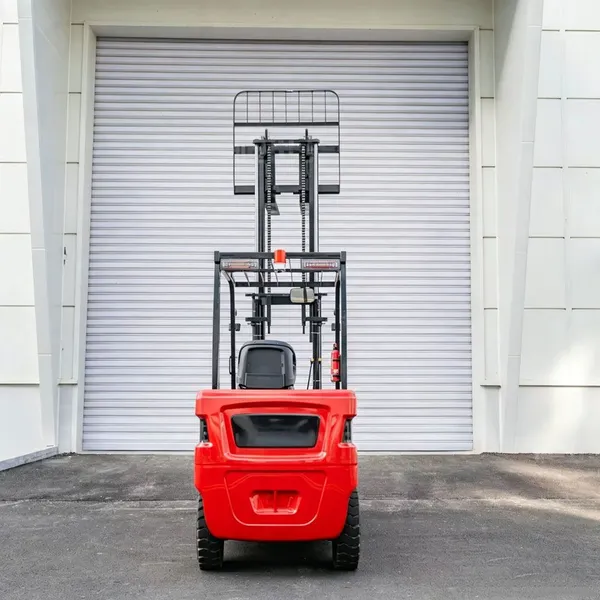

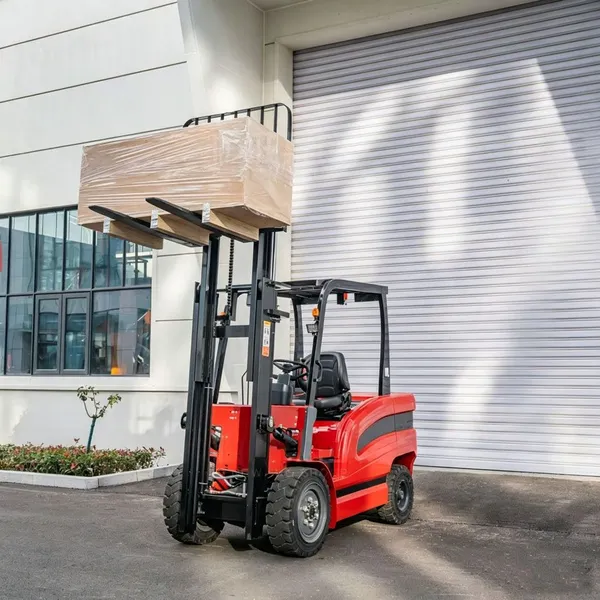

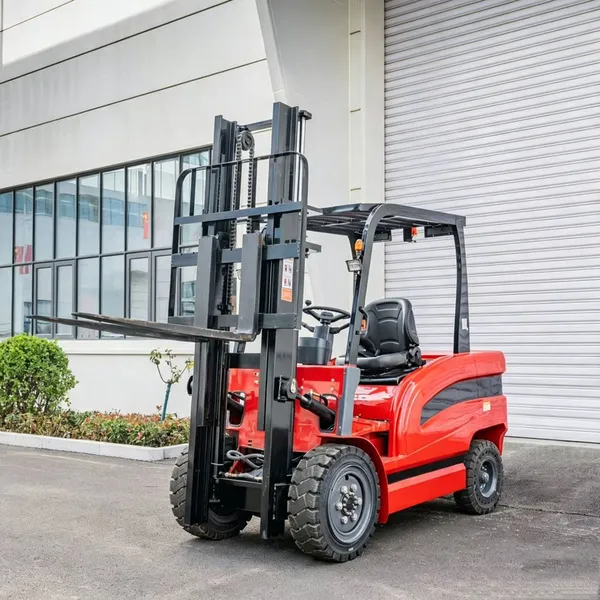

Help Center3 Ton Electric Forklift Heavy Duty Warehouse Forklift Lithium Battery Durable Multi-function Design Factory Wholesale
Product Spotlights
Max Lifting Height: A maximum lifting height of 6000 mm allows for versatile use in high-rack warehouses and other environments where elevated storage is required.
Fork Specifications: The fork dimensions (L*W*H: 1220*125*50 mm) ensure that the forklift can securely lift and transport a wide range of pallets and mat
Related Products
-
3 Ton Electric Forklift 3-4m Lifting Height Hydraulic Zero Emission Electric Forklift for Warehouse Storage WorkNegotiableMOQ: 1 Piece -
China Professional Electric Forklift 1 Ton 2 Ton 3 Ton 3.5 Ton 4 Ton Portable Forklift ElectricNegotiableMOQ: 1 Piece
-
3 Ton Electric Forklift ISO Certified 4m 5m 6m Lift Montacargas for Tire Distribution Center Electric ForkliftNegotiableMOQ: 1 Piece
-
Fast Delivery ELECTRIC FORKLIFT 3 Tons Lifting 3m Pallet Cargo Warehouse Montacargas ElectricoNegotiableMOQ: 1 Piece
-
Fast Delivery Lithium Battery 3 Ton 5 Ton Forklift Electric Forklift Electric Forklift Hydraulic Fork Lift TruckNegotiableMOQ: 1 Piece
Why Choose Us?

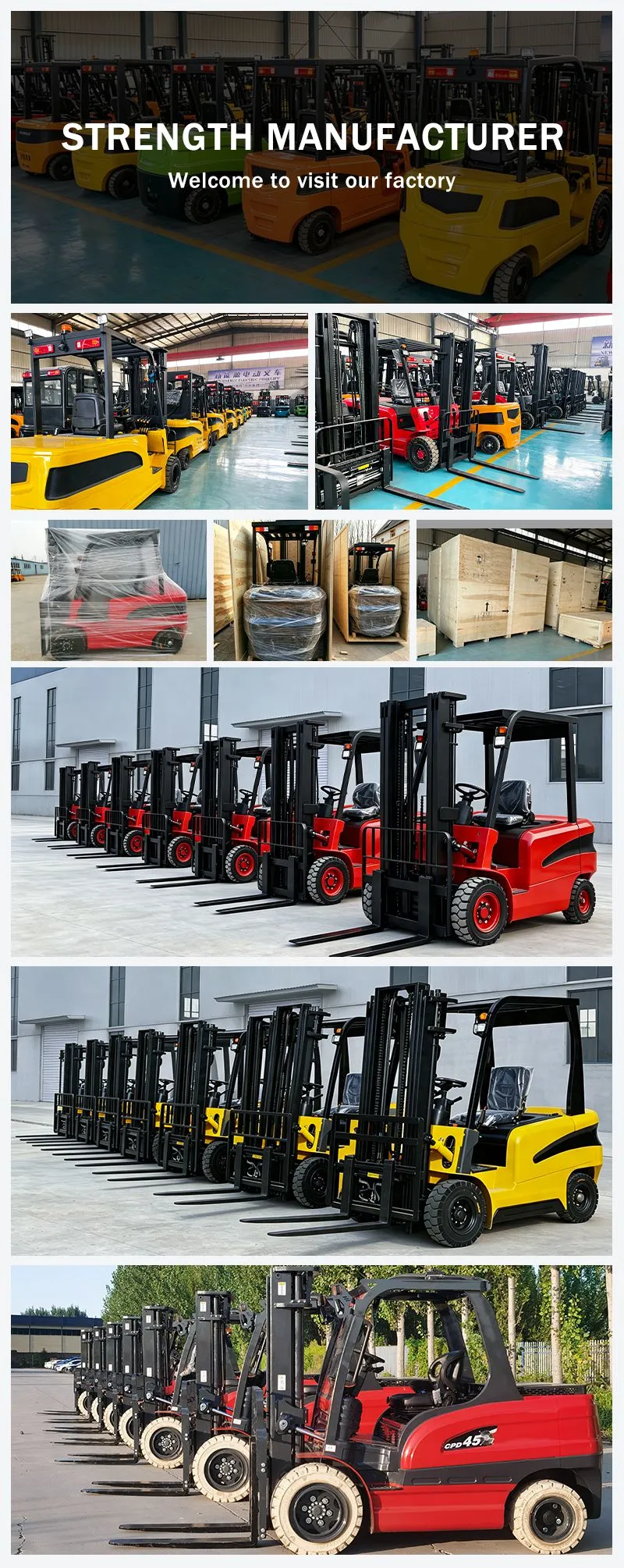

（1）Voril has been a manufacturer for over 11 years, specializing in forklift machinery production, and boasts more than 8 years of foreign trade experience.
（2）We have a full range of certificates in line with local policies (such as CE, EPA, EURO 5, ISO) and cooperate with a strong freight company to provide smooth customs clearance services, ensuring timely delivery of goods.
（3） For consumers, our Electric Forklift are affordable, long service life, product models from 1 tons to 5 tons can meet any of your needs, support customization
（4） For suppliers, we will provide you with enough profit margin, and at the same time, we will provide after-sales service for our products within 1-3 years. We will provide you with testing to ensure product quality before leaving the factory. At the same time, we will provide free publicity for you in your country, and support customized colors and product trademarks
Special reminder ：Different customers will customize the color, configuration, model, appearance and so on according to their ownneeds. We will make quotations according to the needs of customers, so the quotation will be different, please understand.

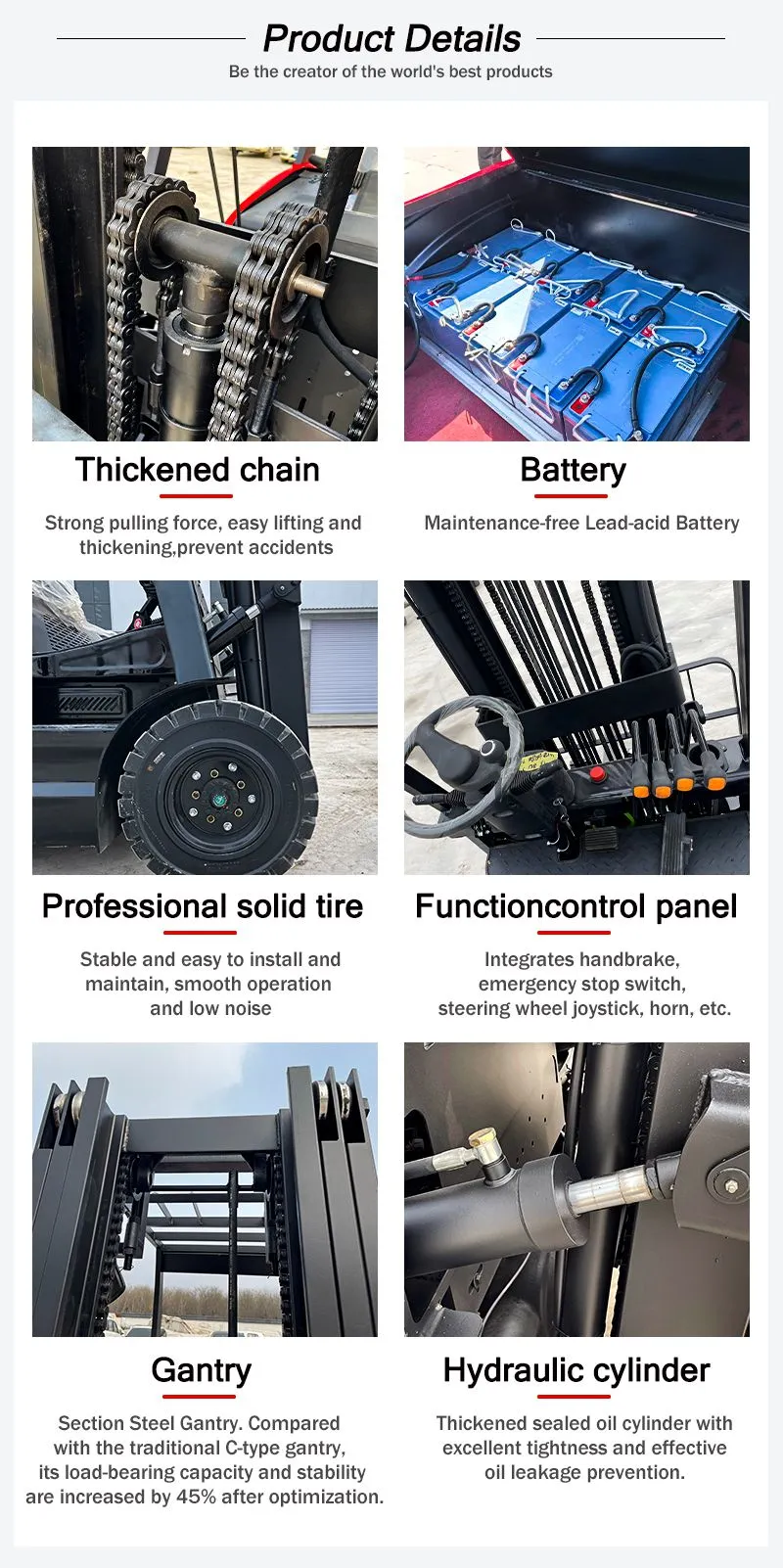

product features
1-----With advanced technology and design;
2----- High quality steel for frame and mast, not easy to deform
3----- LED lights for all working lights, easy to see in night
4----- Thickened height guard
5-----Wear-resisting solid tire
6-----Double AC motor ,less noise
7-----powerful branded batterym,optional for lead acid battery, lithium battery and traction battery
8-----High voltage ,low current design , prolong the lifespan of electric components
9-----Powerful in climbing to climp slop, with gradeability over 30%.
10----Comfortable seat with safety belts,with large operation space.
11----All use lithium battery, charging efficiency is higher, more lightweight, only takes 2.5 hours to recharge

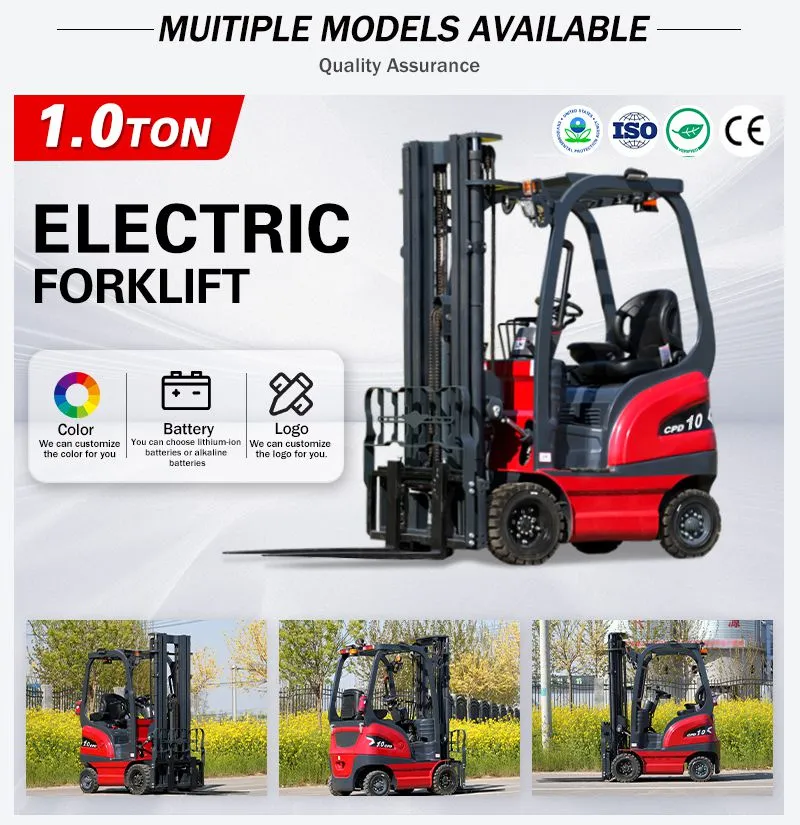

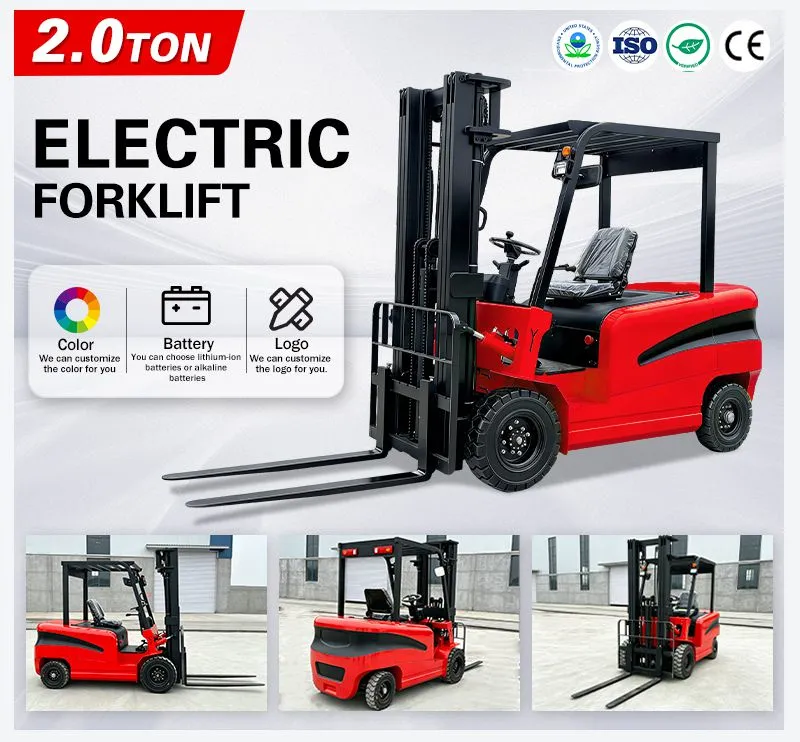

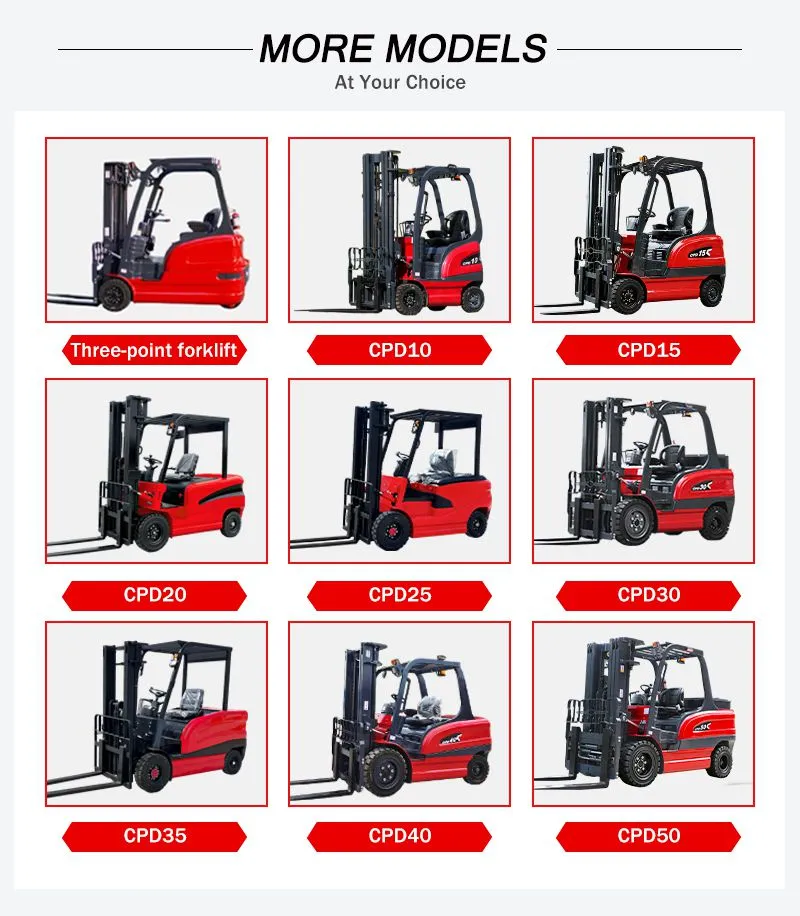

Model |
CPD-10E |
CPD-15E |
CPD-20E |
CPD-25E |
CPD-30E |
CPD-35E |
Rated capacity(kg) |
1000 |
1500 |
2000 |
2500 |
3000 |
3900 |
Rated lifting height(mm) |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
Battery |
60V/120Ah |
60V/140Ah |
60V/210Ah |
72V/210Ah |
72V/260Ah |
72V/260Ah |
Battery weight(kg) |
150 |
165 |
300 |
360 |
430 |
430 |
Total weight(with battery)(kg) |
1530 |
2150 |
2500 |
3150 |
4150 |
4150 |
Load center distance(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
Lifting speed,laden/unladen(mm/s) |
220/230 |
200/220 |
180/200 |
210/250 |
200/300 |
200/300 |
Lowering speed(mm/s) |
550 |
550 |
550 |
450 |
450 |
450 |
Drive motor(kw) |
5 |
5 |
5 |
9 |
9 |
9 |
Lift motor(kw) |
4.5 |
4.5 |
4.5 |
7.5 |
9 |
9 |
Tilt of the mast,F/R(°) |
5/10 |
5/10 |
5/10 |
5/10 |
5/10 |
5/10 |
Service brake/parking brake |
Hydraulic/Mechanial |
Hydraulic/Mechanial |
Hydraulic/Mechanial |
Hydraulic/Mechanial |
Hydraulic/Mechanial |
Hydraulic/Mechanial |
Wheelbase(mm) |
1330 |
1550 |
1550 |
1600 |
1850 |
1850 |
Body size(L*W*H mm) |
1980*1020*2017 |
2230*1096*2030 |
2230*1096*2030 |
2390*1160*2030 |
2700*1225*2057 |
2700*1225*2057 |
