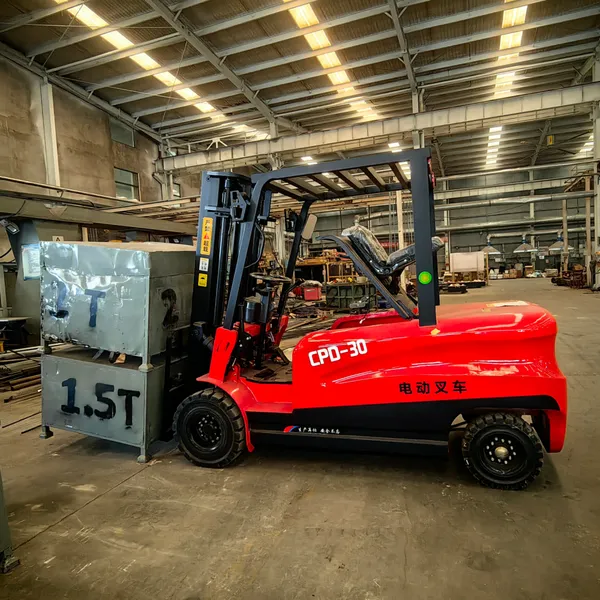

Help Center3 Ton Electric Forklift 3-4m Lifting Height Hydraulic Zero Emission Electric Forklift for Warehouse Storage Work
Product Spotlights
Fork Specifications( L*W*H):1220*125*50, 1500*160*125, 1500*200*120
Forklift Battery Type:Electric-Lead-Acid Battery

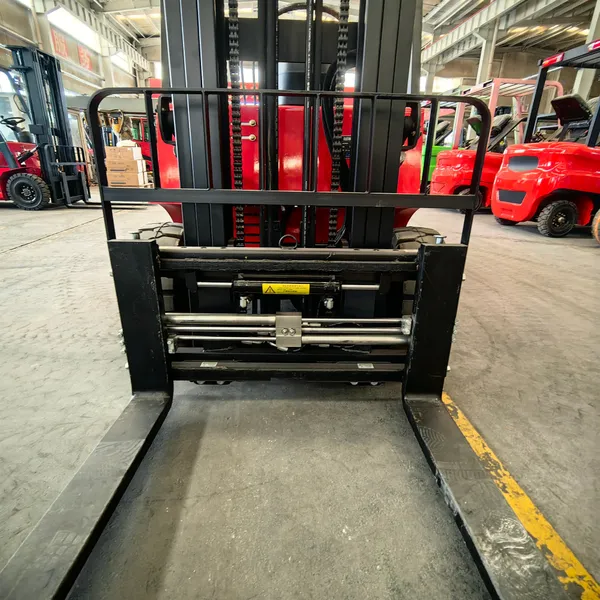

Side Shifter:Hydraulic Side Shifter
Place of Origin:Henan, China
Drive Type:4Wd
Related Products
-
China Professional Electric Forklift 1 Ton 2 Ton 3 Ton 3.5 Ton 4 Ton Portable Forklift ElectricNegotiableMOQ: 1 Piece -
3 Ton Electric Forklift ISO Certified 4m 5m 6m Lift Montacargas for Tire Distribution Center Electric ForkliftNegotiableMOQ: 1 Piece
-
Fast Delivery ELECTRIC FORKLIFT 3 Tons Lifting 3m Pallet Cargo Warehouse Montacargas ElectricoNegotiableMOQ: 1 Piece
-
Fast Delivery Lithium Battery 3 Ton 5 Ton Forklift Electric Forklift Electric Forklift Hydraulic Fork Lift TruckNegotiableMOQ: 1 Piece
-
Electric Forklift 3 Ton 5 Ton Forklift Farm Forklifts Lithium Battery 3000-6000mm Lifting Height Hydraulic Fork Lift TruckNegotiableMOQ: 1 Piece
Product model |
CPD-1.0 |
CPD-1.5 |
CPD-2.0 |
CPD-2.5 |
Maximum lifting weight |
1000kg |
1500kg |
2000kg |
2500kg |
Overall dimensions |
2000*1200*2100mm |
2250*1200*2150mm |
2350*1200*2150mm |
2450*1200*2150mm |
Curb weight |
1900kg |
2500kg |
2900kg |
3400kg |
Lifting height |
2-3m |
3-6m |
3-6m |
3-6m |
Walking motor |
2500w ac motor |
3000w ac motor |
4000w ac motor |
5000w ac motor |
Voltage |
60v |
60v |
60v |
60v |
Battery |
5 pieces of 70 lead-acid batteries |
5 pieces of 70 lead-acid batteries |
5 pieces of 70 lead-acid batteries |
10 pieces of 70 lead-acid battery |
Drive axle |
1-ton circular bridge |
Yuanbao bridge |
Cast steel suspension 220 bridge |
256 cast steel bridge |
Tire |
500-8/400-8 |
650-10/500-8 |
650-10/500-8 |
650-10/500-8 |
Fork length |
1220mm |
1220mm |
1220mm |
1220mm |
Hydraulic lifting motor |
2500w ac hydraulic motor |
2500w ac hydraulic motor |
3000w ac hydraulic motor |
4000w ac hydraulic motor |
Gantry frame material |
Small c-shaped steel door frame |
Small c-shaped steel door frame |
C-shaped steel frame |
C-shaped steel frame |
Turning radius |
90 ° |
90 ° |
90 ° |
90 ° |
Charging time |
8-10h |
4-6h |
4-6h |
4-6h |
Continuous work |
6-8h |
6-8h |
6-8h |
6-8h |
Climbing angle |
15 ° |
15 ° |
15 ° |
15 ° |
Product model |

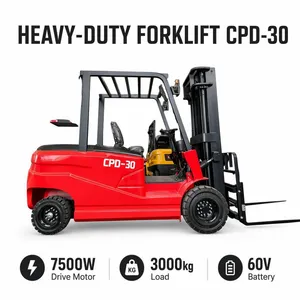

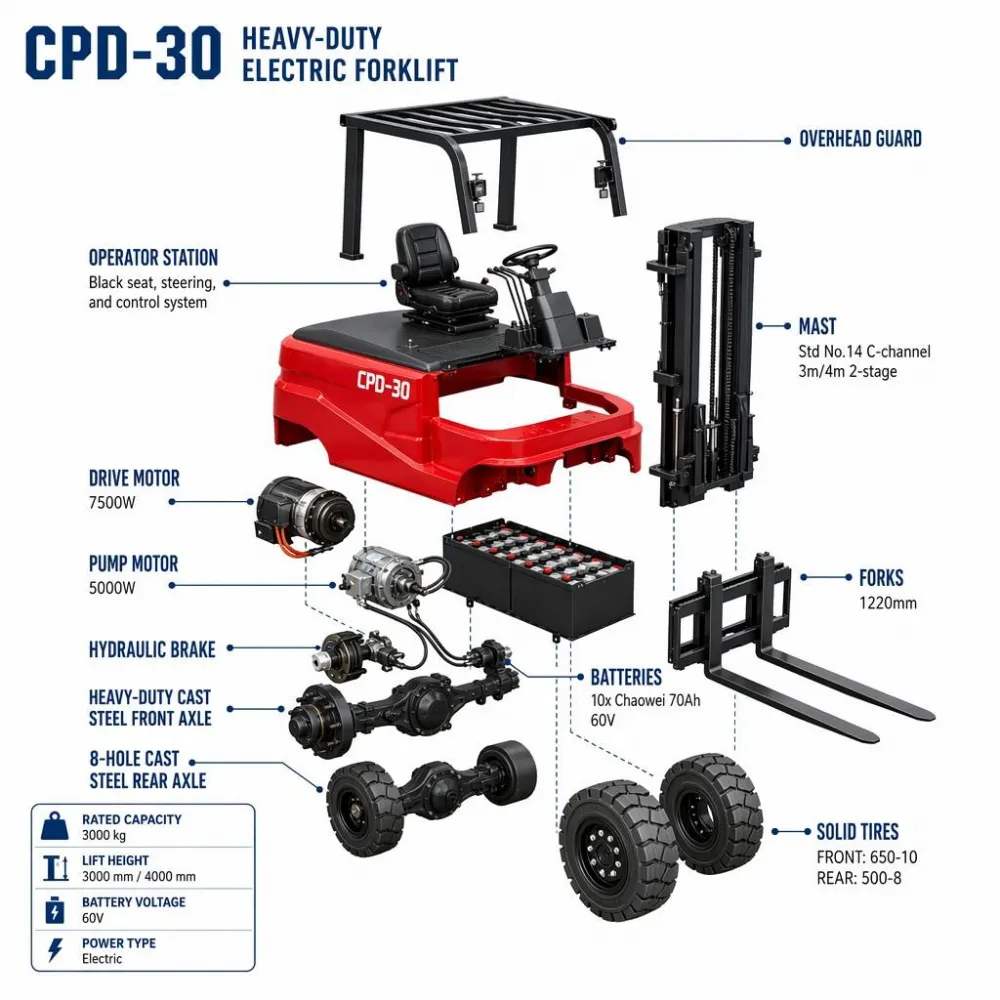

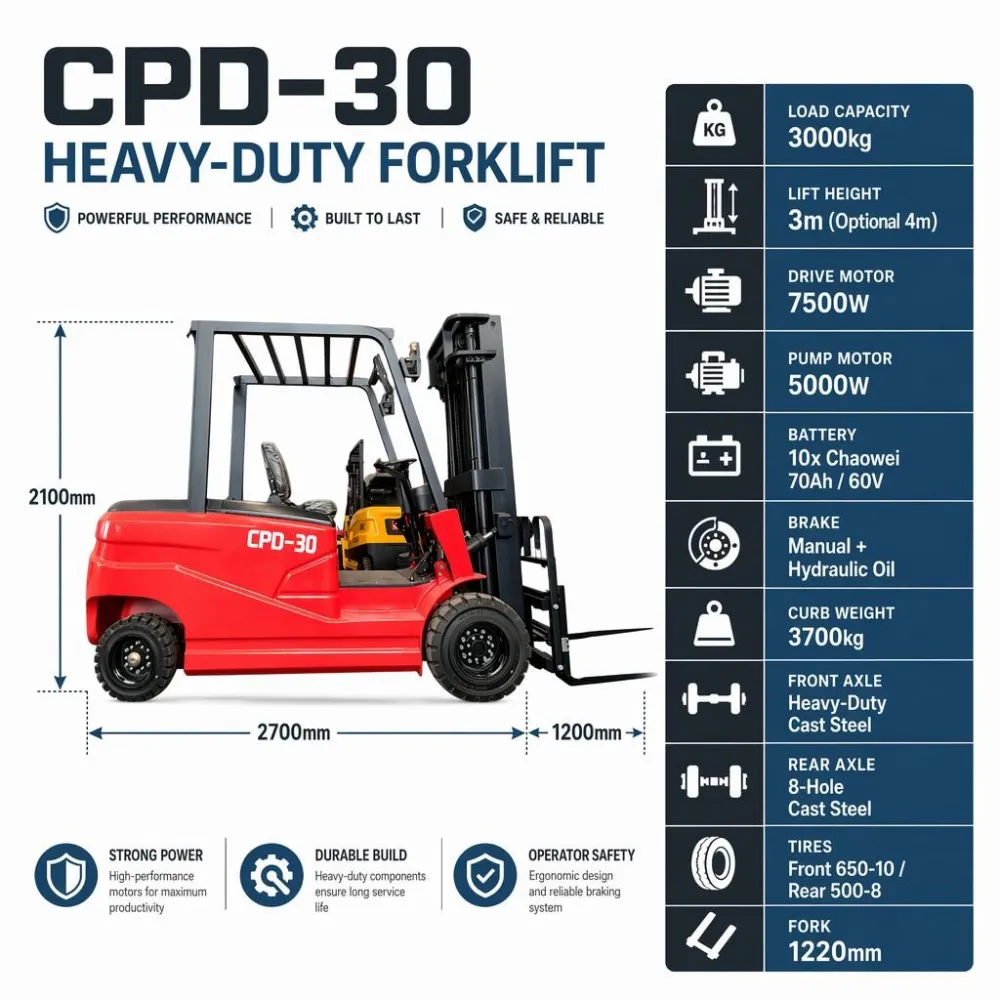

CPD-3.0 |
CPD-3.5 |
CPD-5.0 |
Maximum lifting weight |
2800kg |
3400kg |
5000kg |
Overall dimensions |
2600*1200*2150mm |
2800*1200*2150mm |
3400*1280*2200mm |
Curb weight |
4000kg |
4600kg |
5800kg |
Lifting height |
3-8m |
3-8m |
3-8m |
Walking motor |
7500w ac motor |
10000w ac motor |
16000w ac motor |
Voltage |
72v |
72v |
80v |
Battery |
10 pieces of 70 lead-acid battery |
10 pieces of 70 lead-acid battery |
-- |
Drive axle |
Heavy duty rear axle |
Cast steel 380 bridge |
Fully floating integrated drive bridge |
Tire |
650-10/500-8 |
28*9-15/15*6-10 |
28*9-15/650-10 |
Fork length |
1220mm |
1220mm |
1220mm |
Hydraulic lifting motor |
5000w ac hydraulic motor |
8000w ac hydraulic motor |
23000w ac hydraulic motor |
Gantry frame material |
Widening the steel frame |
Widening the steel frame |
G-type steel frame - thickened by 160mm |
Turning radius |
90 ° |
90 ° |
90 ° |
Charging time |
4-6h |
4-6h |
4-6h |
Continuous work |
6-8h |
6-8h |
6-8h |
Climbing angle |
15 ° |
15 ° |
15 ° |
