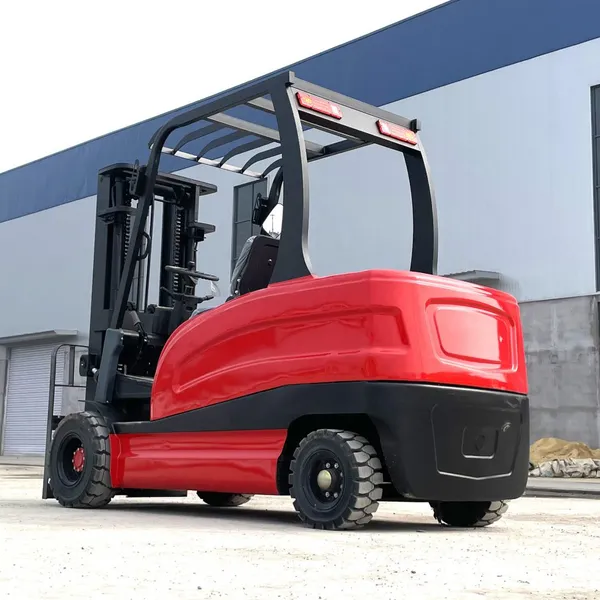

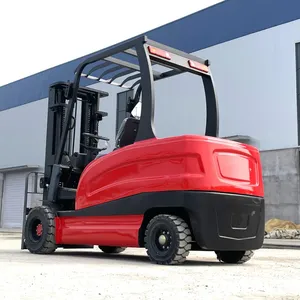

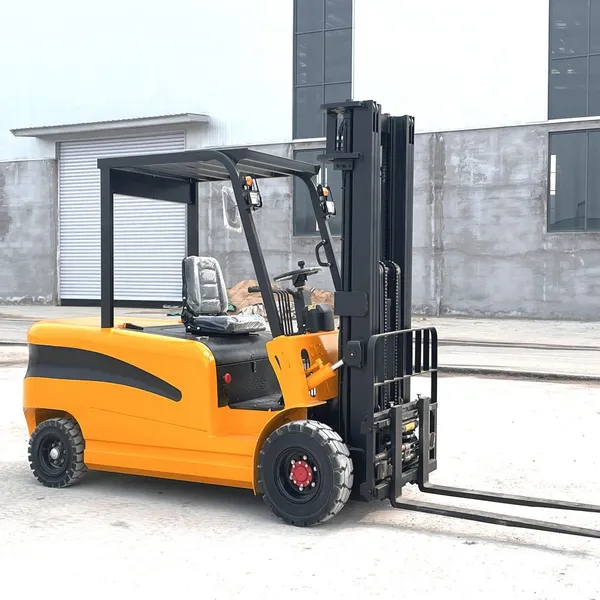

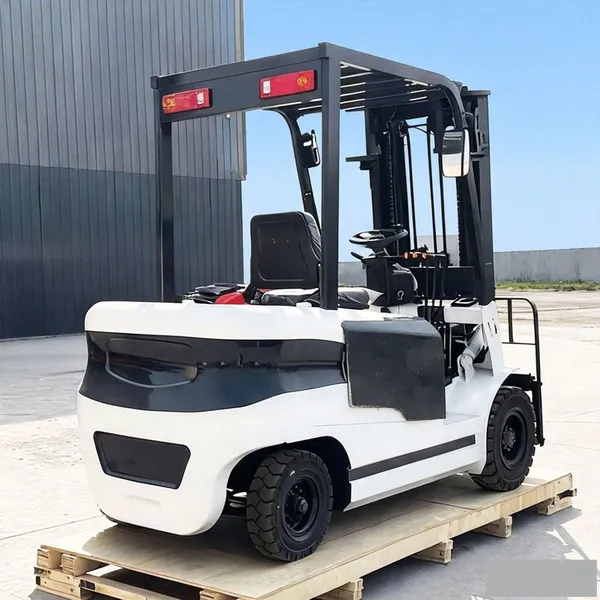

Help CenterFast Delivery ELECTRIC FORKLIFT 3 Tons Lifting 3m Pallet Cargo Warehouse Montacargas Electrico
Product Spotlights
Max Lifting Height: A maximum lifting height of 6000 mm allows for versatile use in high-rack warehouses and other environments where elevated storage is required.
Fork Specifications: The fork dimensions (L*W*H: 1220*125*50 mm) ensure that the forklift can securely lift and transport a wide range of pallets and mat
Related Products
-
Fast Delivery Lithium Battery 3 Ton 5 Ton Forklift Electric Forklift Electric Forklift Hydraulic Fork Lift TruckNegotiableMOQ: 1 Piece -
Electric Forklift 3 Ton 5 Ton Forklift Farm Forklifts Lithium Battery 3000-6000mm Lifting Height Hydraulic Fork Lift TruckNegotiableMOQ: 1 Piece
-
Electric Forklift 1 Ton 1.5 Ton 2 Ton 3 Ton CE MSDS Lithium Battery Four Wheel Drive Forklift Diesel Rough TerrainNegotiableMOQ: 1 Piece
-
3 Ton Electric Forklift Heavy Duty Warehouse Forklift Lithium Battery Durable Multi-function Design Factory WholesaleNegotiableMOQ: 1 Piece
-
3 Ton Electric Forklift 3-4m Lifting Height Hydraulic Zero Emission Electric Forklift for Warehouse Storage WorkNegotiableMOQ: 1 Piece
Product model |
CPD-1.0 |
CPD-1.5 |
CPD-2.0 |
CPD-2.5 |
Maximum lifting weight |
1000kg |
1500kg |
2000kg |
2500kg |
Overall dimensions |
2000*1200*2100mm |
2250*1200*2150mm |
2350*1200*2150mm |
2450*1200*2150mm |
Curb weight |
1900kg |
2500kg |
2900kg |
3400kg |
Lifting height |
2-3m |
3-6m |
3-6m |
3-6m |
Walking motor |
2500w ac motor |
3000w ac motor |
4000w ac motor |
5000w ac motor |
Voltage |
60v |
60v |
60v |
60v |
Battery |
5 pieces of 70 lead-acid batteries |
5 pieces of 70 lead-acid batteries |
5 pieces of 70 lead-acid batteries |
10 pieces of 70 lead-acid battery |
Drive axle |
1-ton circular bridge |
Yuanbao bridge |
Cast steel suspension 220 bridge |
256 cast steel bridge |
Tire |
500-8/400-8 |
650-10/500-8 |
650-10/500-8 |
650-10/500-8 |
Fork length |
1220mm |
1220mm |
1220mm |
1220mm |
Hydraulic lifting motor |
2500w ac hydraulic motor |
2500w ac hydraulic motor |
3000w ac hydraulic motor |
4000w ac hydraulic motor |
Gantry frame material |
Small c-shaped steel door frame |
Small c-shaped steel door frame |
C-shaped steel frame |
C-shaped steel frame |
Turning radius |
90 ° |
90 ° |
90 ° |
90 ° |
Charging time |
8-10h |
4-6h |
4-6h |
4-6h |
Continuous work |
6-8h |
6-8h |
6-8h |
6-8h |
Climbing angle |
15 ° |
15 ° |
15 ° |
15 ° |
Product model |
CPD-3.0 |
CPD-3.5 |
CPD-5.0 |
Maximum lifting weight |
2800kg |
3400kg |
5000kg |
Overall dimensions |
2600*1200*2150mm |
2800*1200*2150mm |
3400*1280*2200mm |
Curb weight |
4000kg |
4600kg |
5800kg |
Lifting height |
3-8m |
3-8m |
3-8m |
Walking motor |
7500w ac motor |
10000w ac motor |
16000w ac motor |
Voltage |
72v |
72v |
80v |
Battery |
10 pieces of 70 lead-acid battery |
10 pieces of 70 lead-acid battery |
-- |
Drive axle |
Heavy duty rear axle |
Cast steel 380 bridge |
Fully floating integrated drive bridge |
Tire |
650-10/500-8 |
28*9-15/15*6-10 |
28*9-15/650-10 |
Fork length |
1220mm |
1220mm |
1220mm |
Hydraulic lifting motor |
5000w ac hydraulic motor |
8000w ac hydraulic motor |
23000w ac hydraulic motor |
Gantry frame material |
Widening the steel frame |
Widening the steel frame |
G-type steel frame - thickened by 160mm |
Turning radius |
90 ° |
90 ° |
90 ° |
Charging time |
4-6h |
4-6h |
4-6h |
Continuous work |
6-8h |
6-8h |
6-8h |
Climbing angle |
15 ° |
15 ° |
15 ° |
Highlights at a glance
High stability, not prone to tipping over under heavy loads
Strong load capacity, mainstream loads are over 3 tons
High travel speed, high operating efficiency
Suitable for complex working conditions such as outdoor environments and cold storage facilities
Low maintenance costs, durable components
Energy-efficient, longer operating range
