Horizontal Screw Belt Mixer

Horizontal Screw Belt Mixer thumbnail-1
Horizontal Screw Belt Mixer thumbnail-2
Horizontal Screw Belt Mixer thumbnail-3
Horizontal Screw Belt Mixer photo-1

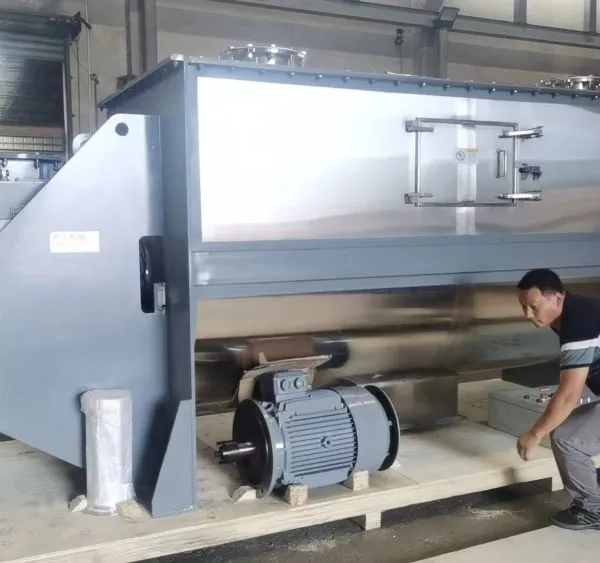

Horizontal Screw Belt Mixer photo-2
Horizontal Screw Belt Mixer photo-3

Product Spotlights

Horizontal screw belt mixer,The full volume of equipment is about 6000L with control panel
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CCC, CE, ISO
Main Material:
Stainless Steel
Application:
Granules, Viscous Fluid
Contact Supplier Request Quote Chat Now
XiAn Wisdom Computer Info&tech Co., Ltd
Gold Verified Supplier
8Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CCC, CE, ISO
Main Material Stainless Steel
Application Granules, Viscous Fluid
Condition New
Additional Capabilities Coating, Granulating, Milling
Cooling Method Air Cooling
After-sales Service Online Support, video Technical Support
Control System PLC Control
Heating Method Electric Heating
Application Area Chemical, Engineering & Construction, Metallurgy&Mineral, Pharmaceutical
Mixing Capacity 1000L & Above
Speed Range 60 R/min & Above
Stirring Type Diving
Working Convection Mixer
Safety Features Anti-slip Feet
Speed Control Variable Speed
Origin MADE IN CHINA

Industrial mixer

Horizontal screw belt mixer

 model:LHY-6P

1. Model and specification

1.1 The full volume of the equipment is about 6000L.

1.2 The effective volume accounts for 40-60% of the total volume.

2. Equipment material

2.1 The body of the equipment is connected with 304 stainless steel, non-contact part Q235 carbon steel.

2.2 The standard parts used by the equipment shall retain their original materials.

3.The drive ability

3.1 Main motor adopts 37kW        380V-50HZ-4 level.

3.2 The main motor adopts jiangsu boneng common motor made in China.

3.3 The reducer shall be of Jiangsu Telong brand.

3.4 The output speed of the drive group is about 22 RPM/min.

4.Surface treatment

4.1 Fine polishing is done inside the equipment.

4.2 The outside of the equipment shall be brushed and the carbon steel part shall be sprayed with anti-rust paint.

5.Main dimensions

5.1 National standard 304 stainless steel plate with a barrel thickness of 6mm.

5.2 National standard 304 stainless steel plate with 4mm thickness of equipment barrel cover

5.2 Q235 carbon steel with a thickness of 16mm and a 2MM NATIONAL standard 304

stainless steel plate is lined at the end of the equipment.

6.Equipment sealed

6.1 The main shaft seal adopts packing + gas seal.

7.Open design

7.1 It is set up according to customers' demand.

8.Discharge valve

8.1 Adopt pneumatic flap valve.


Product Tags: Horizontal screw belt mixer , horizontal mixer , industrial mixer
