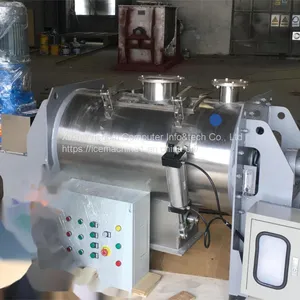

LDH-0.3P for Plough Mixer

Plough shear mixer working principle Plastic mixing machine,plough share mixer

Plastic mixer is a kind of equipment that uses the principle of rapid rotation to achieve uniform mixing.

masterbatch mixer product introduction

Features: The materials in the hopper are transported to the upper end of the barrel body through the spiral spindle, and then fall in an umbrella shape and continue to circulate stirring, so as to achieve the purpose of uniform mixing.

Plough share mixer Function: with automatic operation timing, overload protection, feeding limit alarm and other functions; It has the advantages of less space, large capacity, low power consumption, manual saving, convenient control, fast and uniform mixing. Can be widely used in: plastic sheet material, crushing material, plastic particles, plastic old and new material and add color master stirring evenly and other purposes.
Applicable customers: granulation, plastic granulation, color master manufacturing, plastic modification, recycling processing, large injection molding and other industries.

LDH-0.3plough shear mixer

Main Body

1.1 Total volume 300L

1.2 Working volume 120L-180L @1kg/l

1.3 material: contact part stainless steel 304， other parts carbon steel Q235

1.4 driven unit: 5.5kw Siemens (made in China), 380v-50hz-3phases , gear reducer K57

(Tailong brand)

1.5 output speed: ~108 r.p.m

1.6 surface finish: polishing for stainless steel, painting for carbon steel

1.7 thickness

thickness of the wall: 4mm

thickness of the plough shear head: 10mm

thickness of the en6plate: 10mm

1.8 dimension: 2000mm*680mm*1200mm

1.9 weight: ~550KG

Sealing

1.10 stuffing sealing+ air-purged sealing

Discharging valve

1.11 pneumatic flap valve

1.12 size:150mm*160mm

1.13 as per request

Cover

1.14 vent

1.15 manhole

1.16 safty grid

1.17 customized according to request

2.1 vertu carbinet

2.2 on & off mixer

2.3 open & close valve

2.4 emergency stop

2.5 no inverter

2.6 on and off 2 sets of chopper

2.7 main electrical elements are of CHINT brand

Technical drawing

Chopper

1. 1440rpm

2. 2.2kw

3. stainless steel 304

4. 2 sets

/shorts/buGlxs0gSZE?feature=share

Plough shear mixer working principle Plastic mixing machine,plough share mixer

Plastic mixer is a kind of equipment that uses the principle of rapid rotation to achieve uniform mixing.

masterbatch mixer product introduction

Features: The materials in the hopper are transported to the upper end of the barrel body through the spiral spindle, and then fall in an umbrella shape and continue to circulate stirring, so as to achieve the purpose of uniform mixing.

Plough share mixer Function: with automatic operation timing, overload protection, feeding limit alarm and other functions; It has the advantages of less space, large capacity, low power consumption, manual saving, convenient control, fast and uniform mixing. Can be widely used in: plastic sheet material, crushing material, plastic particles, plastic old and new material and add color master stirring evenly and other purposes.

Applicable customers: granulation, plastic granulation, color master manufacturing, plastic modification, recycling processing, large injection molding and other industries.

plough shear mixer working principle The working principle

Use the rapid rotation of the screw to lift the raw material from the bottom of the barrel body from the center to the top, and then fly and scatter in an umbrella shape, back to the bottom, so that the raw material in the barrel up and down stirring, a large number of raw materials can be evenly mixed in a short time.

Masterbatch mixer product Advantages:

1.automatic operation timing, overload protection, feeding limit alarm and other functions;

2.and has the advantages of less land, large capacity, low power consumption, save labor, easy control, mixing fast and uniform;

3.can be widely used for plastic sheet material, crushing material, powder material, plastic particles, plastic old and new material and add color master stirring evenly and other purposes.

4.suitable for customers: cutting grain, plastic material, color master manufacturing, plastic modification, recycled material recycling processing, large injection molding and other industries.

Performance Features:

1.stirring and drying synchronization, because the material in the drying process, continue to maintain the flow state, heat penetration is uniform, drying time is short and not easy to fast;

2. the standard model for double barrel design (economic type for single layer design), the inner layer for the material contact part is all stainless steel material manufacturing; Middle sandwich installation and special insulation materials, so can achieve safety, energy saving effect;

3.with high frequency heater, heating fast, less power consumption, per ton of material drying comprehensive cost of more than 20 yuan per ton;

4.special double pipe wet discharge port, can effectively discharge moisture, collect dust, do not pollute the working environment;

5.the barrel body is equipped with an entrance door, color change refueling cleaning is simple and fast;

6.after special modification, the standard model can be easily used for plastic powder material, PET sheet crystal drying purpose;

7.more models, large capacity, standing one-time loading :0, 5T, 1 ton, 1.5 tons, 2 tons, 3 tons, etc.

8.drying mixing function two in one, when there is no need to dry, just turn off the heating switch and fan switch, standard models can be used for plastic mixing homogenization, one machine two use.
