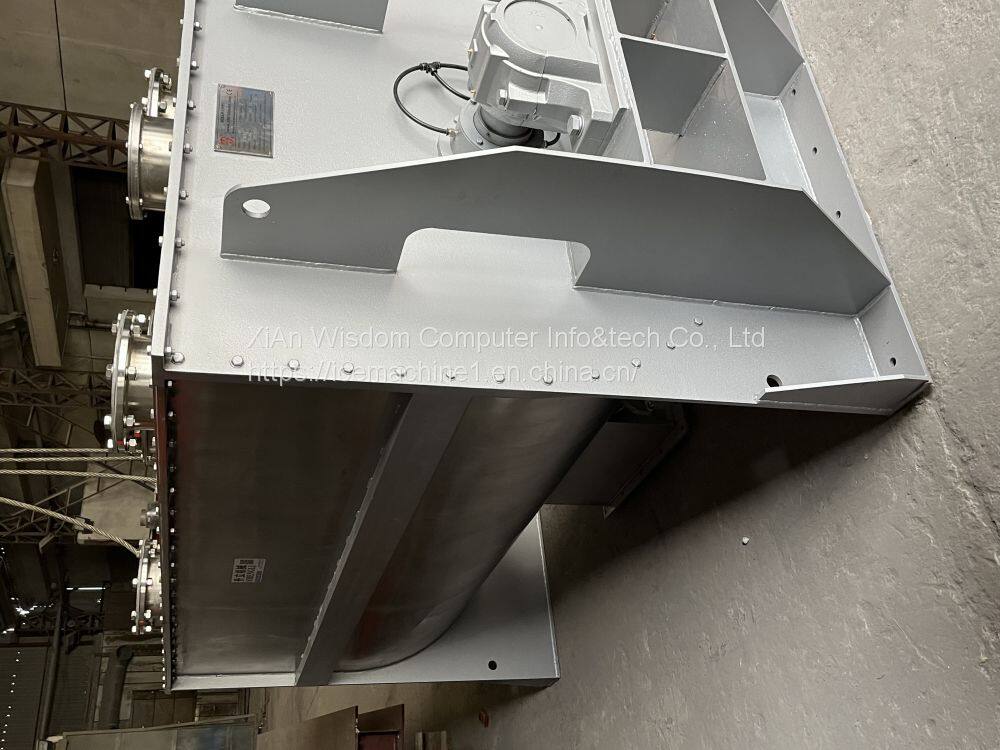

Horizontal Screw Belt Mixer LHY-3P

Plough shear mixer working principle Plastic mixing machine
Plastic mixer is a kind of equipment that uses the principle of rapid rotation to achieve uniform mixing.
plough shear mixer design Product introduction
Features: The materials in the hopper are transported to the upper end of the barrel body through the spiral spindle, and then fall in an umbrella shape and continue to circulate stirring, so as to achieve the purpose of uniform mixing.
Function: with automatic operation timing, overload protection, feeding limit alarm and other functions; It has the advantages of less space, large capacity, low power consumption, manual saving, convenient control, fast and uniform mixing. Can be widely used in: plastic sheet material, crushing material, plastic particles, plastic old and new material and add color master stirring evenly and other purposes.
Applicable customers: granulation, plastic granulation, color master manufacturing, plastic modification, recycling processing, large injection molding and other industries.

Horizontal screw belt mixer LHY-3P Power on first and feed later

Device configuration

1. Model and specification

1.1 The full volume of the equipment is about 3000L.

1.2 Effective volume 1200L-1800L.

2. Equipment material

2.1 The body of the equipment is connected with 304 stainless steel, non-contact part Q235 carbon steel.

2.2 The standard parts used by the equipment shall retain their original materials.

3.The drive ability

3.1 Main motor adopts 18.5kW 380V-50HZ-4 level.

3.2 The main motor adopts Siemens Beder common motor made in China.

3.3 The reducer shall be of Jiangsu Telong brand.

3.4 The output speed of the drive group is about 26 RPM/min.

4.Surface treatment

4.1 Fine polishing is done inside the equipment.

4.2 The outside of the equipment shall be brushed and the carbon steel part shall be sprayed with anti-rust paint.

5.Main dimensions

5.1 National standard 304 stainless steel plate with a barrel thickness of 6mm.

5.2 National standard 304 stainless steel plate with 4mm thickness of equipment barrel cover

5.2 Q235 carbon steel with a thickness of 16mm and a 2MM NATIONAL standard 304 stainless steel plate is lined at the end of the equipment.

6.Equipment sealed

6.1 The main shaft seal adopts packing + gas seal.

7.Open design

7.1 It is set up according to customers' demand.

8.Discharge valve

8.1 Adopt pneumatic flap valve.

9. Other

1. Vacuum feeding machine ZKS-4 is used for feeding and discharging of plow knife mixer LDH-0.3, vacuum feeding machine ZKS-7 is used for feeding of horizontal screw belt mixer LHY-3, and vacuum feeding machine ZKS-10 is used for discharging of horizontal screw belt mixer LHY-3. Feed the horizontal screw belt mixer LHY-3 and cooperate with 4 screw conveyors.

2. All the equipment shall be powered on before feeding, and the equipment shall not be started with materials.

3. Equipment working environment: normal temperature and pressure.

Equipment warranty period: 15 months from the factory or 12 months from normal use, whichever comes first.

The machine shall be installed by the purchaser, and the seller shall provide telephone or E-mail instructions.

Plough shear mixer working principle Plastic mixing machine

Plastic mixer is a kind of equipment that uses the principle of rapid rotation to achieve uniform mixing.

plough shear mixer design Product introduction

Features: The materials in the hopper are transported to the upper end of the barrel body through the spiral spindle, and then fall in an umbrella shape and continue to circulate stirring, so as to achieve the purpose of uniform mixing.

Function: with automatic operation timing, overload protection, feeding limit alarm and other functions; It has the advantages of less space, large capacity, low power consumption, manual saving, convenient control, fast and uniform mixing. Can be widely used in: plastic sheet material, crushing material, plastic particles, plastic old and new material and add color master stirring evenly and other purposes.

Applicable customers: granulation, plastic granulation, color master manufacturing, plastic modification, recycling processing, large injection molding and other industries.

plough shear mixer working principle The working principle

Use the rapid rotation of the screw to lift the raw material from the bottom of the barrel body from the center to the top, and then fly and scatter in an umbrella shape, back to the bottom, so that the raw material in the barrel up and down stirring, a large number of raw materials can be evenly mixed in a short time.

plough shear mixer design Product Advantages:

1.automatic operation timing, overload protection, feeding limit alarm and other functions;

2.and has the advantages of less land, large capacity, low power consumption, save labor, easy control, mixing fast and uniform;

3.can be widely used for plastic sheet material, crushing material, powder material, plastic particles, plastic old and new material and add color master stirring evenly and other purposes.

4.suitable for customers: cutting grain, plastic material, color master manufacturing, plastic modification, recycled material recycling processing, large injection molding and other industries.

Performance Features:

1.stirring and drying synchronization, because the material in the drying process, continue to maintain the flow state, heat penetration is uniform, drying time is short and not easy to fast;

2. the standard model for double barrel design (economic type for single layer design), the inner layer for the material contact part is all stainless steel material manufacturing; Middle sandwich installation and special insulation materials, so can achieve safety, energy saving effect;

3.with high frequency heater, heating fast, less power consumption, per ton of material drying comprehensive cost of more than 20 yuan per ton;

4.special double pipe wet discharge port, can effectively discharge moisture, collect dust, do not pollute the working environment;

5.the barrel body is equipped with an entrance door, color change refueling cleaning is simple and fast;

6.after special modification, the standard model can be easily used for plastic powder material, PET sheet crystal drying purpose;

7.more models, large capacity, standing one-time loading :0, 5T, 1 ton, 1.5 tons, 2 tons, 3 tons, etc.

8.drying mixing function two in one, when there is no need to dry, just turn off the heating switch and fan switch, standard models can be used for plastic mixing homogenization, one machine two use.
