Anping County Boli Hardware Wiremesh Products Factory, established in 1998, is a professional manufacturer specializing in wire mesh products for global industrial applications. With an annual export value of US$5–10 million and shipping ports including Tianjin, Qingdao, Shanghai, and Foshan, we deliver high-quality filtration solutions to markets across North America, South America, Europe, Asia, Africa, and Oceania. Our Oil & Gas Vapor-Liquid Separation Demister Pad with Integrated Frame 316L is engineered to provide efficient mist elimination, reduced pressure drop, and long service life in demanding environments.

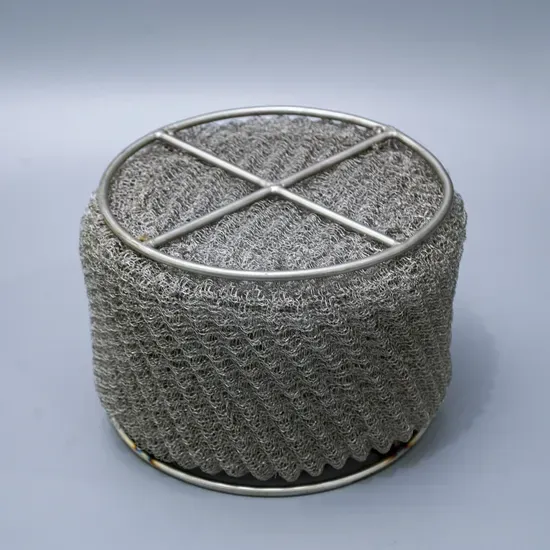

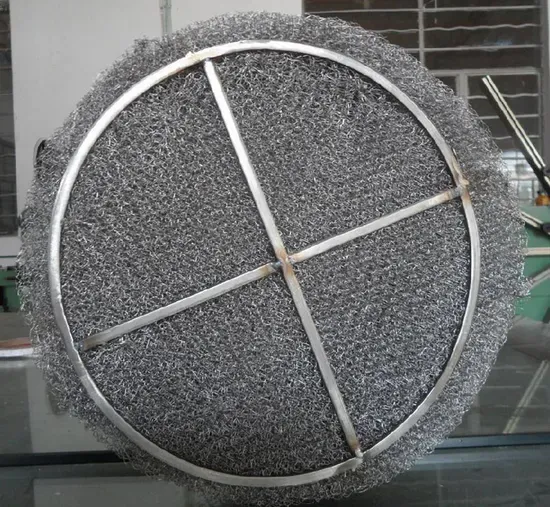

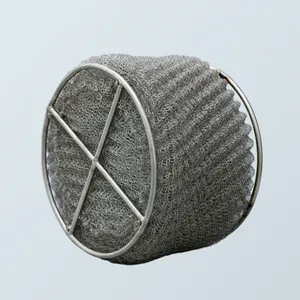

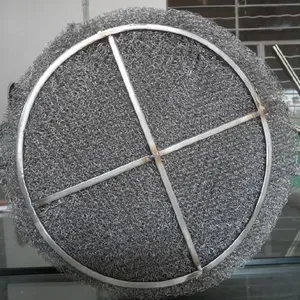

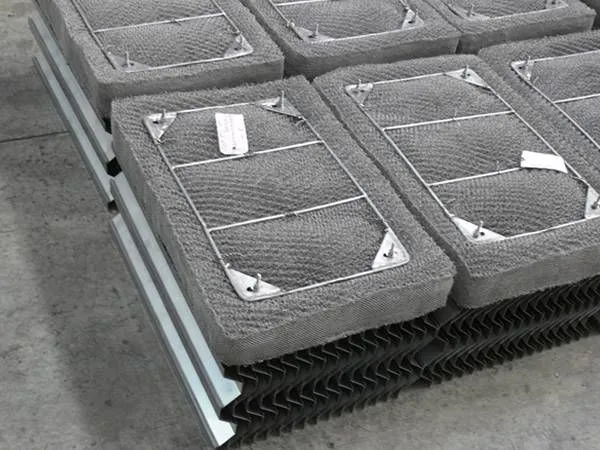

This demister pad is constructed from 316L stainless steel knitted wire mesh, offering excellent corrosion resistance and high-temperature stability. The integrated frame ensures easy installation and structural integrity, making it ideal for use in oil and gas refineries, petrochemical plants, natural gas processing, and offshore platforms. The design effectively captures liquid droplets from vapor streams, protecting downstream equipment and improving process efficiency.
Key Features & Benefits
- High Separation Efficiency: Removes 99%+ of droplets down to 1 micron, significantly reducing liquid carryover.
- Low Pressure Drop: Optimized mesh structure minimizes obstruction to gas flow, saving energy and reducing operational costs.
- Corrosion Resistant: 316L stainless steel withstands sour gas (H₂S), chlorides, and other corrosive media.
- High Temperature Tolerance: Operates reliably from -200°C to 600°C, suitable for both cryogenic and high-temperature processes.
- Integrated Frame Design: Pre-assembled with a sturdy frame for quick installation, no additional support required.
- Customizable Dimensions: Available in various thicknesses (100–200mm or more) and shapes (rectangular, circular, or custom) to fit existing vessels.
- Long Service Life: Durable construction reduces replacement frequency, lowering maintenance costs.
Technical Specifications
| Parameter | Value |
| Material | 316L Stainless Steel (UNS S31603) |
| Wire Diameter | 0.1 – 0.3 mm (customizable) |
| Mesh Density | 100 – 200 kg/m³ (adjustable) |
| Void Fraction | >98% |
| Thickness | 100, 150, 200 mm (others on request) |
| Operating Temperature | -200°C to 600°C |
| Frame Material | 316L or 304 SS (optional) |
| Surface Finish | Clean, pickled, or electropolished |

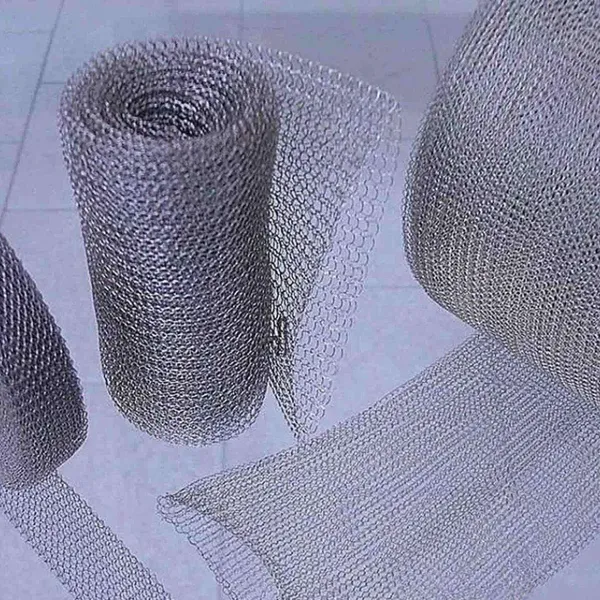

Our demister pads are manufactured using advanced knitting and crimping technology, ensuring uniform mesh structure and consistent performance. Each pad undergoes strict quality control before shipment, including dimensional check, mesh density measurement, and visual inspection.
Why Choose Anping Boli?
- Over 25 years of experience in wire mesh manufacturing since 1998.
- High export volume: US$5–10 million annually, trusted by clients in 15+ global markets.
- Flexible shipping: Multiple ports (Tianjin, Qingdao, Shanghai, Foshan) for cost-effective logistics.
- Customization service: We can tailor the pad size, thickness, wire diameter, and frame material to your specific vessel requirements.
- Reliable after-sales support: Technical consultation and timely responses to inquiries.
With our integrated frame design, installation is straightforward—simply place the demister pad into the vessel and secure it. The frame prevents mesh displacement and ensures uniform gas distribution, maintaining optimal separation efficiency over years of operation. For applications involving high fouling or viscous fluids, we offer optional surface treatments to reduce sticking and facilitate cleaning.
We are confident that our Oil & Gas Vapor-Liquid Separation Demister Pad with Integrated Frame 316L will meet your performance expectations. Contact us today for a quote or to discuss your specific requirements. Our team is ready to provide technical drawings, samples, and fast delivery.
Frequently Asked Questions
-
Q: What is the typical separation efficiency of your demister pad?
A: For droplets above 1 micron, efficiency can reach 99% or higher. For sub-micron droplets, efficiency is still excellent due to the high surface area of the knitted mesh. Actual performance depends on gas velocity, droplet size distribution, and pad thickness. -
Q: Can you supply demister pads with different frame materials?
A: Yes. The standard frame is 316L stainless steel, but we can also use 304, 321, or even 304L upon request for specific corrosion or cost considerations. -
Q: How do I determine the correct thickness for my application?
A: Thickness selection depends on gas velocity, liquid loading, and desired pressure drop. Typically, 100mm is used for moderate separation, 150mm for high efficiency, and 200mm for very demanding conditions. We can help you calculate based on your process parameters. -
Q: Do you provide samples for testing?
A: Yes, we offer small samples (e.g., 300×300mm) for validation. Please contact us with your requirements, and we will quote accordingly. -
Q: What is the maximum temperature your demister pad can withstand?
A: Our 316L demister pad can operate continuously at temperatures up to 600°C. For higher temperatures, we can recommend alternative alloys like Inconel or Hastelloy. -
Q: How is the demister pad packaged for export?
A: We pack each pad in a wooden case or pallet with proper cushioning to prevent deformation during transit. For large quantities, we can bundle multiple pads together. -
Q: What is the typical lead time?
A: For standard sizes and quantities, lead time is about 15–20 working days. Custom orders may require 25–30 working days, depending on complexity. -
Q: Can you provide a certificate of material compliance?
A: Yes, we can issue a mill test certificate for the 316L material upon request. Please specify when placing your order.
Note: All specifications are subject to customization. For exact dimensions and performance data, please consult our technical team.
