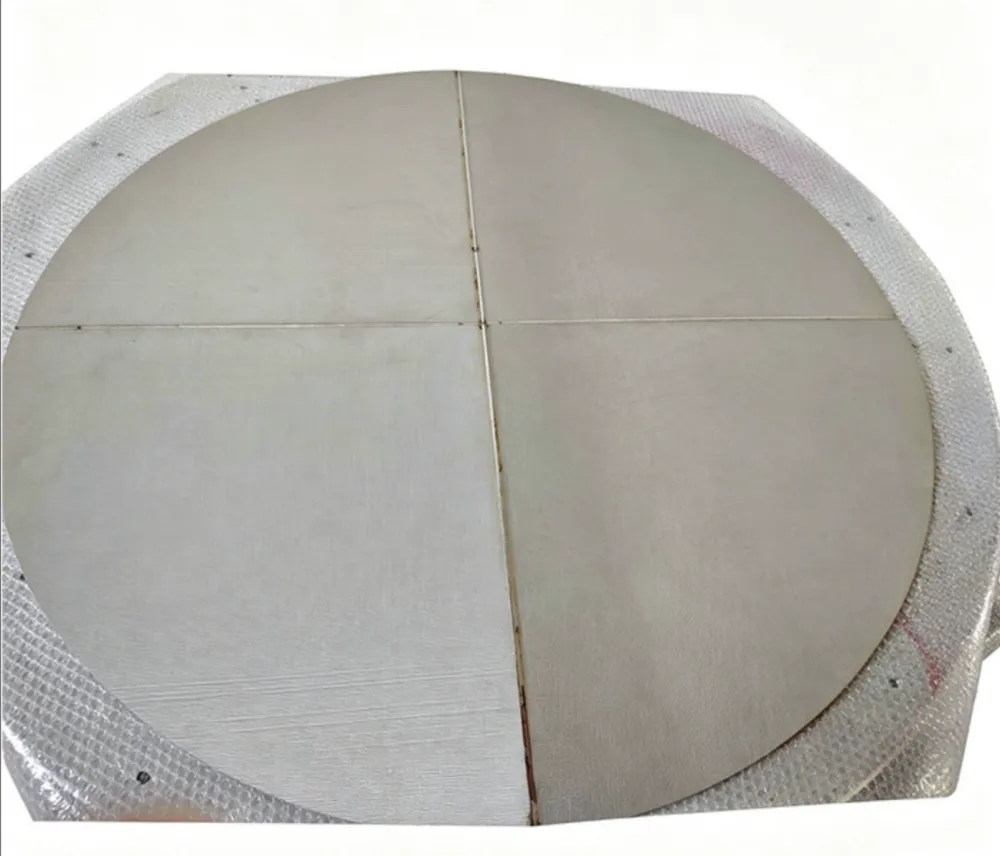

Help CenterSintered Wire Mesh for Oil and Gas Filtration, 316L, 20 Micron, High Mechanical Strength
Product Spotlights
Related Products
-
Sintered Wire Mesh With 1 Year Warranty, Mill Test Report Included, 304 Stainless SteelNegotiableMOQ: 1 Piece -
Sintered Wire Mesh Filter Disc, 12 Inches Diameter, 304 SS, 200 Micron, 1.5mm ThicknessNegotiableMOQ: 1 Piece
-
Sintered Wire Mesh Tube, 2 Inch Outer Diameter, 304L, 50 Micron, 1mm Wall ThicknessNegotiableMOQ: 1 Piece
-
Sintered Wire Mesh for Chemical Filtration, 304 Stainless Steel, 100 Micron, Corrosion ResistantNegotiableMOQ: 1 Piece
-
Sintered Wire Mesh Sheet, 316 SS, 0.2mm x 0.2mm Opening, 0.1mm Wire, 1m x 1mNegotiableMOQ: 1 Piece
Anping County Boli Hardware Wiremesh Products Factory, a professional manufacturer with over 25 years of experience since 1998, proudly presents our Sintered Wire Mesh for Oil and Gas Filtration. Made from premium 316L stainless steel with a precise 20 micron filtration rating, this product offers exceptional mechanical strength and long service life in demanding environments. Designed to withstand high pressure and temperature fluctuations, our sintered wire mesh provides reliable solid-liquid separation, reducing downtime and maintenance costs for oil and gas operations.
The unique sintering process bonds multiple layers of woven wire mesh into a rigid, porous structure. This creates a uniform pore distribution and high dirt-holding capacity, ensuring consistent filtration efficiency. Whether used in wellhead filters, pipeline strainers, or refinery separation units, our sintered mesh delivers superior performance compared to conventional mesh or polymer filters.
- Material Advantage: 316L stainless steel offers excellent corrosion resistance against acidic gases, seawater, and aggressive chemicals commonly found in oil and gas extraction.
- High Mechanical Strength: The sintered structure provides rigidity and resistance to deformation under high differential pressure, suitable for backwashing operations.
- Precision Filtration: 20 micron absolute rating captures fine particles while maintaining high flow rates, optimizing filter element life.
- Thermal Stability: Can operate continuously up to 600°C (when specified), making it ideal for hot gas filtration or steam injection processes.
- Customizable Dimensions: Available in sheets, discs, cylinders, or custom shapes with thickness ranges from 0.5 mm to 5 mm.
- Easy Cleaning: The smooth surface and non-fiber shedding allow effective backwashing, reducing waste and replacement frequency.
| Property | Value |
| Filtration Rating (absolute) | 20 µm |
| Material | 316L SS (AISI 316L) |
| Bubble Point Pressure (min) | ≥ 0.5 bar (typical) |
| Tensile Strength | ≥ 450 MPa |
| Maximum Operating Temperature | 450°C (standard), 600°C (optional) |
| Thickness | 1.0 mm – 3.0 mm (standard) |
| Standard Sheet Size | 1000 mm × 1000 mm (customizable) |
| Surface Treatment | Sintered, degreased, optional pickling |
Our sintered wire mesh is manufactured under strict quality control, ensuring consistent pore size and mechanical properties. The multi-layer design prevents particle migration and provides a stable filtration cake. In oil and gas applications, this translates to longer intervals between backwash cycles, reduced chemical consumption, and lower total cost of ownership.
For deep-bed filtration or sand control, the sintered mesh can be combined with support layers or woven into composite elements. We also offer customization of pore size from 5 to 100 microns, allowing you to match specific reservoir conditions. The mesh is available in both plain weave and twill weave patterns, depending on the required strength and flow characteristics.
Trust Anping County Boli Hardware Wiremesh Products Factory for your filtration needs. With an annual export value of US$5–10 million and shipments to over 10 major markets (North America, South America, Europe, Africa, Oceania, Middle East, and Asia), we have proven our reliability. Our factory is located in Hengshui, Hebei, China – the wire mesh capital of the world. We have been serving clients since 1998, offering competitive pricing, fast delivery, and technical support. Contact us today for samples or a quotation. Let us help you optimize your oil and gas filtration process with our high-quality sintered wire mesh.
Frequently Asked Questions (FAQ)
Q1: What makes 316L stainless steel better than 304 for oil and gas filtration?
A: 316L contains molybdenum, which enhances resistance to chlorides and acidic environments. It is preferred for sour gas, seawater, and high-corrosion applications, providing longer service life.
Q2: Can the 20 micron rating be customized to other sizes?
A: Yes. We offer a range from 5 to 100 microns as standard. Custom micron ratings are available upon request, and we can adjust the number of layers or wire diameter to meet specific requirements.
Q3: Is this sintered mesh suitable for high-pressure backwashing?
A: Absolutely. The high mechanical strength of the sintered structure allows it to withstand repeated backwashing cycles without delamination or deformation. We recommend a maximum differential pressure of 2.5 bar during backwash.
Q4: What is the typical lead time for large orders?
A: For standard sizes and quantities, lead time is 15–20 working days. Custom shapes or special materials may require 25–30 working days. We ship from Tianjin, Qingdao, Shanghai, or Foshan ports.
Q5: Does the product come with any certificate of material?
A: Yes, we can provide a mill test certificate for the 316L material upon request. Additional testing reports (e.g., bubble point, tensile strength) are also available.
Q6: Can I order sample sheets for testing before bulk purchase?
A: Yes, we offer samples. Please contact our sales team with your requirements. Sample costs and shipping will be discussed.
Q7: What is the maximum temperature this mesh can handle?
A: Standard grade withstands up to 450°C continuously. For higher temperature applications (up to 600°C), we can use a special alloy or heat treatment. Please specify your operating temperature range.
Q8: How do you ensure the filtration accuracy is consistent?
A: Each production batch is tested for bubble point and air permeability. We also conduct random pore size distribution analysis using a capillary flow porometer to guarantee 20 micron absolute rating.
