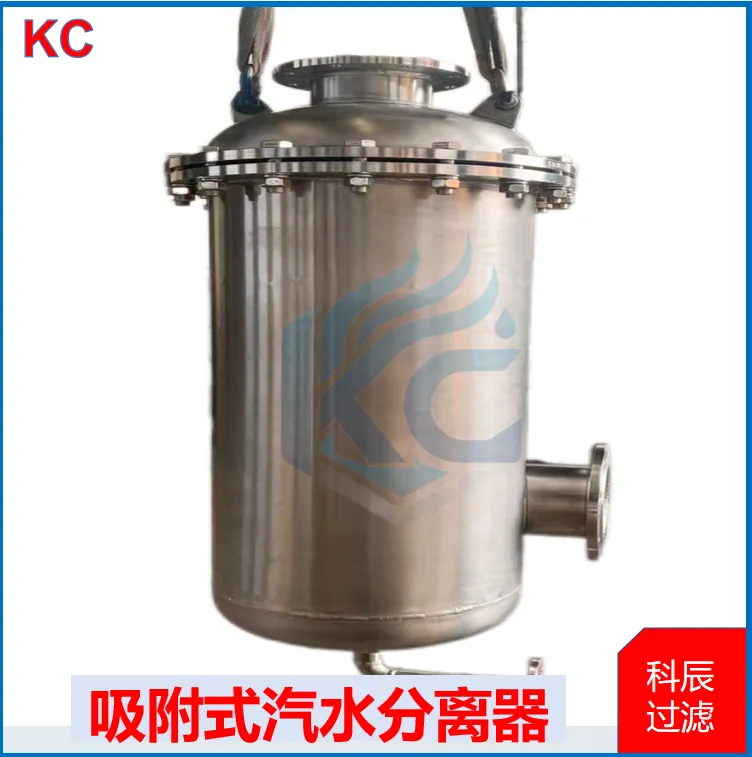

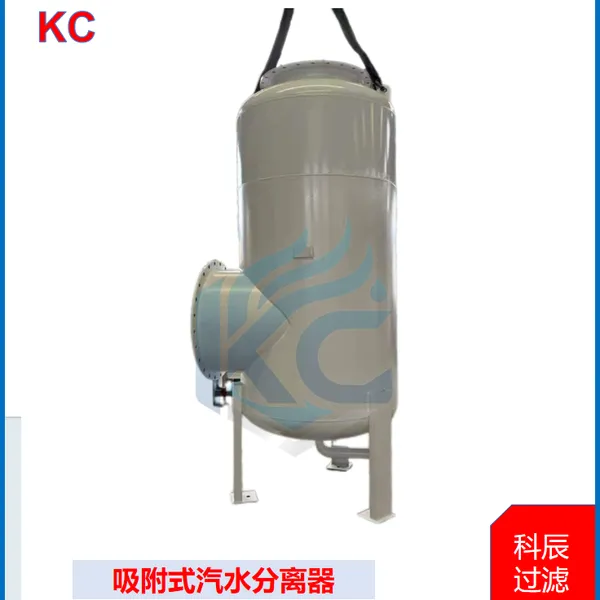

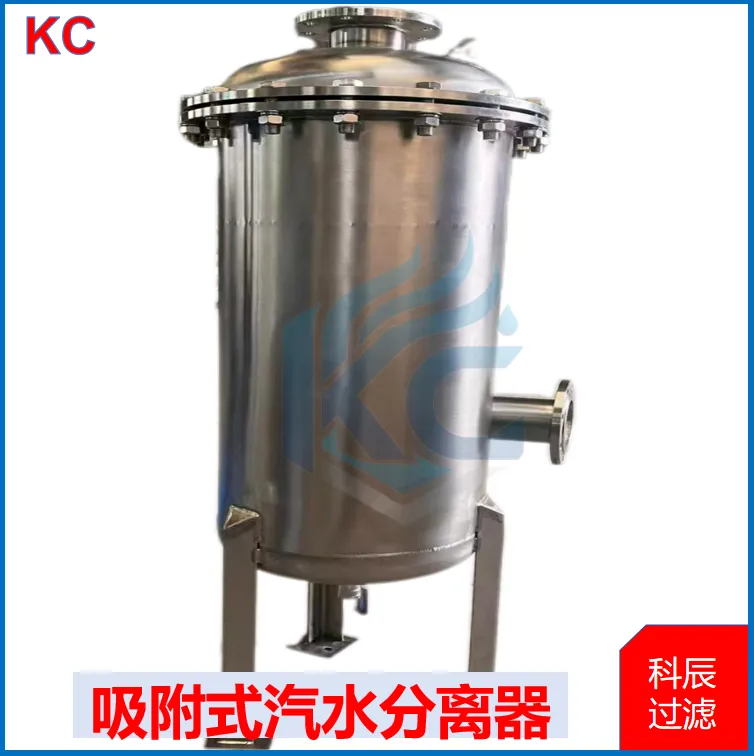

Help CenterAdsorption Gas-Water Separator Matched With Air Compressors, Efficiently Removes Water and Prevents Corrosion
Product Spotlights
Related Products
-
Adsorption-Type Steam-Water Separator, General for Industrial PipelinesUS$ 800 - 1000MOQ: 1 Piece -
ZCQF Vertical Cyclone Separator Prevent Water Hammer & Protect Downstream EquipmentUS$ 800 - 1000MOQ: 1 Piece
-
Steam-Water Separator for Compressed Air Pipeline, Automatic Drain Type for Mine Air SupplyUS$ 800 - 1000MOQ: 1 Piece
-
MGLS Vacuum Steam-Water Separator, High Efficient Condensate Removal From GasUS$ 800 - 1000MOQ: 1 Piece
-
Horizontal Multi-Stage Interception Steam-Water Separator for Compressed Air PipelineUS$ 800 - 1000MOQ: 1 Piece
Brand: MT
Model: MXF
Working Principle: Adsorption Interception
Application: Gas Dehydration
Structure Type: Vertical
Design Pressure: 1.0–1.6 MPa
Operating Temperature: 10–300 ℃
Main Body Material: Q235B, 304 Stainless Steel
Connection Type: Flange / Thread
Inlet Dryness: ＜70%
Outlet Dryness: ＞90%
Discharge Water Temperature: ＜60 ℃
Drainage Mode: Automatic drain valve (AD-402 / CS19H-16C / CS19H-40C), Manual Drainage
Application Scope: Dehydration and dust removal for special gas in chemical industry; gas-liquid separation for defoaming of petroleum gas; gas treatment for drying and steaming pipelines; dust removal and water removal for flue gas pipelines; dehydration treatment for biogas collection, etc.

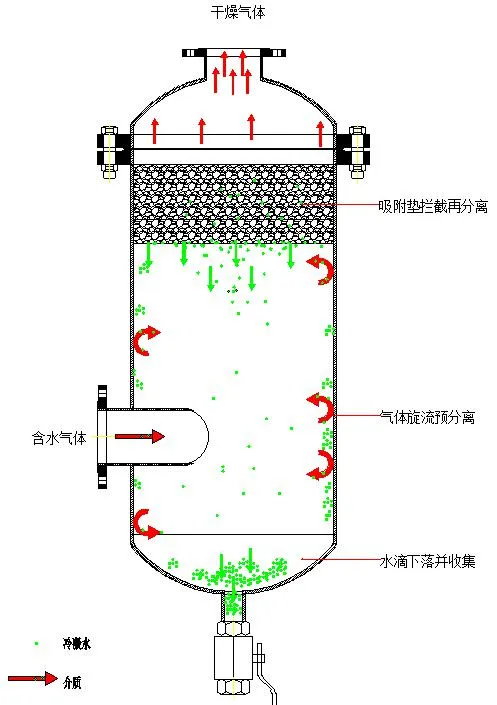

Working Principle：
When gas carrying mist rises through the wire mesh at a certain velocity, the mist droplets collide with fine wires of the mesh due to the inertia of upward-moving mist and adhere to the wire surfaces. Through diffusion of mist droplets on the wire surface and gravitational settling, droplets merge into larger liquid drops which flow along the wires to wire intersection points. Benefiting from the wettability of wires, liquid surface tension and capillary effect of the filaments, liquid drops keep growing. When the gravity of accumulated droplets exceeds the combined upward force of gas flow and liquid surface tension, the droplets separate from the wires and fall down. After passing through the wire mesh demister, the gas is substantially free of mist.
A wire mesh demister mainly consists of wire mesh blocks composed of wire mesh and mesh grids, as well as supporting assemblies for fixing the mesh blocks. The wire mesh refers to gas-liquid demisting mesh made of various materials, which is fabricated from metallic or non-metallic filaments. Non-metallic filaments for gas-liquid demisting mesh can be twisted from multiple strands of non-metallic fiber or adopted as single-strand non-metallic filament. According to different gas-liquid working conditions, our company has developed and manufactured a gas-liquid separation mesh filter element. This separation filter element can remove not only large liquid droplets suspended in airflow, but also small and micro liquid droplets.
