Deqing Leixin Coating Equipment Co., Ltd. has been a trusted manufacturer of industrial coating solutions since 2011. With a factory spanning 1,000–3,000 square meters and a dedicated team of 51–100 employees, we combine years of engineering expertise with ISO9001-certified quality control. Our Heavy-Duty Powder Coating Line for Mechanical Equipment Used in Automotive Manufacturing is designed to deliver exceptional durability, high throughput, and consistent finish—meeting the rigorous demands of automotive production lines. Whether you need to coat engine blocks, chassis components, or transmission parts, this line offers a robust solution that enhances both product longevity and operational efficiency.
Product Overview & Core Features
This heavy-duty powder coating line is engineered to handle large, heavy mechanical parts typical in automotive manufacturing. It integrates advanced powder application technology, efficient curing ovens, and a durable conveyor system to ensure uniform coating and high productivity. Key features include:

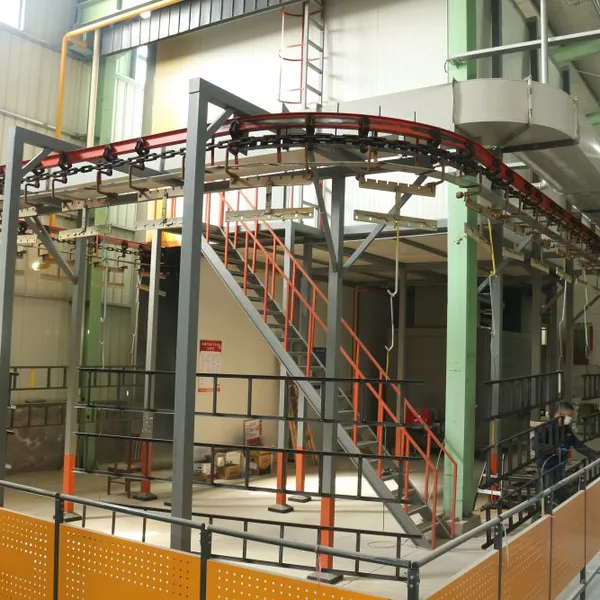

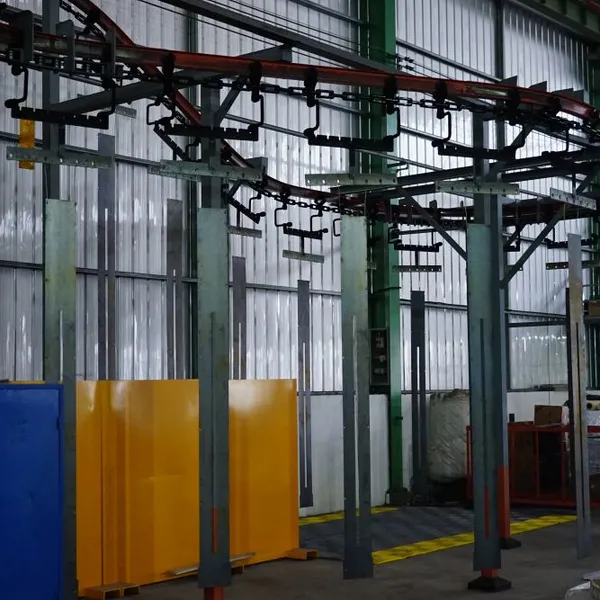

High-Output Conveyor System: Variable speed from 1.5 to 6 m/min, supporting parts up to 800 kg per hanger.

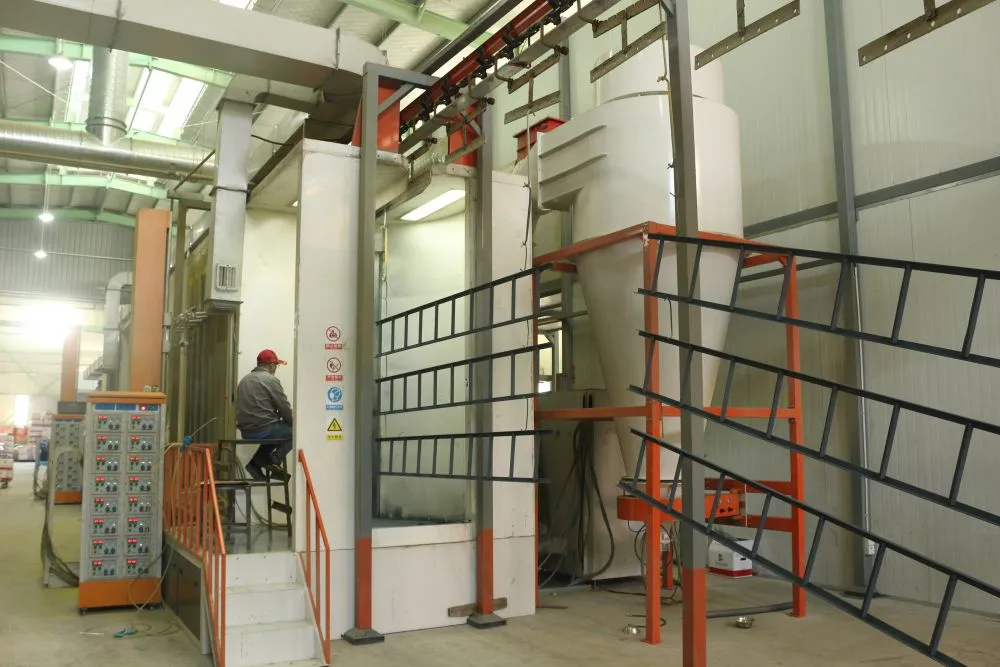

Electrostatic Powder Spray Booth: Multiple spray guns with automatic recovery and recycling of overspray powder, reducing waste by up to 30%.
Energy-Efficient Curing Oven: Gas-fired or electric heating options, with precise temperature control (180°C–220°C) and uniform airflow for consistent curing.
Pre-treatment Section: Multi-stage chemical cleaning and phosphating to ensure excellent adhesion and corrosion resistance.
PLC Control System: Touchscreen interface for easy operation, real-time monitoring, and recipe storage.
Technical Specifications
| Parameter | Value | Parameter | Value |
| Overall Dimensions (L×W×H) | 30m × 3.5m × 4.5m (customizable) | Max. Workpiece Size | 1.8m × 1.2m × 1.5m |
| Conveyor Speed | 1.5–6 m/min (adjustable) | Powder Coating Thickness | 60–120 μm (adjustable) |
| Curing Temperature Range | 180°C–220°C | Heating Power | 200–400 kW (gas/electric) |
| Powder Recovery Efficiency | ≥95% | Compressed Air Requirement | 0.6–0.8 MPa, 1.5 m³/min |
Benefits for Automotive Manufacturing
Superior corrosion & impact resistance: The powder coating forms a tough, durable finish that withstands harsh workshop environments and road chemicals.
High production efficiency: With a cycle time of 3–5 minutes per part (depending on size), the line can handle up to 1,500 parts per shift.
Environmental compliance: Solvent-free powder coating reduces VOC emissions, helping you meet stringent environmental regulations.
Cost savings: Powder overspray is recycled, reducing material waste. Energy-efficient oven design lowers operational costs.
Flexibility: Quick color change (within 15 minutes) and adjustable parameters allow coating of various automotive components with different requirements.
Trust & Quality Assurance
Backed by Deqing Leixin Coating Equipment Co., Ltd., a manufacturer with over a decade of experience, we have exported to markets across North America, South America, Europe, Asia, Africa, and Oceania. Our annual export value of US$1–1.5 million reflects the trust global customers place in our equipment. Every line is built under ISO9001 quality management standards, ensuring consistent performance and reliability. We also provide comprehensive after-sales support, including installation guidance, training, and spare parts supply. Choose our heavy-duty powder coating line to upgrade your automotive manufacturing process—contact us today for a customized solution!
Frequently Asked Questions
Q: What thickness of coating can this line achieve?
A: The line can apply a coating thickness from 60 to 120 microns, adjustable according to your requirements. Uniformity is maintained through precise electrostatic control.Q: What is the maximum weight of workpiece the conveyor can handle?
A: Each hanger can support up to 800 kg. The conveyor system is reinforced for heavy-duty mechanical parts typical in automotive manufacturing.Q: How long does it take to change powder color?
A: The color change process takes approximately 15 minutes, including booth cleaning and powder hopper change. This is optimized for production flexibility.Q: Do you provide pre-treatment sections?
A: Yes, we offer multi-stage pre-treatment modules (degreasing, rinsing, phosphating) to ensure excellent adhesion. The configuration is customizable based on your production needs.Q: What is the energy consumption of the curing oven?
A: Energy consumption depends on the heating method and oven size. For a typical gas-fired oven, it ranges from 200 to 400 kW. We can also design electric or hybrid systems.Q: Can this line handle parts with complex shapes?
A: Yes, the electrostatic spray booth uses multiple adjustable guns and a reciprocator system to reach recessed areas. Proper hanger design ensures good coverage.Q: Is training provided for operators?
A: Absolutely. We offer on-site training for your team, covering operation, routine maintenance, and troubleshooting. Technical manuals are also included.Q: What is the warranty period?
A: Standard warranty is 12 months from installation. Extended warranty and spare parts service are available upon request.
