As a leading manufacturer based in Huzhou, Zhejiang, China, Deqing Leixin Coating Equipment Co., Ltd. has been dedicated to providing high-performance powder coating solutions since 2011. Our Automatic Powder Coating Line Mechanical Equipment Metal Surface Finishing System is engineered to deliver consistent, efficient, and environmentally friendly coating results for a wide range of metal substrates. With a factory spanning 1,000–3,000 square meters and a skilled team of 51–100 employees, we ensure every production line meets rigorous quality standards.
This system integrates advanced spray technology, automated conveyor control, and a precision curing oven to achieve uniform coating thickness and excellent adhesion. Whether you are coating automotive parts, home appliances, or architectural components, our line offers flexibility, reliability, and cost-effectiveness. The modular design allows for easy customization to match your specific production requirements, while the integrated powder recovery system minimizes waste and reduces environmental impact.
Below are the key features and technical specifications that make our system a trusted choice for metal finishing professionals worldwide:
- Fully Automatic Operation: PLC-controlled system with touchscreen interface for precise parameter adjustment and real-time monitoring.
- High-Efficiency Spraying: Equipped with multiple electrostatic spray guns (optional reciprocators) for fast and uniform coverage.
- Closed-Loop Recovery: Cyclone + cartridge filter system recovers up to 95% of overspray powder, reducing material cost.
- Energy-Saving Curing Oven: Gas-fired or electric heating with intelligent temperature control, ensuring consistent curing profiles.

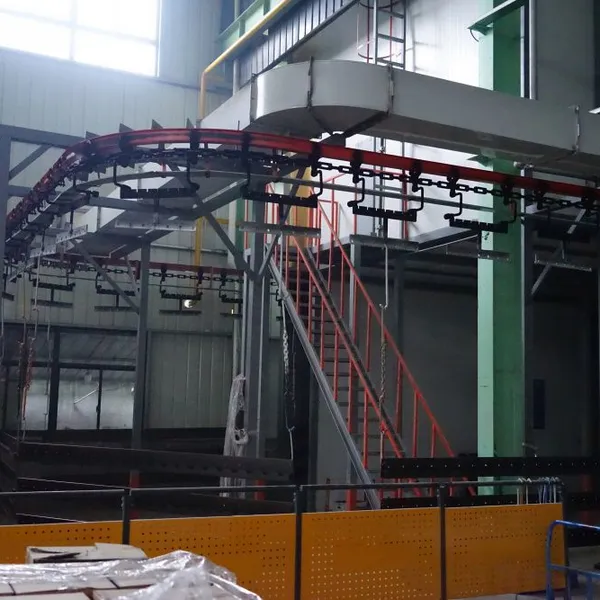

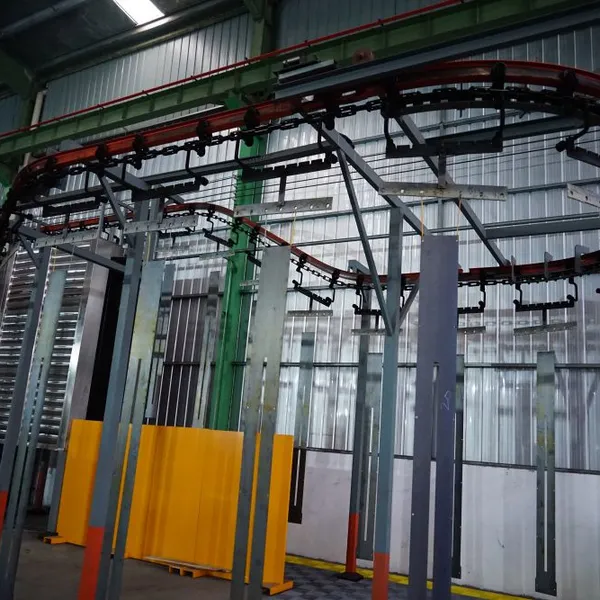

- Robust Conveyor System: Heavy-duty chain conveyor with adjustable speed, suitable for parts up to 500 kg/meter.
- Easy Maintenance: Quick-access panels and modular components simplify cleaning and servicing.
- Compliance: Designed to meet ISO9001 quality management standards, with optional ATEX or CE compliance upon request.
| Parameter | Value |
| Line Speed | 0.5 – 5 m/min (adjustable) |
| Max Part Size | Up to 2000×1500×1000 mm (customizable) |
| Powder Recovery Efficiency | ≥95% |
| Curing Temperature Range | 120°C – 250°C (±2°C) |
| Power Supply | 380V/50Hz (3-phase) or as per local requirement |
| Coating Thickness | 50 – 150 µm (adjustable) |
Why Choose Deqing Leixin?
With over a decade of experience in powder coating equipment manufacturing, we have supplied production lines to markets across North America, South America, Europe, Southeast Asia, Africa, and Oceania. Our annual export value reaches US$1 million – US$1.5 million, reflecting the trust and satisfaction of international clients. We ship from the ports of Ningbo and Shanghai, ensuring efficient logistics. Our ISO9001-certified factory guarantees consistent quality control, and our dedicated after-sales team provides installation guidance, training, and remote troubleshooting.
By choosing our automatic powder coating line, you invest in reduced operational costs, higher throughput, and superior finish quality. The system's modular design allows for future upgrades, such as adding a pre-treatment tunnel or robotic sprayers, to adapt to evolving production needs. We invite you to contact us for a customized quotation or to arrange a factory visit.
Frequently Asked Questions
-
Q: What type of metal parts can be coated with this system?
A: Our line is suitable for steel, aluminum, iron, and other conductive metal parts. It can handle flat, curved, and complex geometries, with optional fixturing for small parts. -
Q: How long does it take to install and commission the line?
A: Typically 2–4 weeks on-site, depending on the line complexity. Our engineers provide supervision and training during installation. -
Q: Can the line be customized for a specific production capacity?
A: Yes. We design the conveyor speed, oven length, and number of spray guns based on your required output (e.g., 100–500 parts per hour). -
Q: What is the powder recovery rate, and how does it work?
A: The system uses a cyclone and cartridge filter to capture overspray powder, achieving ≥95% recovery. The reclaimed powder is sieved and reused, reducing waste. -
Q: Do you provide after-sales support and spare parts?
A: Yes. We offer remote technical support, a recommended spare parts list, and can ship critical components within 48 hours. -
Q: What certifications does your equipment have?
A: Our factory is ISO9001 certified. Additional certifications like CE or ATEX can be provided upon request, subject to your specific requirements. -
Q: How much floor space is needed for the line?
A: A typical line requires about 30–50 meters in length and 5–8 meters in width, but we can optimize the layout based on your workshop footprint. -
Q: Is pre-treatment necessary before powder coating?
A: For optimal adhesion, we recommend a pre-treatment process (e.g., degreasing, phosphating). Our system can be integrated with a compatible pre-treatment tunnel if needed.
Contact us today to discuss your project and request a free feasibility study. Deqing Leixin Coating Equipment Co., Ltd. – your reliable partner in metal surface finishing.
