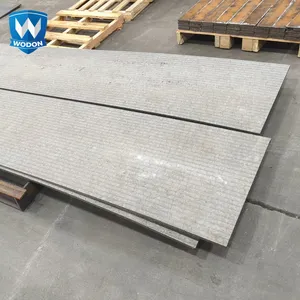

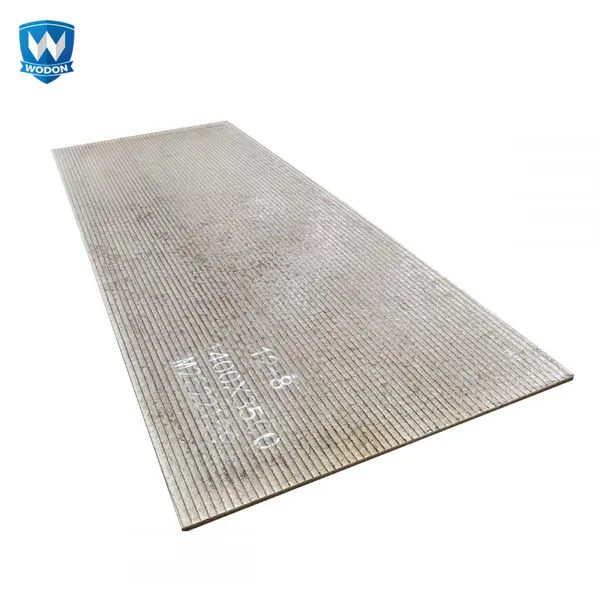

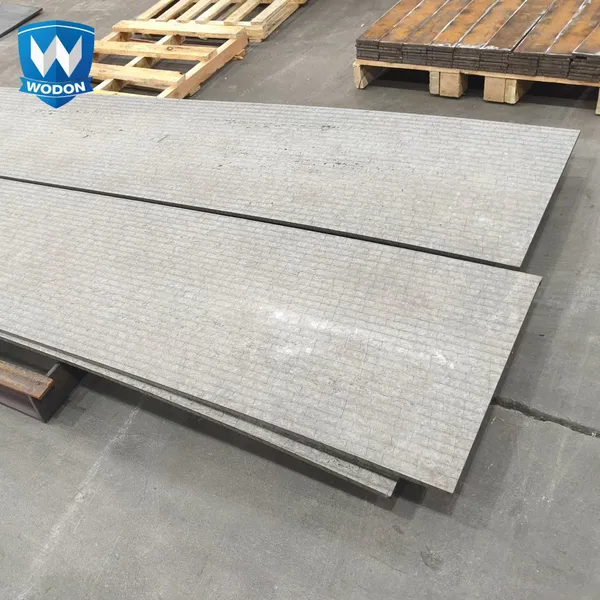

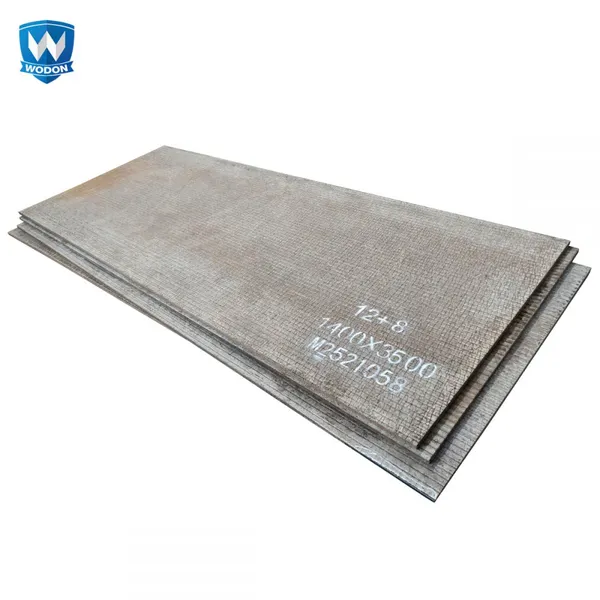

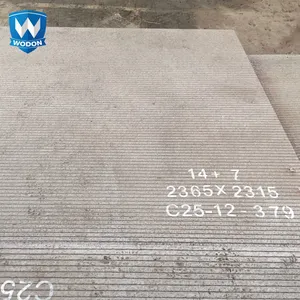

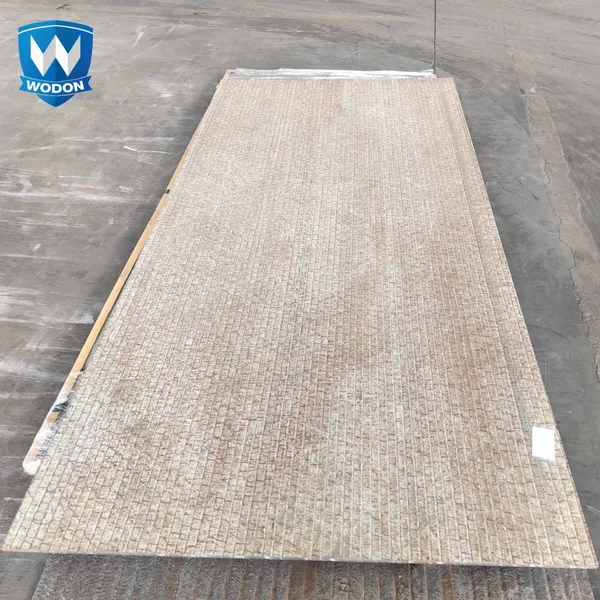

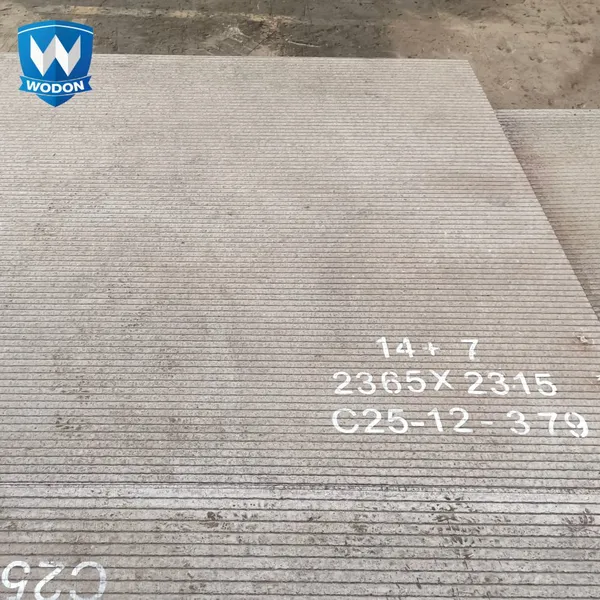

Jiangsu Wodon Wear Resistant New Material Co., Ltd. is proud to present the High Density Uniform Surfacing Quarry Chute Protection WD1500 Submerged Arc Chromium Carbide Overlay Wear Plate. As a specialized manufacturer since 2014, we have engineered this plate to deliver exceptional performance in the most demanding abrasive environments. The WD1500 utilizes advanced submerged arc welding technology to deposit a dense, uniform layer of chromium carbide, providing a robust shield against wear in quarry chutes, hoppers, and transfer points. This product is designed to significantly extend equipment life while reducing downtime and maintenance costs.
Our wear plates combine high hardness with excellent impact toughness, making them ideal for handling large, sharp rocks and heavy loads. The uniform surfacing ensures consistent wear resistance across the entire plate, eliminating weak spots. With customizable thickness, size, and hardness levels, the WD1500 can be tailored to match your specific application requirements.
Key Features & Technical Specifications
High Density Chromium Carbide Layer: Achieves hardness up to HRC 58-62 with a carbide volume fraction exceeding 50%, providing superior abrasion resistance.

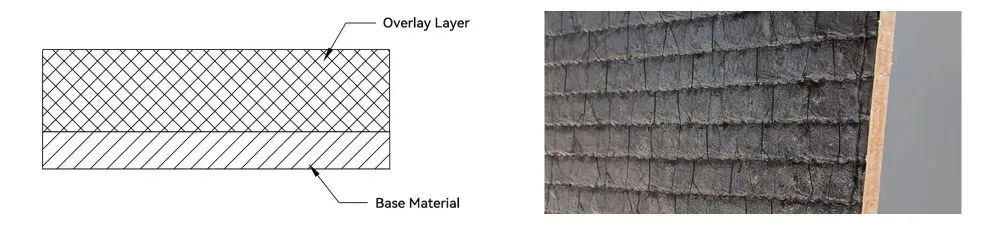

Uniform Surfacing: Advanced submerged arc welding process ensures a consistent overlay thickness and microstructure, eliminating weak spots.
Excellent Impact Resistance: The ductile steel base absorbs shocks while the hard overlay resists scratching and gouging.
Customizable Dimensions: Available in standard sizes or custom cut to fit your chute geometry. Maximum width up to 3000 mm, length up to 12000 mm.
Multiple Hardness Options: Standard hardness HRC 58-62; optional higher hardness (HRC 63-65) for extreme abrasive conditions.
Easy Installation: Can be welded, bolted, or attached using mechanical fasteners. Pre-drilled holes available upon request.
Long Service Life: Typically 3-5 times longer than conventional AR steel plates in similar applications.

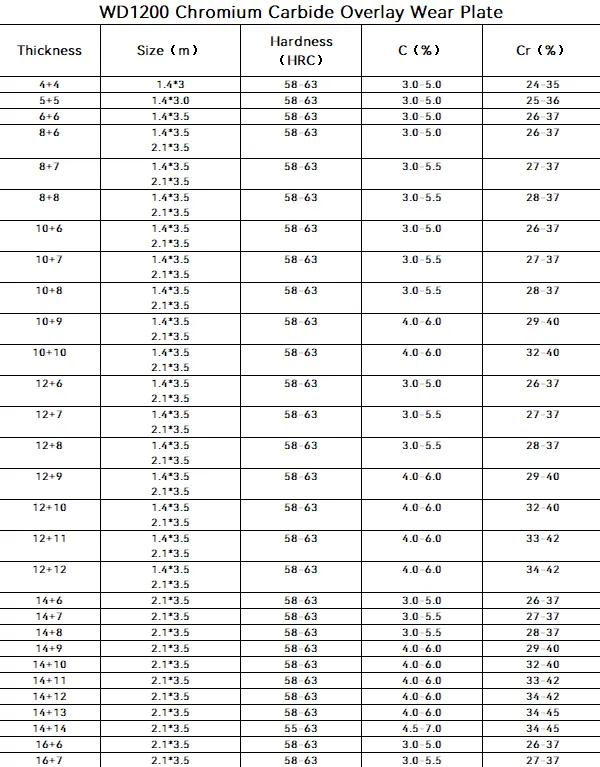

Typical Parameters
The WD1500 is specifically engineered for quarry chute protection where high impact and severe abrasion are common. The uniform carbide distribution prevents premature failure, and the plate can be easily formed or welded on site. For applications requiring curved surfaces, we offer pre-formed chute liners with precise radii.
Trust & Quality Assurance
Jiangsu Wodon Wear Resistant New Material Co., Ltd. has been a reliable manufacturer of wear-resistant products since 2014. With an annual export value between US$10 million and US$50 million, we serve clients across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and beyond. Our products are shipped from major ports including Lianyungang, Tianjin, and Shanghai. We maintain strict quality control at every stage—from raw material selection to final inspection—ensuring that every WD1500 plate meets your performance expectations. Our technical team can provide customized solutions and after-sales support to maximize your equipment uptime. Contact us today to discuss your specific chute protection needs and receive a tailored quotation.
Frequently Asked Questions
Q: What is the typical lifespan of the WD1500 plate in a quarry chute?
A: Lifespan depends on material type, impact angle, and throughput. In typical granite or limestone handling, the WD1500 lasts 3-5 times longer than AR400 steel. We recommend a trial to validate performance in your specific conditions.Q: Can the plate be bent or curved to fit chute geometry?
A: Yes, we can supply pre-formed curved liners or flat plates that can be cold-bent on site. Maximum bending radius depends on total thickness; please consult our technical team.Q: What welding procedures are required for joining these plates?
A: We recommend using low-hydrogen electrodes (e.g., E7018) for the base metal and special hardfacing electrodes for overlay repairs. Detailed welding guidelines are provided with each order.Q: Is the overlay surface uniform across the entire plate?
A: Yes, our submerged arc welding process with automated control ensures a consistent overlay thickness (typically ±0.5 mm) and uniform carbide distribution, eliminating weak spots.Q: Do you offer samples for testing?
A: Yes, we can provide small sample plates (e.g., 300x300 mm) for abrasion testing. Please contact our sales team with your requirements.Q: What is the minimum order quantity (MOQ)?
A: MOQ is typically 2 tons for standard sizes, but we can accommodate smaller quantities for trial orders. Custom sizes may have higher MOQ.Q: How is the plate packaged for export?
A: Plates are palletized, steel-strapped, and wrapped with protective material to prevent damage during transit. We also offer wooden crates for fragile or heavy sections.Q: Can you supply the plate with pre-drilled holes or countersunk slots?

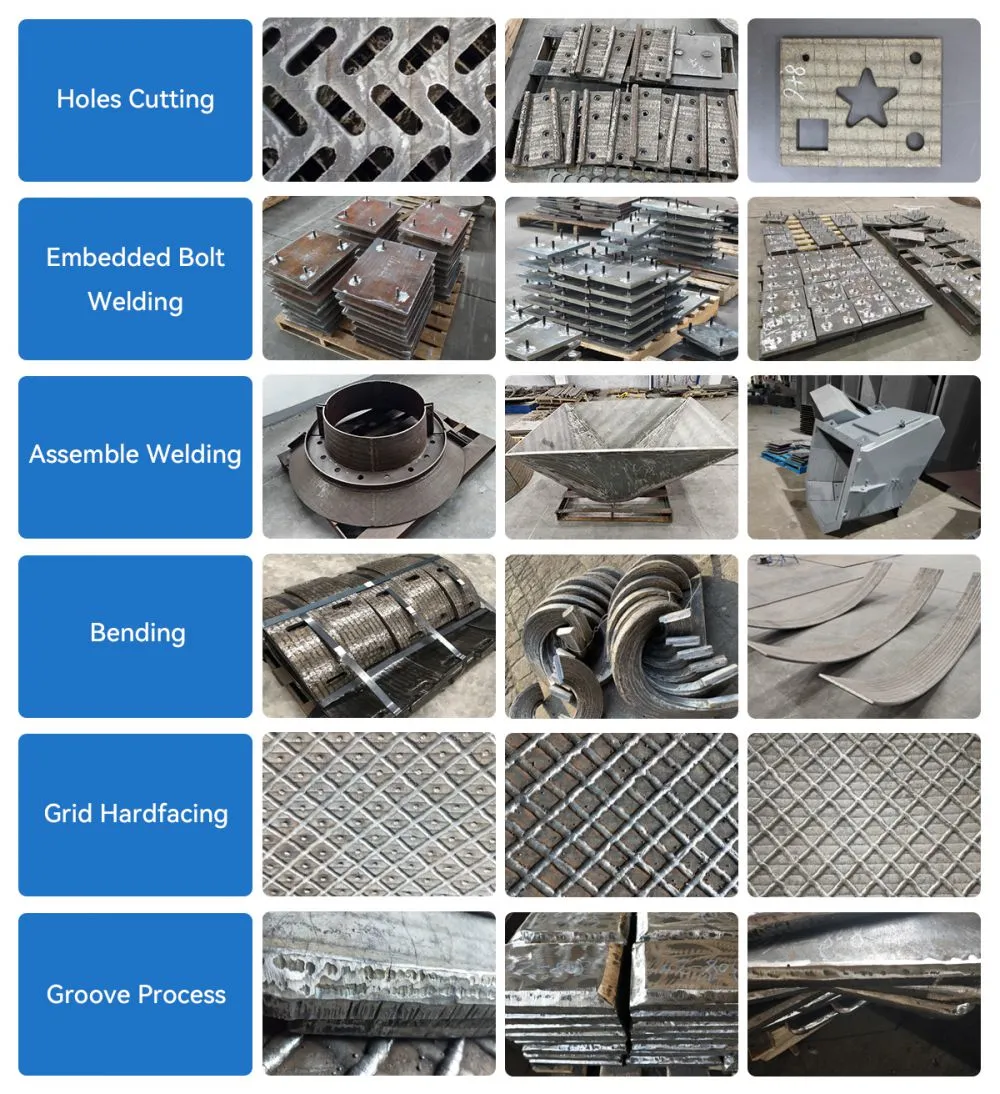

A: Yes, we can customize hole patterns, counterbores, or slots upon request at an additional cost. Please provide a drawing or specification.
