ISO9001 certificated bimetal anti abrasion resistant plate for dragline bucket

FOB Price

99 - 99 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

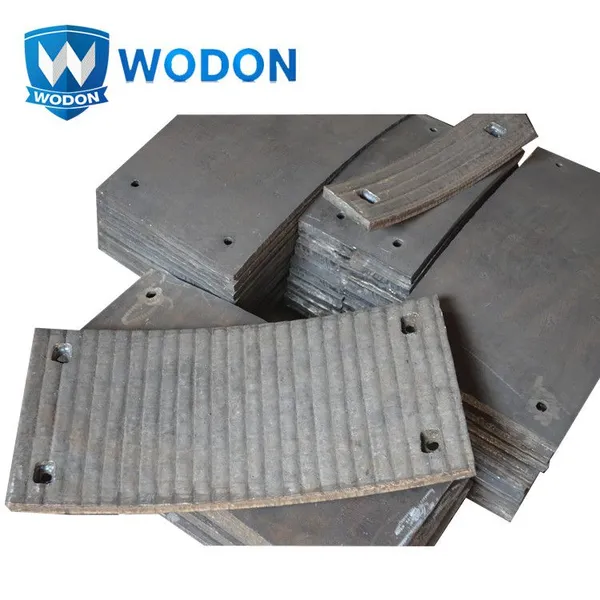

ISO9001 certificated bimetal anti abrasion resistant plate for dragline bucket

WODON Chromium Carbide Overlay Wear Plate, open arc and submerged arc welding.

Product Name	ISO9001 certificated bimetal anti abrasion resistant plate for dragline bucket
Material	Q235/Q345+Chromium carbide overlay
Base metal	Q235/Q345
Hardfacing layer	Chromium carbide overlay
Chemical composition	C: 3.0-5.0% Cr:25-40%
Hardness	HRC58-65
Microstructure	Carbide (Cr7C3)volume fraction above 50%
Wear resistance	High wear/abrasion resistance
Flatness tolerance	±3mm/m
Thickness tolerance	uniform overlay thickness, with tolerance within 0-0.5mm
Impact resistance	Medium
Technology	Hardfacing, open arc welding, submerged arc welding
Plate Size	Open arc welding wear plate: 14003400mm Submerged arc welding wear plate : 14003000mm, 14003500mm, 21003500mm Cusomized sizes
Main thicknesses	3+3,4+4,5+5,6+4,6+5,6+6,8+4,8+5,8+6,8+7,8+8,10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20,12+4,12+5,12+6,12+7,12+8,12+9,12+1,12+11,12+12,14+6,14+8,14+10,16+6,16+8,16+10,18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10, customized thicknesses.

Packing & Delivery

Packing Details : steel pallets or plywood carton and pallets

1. Special logistics package

2. Welding wire 150/200kgs package

3. Welding wire 15kgs vacuum package

4. Welding wire 50kgs package

5. Nude package

6. Complete package

certificates

Our Certifications

&lt;img style="width: 181.5px; height: 256.64px; margin-top: 0px; margin-left: 0px;" src="///kf/HTB1XEqYNXXXXXaoXFXXq6xXFXXXn/228083755/HTB1XEqYNXXXXXaoXFXXq6xXFXXXn.jpg"&gt;

&lt;img style="width: 181.5px; height: 258.81px; margin-top: 0px; margin-left: 0px;" src="/0/1_625_118466_800_1141.jpg"&gt;

&lt;img style="width: 181.5px; height: 258.81px; margin-top: -3px; margin-left: 0px;" src="/0/1_977_118348_800_1141.jpg"&gt;

&lt;img style="width: 181.5px; height: 258.81px; margin-top: -7px; margin-left: 0px;" src="/0/1_764_118082_800_1141.jpg"&gt;

WODON strickly manage and control according ISO management system to assure our products stable performance.

Our Services

Our company has a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer's problems. If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.

Customer Visits

Comments and feedback:

Good quality and flatness is our first sight. After discussing on their booth, our team think we find a better producer with very good and competitive price and quality. One more important thing is their professional, skilled and young technican team.

The Wodon abrasion and impact wear plate samples consisted of a high chromium white iron deposit on a steel substrate. The hard facing microstructure contained typically a high volume percent of primary carbides. The primary carbide sizes were typically less than 25μm in diameter, which was considered good for hard facings of these types.

La fabrica de Wodon nos ha impresionado por el rigor del control de calidad y la organizacion. Los productos tambien presentaron buena performance en nuestros testes y estamos satisfetchos con la parceria que estamos desarrollando.

FAQ

Q: Are you trading company or manufacturer ?

A: We are ISO certified flux cored welding wire and CCO wear plate factory.

Q: Are you able to produce customized chemical composition and dimension?

A: Yes, we could offer special welding wire and wear plate according customers' requirement.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 20~30% T/T in advance, balance against the copy of BOL. Other payment terms are negotiable.

Q: Do you provide after-sales service ?

A: Our company has a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer's problems. If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.
