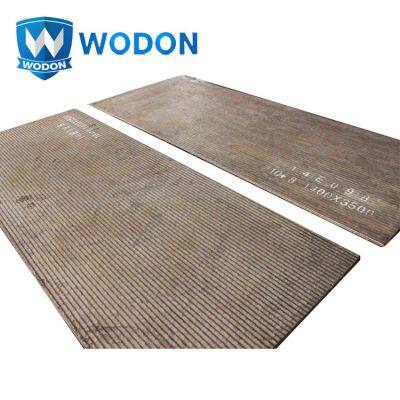

China base plate high impact clad wear resistance hardfacing steel plate transferring chutes

FOB Price

US$ 200 - 200 / Square Meter

1 Square Meter(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Details

Main Features

Wodon wear resistant steel plates are manufactured by welding one or multiple wear resistant layers on a medium or low carbon steel base plate. The capability of our wear resistance steel plate is 5-6 times than the heat-treated steel; 5 times than stainless steel; 5-6 times than high manganese steel; 11 times than 16Mn ( date from normal temperature abrasive wear test ).

We have several equipment to transform our plates: six sets of plasma cutting machine , 4 bending machines and pressing machines, with high processing capacity operated by engineers and technical experts.

Wodon global custom designs wear plate for optimum performace, fit and service life . Wodon can utilize many abrasion resistant materials, from our bi-metal alloy composite wear plate, and chromium carbide overlay plate, and flux cored welding wires.

Wodon specializes in Total wear control. We rebuild worn-out components with high wear material that will outlast new OEM components at a fraction of the cast.

We can provide wear plate cutting, bending, bolting, punching and welding according to customer's drawings.

1.Drilling Holes
Straight holes and Countersunk holes.
2.Bolt embedded welding in the back
Embedding the Pre-processed bolt in the back of wear plate.
3.Bending
Wodon wear plate can be cold formed and made into curve or cone.
4.Welding
Wodon wear plate can be welded and assembled into kinds of wear parts.

China factory base plate high tensible clad wear resistant alloy steel plate

WODON's high strength and abrasion resistant plate

1.Through hardened for long wear life
2.Excellent cold bending & Welding properties
3.Medium impact properties
4.Flat clean, weld bead straight and good flatness
5.High temperature resistance, the maxium temperature is 900℃

Product Parameters

Product Name	China factory base plate high tensible clad wear lessness steel plate
Brand	WODON
Base Plate	Q235/Q345.
Hardness	HRC58-65.
Chemical Composition	C(%): 3.0-5.0 ,Cr(%): 25-40.
Microstructure	The carbide (Cr7C3) volume fraction on the microstructure is above 50%.
Hardfacing layer	High chromium high carbide overlay.
Surface Treatment	Hardfacing, clading, coated.
Technique	Hardfacing, open arc welding, submerged arc welding.
Wear Resistance	High wear resistance,30 times higher than low carbon steel and 12 times than heat treated steel.
Flatness tolerance	±3mm/m.
Thickness tolerance	Uniform overlay thickness, with tolerance within 0-0.5mm.
Main Thicknesses	3+3,4+4,5+5,6+6,6+8,8+4,8+5,8+6,10+10,10+20,12+12,14+10,16+6,18+0,20+20,30+10,40+10, Customized.
Plate Size	Open arc welding wear plate: 14003400mm Submerged arc welding wear plate: 14003000mm,14003500mm, 21003500mm. Customized.
Application	Mining,Steel,Cement,Power,Port,etc.
Place of Origin	China.

Related Products

Wear plate bimetallic chromium carbide overlay.

Wodon multi-layer hardfacing wear resistance steel plate.

Super hardened alloy hardfacing wear resistance plate.

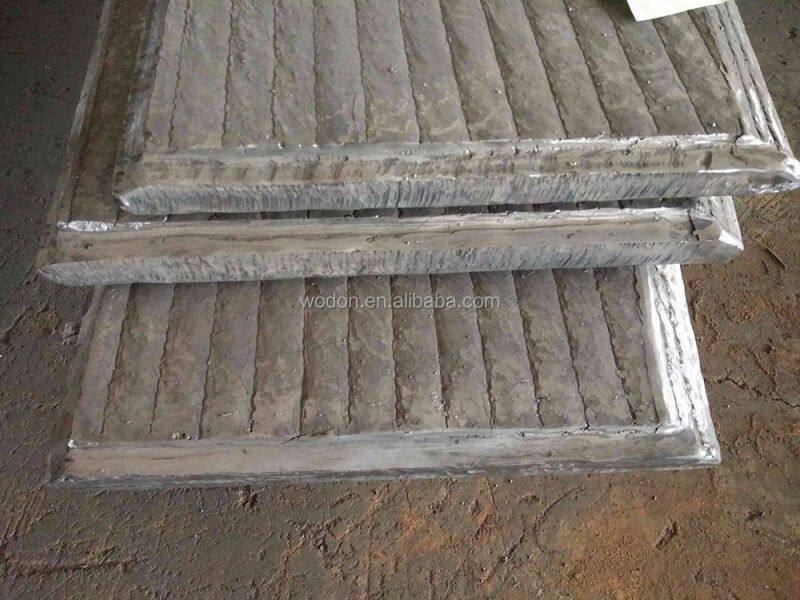

wear resistant overlay weld clad plate

Submerged arc welding wear plate

Seamless wear abrasive plate

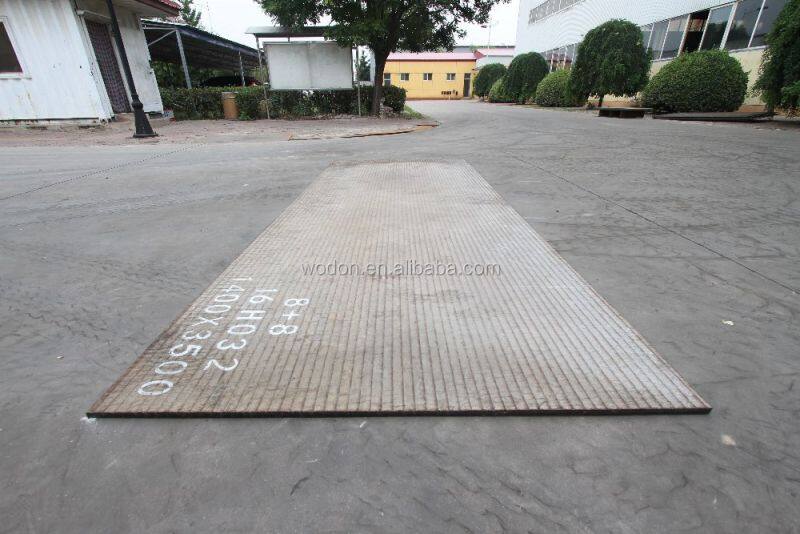

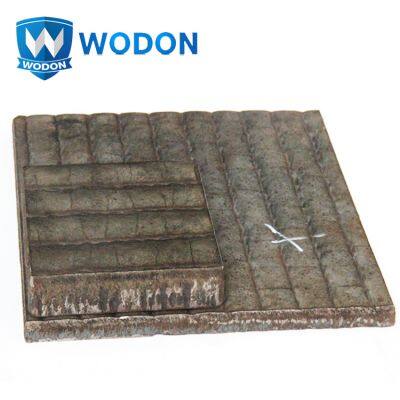

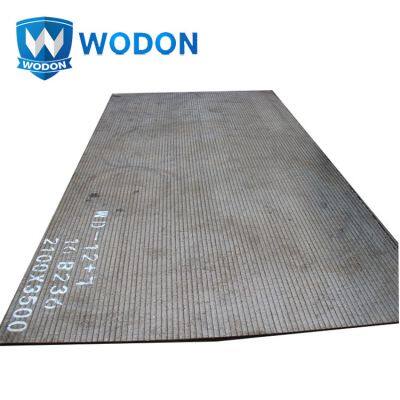

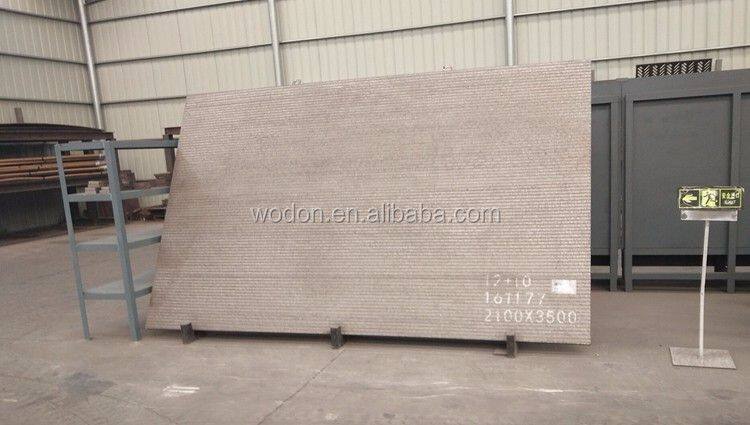

Wear Plate Details

Name: wear resistant steel plate
Brand: WODON
Original: China
Wodon wear plate are manufactured by welding one or multiple abrasion resistant layers on a medium or low carbon steel base plate. The overlay alloy has a high amount of chromium carbide hard particles.

Our Service

Pre-Sales Service

* Inquiry and consulting support
* Free Samples
* View our factory

After-Sales Service

If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.

Packing & Delivery

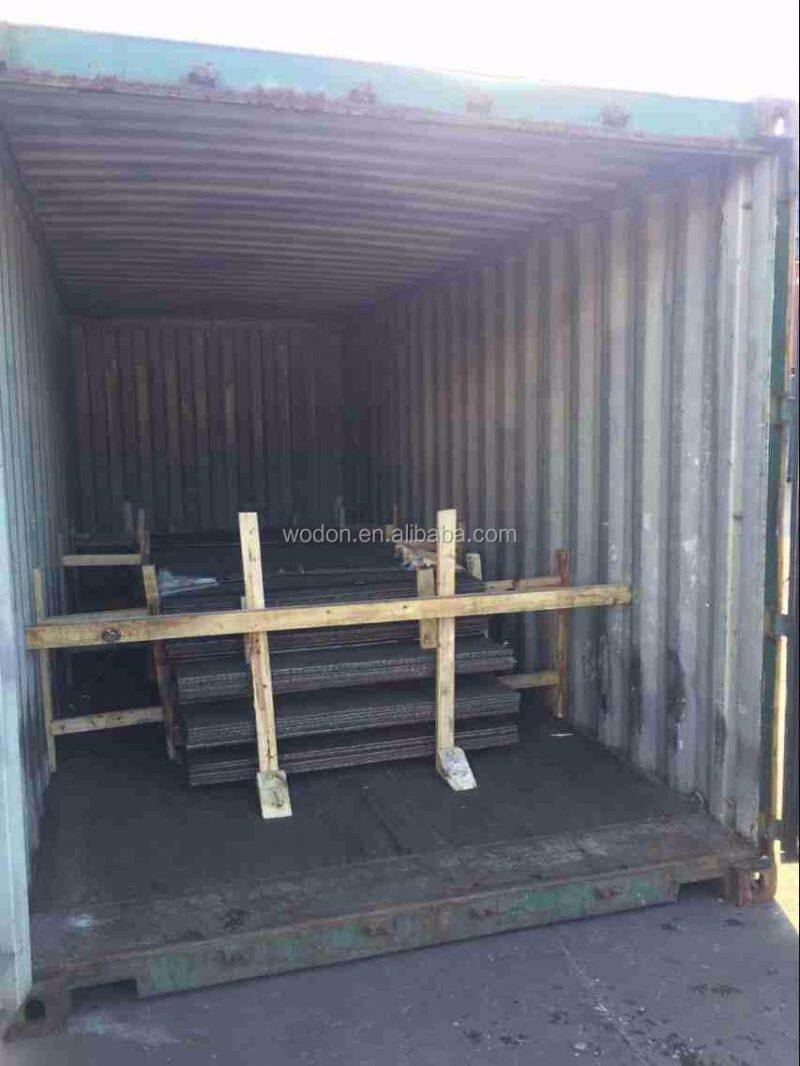

Wear resistant steel plate packing
Wear Plate Size	1.43.4m , 1.4.3.0m , 1.43.5m , 2.13.5m , Customized.
Packaging Details	Steel pallet, Non fumigation pallets , Customized.
Delivery Detail	Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

We use steel pallet, Non fumigation pallets packing the wear plate or plate liners. And we can also make special customized steel pallet according to the customer's drawing. So that not only support our wear plate safely but also easy to transport with.

And We can also paint the wear plate and wear resistant plate liners according to the customer's requirements.

Why Choose Us

Welcome

Jiangsu Wodon Wear Resistant Material Co.,Ltd(CHINA WODON), located in the northern international shipping center TIANJIN. The company possesses many experienced senior engineers who provides professional solutions in high wear and abrasion resistant applications.

Wodon wear plate and welding wires have been widely applied to electric power, cement, mining, iron and steel etc. WODON specializes in total wear control. We rebuild worn-out components with high wear material that will outlast new OEM components at a fraction of the cast. And with our product can increase the using life 3-4 times, reduce the cost of maintenance and save downtime. As well as the company have passed IOS9001, SGS, IAF.

WODON is the leading manufacturer of wear resistant materials in China. In China, many steelworks, cement plants, coal mine plants and so on, buying wear resistant plate, wear resistant flux cored welding wires and wear resistant parts from our company. As well as established a stable relationship of long-term cooperation. Abroad, our products also sold to many countries, "made in China" is not only excellent quality but also high cost performance.

Labratory

As a ISO9001 certified factory, WODON specialize in R&D and manufacturing very good quality hardfacing wires, hardfacing wear plates and pipes, gas shielded welding wires and kinds of wear parts, and have more than 10 years experience in this field.

In the United States, we have specialized laboratories to do wear tests. And in China, we have the inspection report issued by quality inspection center of Harbin welding institute of China academy of machinery science and technology.

Foreign Exhibition

Exhibition in Australia

Wodon's product has a high amount of chromium carbide hard particles on the overlay alloy. And Wodon wear plates are used to make many complex wear parts to be positioned in high wear places.

Exhibition in Chile

WODON is committed to providing high-quality products, willing to work with countries to establish long-term working relationship.

—— President Mr. Zhang

Exhibition in America

Wodon's product has a high amount of chromium carbide hard particles on the overlay alloy. And Wodon wear plates are used to make many complex wear parts to be positioned in high wear places.

Customer visit our factory

Wear Plate Processing Workshop

We use our own developed CNC automatic welding machine with multi welding guns to weld our own hardface wear plate. It is equipped with four welding guns that can work simultaneously to overcome low productivity, poor flatness and overlay falling off, easily caused by single gun.

This is a high automation level machine. Each welding gun can operate independently and restart exactly from the point it had stopped, Simplifying the operation process. Wear plate manufactured by this equipment have many advantages like flat surface, micro and irregular cracks, and uniform hardness being very well accepted by our customers.

And the most advantage is cost saving, so our customer could get good quality and high cost performance wear resistant plate.

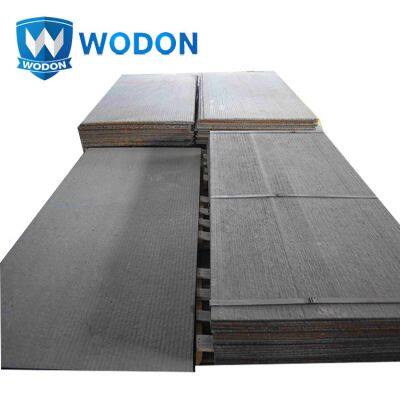

Wear Plate Warehouse

FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer, have our own production line.

Q: What your working time?

A:Monday -- Friday: 8:00AM - 17:00PM(Beijing time, GMT+08.00)

We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday. During these period, if you have a demand, pls contact me by email.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.

Q: What is your terms of payment ?
A:30% T/T in advance ,balance against copy of BL; L/C; D/A; Western Union; MoneyGram, Paypal.

We are doing the best to match your demand.

If you have another question, pls feel free to contact us as below:
