Anping Xinye Metal Wire Mesh Products Co., Ltd, based in the renowned wire mesh industrial hub of Hengshui, Hebei, China, is proud to present our premium Fiberglass Mesh 5x5mm Grid 160g/m² designed specifically for wall reinforcement. With years of manufacturing expertise and a commitment to consistent quality, we supply a reliable solution that enhances the structural integrity of plaster, stucco, and EIFS systems. Our mesh offers excellent tensile strength of 1200N/50mm, ensuring long-lasting performance in both residential and commercial projects.
This fiberglass mesh is woven from high-quality alkali-resistant fiberglass yarns and coated with a specially formulated latex to provide superior resistance against alkali attacks from cement and plaster. The 5x5mm grid size balances optimal reinforcement with easy handling, making it ideal for covering large wall areas without excessive weight. At 160g/m², it delivers the perfect combination of flexibility and rigidity, conforming to irregular surfaces while maintaining its shape during application.
Key Features & Technical Specifications
- Alkali-Resistant Coating: Specially formulated latex protects the fiberglass from degradation in alkaline environments, extending the life of the wall system.
- High Tensile Strength: 1200 N/50mm ensures the mesh can withstand significant stress without tearing, reducing the risk of cracks.

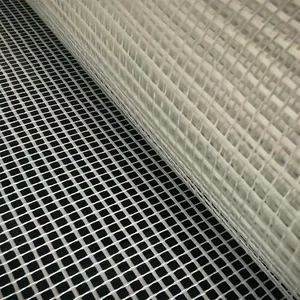

- Uniform Grid Opening: 5x5mm square openings provide consistent reinforcement and allow proper bonding with plaster or adhesive.
- Lightweight & Easy to Install: At 160g/m², the mesh is light enough for one-person installation, yet robust enough for heavy-duty applications.
- Flexible & Conformable: Easily wraps around corners, curves, and architectural details without creating bulges.
- Customizable Dimensions: Available in various widths (1m, 2m) and roll lengths (50m, 100m, or as requested) to suit project needs.
- Color Options: Standard white, blue, or green; custom colors possible for identification.
| Parameter | Value |
|---|---|
| Mesh Size | 5mm x 5mm |
| Weight per Square Meter | 160 g/m² |
| Tensile Strength (Warp & Weft) | ≥1200 N/50mm |
| Alkali Resistance | Pass (tested in Ca(OH)₂ solution) |
| Roll Width | 1m, 2m (customizable) |
| Roll Length | 50m, 100m (customizable) |
| Color | White, Blue, Green (custom) |
Benefits for Your Projects
- Crack Prevention: The mesh distributes stress evenly across the wall surface, minimizing the appearance of hairline cracks.
- Enhanced Adhesion: The open grid structure ensures a strong mechanical bond between plaster and the substrate.
- Thermal and Acoustic Insulation: When used in EIFS, the mesh helps hold insulation boards in place, improving energy efficiency.
- Fire Resistance: Fiberglass is inherently non-combustible, adding a layer of safety to the building envelope.
- Cost-Effective: Reduces the need for costly repairs by providing long-term reinforcement.
Our manufacturing process follows strict quality control standards, from raw fiberglass selection to final coating. Each roll is inspected for uniform mesh opening, weight consistency, and tensile strength before packaging. We can also provide samples for testing upon request.
Anping Xinye Metal Wire Mesh Products Co., Ltd leverages its location in the famous 'Wire Mesh Capital of China' to source high-quality materials and maintain competitive pricing. Our team has extensive experience in exporting fiberglass mesh to markets across Europe, America, Southeast Asia, and the Middle East. We prioritize customer satisfaction with flexible customization, timely delivery, and responsive after-sales support. By choosing our fiberglass mesh, you are investing in a product that has been trusted by contractors and builders worldwide for wall reinforcement and plastering applications.
We invite you to contact us for detailed product specifications, pricing, or sample requests. Whether you need a small quantity for a renovation project or bulk orders for a large construction site, we are ready to meet your requirements. Let us help you achieve stronger, more durable walls with our reliable fiberglass mesh solution.
Frequently Asked Questions
Q1: Can this mesh be used for external wall insulation systems (EIFS)?
A: Yes, our 5x5mm 160g/m² fiberglass mesh is specifically designed for EIFS and external wall insulation. Its alkali-resistant coating ensures long-term durability in cement-based systems.
Q2: What is the maximum temperature resistance of the mesh?
A: Fiberglass mesh can withstand temperatures up to approximately 550°C (1022°F) without melting. However, the latex coating may degrade at high temperatures, so it is recommended for use in standard building environments.
Q3: How do I cut the mesh to size?
A: The mesh can be easily cut with scissors or a utility knife. We recommend cutting 10-15cm larger than the area to allow for overlap at joints.
Q4: Is the mesh resistant to mold and mildew?
A: Fiberglass is inorganic and does not support mold growth. The latex coating is also formulated to resist moisture, but proper installation and drainage are still important to avoid water entrapment.
Q5: Can I use this mesh for floor heating systems?
A: While primarily designed for wall reinforcement, it can be used in thin-layer floor screeds. However, for heavy-duty floor applications, a heavier mesh weight (e.g., 200g/m²) is recommended. Please consult our technical team for specific advice.
Q6: What is the minimum order quantity (MOQ)?
A: Our MOQ for standard rolls is 10,000 square meters (e.g., 200 rolls of 50m² each). For sample orders or custom sizes, MOQ may vary. Please contact us for details.
Q7: How is the mesh packaged for shipping?

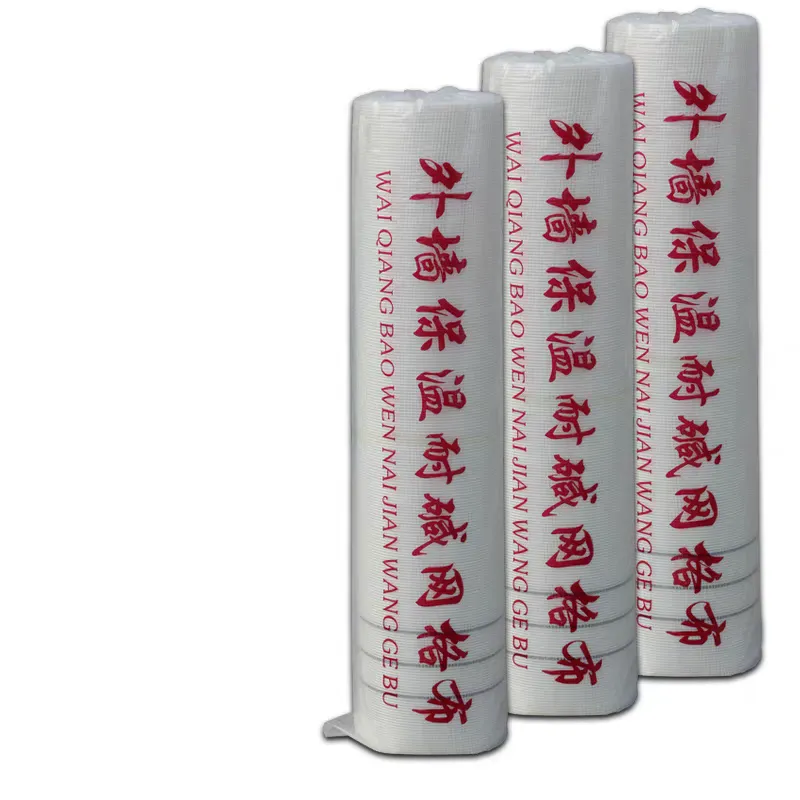

A: Each roll is wrapped in a plastic bag and then packed in cartons or pallets, depending on order quantity. We ensure proper protection to prevent damage during transit.
Q8: Do you offer technical support for installation?
A: Yes, our experienced team can provide installation guidelines and answer any questions. We also offer free samples for you to test before placing a bulk order.
