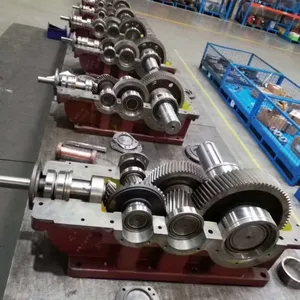

Jiangsu Manqi Machinery Co., Ltd., a professional manufacturer based in Suzhou, Jiangsu, China, proudly presents the DCY Series Bevel Cylindrical Gear Reducer (models DCY400 to DCY630). With our factory spanning 10,000–30,000 square meters and a dedicated team of 11–50 experienced employees, we have been delivering reliable heavy-duty industrial gearboxes since 2017. This gearbox series combines a spiral bevel gear stage with a cylindrical gear stage, offering exceptional torque density, smooth operation, and long service life for the most demanding applications. Whether you need a robust solution for cement mills, mining conveyors, or steel processing equipment, the DCY series is engineered to meet your requirements.
Key Features and Technical Benefits
High Load Capacity: The bevel-cylindrical gear design allows for efficient power transmission with high torque output, ideal for heavy-duty industrial environments.
Hardened and Ground Gears: All gears are made from high-strength alloy steel, carburized, hardened, and precision ground to ensure durability, low noise, and minimal wear.
Modular Construction: Multiple housing configurations and mounting options (horizontal, vertical, foot-mounted, flange-mounted) provide flexibility for various installation layouts.
Efficient Lubrication System: Splash lubrication or forced oil circulation (optional) ensures stable operation and heat dissipation even under continuous heavy loads.
Compact and Rigid Housing: The cast iron or welded steel housing is designed to withstand high radial and axial loads, reducing vibration and extending equipment life.
Easy Maintenance: Accessible inspection covers, oil drain plugs, and breather valves simplify routine checks and oil changes, minimizing downtime.
Technical Specifications (Typical Range)
| Parameter | Value |
| Models | DCY400, DCY450, DCY500, DCY560, DCY630 |
| Ratio Range | 25:1 to 315:1 (custom ratios available upon request) |
| Power Range | 300 kW – 3000 kW |
| Input Speed | ≤ 1500 rpm |
| Output Torque | Up to 200 kNm (depending on ratio and model) |
| Mounting Position | Horizontal or vertical (customizable) |
| Gear Material | 20CrMnTi or equivalent, carburized & hardened |
Why Choose Jiangsu Manqi Machinery?
Since 2017, we have focused on manufacturing high-quality gear reducers for global markets including Eastern Europe, Southeast Asia, Africa, and South Asia. Our 10,000+ m² facility is equipped with advanced gear cutting, heat treatment, and testing equipment. Every DCY series gearbox undergoes rigorous quality checks – from raw material inspection to final load testing – to ensure consistent performance and reliability. We understand that heavy industrial operations demand zero downtime, so we design our gearboxes for easy maintenance and long service intervals. Our team of skilled engineers can also provide customized solutions for specific speed ratios, torque requirements, or special mounting configurations. With competitive pricing, timely delivery from Shanghai port, and responsive after-sales support, we are your trusted partner for industrial gear drives.
Frequently Asked Questions (FAQ)
Q: What is the typical lead time for DCY series gearboxes?
A: Lead time depends on the model and quantity. For standard sizes, it is usually 30–45 days after order confirmation. Custom orders may require additional time.Q: Can the gearbox be used in vertical shaft applications?
A: Yes, the DCY series supports both horizontal and vertical mounting. For vertical installations, an optional oil pump and special sealing arrangements are recommended.Q: What type of lubricant should be used?
A: We recommend using mineral-based gear oils (ISO VG 220–460) depending on ambient temperature and load conditions. Full synthetic oil is optional for extreme temperatures.Q: Is the gearbox reversible?
A: Yes, the DCY series can operate in both directions. However, for applications with frequent reversing, please consult our technical team for additional precautions.Q: What is the maximum ambient temperature for operation?
A: The standard design allows operation from -10°C to +40°C. For higher temperatures, special seals and synthetic lubricants can be supplied.Q: Do you provide spare parts?
A: Yes, we offer comprehensive spare parts including seals, bearings, and gears. It is recommended to keep a set of critical spare parts for quick replacement.Q: Can the gearbox be customized for special output shaft configurations?
A: Yes, we can customize the output shaft size, keyway, and flange dimensions according to your equipment interface. Please provide your drawings for evaluation.Q: How do you ensure quality control?
A: We follow a strict quality management system: incoming material inspection, gear accuracy testing (DIN/AGMA standards), assembly run-in, and final load test with noise/vibration measurement. Each unit is issued a test report.
Contact Jiangsu Manqi Machinery Co., Ltd. today for a quotation or technical consultation. Our team is ready to help you select the right DCY series gear reducer for your heavy-duty application. We look forward to a long-term partnership!
