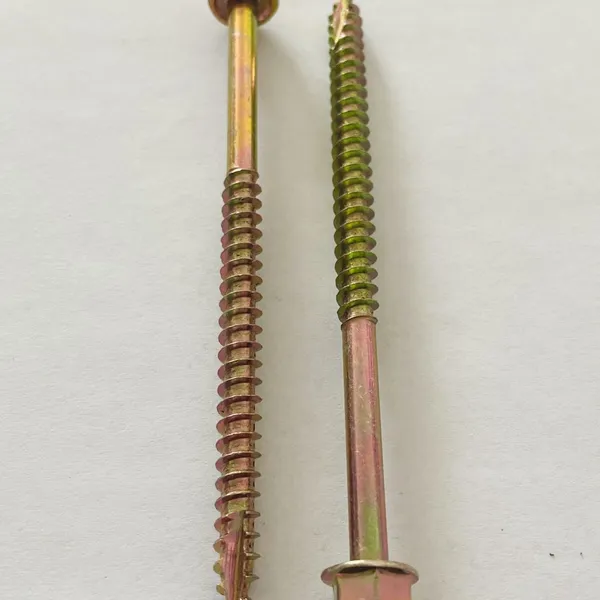

Help CenterHex Washer Head Thread-Cutting Self-Tapping Screw
Product Spotlights
Related Products
-
Wafer Head Phillips Thread-Cutting Self-Tapping ScrewNegotiableMOQ: 1000 Pieces -
Large Flat Head Phillips Drive Self-Tapping Screw MetricNegotiableMOQ: 1000 Pieces
-
Nickel-Plated DIN 7982 Countersunk Phillips Tapping ScrewNegotiableMOQ: 1000 Pieces
-
Copper-Plated Pan Head Combination Drive Self-Tapping Screw, Metric ThreadNegotiableMOQ: 1000 Pieces
-
Hex Washer Head Self-Tapping ScrewNegotiableMOQ: 1000 Pieces
The Hex Washer Head Thread-Cutting Self-Tapping Screw represents a significant advancement in fastening technology, specifically designed to overcome the limitations of standard thread-forming screws. While traditional self-tapping screws displace material to create threads—often leading to high internal stress and potential cracking in brittle substrates—thread-cutting screws operate on a fundamentally different principle. Equipped with a specialized "cutting tail", these screws feature one or more flutes or slots at their tip. As the screw is driven into a pre-drilled pilot hole, these cutting edges act like a tap, actively cutting and removing material chips to form a perfectly mating thread. This mechanism significantly reduces the required driving torque and minimizes radial stress, making them the ideal choice for fastening into hard, brittle, or thick materials where standard self-tapping screws would fail or cause damage.
The superior performance of this fastener is rooted in its meticulous technical design. The Hex Washer Head combines the high-torque transmission capabilities of a hexagon head with the load-distributing benefits of an integrated washer flange. This design prevents the screw head from crushing into the mating surface and provides a larger bearing area, ensuring a secure, vibration-resistant joint. The primary drive is an external hex, which allows for positive, slip-free engagement with a socket or wrench, enabling the application of high installation torque. The screw features a machine screw thread pitch that provides excellent holding power. The defining feature is the cutting tail (commonly designated as Type F, Type 1, Type 23, or Type 25 depending on the specific flute geometry). Type F, for instance, features a blunt taper with multiple cutting edges and chip cavities. As the screw advances, these edges shear the material, and the cavities provide an escape route for the resulting chips, ensuring a clean, precise thread is cut into the substrate.
To meet the diverse demands of industrial applications, these screws are manufactured from premium materials and offered with various surface treatments. Carbon Steel (Case Hardened) is typically AISI 1016-1024 or equivalent, case-hardened to provide a tough, wear-resistant cutting edge while maintaining a ductile core to prevent brittle failure under load. Stainless Steel is available in 410 Martensitic (heat-treatable for high strength and cutting ability), as well as 304 (A2) and 316 (A4) Austenitic grades for superior corrosion resistance in harsh environments. Surface treatments include Zinc Plating for excellent sacrificial corrosion protection, Black Oxide for a sleek dark finish, Passivation for stainless steel to maximize corrosion resistance, and Advanced Coatings (e.g., Ruspert, Dacromet) for extreme environments.
Our Hex Washer Head Thread-Cutting Screws are manufactured in strict accordance with internationally recognized standards to ensure consistency, reliability, and interchangeability. They comply with ASME B18.6.4 (for imperial sizes) and DIN 7513 (for metric sizes), which dictate the precise dimensions of the head, threads, and cutting point. We offer a comprehensive size range: Metric sizes typically range from M3 to M10, while imperial sizes span from #4 to 3/8". Lengths are available from 1/4" (6mm) up to 2" (50mm) or more.
The unique properties of thread-cutting screws make them indispensable across a wide range of industries. They are used in Automotive and Transportation for securing components to cast engine blocks; in HVAC and Sheet Metal Fabrication for joining thick sheet metal ducts; in Electronics and Appliances for fastening components to die-cast aluminum or hard thermosetting plastics; and in Heavy Machinery and Equipment. Proper installation requires a pre-drilled pilot hole, a controlled driving speed, and appropriate torque limits. Choosing our Hex Washer Head Thread-Cutting Screws eliminates tapping operations, prevents material damage, offers superior holding power, and provides exceptional versatility and reliability.
